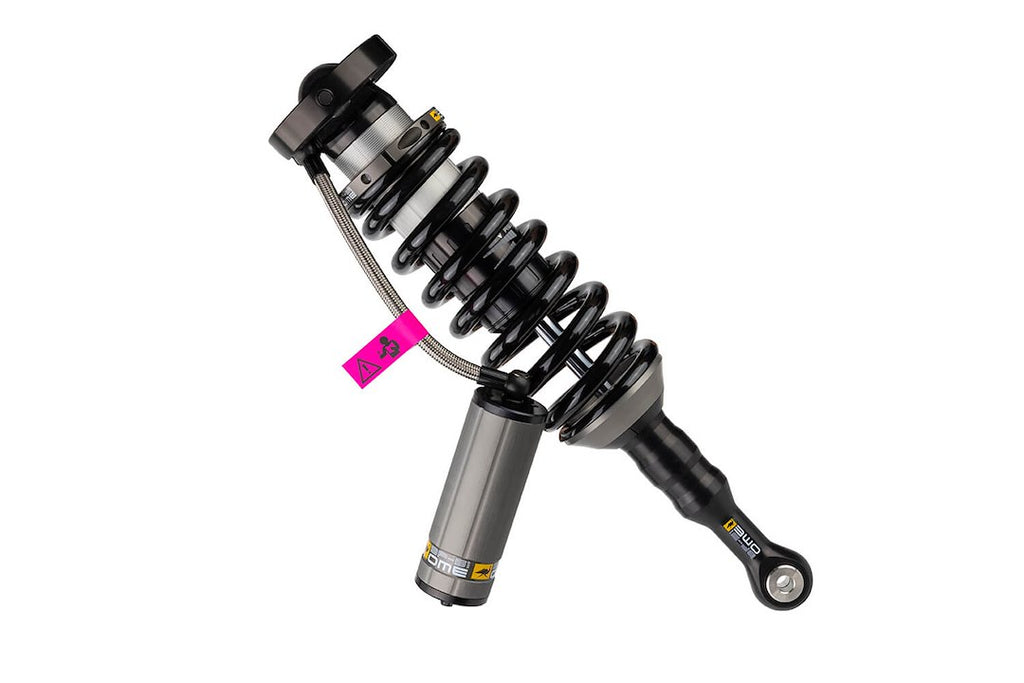

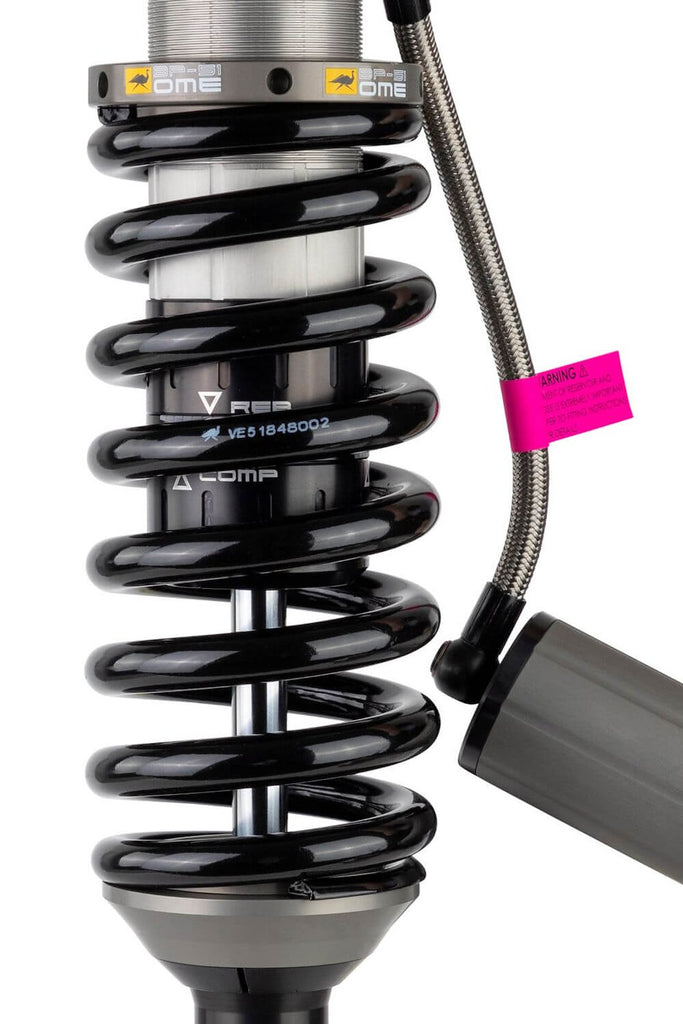

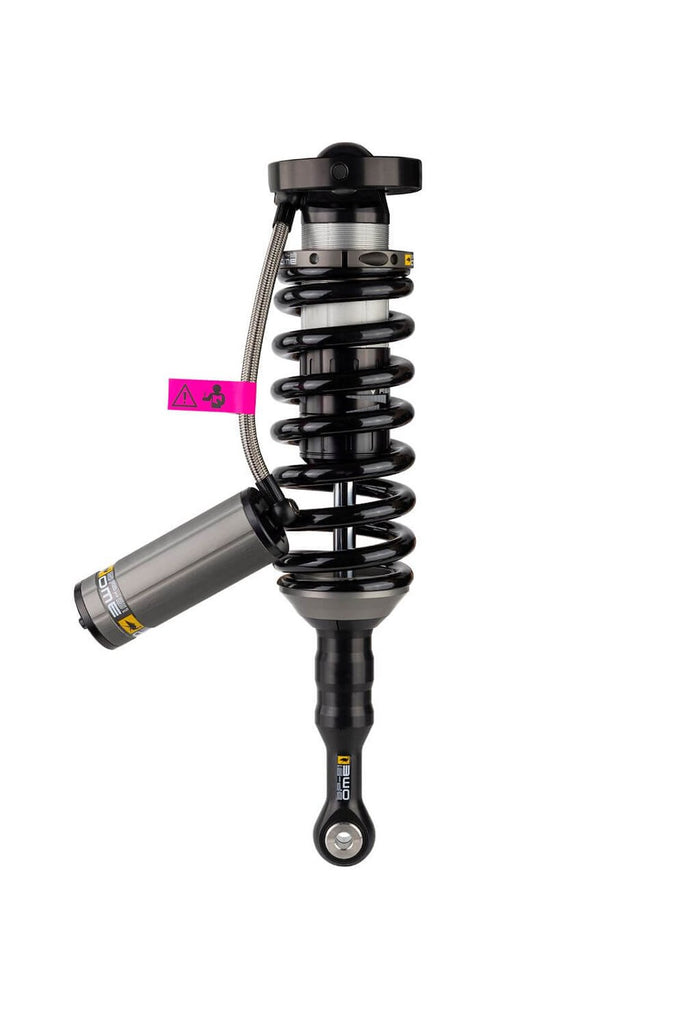

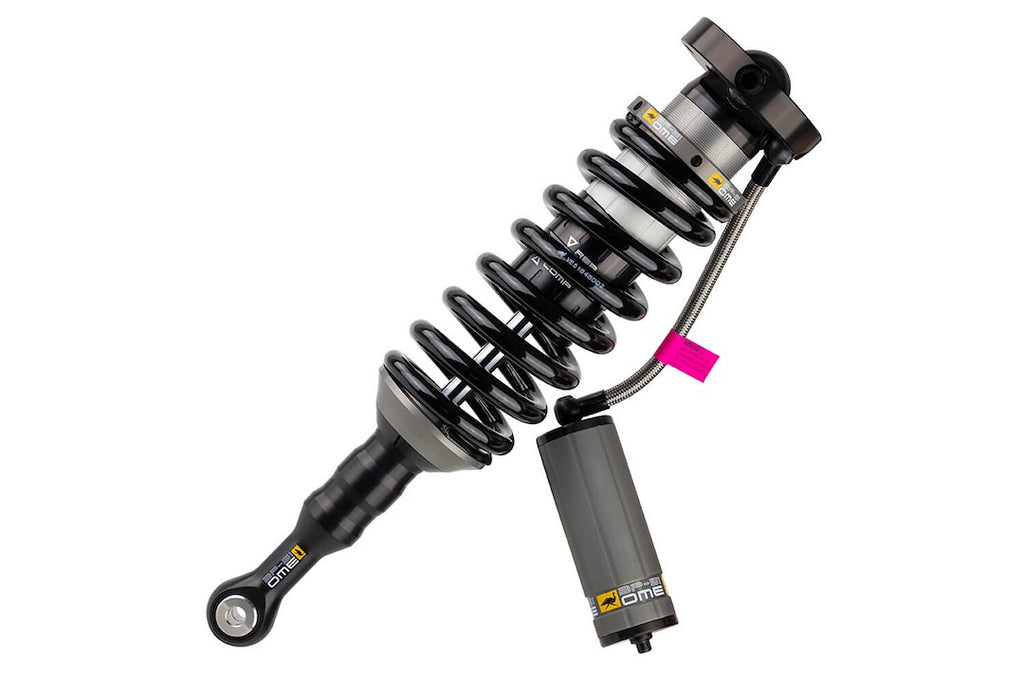

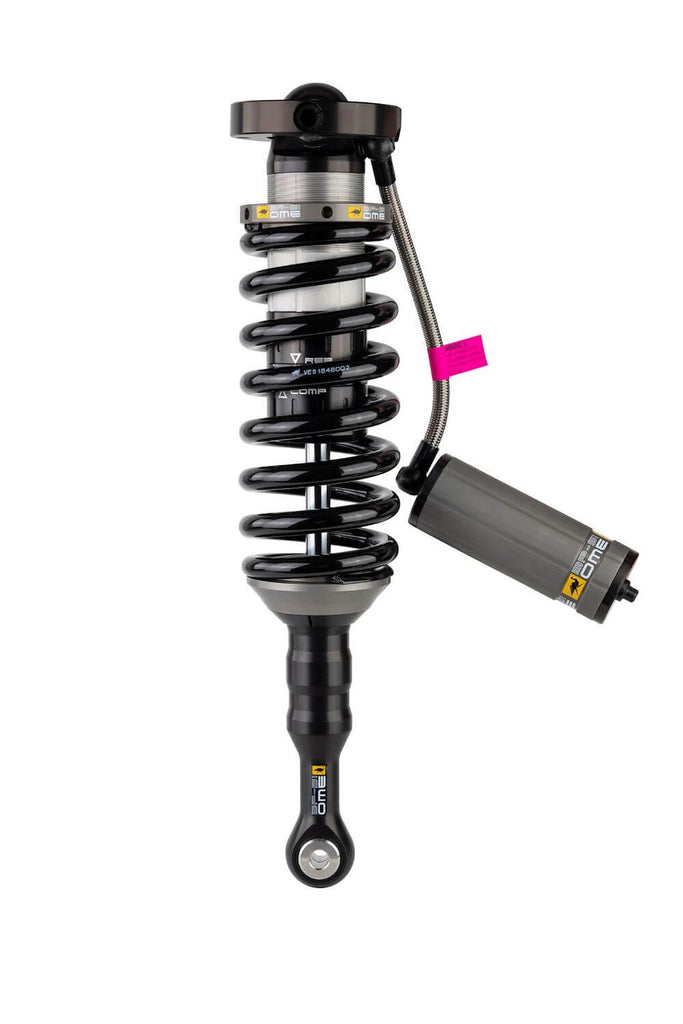

ARB Coil Over Shock Absorber (MPN: BP5190002R)

Advanced shock absorber with independent compression and rebound adjustment for optimal performance.

The ARB Coil Over Shock Absorber is engineered for high performance and durability, featuring a unique design that allows for independent adjustment of both compression and rebound. This capability enables users to customize their ride experience based on specific vehicle needs and trip conditions. The shock absorber is constructed from 661 T6 aluminum, ensuring excellent heat dissipation and corrosion resistance, which contributes to its longevity and reliability in various environments.

Incorporating kidney bypass ports, this shock absorber maximizes oil flow and tunability, allowing for enhanced control and comfort at ride height. The internal bypass system is shim controlled and position sensitive, providing increased damping as the vehicle approaches its limits. Additionally, the shock features a high-quality X5K grade steel coil and an impact-resistant, replaceable shaft guard to protect against damage from debris.

Designed for easy installation, the ARB Coil Over Shock Absorber utilizes existing mounting locations, eliminating the need for modifications. With a rebuildable and re-valveable design, this shock absorber offers the flexibility to adapt to changing performance requirements, making it a versatile choice for off-road enthusiasts.

Features

• Kidney Bypass Ports: Maximum Bore Size And Bypass Diameter, Greater Oil Volume, More Tunable And Ability To Generate Force
• External Compression And Rebound Adjustment: Independent Adjustment Of Compression And Rebound, Adjustable While Installed On The Vehicle
• Body/Reservoir/Components 661 T6 Aluminum: Heat Dissipation, Corrosion Resistance
• Internal Bypass, Shim Controlled, Position Sensitive Damping: Provides Comfort At Ride Height, Damping Increases As You Get Closer To The End Zone, Increased Control At End Zones
• Dash 6 High Temperature Teflon Hose With High Flow Fittings: No Restriction Of Oil Flow
• High Quality X5K Grade Steel Coil
• Impact Resistant, Replaceable Shaft Guard: Protects Against Stone Damage
• 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
• High Performance, High Viscosity Index Oil: Durability And Consistency Of Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190002R
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 3 Inch Lift
• Extended Height (IN): 21.45 Inch
• Compressed Height (IN): 17.28 Inch
• Quantity: Single
• Valving Type: Compression And Adjustable Rebound Valving
• Shock Type: Coil Spring
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Style: Single Flat End
• Spring Color: Black
• Spring Material: Aluminum

Compatibility / Fit

• 2010-2014 Toyota FJ Cruiser
