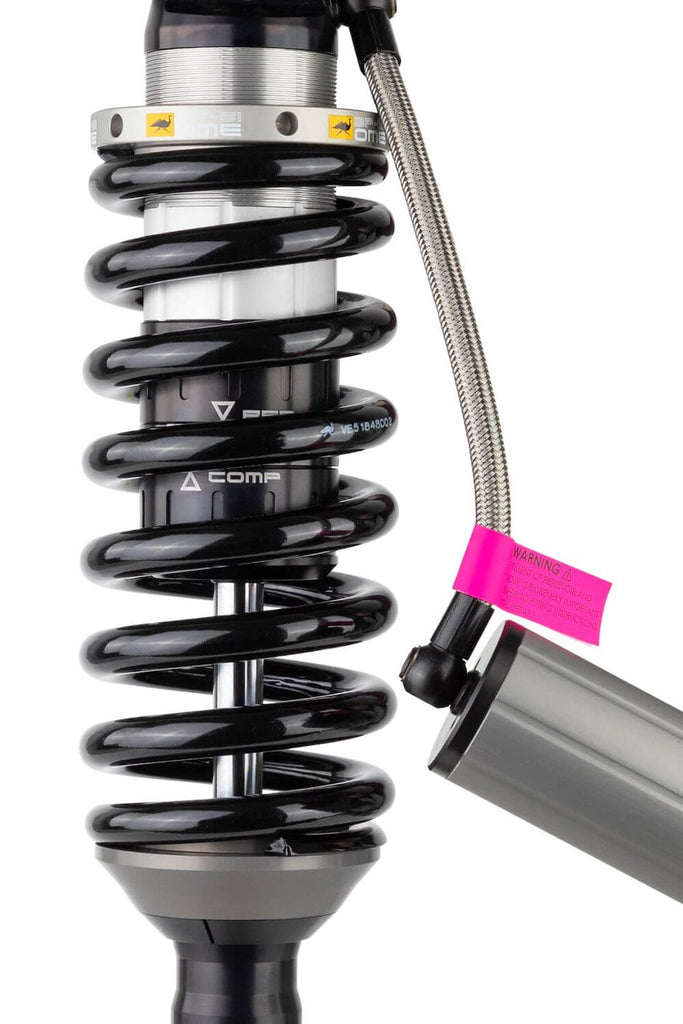

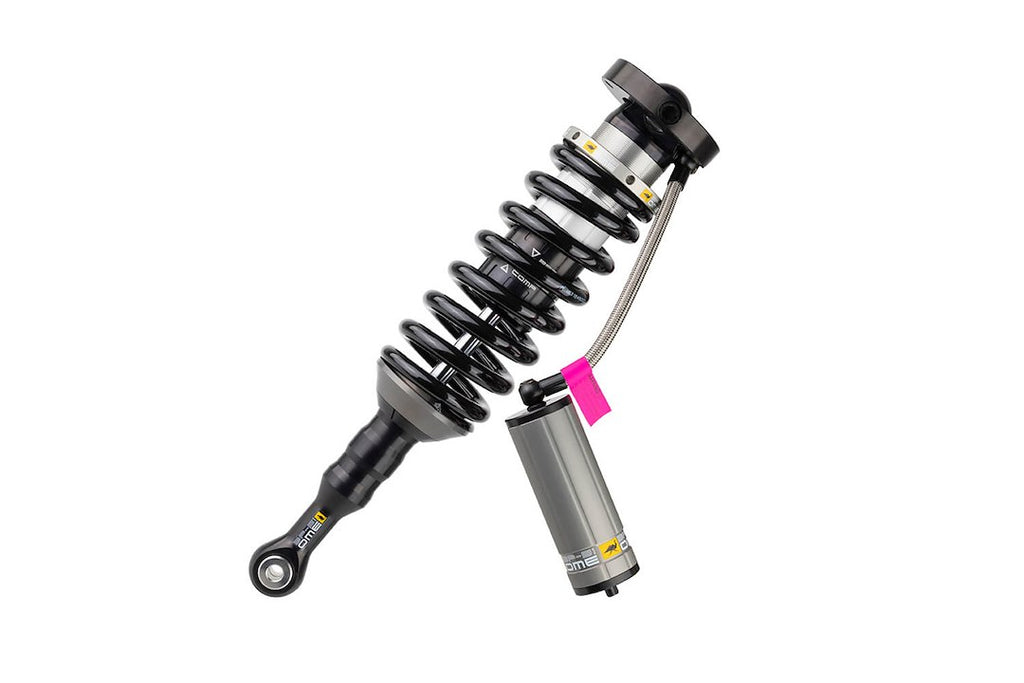

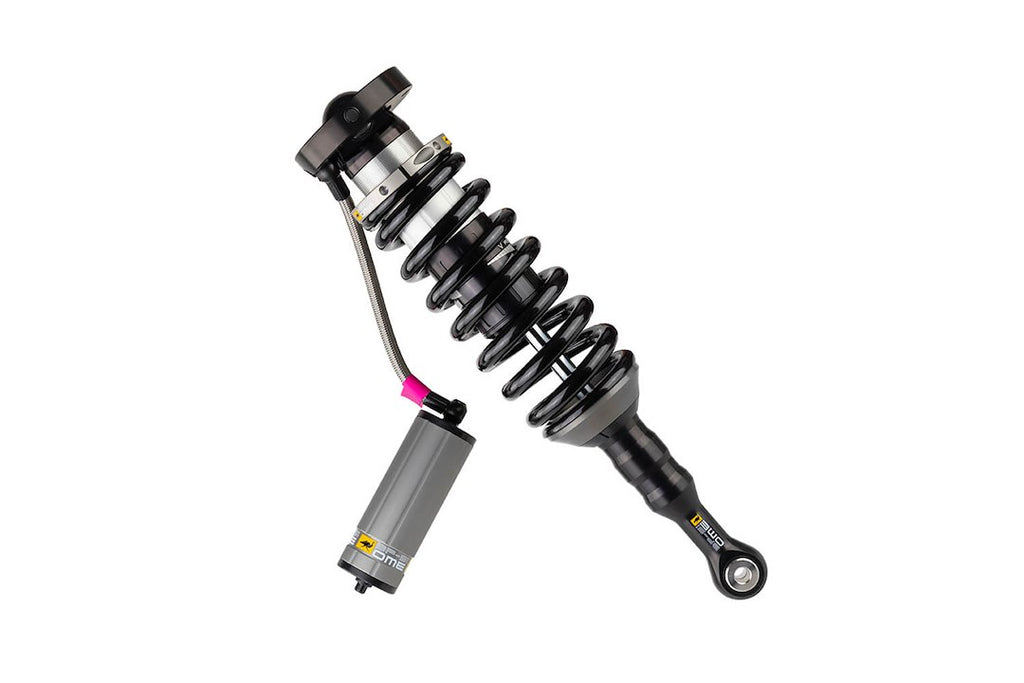

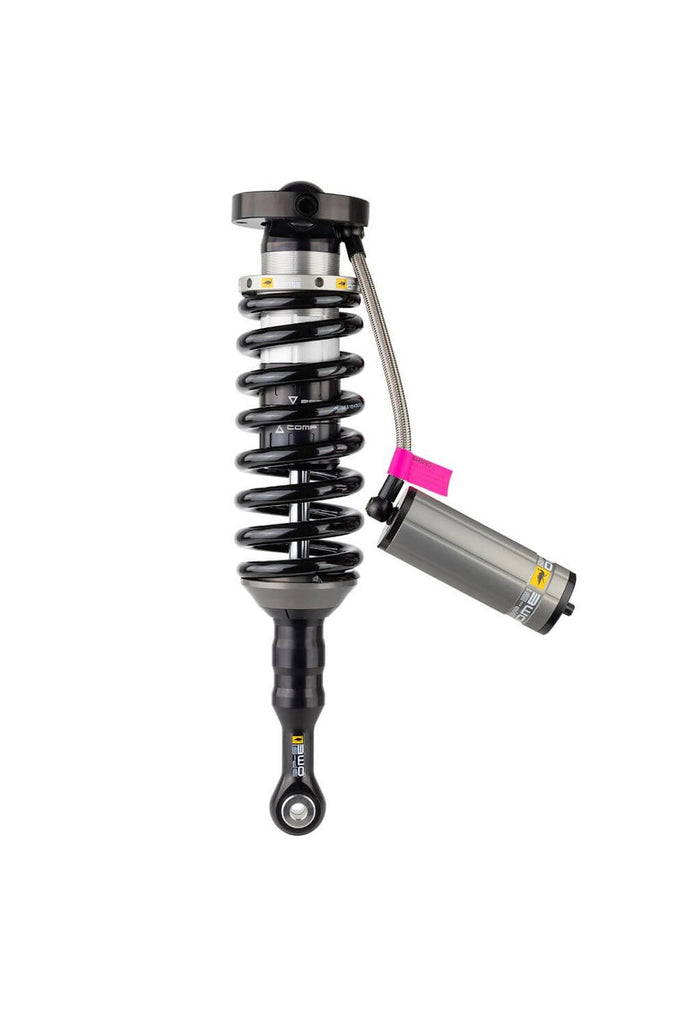

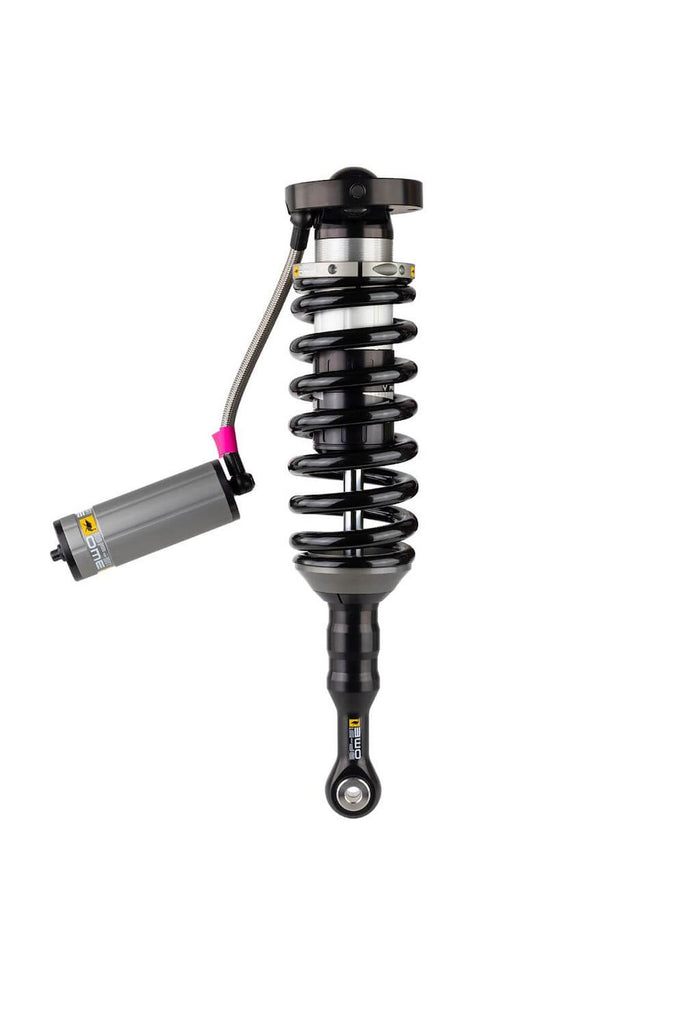

ARB Coil Over Shock Absorber (MPN: BP5190002L)

Advanced shock absorber with independent compression and rebound adjustment for superior ride quality.

The ARB Coil Over Shock Absorber is engineered for high performance and durability, featuring a unique design that allows for independent adjustment of both compression and rebound. This innovative shock absorber is developed by ARB's Old Man Emu ride engineers, ensuring vehicle-specific compatibility and easy installation without modifications. The shock absorber utilizes kidney bypass ports for enhanced oil flow and tunability, providing a customizable ride experience tailored to various driving conditions.

Constructed from 661 T6 aluminum, the shock body and reservoir offer excellent heat dissipation and corrosion resistance, contributing to the longevity of the product. The internal bypass system features shim-controlled, position-sensitive damping, which enhances comfort at ride height while increasing control as the vehicle approaches its limits. Additionally, the shock absorber is equipped with a high-quality X5K grade steel coil and an impact-resistant, replaceable shaft guard to protect against damage.

With a high viscosity index oil, the ARB Coil Over Shock Absorber ensures consistent performance across a range of temperatures. The design allows for easy re-buildability and re-valveability, making it a practical choice for those seeking a long-lasting and tunable suspension solution. This shock absorber is suitable for various applications, providing a significant upgrade in ride quality and control.

Features

• Kidney Bypass Ports: Maximum Bore Size And Bypass Diameter, Greater Oil Volume, More Tunable And Ability To Generate Force
• External Compression And Rebound Adjustment: Independent Adjustment Of Compression And Rebound, Adjustable While Installed On The Vehicle
• Body/Reservoir/Components 661 T6 Aluminum: Heat Dissipation, Corrosion Resistance
• Internal Bypass, Shim Controlled, Position Sensitive Damping: Provides Comfort At Ride Height, Damping Increases As You Get Closer To The End Zone, Increased Control At End Zones
• Dash 6 High Temperature Teflon Hose With High Flow Fittings: No Restriction Of Oil Flow
• High Quality X5K Grade Steel Coil
• Impact Resistant, Replaceable Shaft Guard: Protects Against Stone Damage
• 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
• High Performance, High Viscosity Index Oil: Durability And Consistency Of Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190002L
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 3 Inch Lift
• Extended Height (IN): 21.45 Inch
• Compressed Height (IN): 17.28 Inch
• Quantity: Single
• Valving Type: Compression And Adjustable Rebound Valving
• Shock Type: Coil Spring
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Color: Black
• Spring Material: Aluminum

Compatibility / Fit

• 2010-2014 Toyota FJ Cruiser

Technical Documents

• FI_VM90010035_BP-51_4Runner_Gen5_Front_RevB.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
