Advanced shock absorber with independent compression and rebound adjustment for superior control.

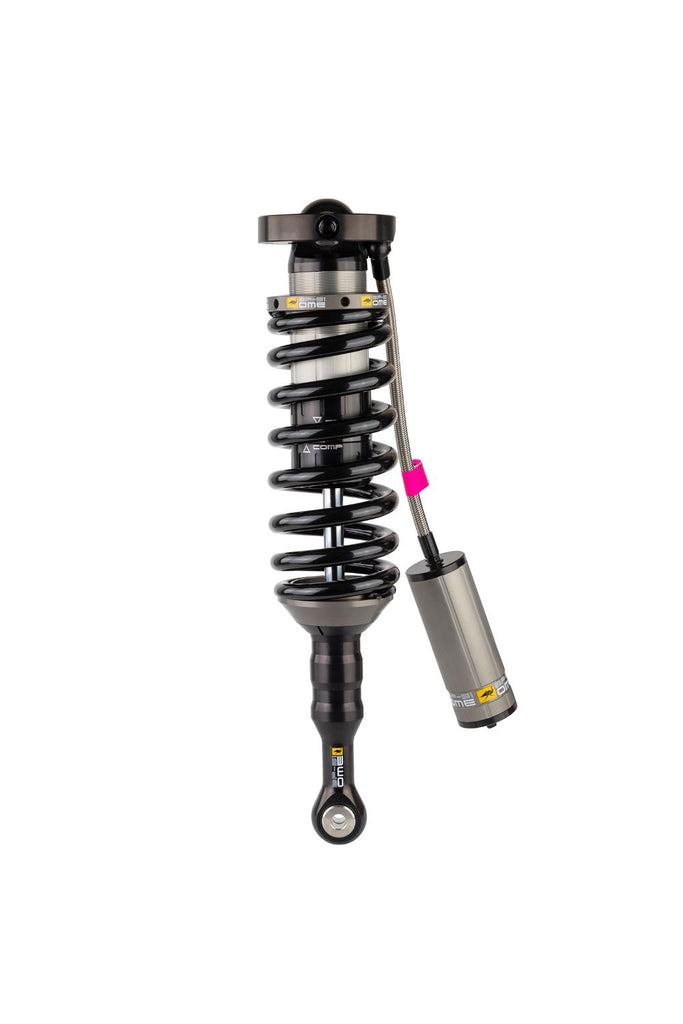

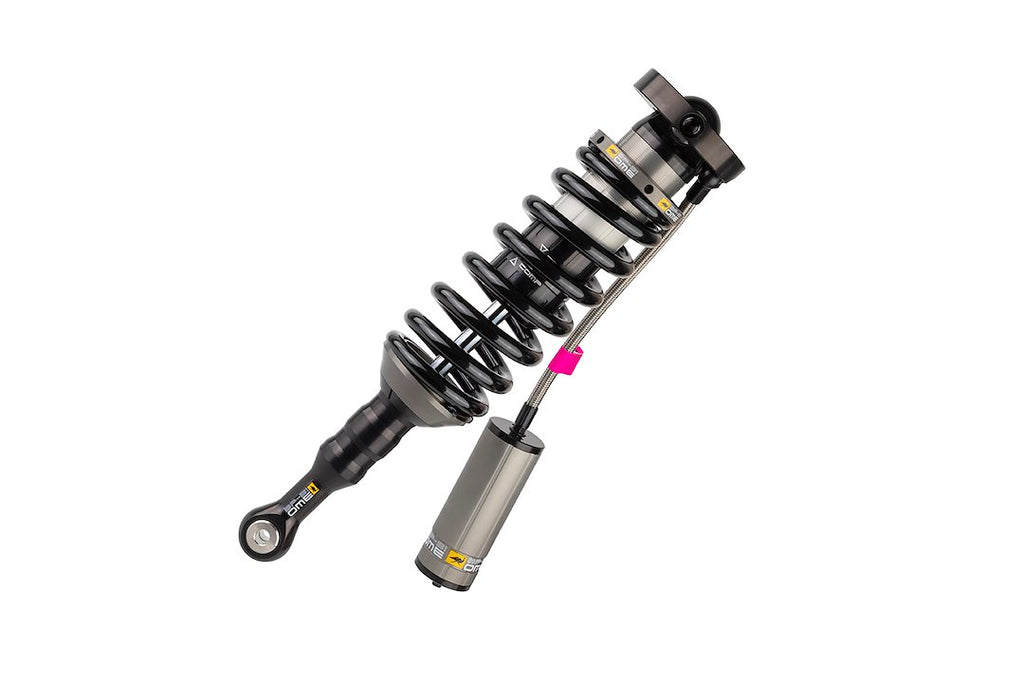

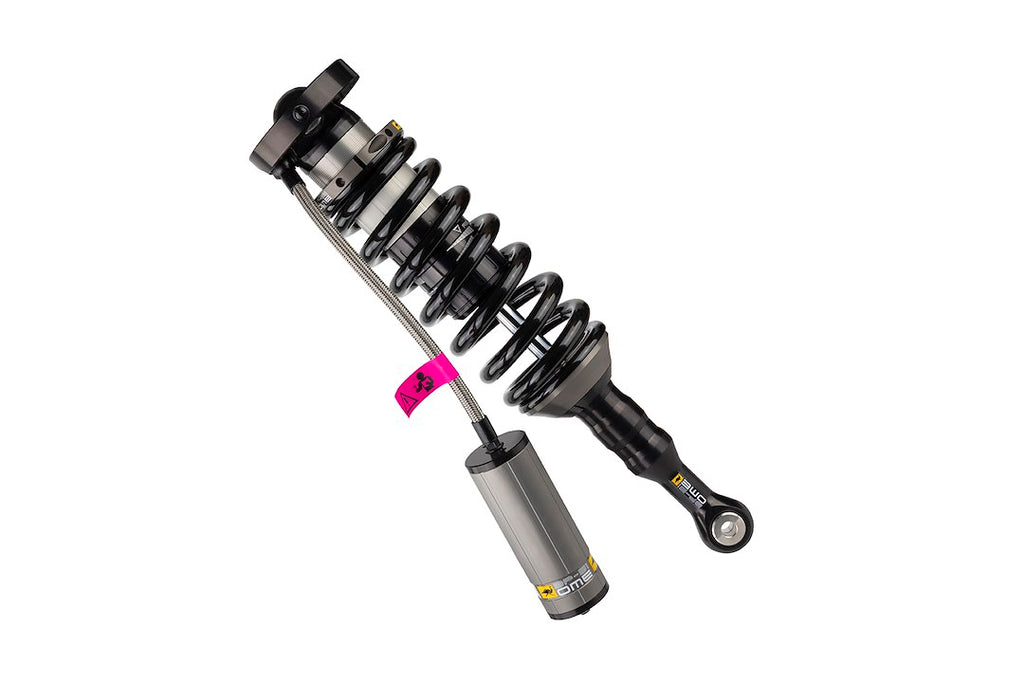

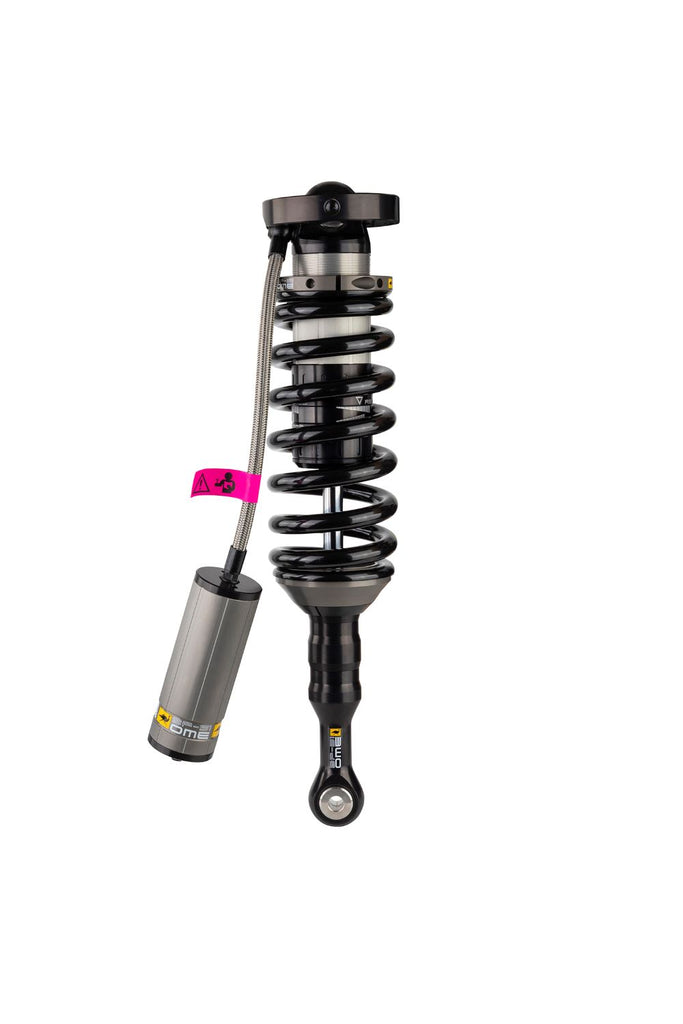

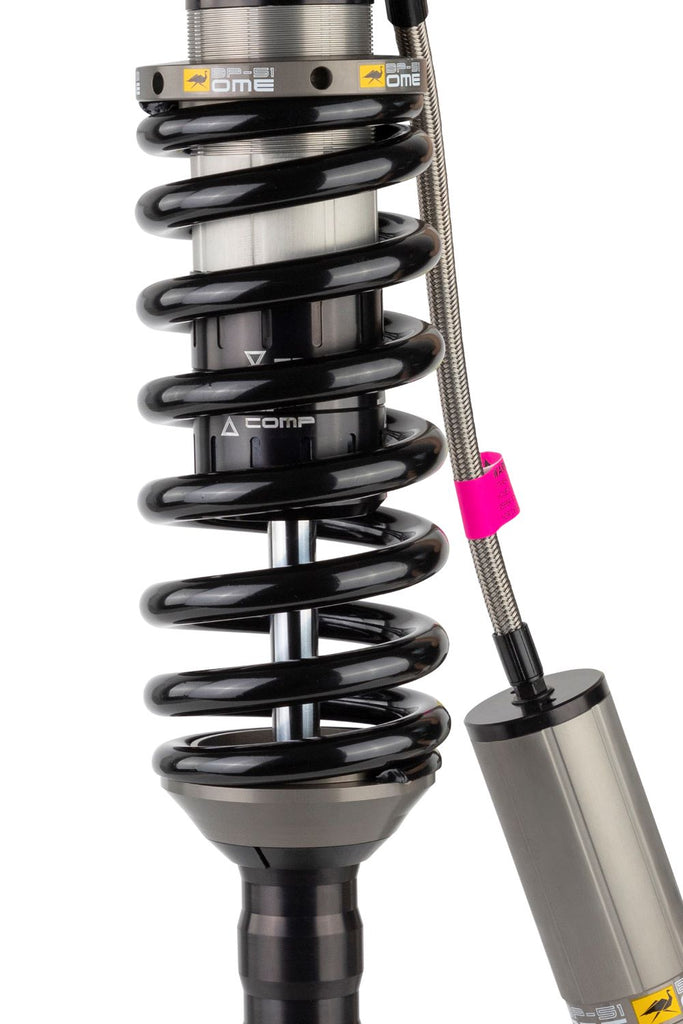

The ARB Coil Over Shock Absorber is engineered for high performance, providing exceptional comfort and control for off-road vehicles. This shock absorber features independent compression and rebound valve adjustment, allowing for precise tuning to meet specific driving conditions and preferences. Designed and tested by ARB's Old Man Emu ride engineers, it utilizes existing mounting locations for straightforward installation without modifications.
Constructed from durable 661 T6 aluminum, the shock body and reservoir ensure effective heat dissipation and corrosion resistance. The internal bypass system offers position-sensitive damping, enhancing comfort at ride height while increasing control as the vehicle approaches its limits. With features like kidney bypass ports and high-quality components, this shock absorber is built for longevity and performance consistency.
The ARB Coil Over Shock Absorber is compatible with a variety of vehicles and is designed to withstand the rigors of off-road driving. Its adjustable features and robust construction make it a reliable choice for those seeking to enhance their vehicle's suspension system. This product is re-buildable and re-valveable, ensuring that it can be maintained for optimal performance over time.
Features
- Kidney Bypass Ports: Maximum Bore Size And Bypass Diameter, Greater Oil Volume, More Tunable And Ability To Generate Force
- External Compression And Rebound Adjustment: Independent Adjustment Of Compression And Rebound, Adjustable While Installed On The Vehicle
- Body/Reservoir/Components 661 T6 Aluminum: Heat Dissipation, Corrosion Resistance
- Internal Bypass, Shim Controlled, Position Sensitive Damping: Provides Comfort At Ride Height, Damping Increases As You Get Closer To The End Zone, Increased Control At End Zones
- Dash 6 High Temperature Teflon Hose With High Flow Fittings: No Restriction Of Oil Flow
- High Quality X5K Grade Steel Coil
- Impact Resistant, Replaceable Shaft Guard: Protects Against Stone Damage
- 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
- High Performance, High Viscosity Index Oil: Durability And Consistency Of Performance
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5190001R
- Adjustable: Yes
- Upper Mounting Type: Eyelet
- Lower Mounting type: Eyelet
- Quantity: Single
- Valving Type: Compression And Adjustable Rebound Valving
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Single Flat End
- Spring Color: Black
- Spring Material: Aluminum
Technical Documents
