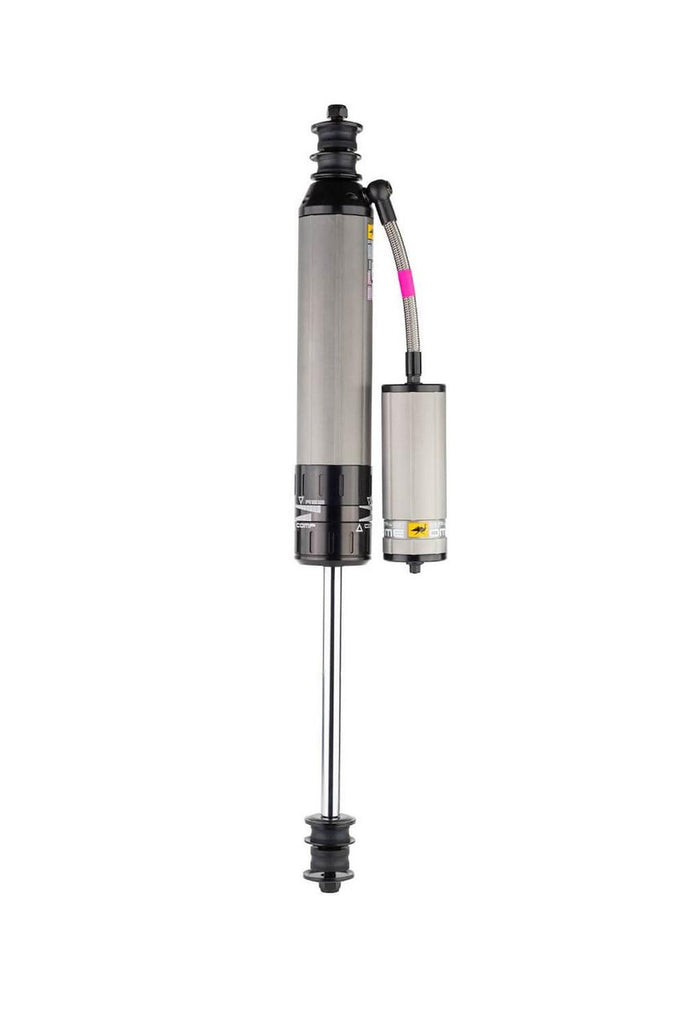

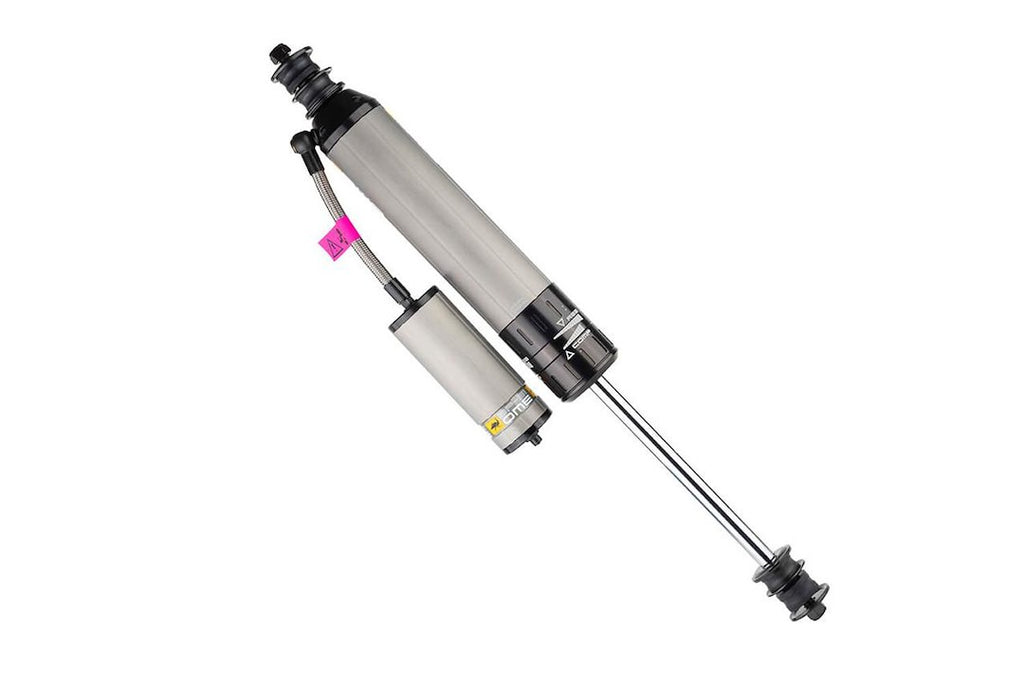

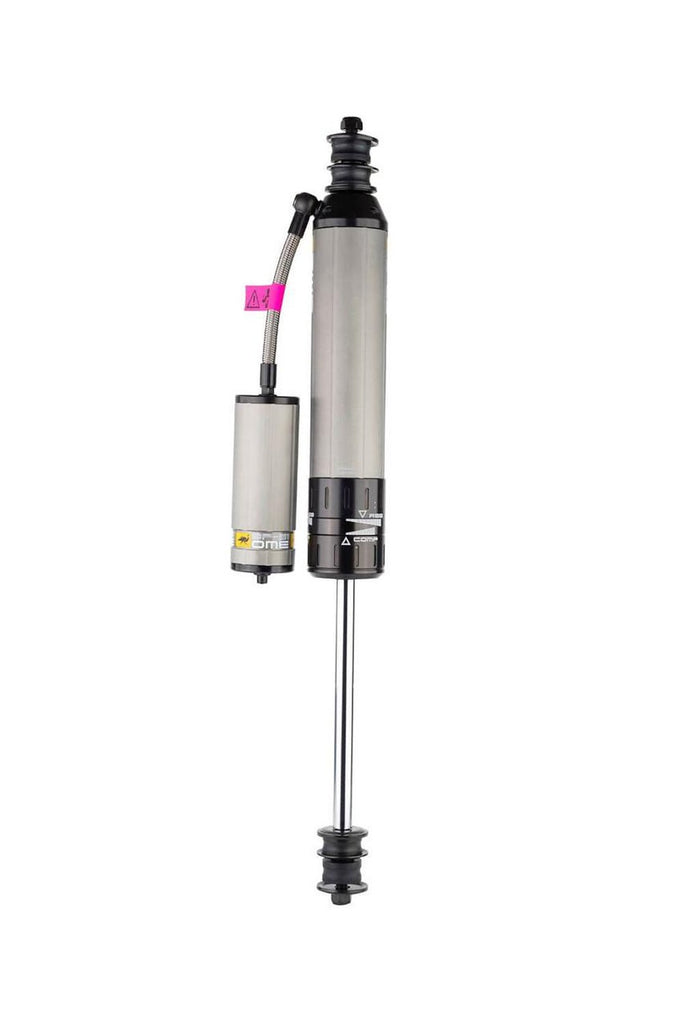

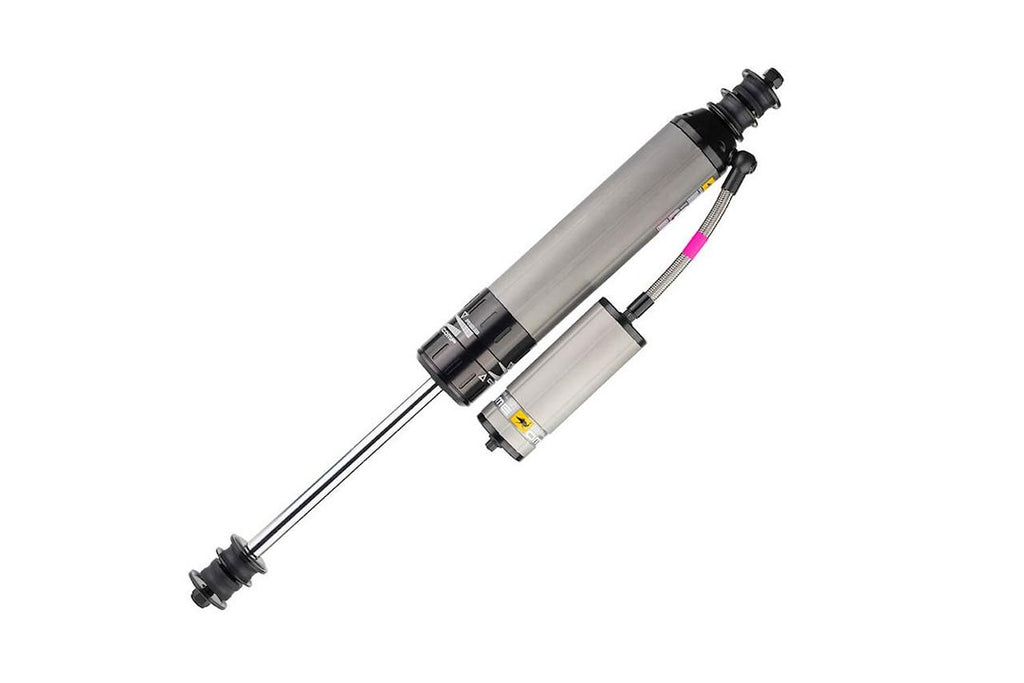

ARB BP-51 Hydraulic Shock Absorber (MPN: BP5160043)

User adjustable shock absorber for enhanced comfort and control on any terrain.

The ARB BP-51 is a hydraulic shock absorber designed for 4WD vehicles, featuring an internal bypass system that enhances both on-road and off-road performance. Constructed from 6061 anodized aluminum, the BP-51 dissipates heat efficiently and offers superior corrosion resistance compared to traditional steel options. This shock absorber is equipped with independent compression and rebound valve adjustments, allowing users to fine-tune their ride comfort and control based on specific vehicle and trip requirements.

The BP-51 incorporates large, Teflon lined spherical bearings and oversized rubber bushings, ensuring excellent longevity and durability. Its hard chromed, ground piston shaft provides strength, while the remote reservoir design allows for increased oil volume, resulting in lower oil temperatures during operation. The shock absorber is designed to meet ARB's high standards of reliability and performance, having undergone extensive testing to ensure it meets the demands of various driving conditions.

With features such as a durable high-temperature Teflon hose and application-specific design for coil over models, the BP-51 is engineered for optimal performance. This single shock absorber is an essential component for those looking to enhance their vehicle's suspension system, providing a balance of comfort and control for any adventure.

Features

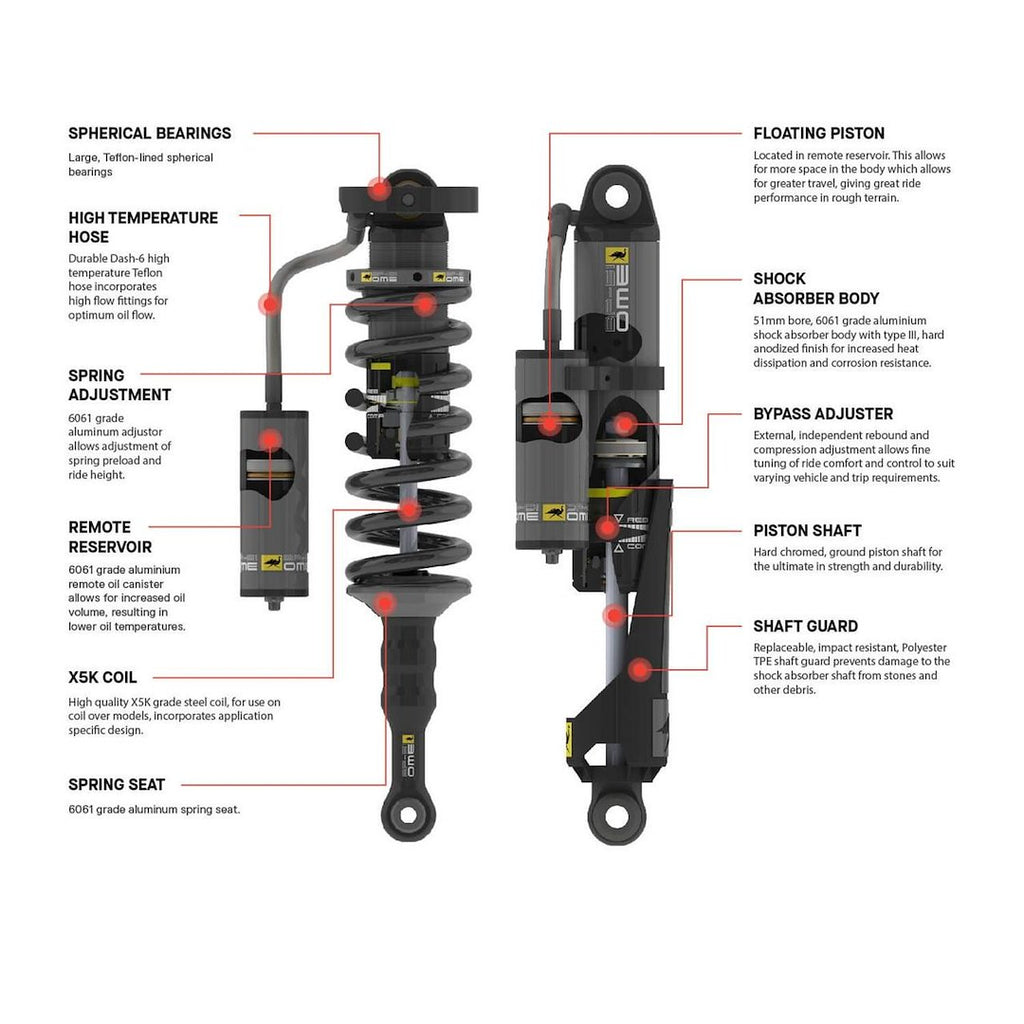

• Large, Teflon Lined Spherical Bearings
• Quality Oversized Rubber Bushings Result In Excellent Longevity
• Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability

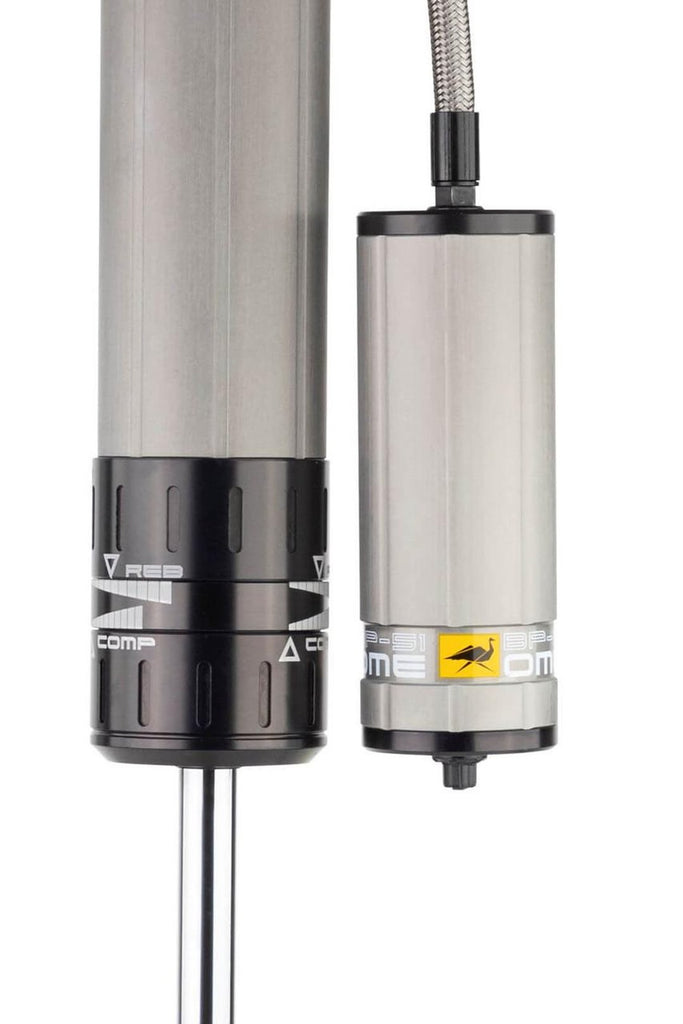

• External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
• Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
• High Quality X5K Grade Steel Coil, For Use On Coil Over Models, Incorporates Application Specific Design
• 6061 Grade Aluminum Adjustor Allows Adjustment Of Spring Preload And Ride Height
• 6061 Grade Aluminum Remote Oil Canister Allows For Increased Oil Volume, Resulting In Lower Oil Temperatures
• Durable Dash 6 High Temperature Teflon Hose Incorporates High Flow Fittings For Optimum Oil Flow

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5160043
• Type: Hydraulic
• With Coil Spring: No
• Upper Mounting Style: Strut
• Lower Mounting Style: Strut
• Adjustable Valving: Yes
• Quantity: Single
• Internal Design: Monotube
• Body Color: Gray
• Valving Type: Independent Compression And Adjustable Rebound Valving
• Body Material: Aluminum
• With Reservoir: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1996-1997 Lexus LX450
• 1990-1999 Toyota Land Cruiser

Technical Documents

• BP5160012_BP5160043_BP5160014_BP5160044_FittingInst.pdf
