Advanced shock absorber with independent compression and rebound adjustments for optimal performance.

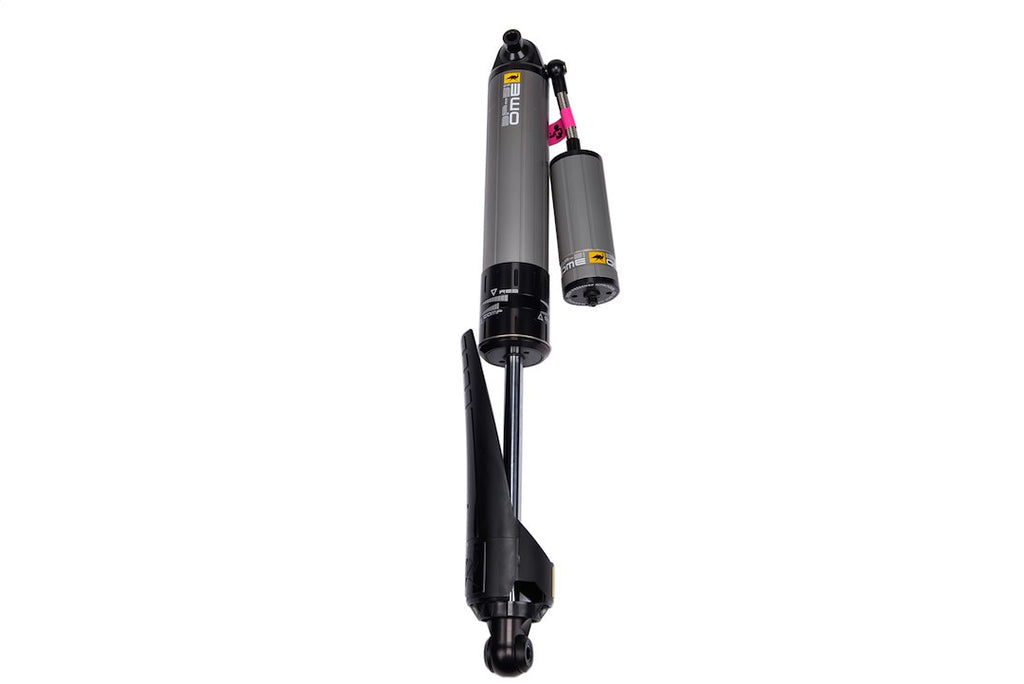

The ARB BP-51 hydraulic shock absorber is engineered for high performance, providing exceptional comfort and control for various driving conditions. This shock absorber features a unique design that allows for independent adjustment of both rebound and compression, enabling users to customize their ride experience based on specific vehicle and trip requirements. Manufactured from aircraft-grade anodized aluminum, the BP-51 dissipates heat efficiently and offers superior corrosion resistance compared to traditional materials.
The BP-51 is designed for easy installation, utilizing existing mounting locations without the need for additional modifications. Its remote reservoir piggyback clamp facilitates a straightforward connection to the main shock body, enhancing overall performance. The hard chromed, ground piston shaft ensures durability, while the replaceable high-density polyethylene shaft guard protects against damage from debris.
With vehicle-specific applications, the BP-51 shock absorber is tailored to meet the demands of various terrains, providing a comfortable ride during normal driving and enhanced control over challenging surfaces. The oversized rubber bushings contribute to the longevity of the product, making it a reliable choice for off-road enthusiasts.
Features
- Comfortable And Compliant Ride During Normal Driving And A More Controlled Ride Over More Challenging Terrain
- Manufactured Using Aircraft Grade (6061) Anodized Aluminum To Dissipate Heat More Efficiently Than Steel Or Alloy Steel And Provide Superior Corrosion Resistance
- Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
- External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
- Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability
- Replaceable, Impact Resistant, High-Density Polyethylene Shaft Guard Prevents Damage To The Shock Absorber Shaft From Stones And Other Debris
- Quality Oversized Rubber Bushings Result In Excellent Longevity
- Shock Absorbers Are Vehicle Specific And Utilize Existing Mounting Locations To Provide Easy Installation
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160034R
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 27 Inch
- Compressed Length (IN): 16.85 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Valving Type: Independent Compression And Adjustable Rebound Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2018-2025 Jeep Wrangler JL
