Advanced shock absorber with independent compression and rebound adjustment for optimal performance.

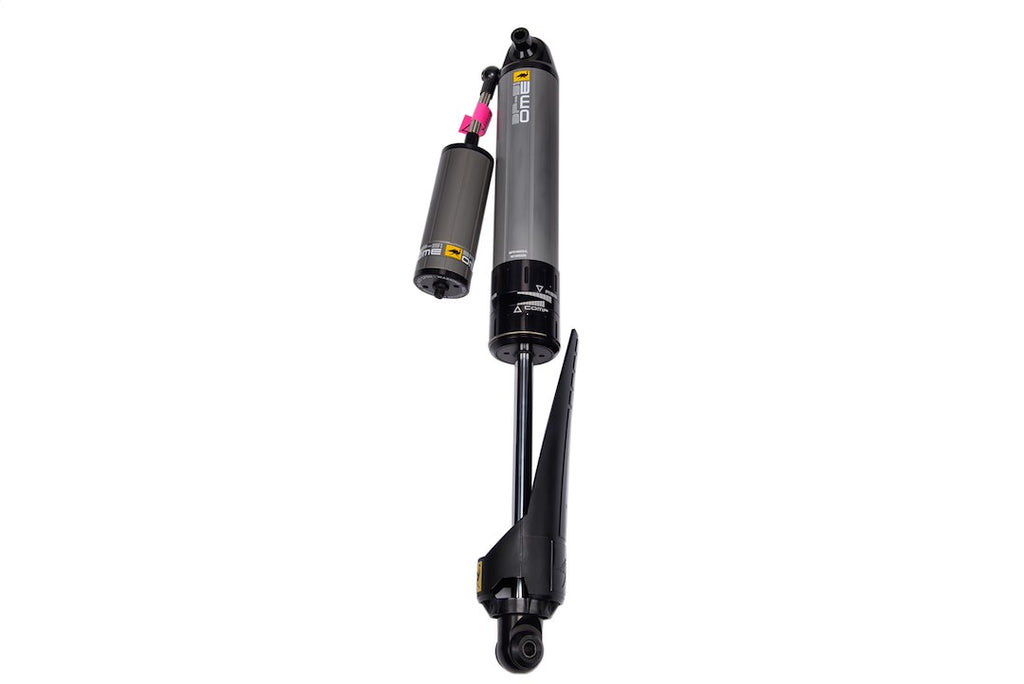

The ARB BP-51 hydraulic shock absorber is engineered for high performance, providing exceptional comfort and control for various driving conditions. This shock absorber is designed specifically for individual vehicles, utilizing existing mounting locations for straightforward installation without modifications. The BP-51 features independent adjustment for both rebound and compression, allowing users to customize their ride experience based on specific vehicle and trip requirements.
Constructed from aircraft-grade anodized aluminum, the BP-51 dissipates heat more effectively than traditional steel options, ensuring superior durability and corrosion resistance. The remote reservoir design enhances performance by allowing for efficient oil flow and temperature management. Additionally, the hard chromed piston shaft and replaceable polyethylene shaft guard contribute to the shock absorber's longevity and resilience against debris.
With its vehicle-specific design and quality components, the ARB BP-51 shock absorber is a reliable choice for those seeking to enhance their vehicle's suspension system. The adjustable valving system allows for fine-tuning of ride comfort and control, making it suitable for both everyday driving and challenging terrains.
Features
- Comfortable And Compliant Ride During Normal Driving And A More Controlled Ride Over More Challenging Terrain
- Manufactured Using Aircraft Grade (6061) Anodized Aluminum To Dissipate Heat More Efficiently Than Steel Or Alloy Steel And Provide Superior Corrosion Resistance
- Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
- External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
- Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability
- Replaceable, Impact Resistant, High-Density Polyethylene Shaft Guard Prevents Damage To The Shock Absorber Shaft From Stones And Other Debris
- Quality Oversized Rubber Bushings Result In Excellent Longevity
- Shock Absorbers Are Vehicle Specific And Utilize Existing Mounting Locations To Provide Easy Installation
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160034L
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 27 Inch
- Compressed Length (IN): 16.85 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Valving Type: Independent Compression And Adjustable Rebound Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2018-2025 Jeep Wrangler JL
