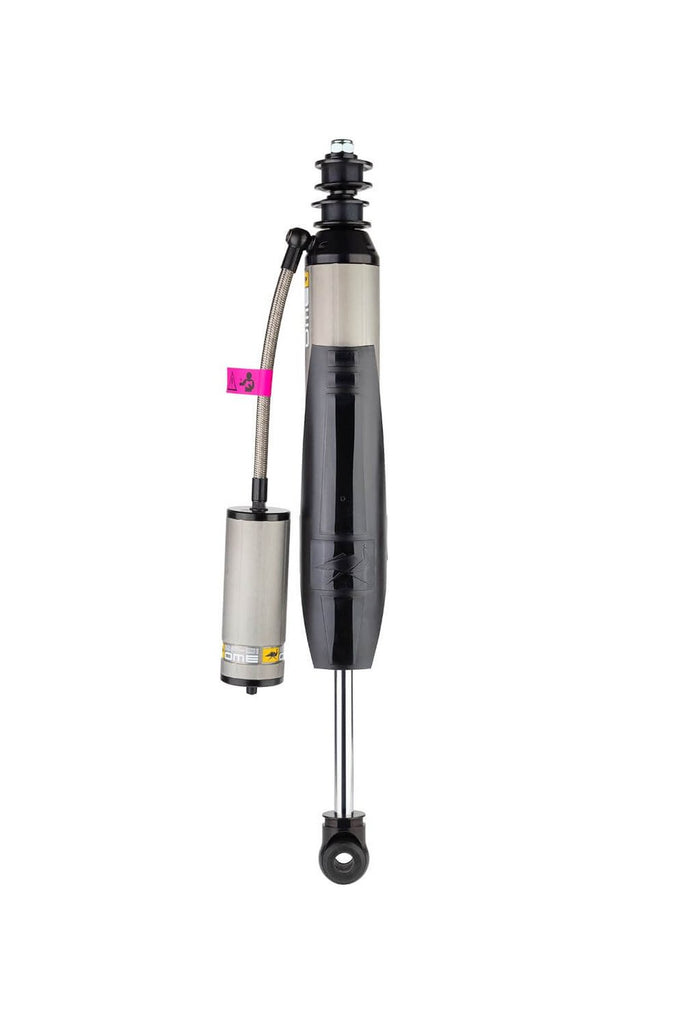

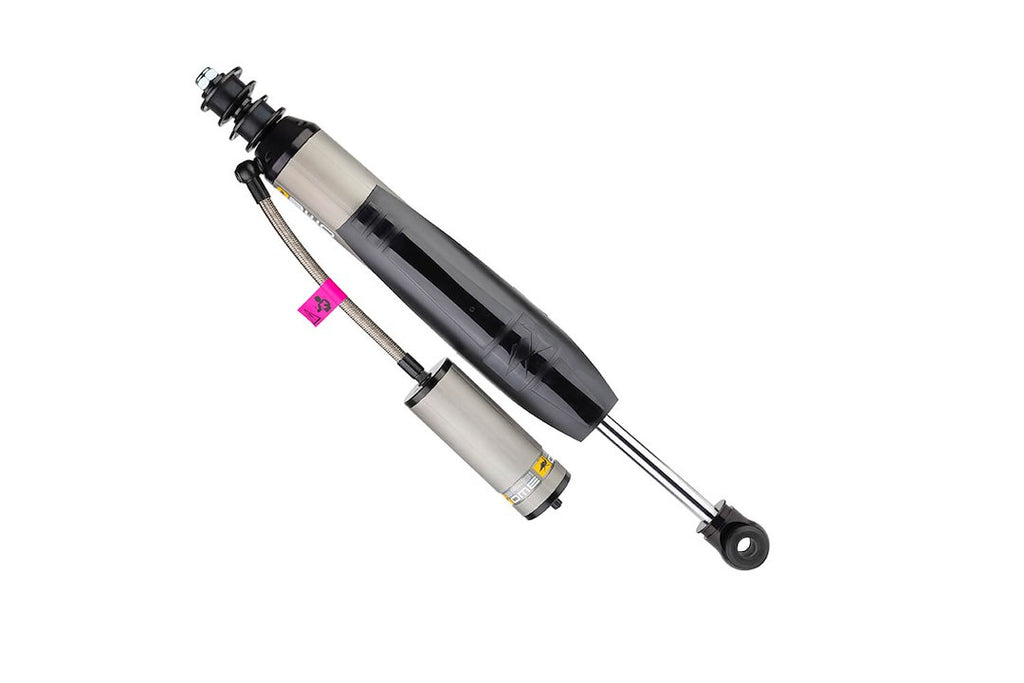

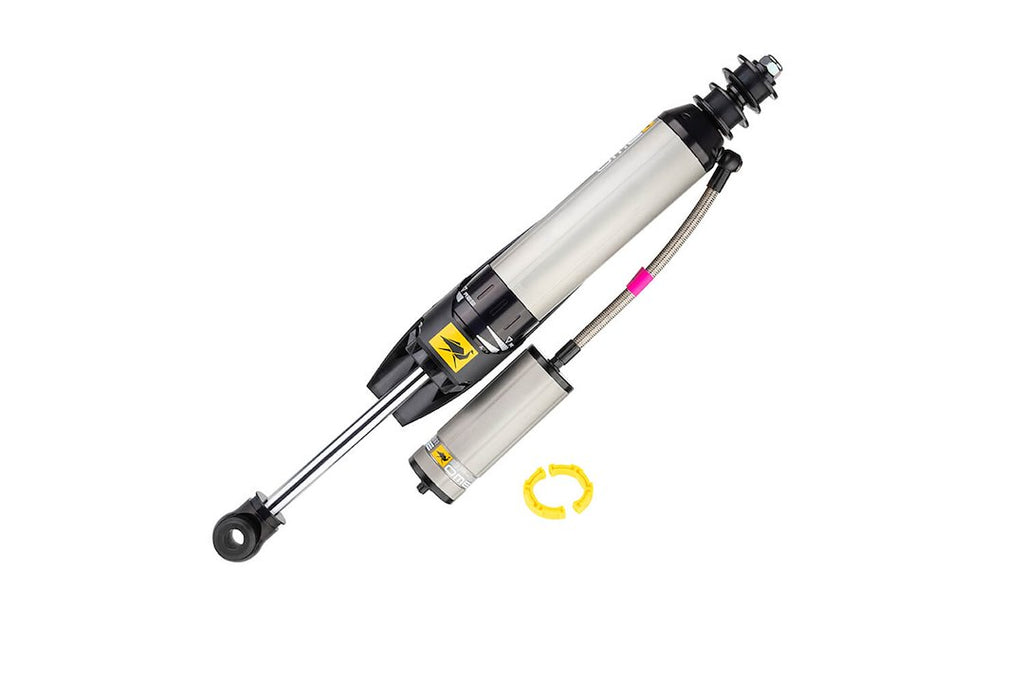

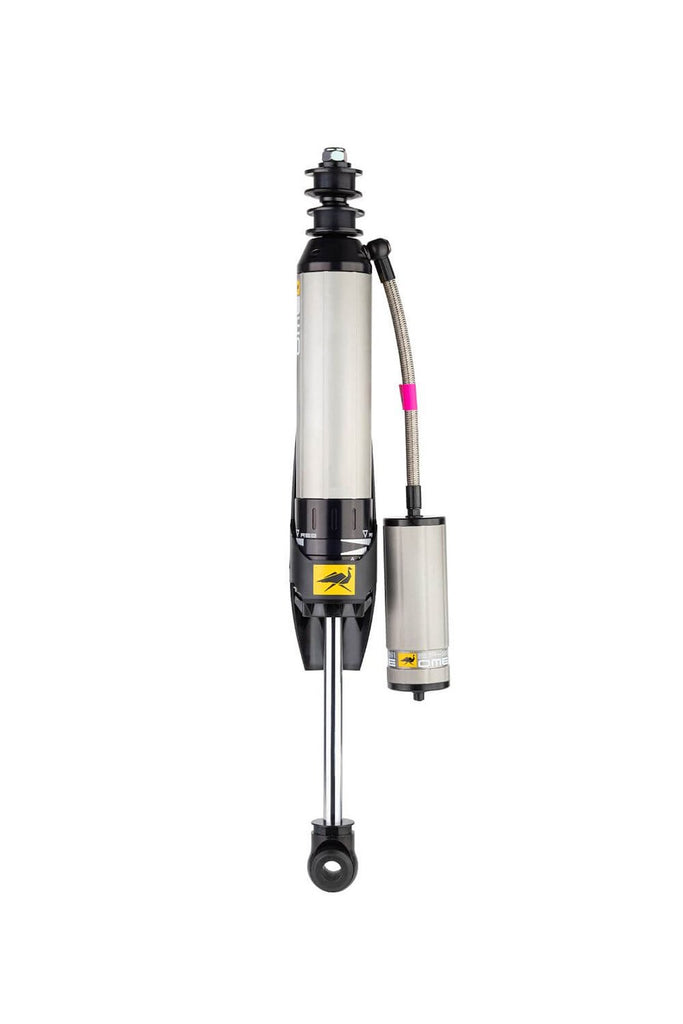

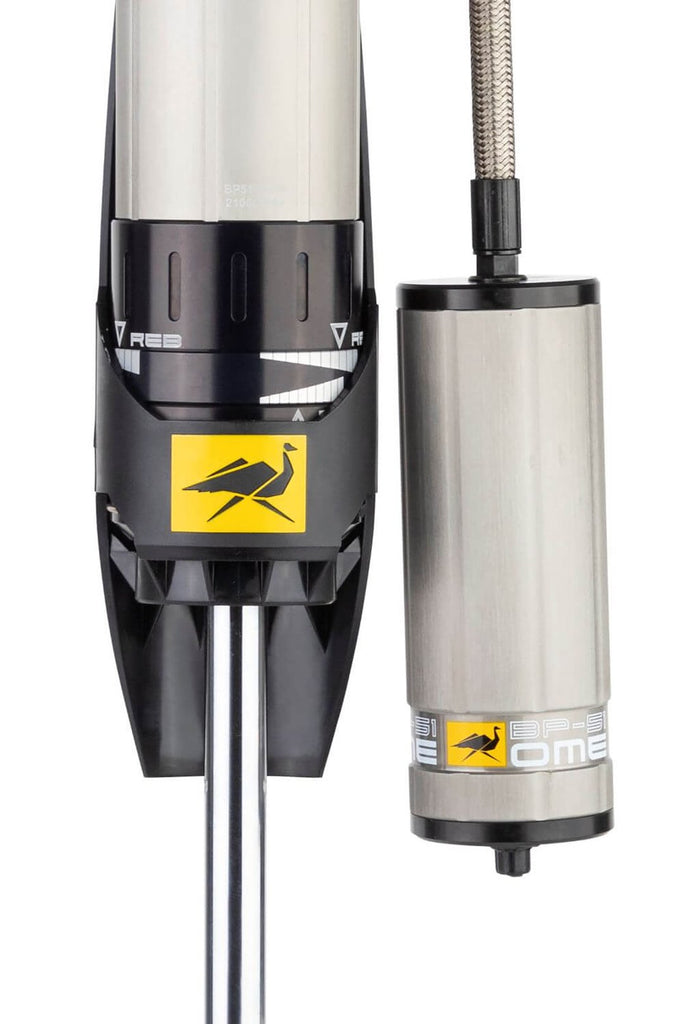

ARB BP-51 Hydraulic Shock Absorber (MPN: BP5160026)

Advanced shock absorber with independent compression and rebound adjustment for optimal performance.

The ARB BP-51 Hydraulic Shock Absorber is engineered for high performance, providing exceptional comfort and control for various driving conditions. This shock absorber features a unique bypass design that allows for independent adjustment of both compression and rebound, enabling users to customize their ride according to specific vehicle needs or terrain challenges. Designed and tested by ARB's Old Man Emu ride engineers, the BP-51 is vehicle specific and utilizes existing mounting locations for straightforward installation without modifications.

Constructed from aircraft grade anodized aluminum, the BP-51 dissipates heat more effectively than traditional steel options, ensuring superior performance and corrosion resistance. Extensive testing has been conducted to guarantee reliability and longevity, meeting ARB's high standards for performance. The shock absorber is designed to deliver a comfortable ride during everyday use while maintaining control over rough terrain, making it a versatile choice for off-road enthusiasts.

Features

• The New Range Of High Performance, Bypass Shock Absorbers Is The Result Of An Exhaustive Development Process Aimed At Delivering The Ultimate In Both Comfort And Control
• Designed, Developed And Tested Entirely In-House By Engineers
• Comfortable And Compliant Ride During Normal Driving And A More Controlled Ride Over More Challenging Terrain
• Manufactured Using Aircraft Grade (661) Anodized Aluminum To Dissipate Heat More Efficiently Than Steel Or Alloy Steel And Provide Superior Corrosion Resistance
• Extensive Lab, Real World And Destructive Testing Has Been Undertaken During The Development Process To Ensure That Reliability, Longevity And Performance All Meet ARB’s Impeccable Standards
• Easy Installation

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5160026
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 23.85 Inch
• Compressed Length (IN): 15.27 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Valving Type: Independent Compression And Adjustable Rebound Valving
• Body Material: Aluminum
• With Reservoir: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• VM90010024_BP-51_LC200_Rear_RevB.pdf
• VM90010025_BP-51_LC200_Rear_KDSS_RevB.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf

Product Videos
