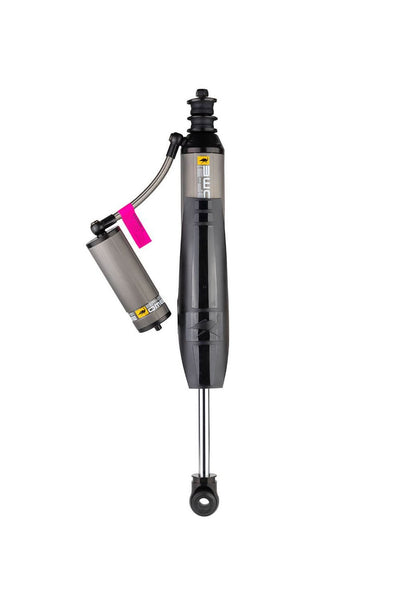

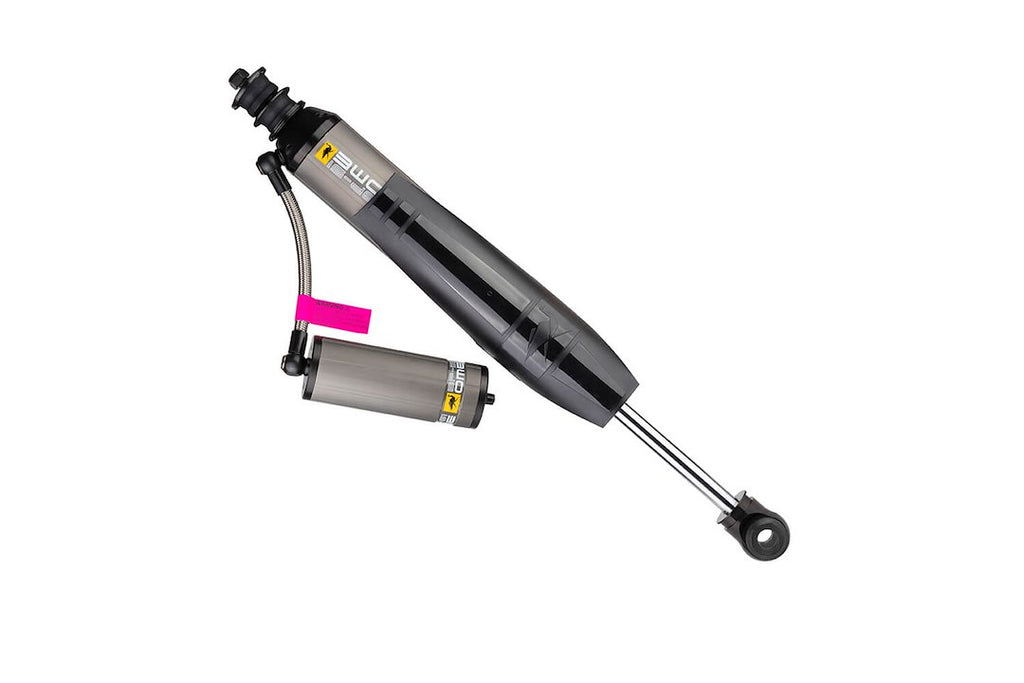

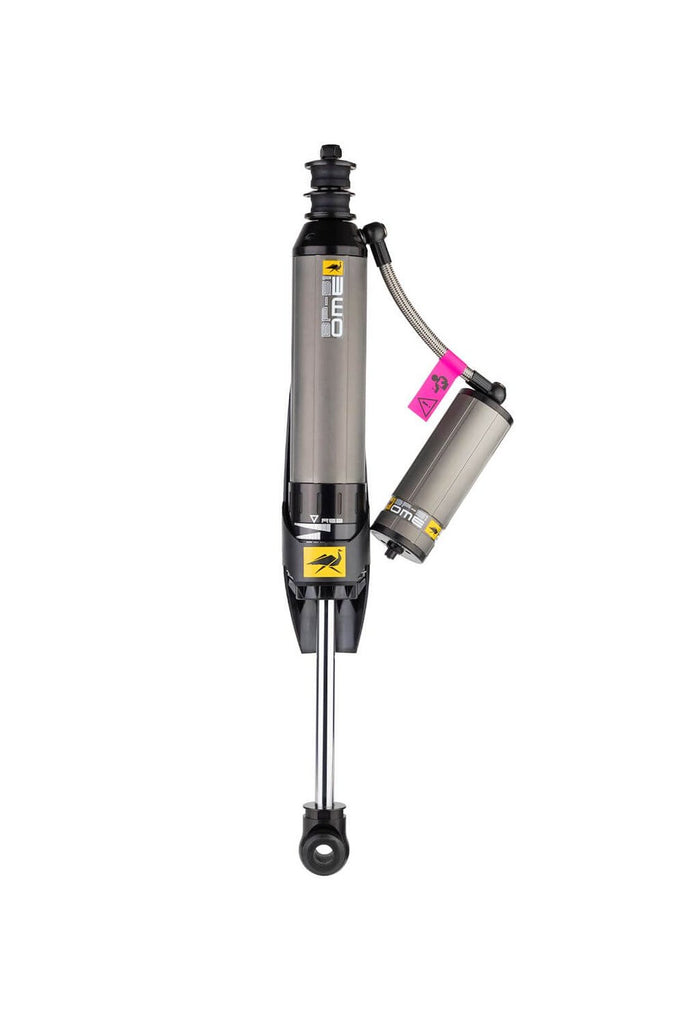

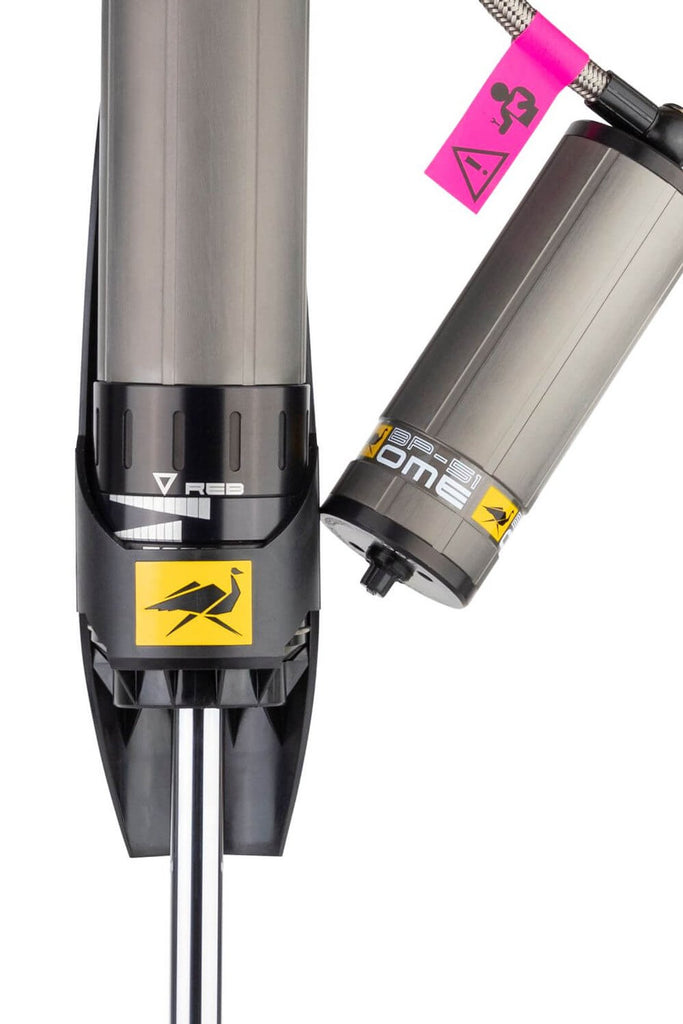

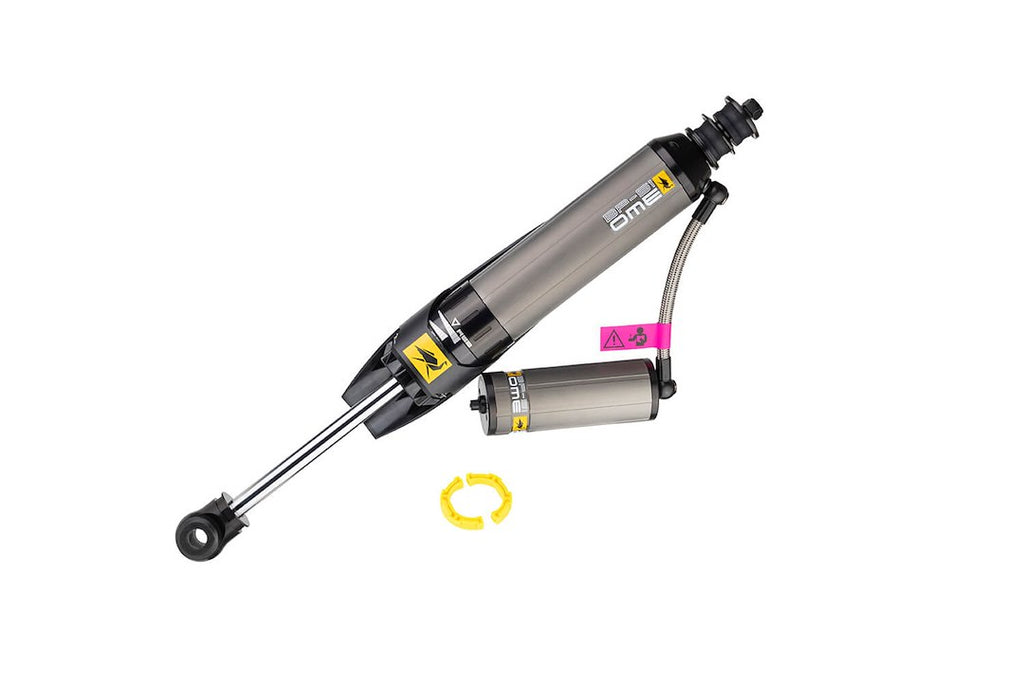

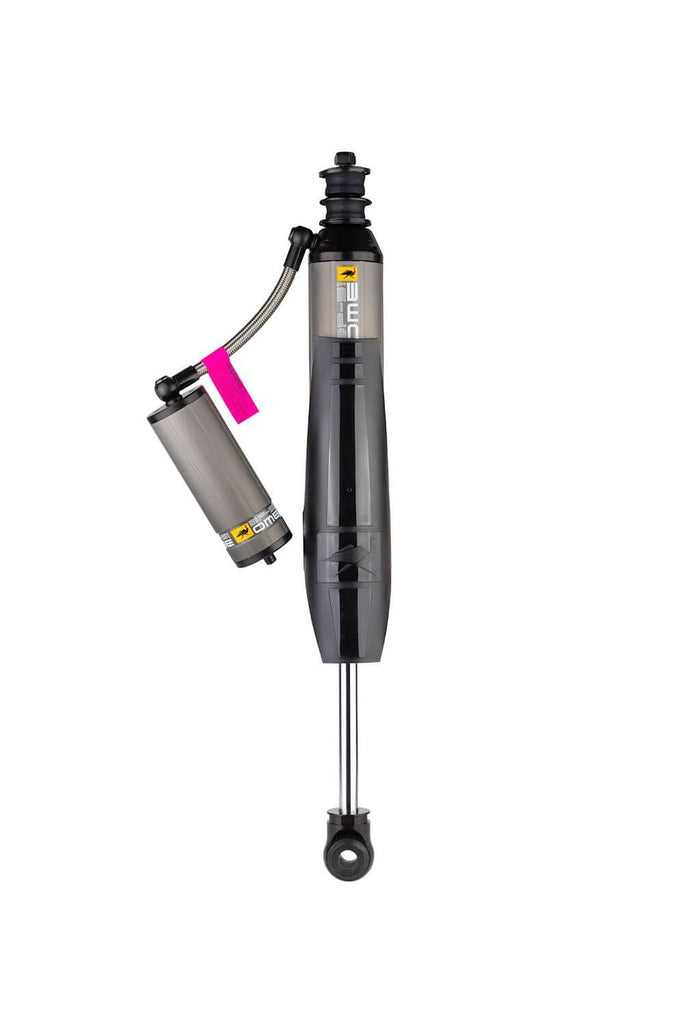

ARB BP-51 Hydraulic Shock Absorber (MPN: BP5160025)

Advanced shock absorber with independent compression and rebound adjustment for superior control.

The ARB BP-51 hydraulic shock absorber is engineered for high performance, providing exceptional comfort and control for various driving conditions. This shock absorber features independent adjustment for both compression and rebound, allowing for precise tuning to meet specific vehicle and trip requirements. Designed and tested by ARB's Old Man Emu ride engineers, the BP-51 utilizes existing mounting locations for straightforward installation without the need for modifications.

Constructed from aircraft grade anodized aluminum, the BP-51 dissipates heat more effectively than traditional steel options, ensuring durability and superior corrosion resistance. This vehicle-specific shock absorber is designed to deliver a comfortable ride during everyday driving while maintaining control over challenging terrains. The monotube internal design and adjustable valving enhance the overall driving experience, making it a reliable choice for off-road enthusiasts.

Features

• The New Range Of High Performance, Bypass Shock Absorbers Is The Result Of An Exhaustive Development Process Aimed At Delivering The Ultimate In Both Comfort And Control
• Designed, Developed And Tested Entirely In-House By Engineers
• Comfortable And Compliant Ride During Normal Driving And A More Controlled Ride Over More Challenging Terrain
• Manufactured Using Aircraft Grade (661) Anodized Aluminum To Dissipate Heat More Efficiently Than Steel Or Alloy Steel And Provide Superior Corrosion Resistance
• Shock Absorbers Are Vehicle Specific And Utilize Existing Mounting Locations To Provide Easy Installation

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5160025
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): OEM
• Compressed Length (IN): OEM
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 0.7 Inch
• Valving Type: Independent Compression And Adjustable Rebound Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Hardware: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2010-2014 Toyota FJ Cruiser
