Advanced shock absorber with independent compression and rebound adjustment for superior control.

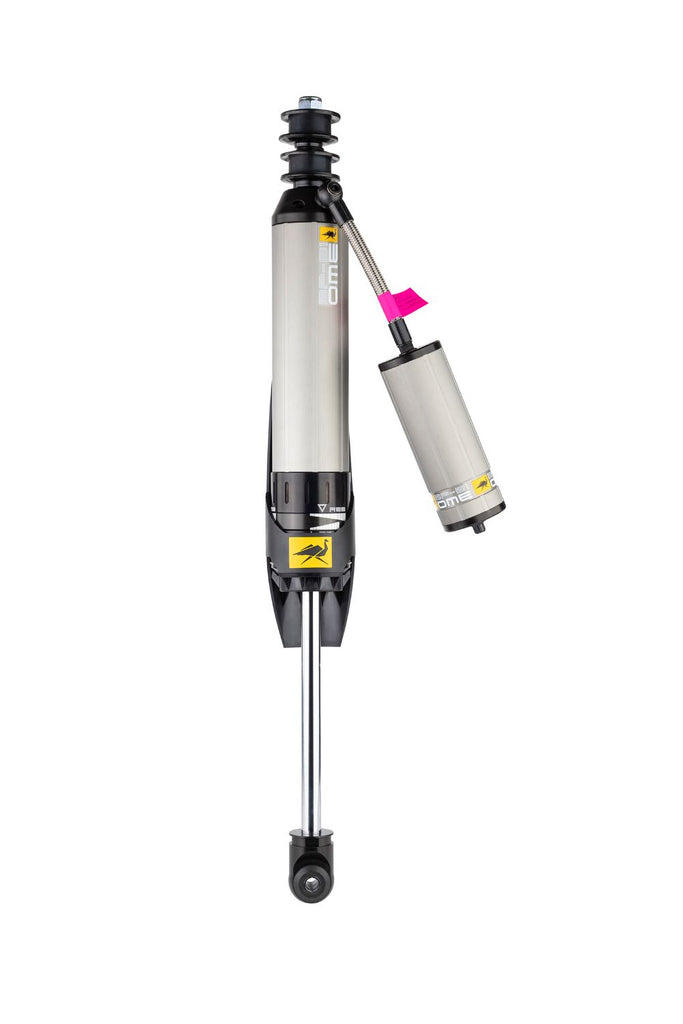

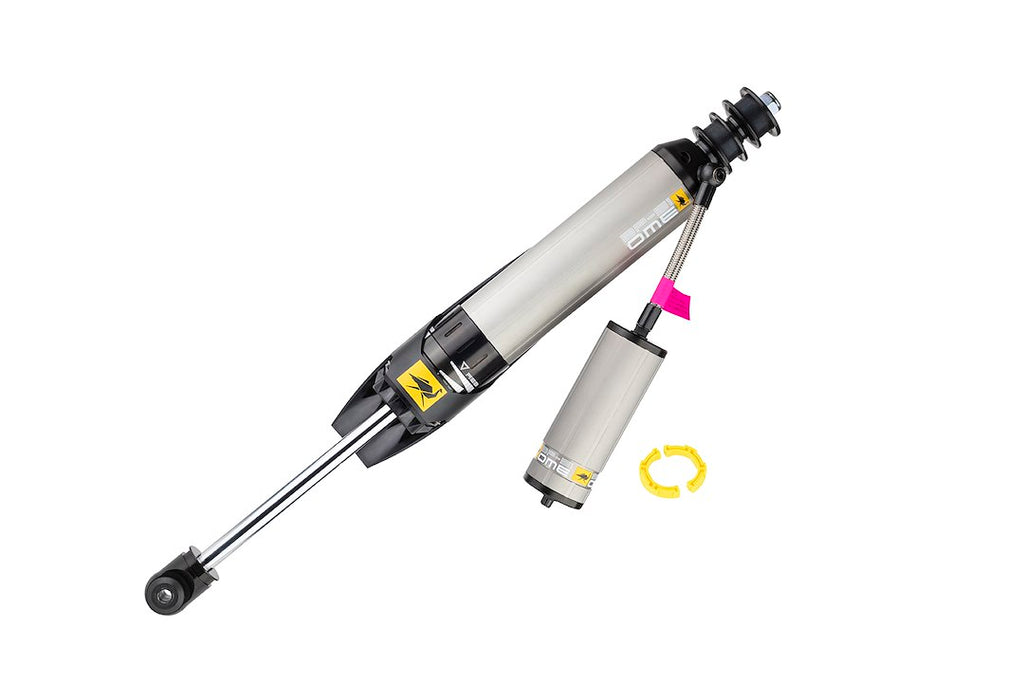

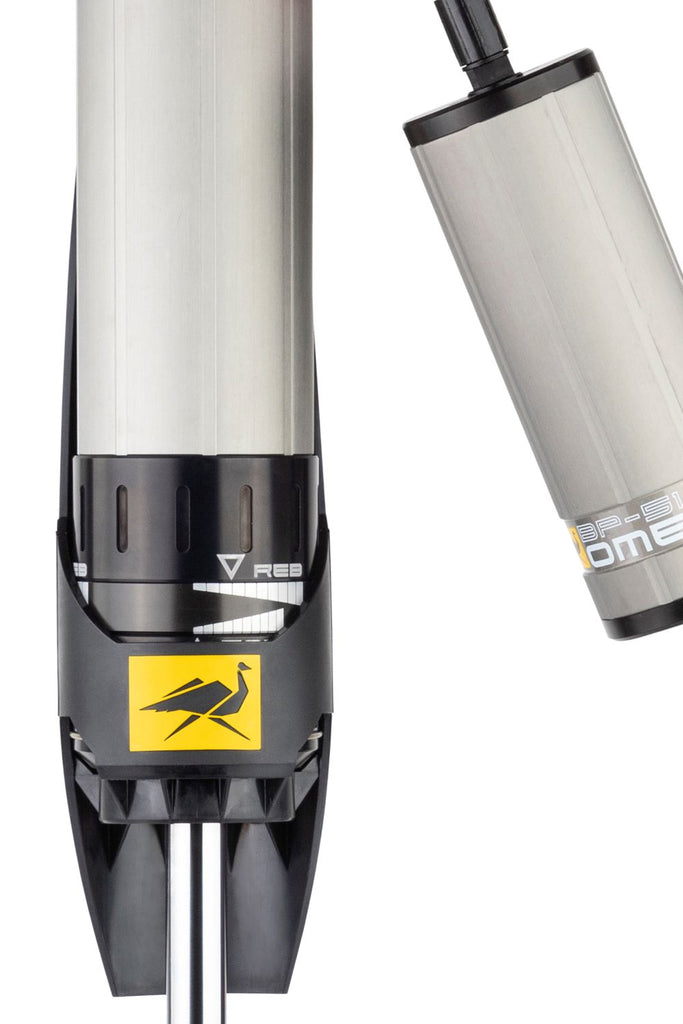

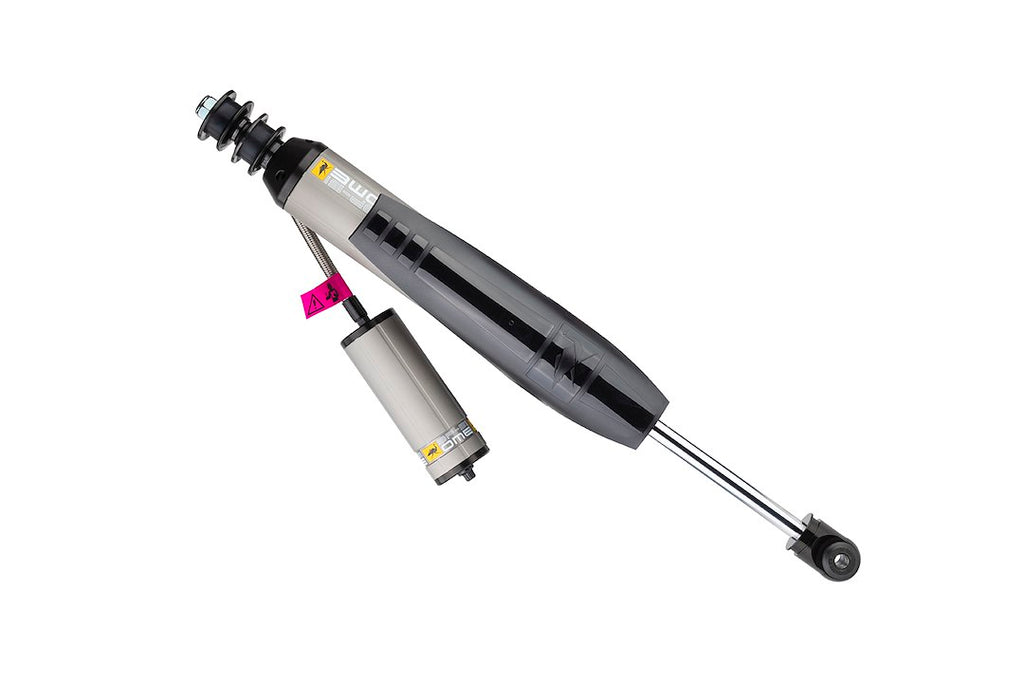

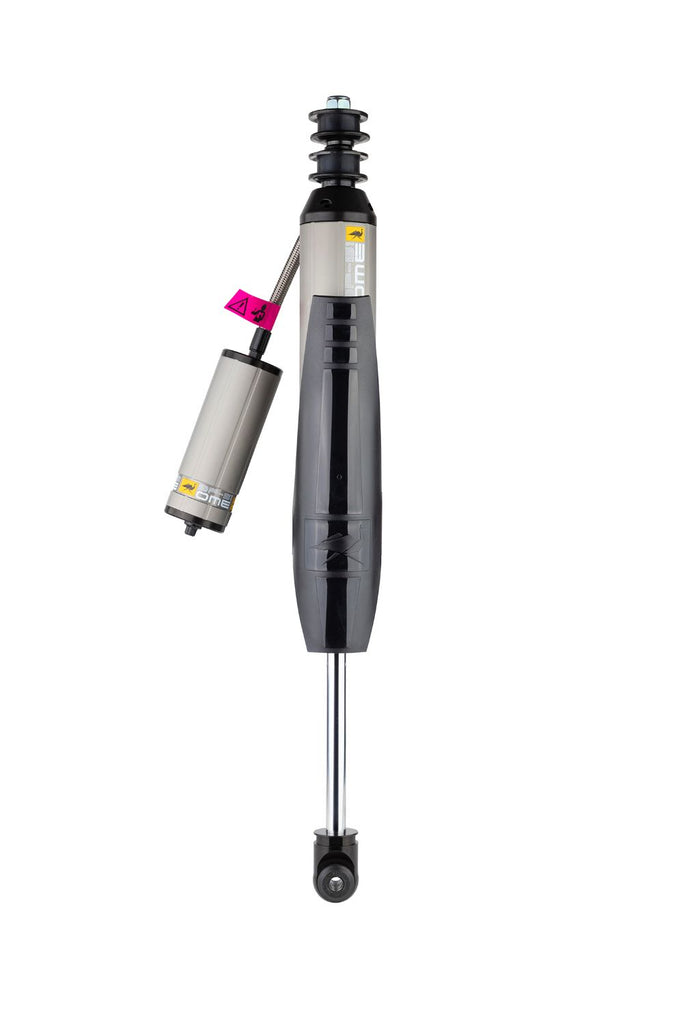

The ARB BP-51 hydraulic shock absorber is engineered for high performance, providing exceptional comfort and control for various driving conditions. This shock absorber is designed specifically for individual vehicles, utilizing existing mounting locations for straightforward installation without the need for modifications. The BP-51 features independent adjustment for both compression and rebound, allowing users to customize their ride to meet specific preferences and terrain challenges.
Manufactured from aircraft-grade anodized aluminum, the BP-51 dissipates heat more effectively than traditional steel options, ensuring enhanced durability and corrosion resistance. Extensive testing has been conducted to guarantee reliability and performance, meeting ARB's high standards. The shock absorber is suitable for a range of applications, delivering a compliant ride during everyday driving while maintaining control over rougher terrains.
Features
- The New Range Of High Performance, Bypass Shock Absorbers Is The Result Of An Exhaustive Development Process Aimed At Delivering The Ultimate In Both Comfort And Control
- Designed, Developed And Tested Entirely In-House By Engineers
- Comfortable And Compliant Ride During Normal Driving And A More Controlled Ride Over More Challenging Terrain
- Manufactured Using Aircraft Grade (661) Anodized Aluminum To Dissipate Heat More Efficiently Than Steel Or Alloy Steel And Provide Superior Corrosion Resistance
- Extensive Lab, Real World And Destructive Testing Has Been Undertaken During The Development Process To Ensure That Reliability, Longevity And Performance All Meet ARB’s Impeccable Standards
- Easy Installation
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160020L
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 25.63 Inch
- Compressed Length (IN): 15.94 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Valving Type: Independent Compression And Adjustable Rebound Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2007-2019 Toyota Tundra
