Advanced shock absorber with independent compression and rebound adjustments for superior control.

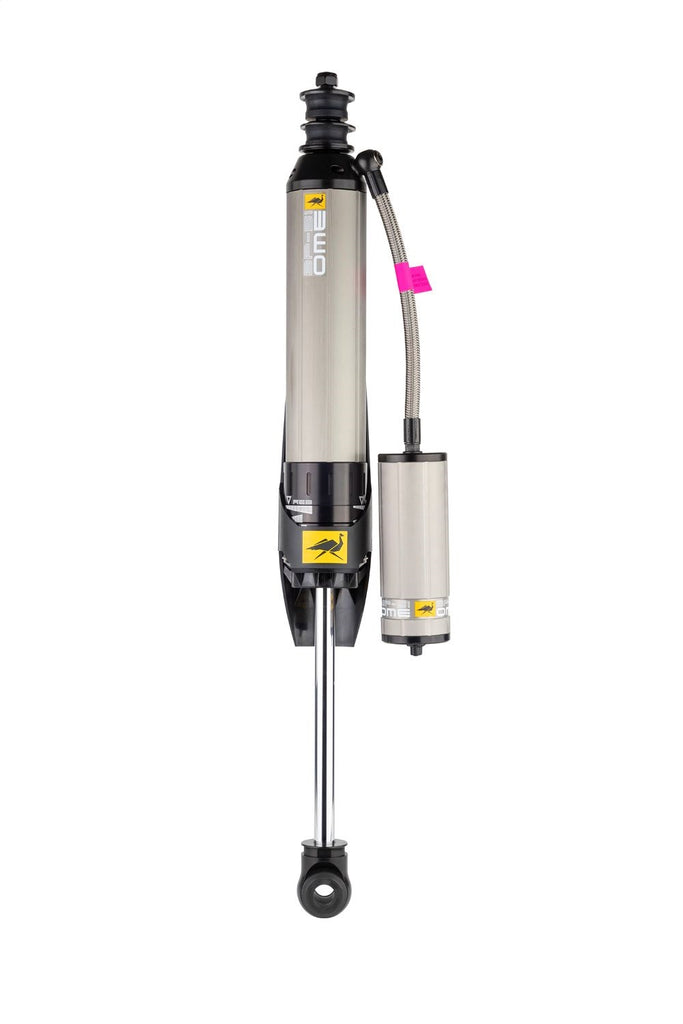

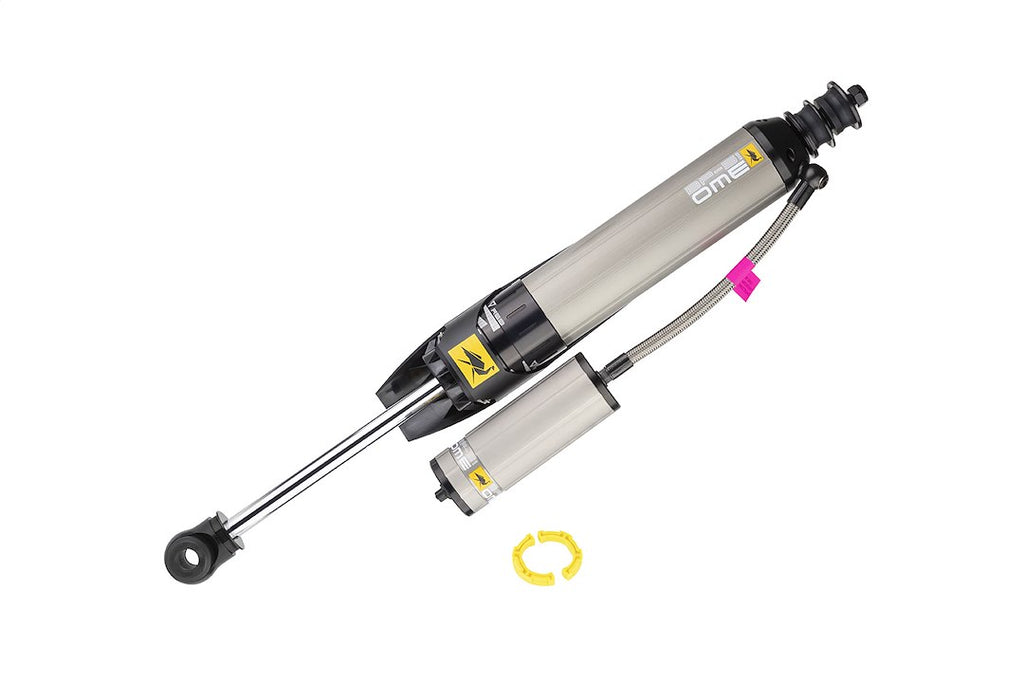

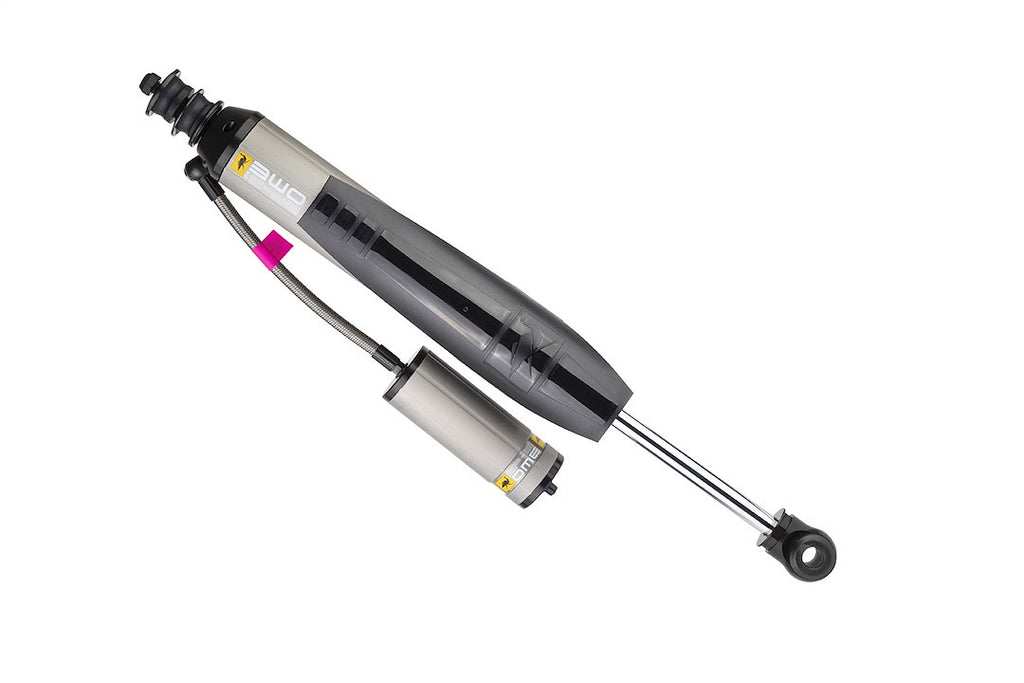

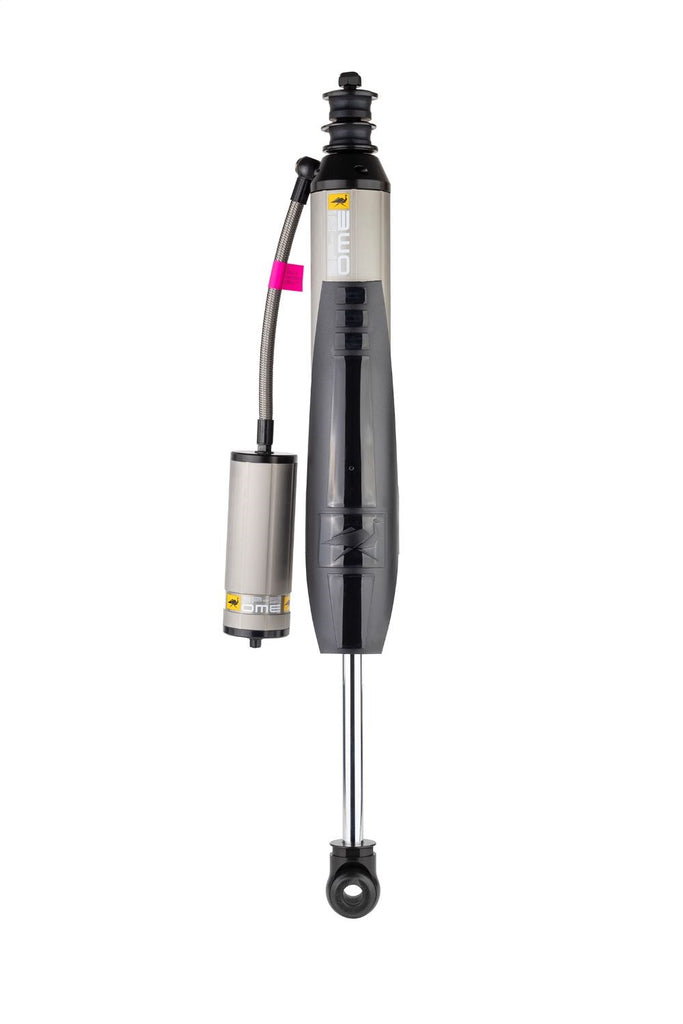

The ARB BP-51 hydraulic shock absorber is engineered for high performance, providing exceptional comfort and control for off-road vehicles. This shock absorber features a unique design that allows for independent adjustment of both compression and rebound, enabling users to customize their ride according to specific vehicle needs and trip conditions. Constructed from high-quality materials, including 6061 grade aluminum and X5K grade steel, the BP-51 ensures durability and longevity under demanding conditions.
Designed for easy installation, the BP-51 utilizes existing mounting locations, eliminating the need for additional modifications to the vehicle. The shock absorber's large, Teflon-lined spherical bearings and oversized rubber bushings contribute to its robust performance and reliability. Additionally, the remote reservoir design enhances oil volume, which helps maintain lower oil temperatures and improves overall shock performance.
With a 51 millimeter bore and a hard anodized finish, the BP-51 shock absorber is built to withstand harsh environments while providing superior heat dissipation and corrosion resistance. This product is vehicle-specific, ensuring a tailored fit and optimal performance for a wide range of applications.
Features
- High-Quality X5K Grade Steel Coil, For Use On Coil Over Models, Incorporates Application-Specific Design
- 6061 Grade Aluminum Spring Seat And Top Hat
- 6061 Grade Aluminum Adjustor Allows Adjustment Of Spring Preload And Ride Height
- Large, Teflon-Lined Spherical Bearings
- Quality Oversized Rubber Bushings Result In Excellent Longevity
- Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability
- 51 Millimeter Bore, 6061 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance

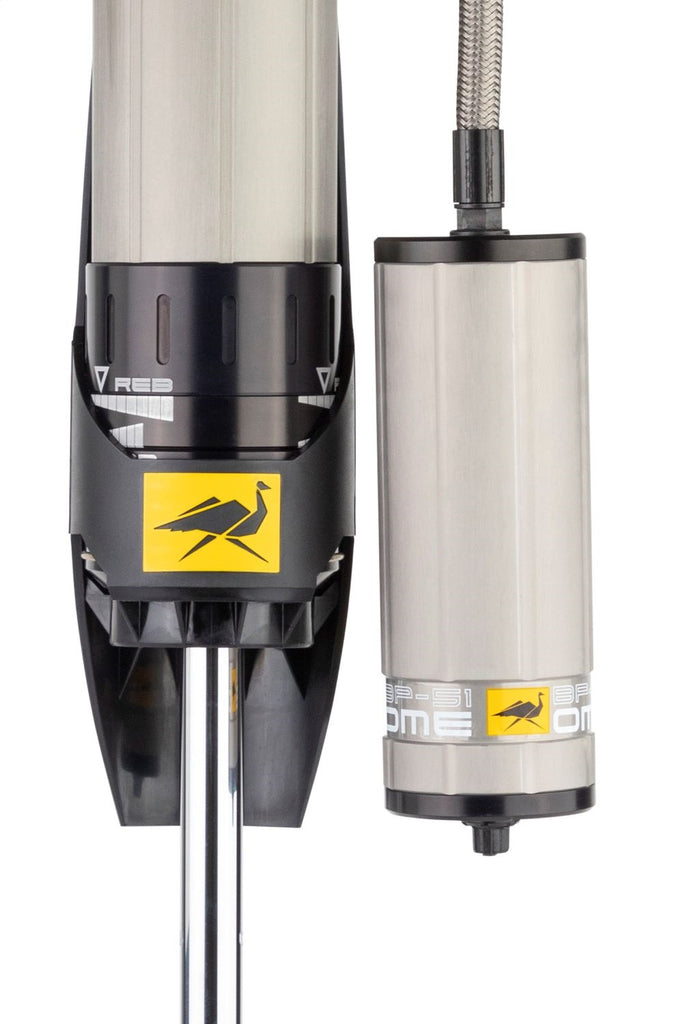

- Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
- 6061 Grade Aluminum Remote Oil Canister Allows For Increased Oil Volume, Resulting In Lower Oil Temperatures
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160015
- Type: Hydraulic
- With Coil Spring: No
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Body Color: Gray
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1991-1997 Toyota Land Cruiser
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
