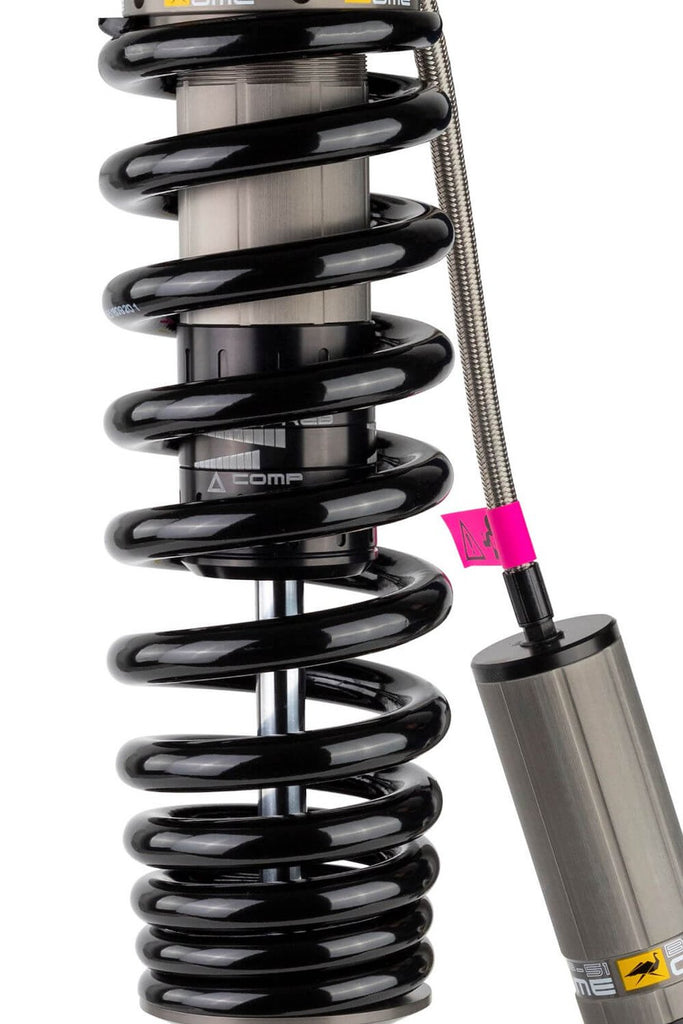

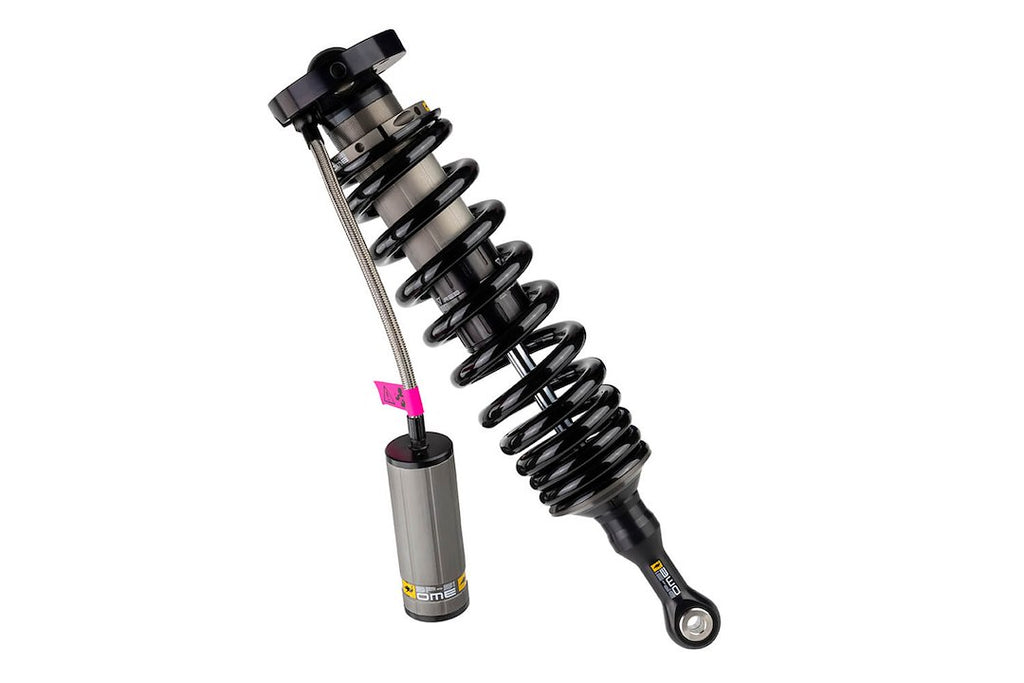

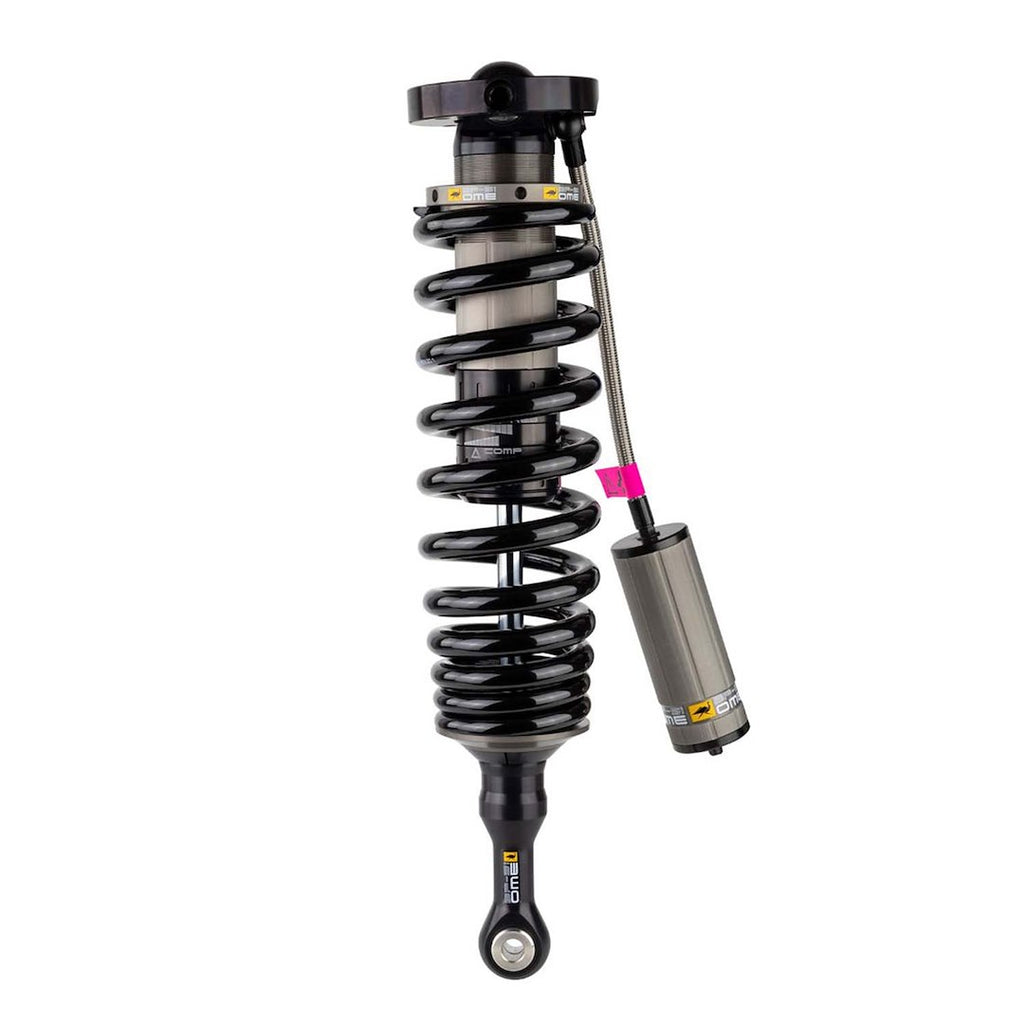

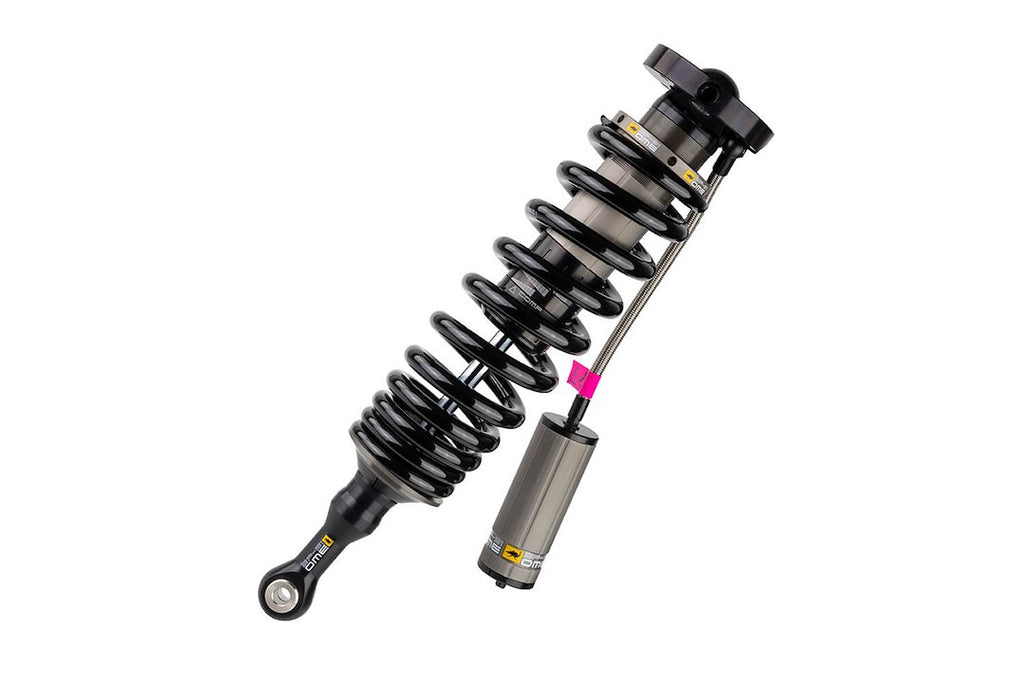

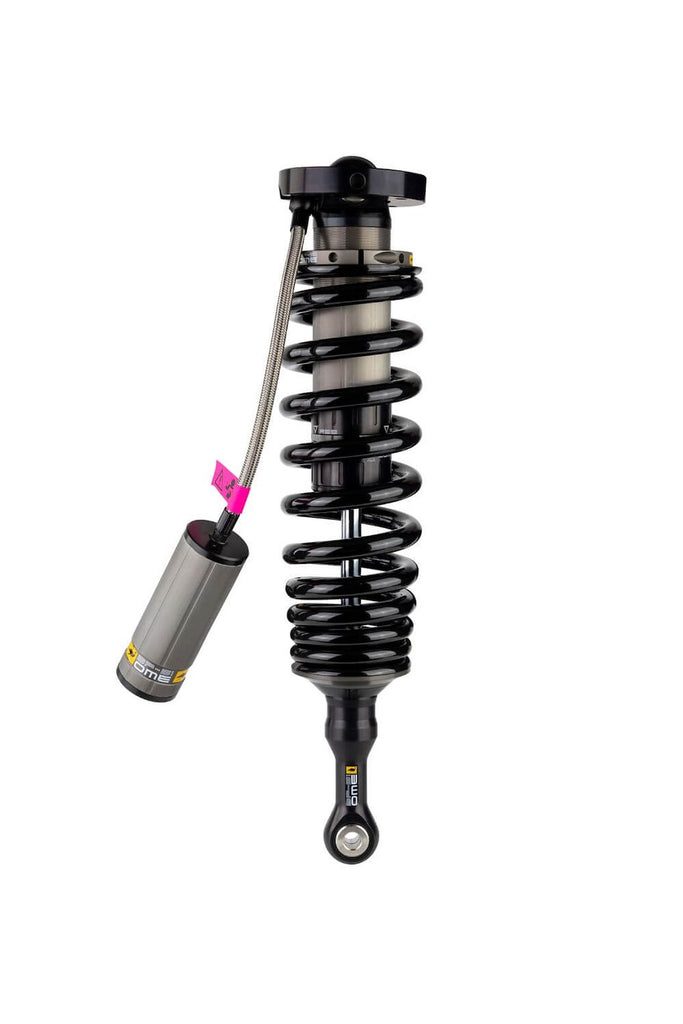

ARB 4x4 Accessories Coil Over Shock Absorber (MPN: BP5190003R)

Advanced suspension technology for superior on and off road performance.

The ARB 4x4 Accessories Coil Over Shock Absorber is engineered to enhance vehicle performance both on and off road. Featuring independent compression and rebound valve adjustment, this shock absorber allows for precise tuning to match various driving conditions. The adjustable ride height and single flat end coil spring design contribute to improved handling and comfort, making it suitable for diverse terrains.

Constructed with a hard chromed ground shaft and impact-resistant replaceable shaft guard, this shock absorber is built for durability and longevity. The high viscosity index oil ensures consistent performance, while the innovative bypass design provides optimal damping based on piston position, allowing for a smooth ride during normal driving and enhanced control over rough surfaces.

With a robust aluminum body and a sleek gray finish, the ARB Coil Over Shock Absorber not only performs well but also complements the aesthetic of your vehicle. This single unit includes all necessary mounting hardware, making installation straightforward. Experience the benefits of advanced suspension technology with this high-performance shock absorber.

Features

• Design Combines Considerable Ride Comfort And Significant Amounts Of End-Zone Damping For Exceptional Chassis Control And Handling Off Road
• Impact Resistant, Replaceable Shaft Guard Protects Against Stone Damage
• Hard Chromed Ground Shaft Provides Low Friction, Superior Strength
• 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
• High Performance, High Viscosity Index Oil Gives Durability And Consistency Of Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190003R
• Adjustable: Yes
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 1-1/2 To 2 Inch Lift
• Extended Height (IN): 23.81 Inch
• Compressed Height (IN): 17.67 Inch
• Quantity: Single
• Valving Type: Independent Compression And Rebound Valve Adjustment
• Shock Type: Coil Spring
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Coil
• Spring Color: Black
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 2007-2011 Toyota Land Cruiser
• 2013-2015 Toyota Land Cruiser
