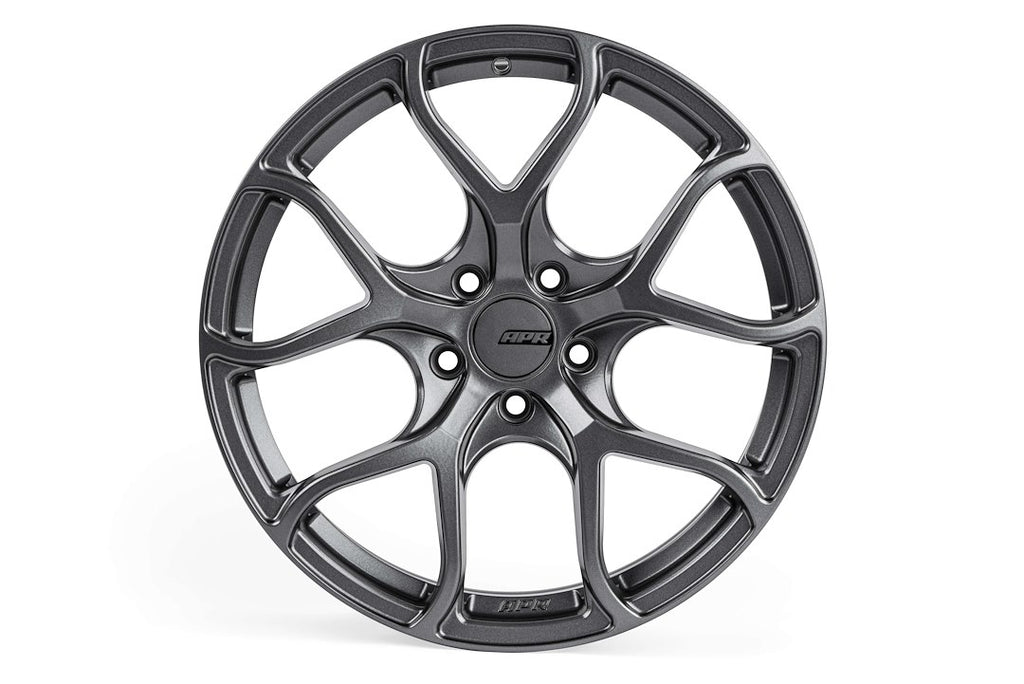

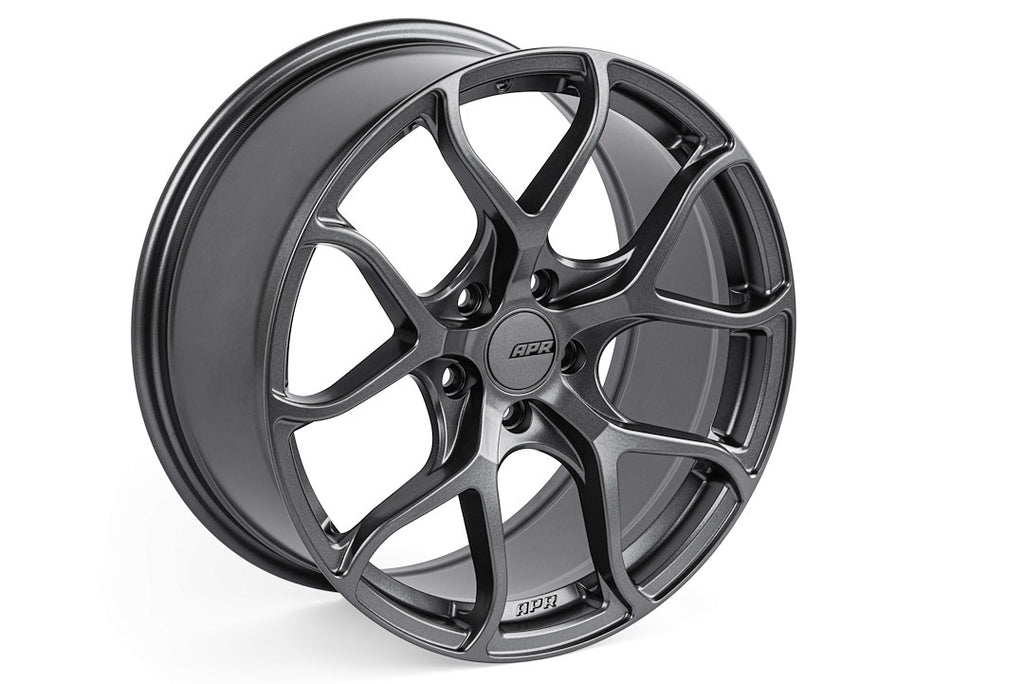

APR A01 Flow Formed Wheel (MPN: WHL00016)

Lightweight and durable wheel designed for performance and style.

The APR A01 Flow Formed Wheel is engineered for both street and track use, combining advanced manufacturing techniques with a sleek design. This wheel features an 18-inch diameter and 8.5-inch width, providing a robust platform for high-performance vehicles. The 5-split spoke design not only enhances aesthetics but also contributes to weight reduction through strategically placed spoke pockets.

Constructed from flow-formed aluminum, the A01 offers an exceptional weight-to-strength ratio, making it suitable for various driving conditions. The wheel is designed with a 45-millimeter offset and 6.52 inches of backspacing, ensuring compatibility with a wide range of vehicles. Additionally, the hub-centric rings lock into place to prevent wheel wobble, enhancing stability during operation.

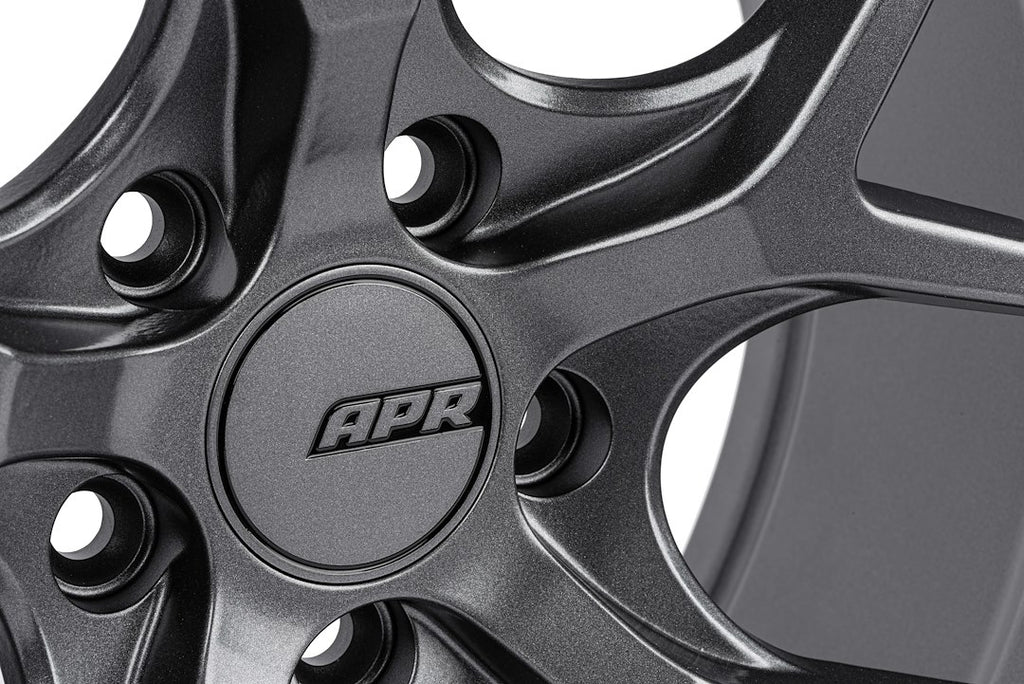

The APR A01 is DOT, VIA, and JWL certified, ensuring it meets rigorous safety and performance standards. With a load capacity of 700 pounds and compatibility with Tire Pressure Monitoring Systems (TPMS), this wheel is built for reliability. The gunmetal gray finish adds a modern touch, while the included APR logo center cap completes the look.

Features

• Flow-Formed Aluminum For An Extreme Weight To Strength Ratio At An Affordable Price
• Strong Hub-Centric Rings Lock Into Place, Preventing Wheel Wobble Via An Interlocking Hub-Centric Ring
• DOT, VIA, And JWL Certified
• Anti-Slip Machining Feature To Help Prevent Tire-To-Wheel Rotation
• Finite Element Analysis (FEA) Designed To Minimize Weight

Specifications

• Manufacturer: APR Motorsports
• Manufacturer Part Number: WHL00016
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 8.5
• Offset: 45
• Backspacing: 6.52
• Finish: Satin
• Color: Gunmetal Gray
• Material: Aluminum
• Bolt Pattern Inch: 5x4.40
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x112
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 66.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 700
• Size: 18x8.5
• Center Cap Design: APR Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Flow Formed
• Estimated Install Time (Hours): 0.5

Technical Documents

• WHL00016_INS.pdf
