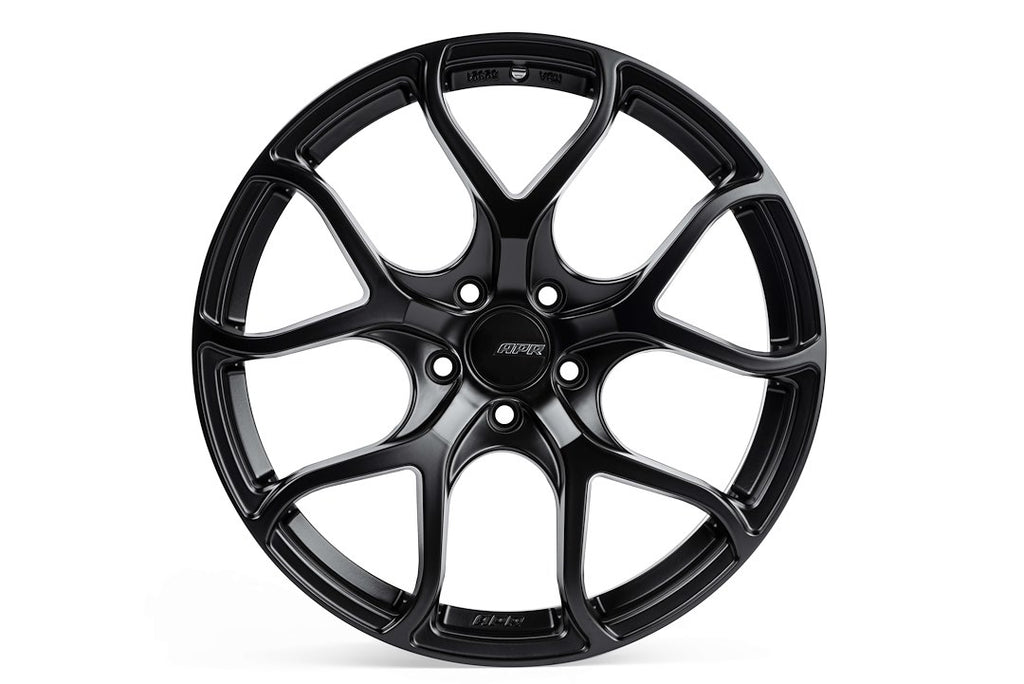

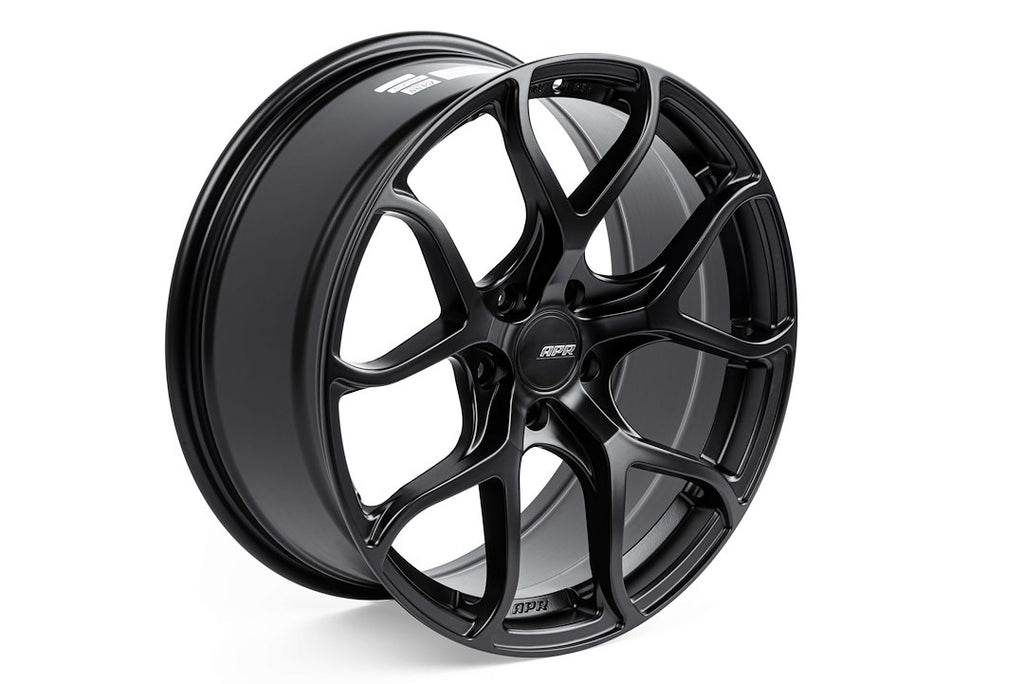

APR A01 Flow Formed Wheel (MPN: WHL00014)

Lightweight and durable wheel designed for performance and style.

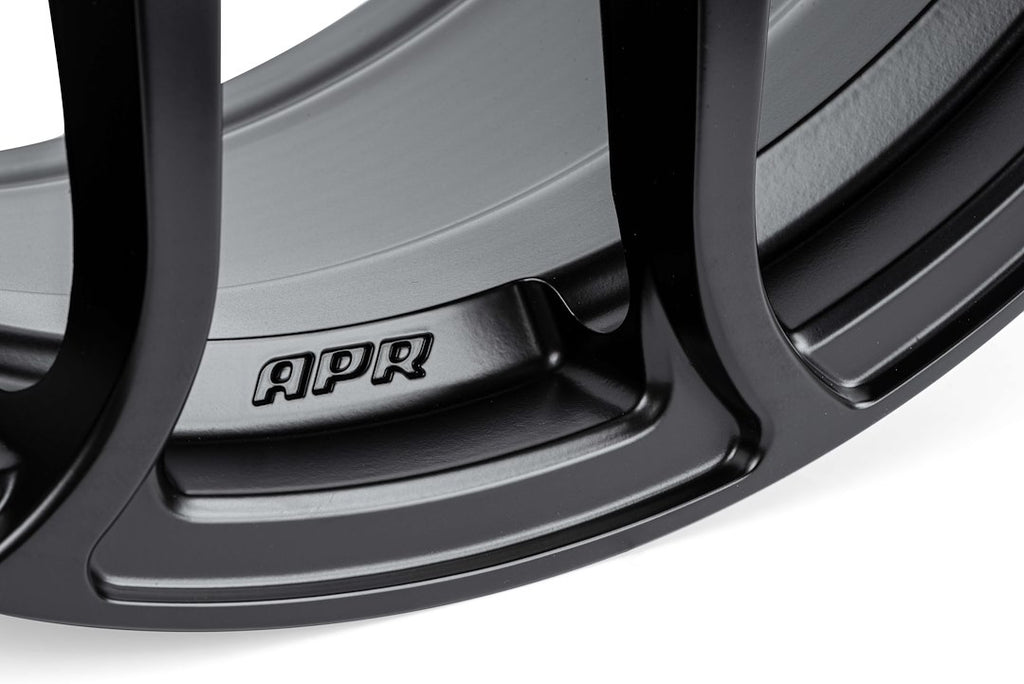

The APR A01 Flow Formed Wheel is engineered for both street and track applications, utilizing advanced manufacturing techniques to achieve a superior strength-to-weight ratio. This wheel features a distinctive 5-spoke Y design with a deep outer rim inlay, complemented by weight-saving spoke pockets that enhance performance without compromising aesthetics. Constructed from high-quality aluminum, the A01 wheel is designed to withstand a load capacity of 700 pounds, making it suitable for a variety of vehicles.

Incorporating hub-centric rings, the APR A01 ensures a secure fit that minimizes wheel wobble, enhancing stability during operation. The wheel is certified by DOT, VIA, and JWL, ensuring compliance with rigorous safety and performance standards. Additionally, the anti-slip machining feature prevents tire-to-wheel rotation, further enhancing reliability.

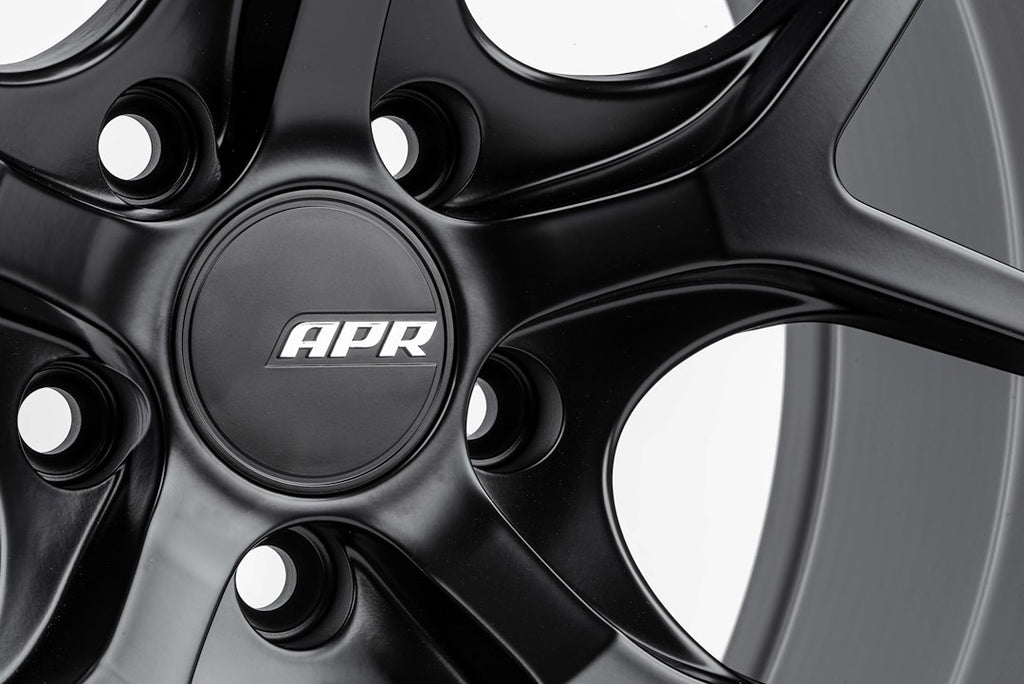

With a satin black finish and the APR logo center cap, this wheel not only performs well but also adds a sleek look to any vehicle. The A01 is compatible with Tire Pressure Monitoring Systems (TPMS), making it a practical choice for modern vehicles. Designed with finite element analysis (FEA), this wheel minimizes weight while maximizing strength, making it an excellent choice for those who prioritize both performance and style.

Features

• Flow-Formed Aluminum For An Extreme Weight To Strength Ratio At An Affordable Price
• Strong Hub-Centric Rings Lock Into Place, Preventing Wheel Wobble Via An Interlocking Hub-Centric Ring
• DOT, VIA, And JWL Certified
• Anti-Slip Machining Feature To Help Prevent Tire-To-Wheel Rotation
• Finite Element Analysis (FEA) Designed To Minimize Weight

Specifications

• Manufacturer: APR Motorsports
• Manufacturer Part Number: WHL00014
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 19
• Width: 8.5
• Offset: 45
• Backspacing: 6.52
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x4.40
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x112
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 66.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 700
• Size: 19x8.5
• Center Cap Design: APR Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Flow Formed
• Estimated Install Time (Hours): 0.5

Technical Documents

• WHL00014_INS.pdf
