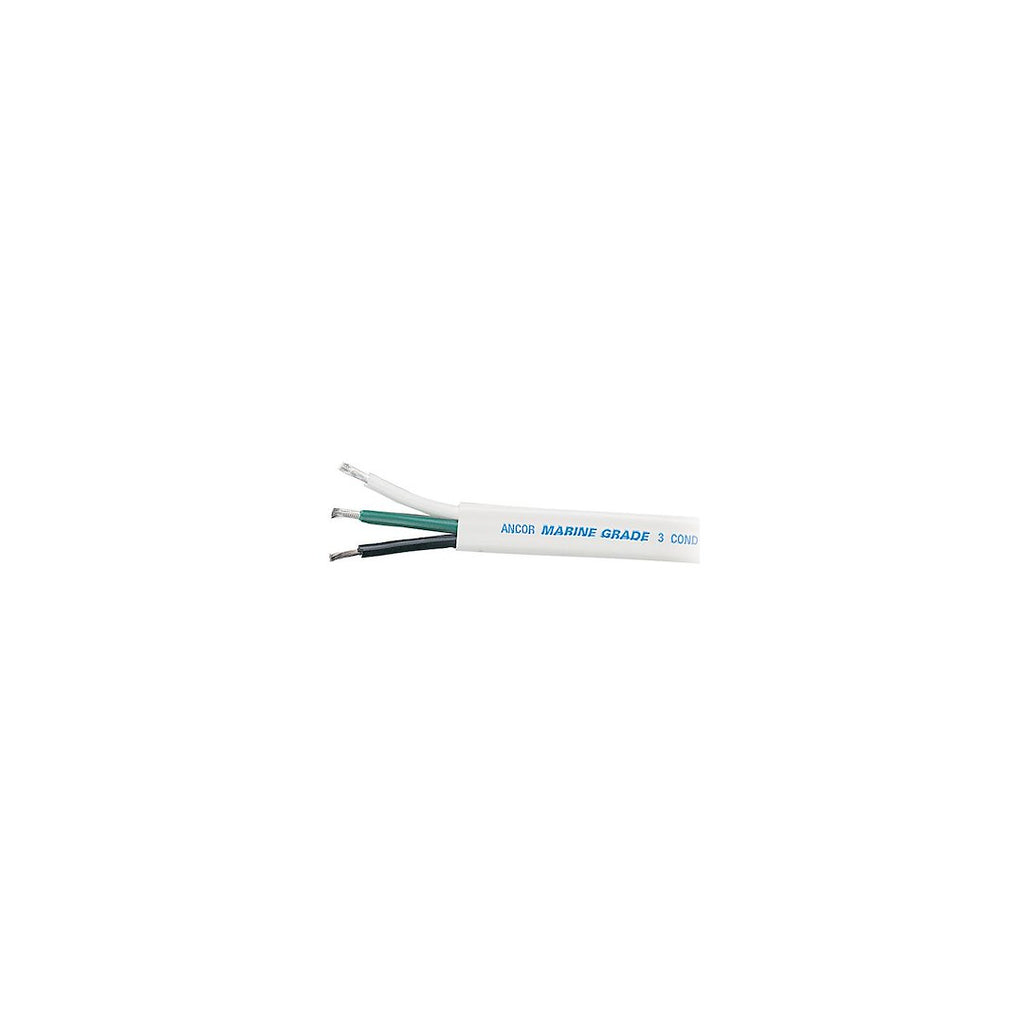

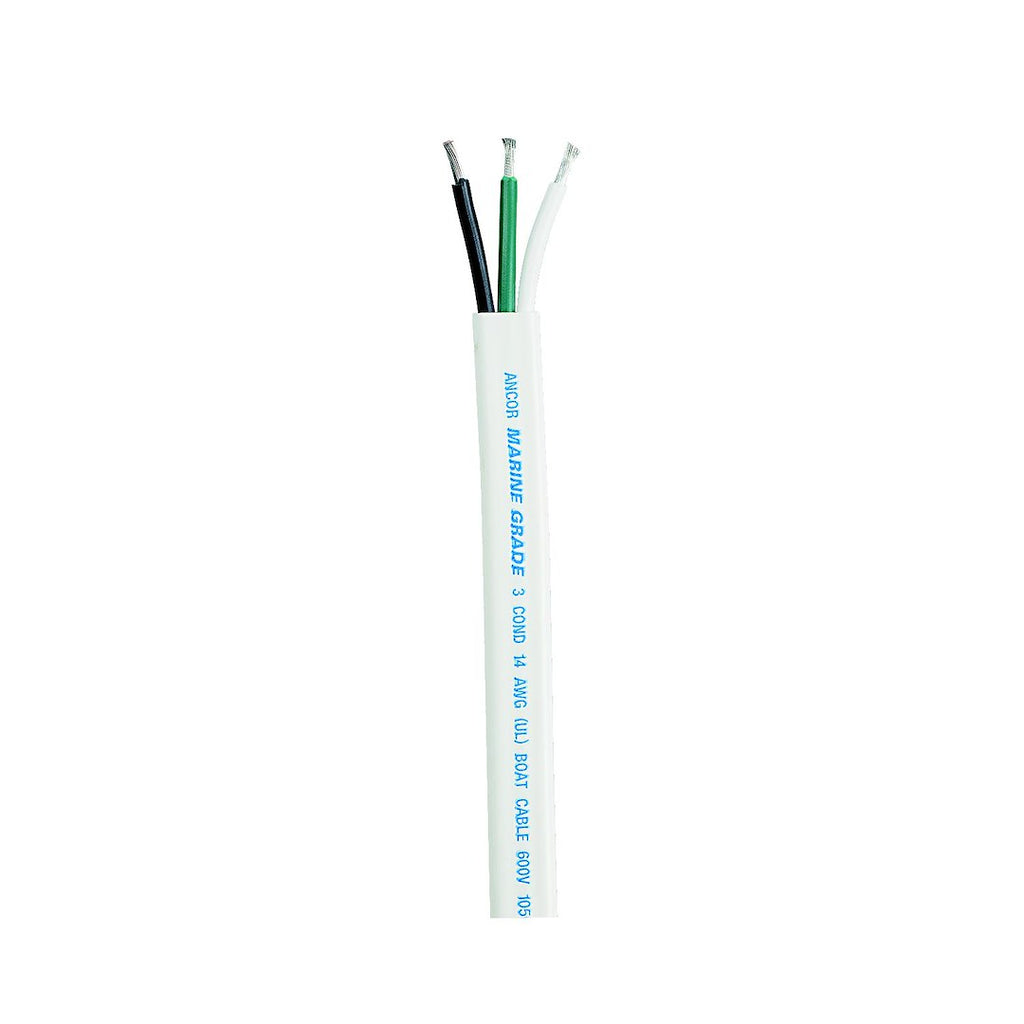

High-performance stranded conductor cable for marine applications

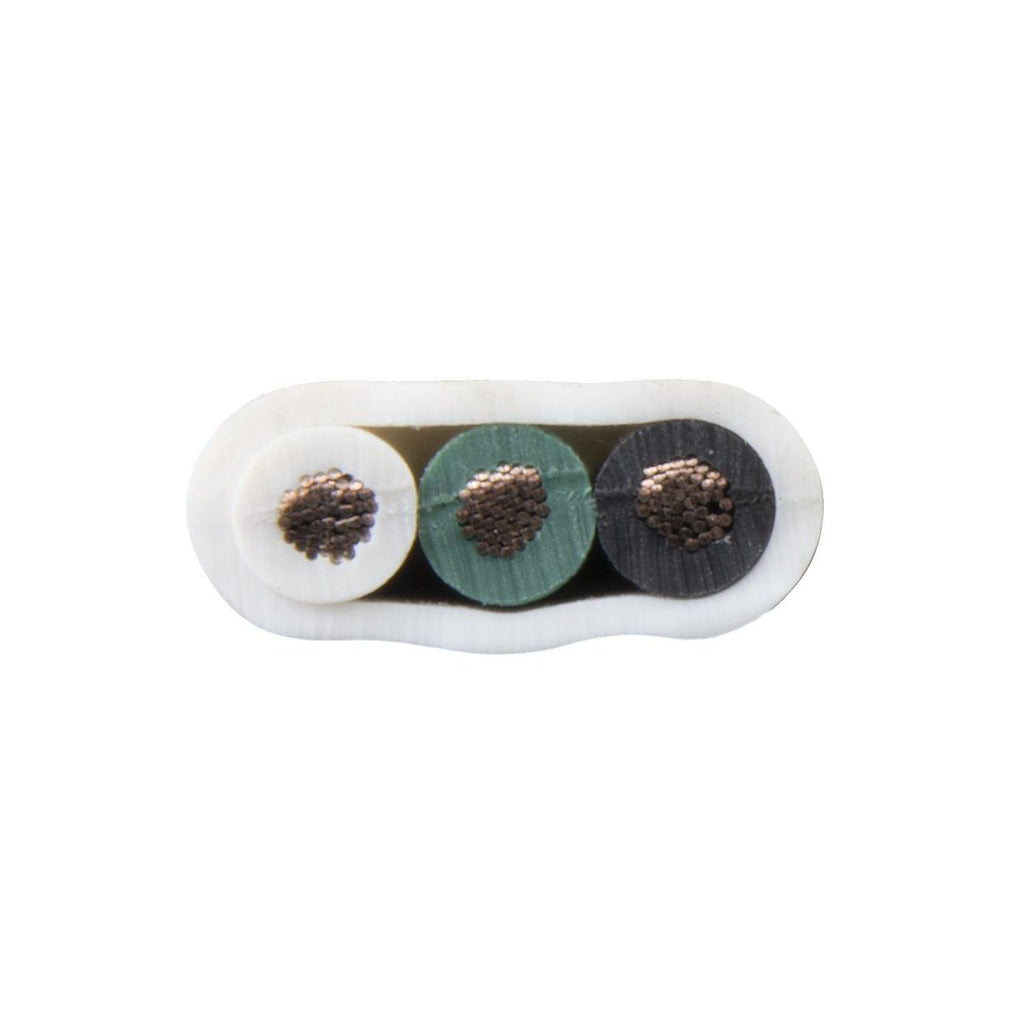

Ancor Triplex Wire is designed specifically for marine environments, featuring a stranded conductor construction that enhances flexibility and durability. This cable includes color-coded conductors in white, black, and green, adhering to ABYC standards, and is encased in a common jacket that allows for easy removal while providing superior abrasion resistance. The tinned copper stranding offers excellent protection against corrosion and electrolysis, ensuring long-lasting performance even in challenging conditions.
The premium PVC insulation is rated for 600 volts and withstands temperatures up to 105 degrees Celsius dry and 75 degrees Celsius wet. It remains flexible in extreme cold, down to negative 40 degrees Celsius, and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation. This cable exceeds UL 1426 standards and is certified by the US Coast Guard and ABYC, making it a reliable choice for various marine applications.
With a length of 100 feet and a gauge of 12/3, this triplex wire is suitable for a range of electrical installations on boats and other marine vessels. Its robust construction and high-quality materials ensure that it meets the demanding requirements of marine environments, providing peace of mind for users.
Features
- Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
- Proprietary Premium Vinyl Insulation Stays Flexible Even In Extreme Cold Negative 40 Degree Celsius
- Resists Salt Water, Battery Acid, Oil, Gasoline, Ultra-Violet Radiation, Heat And Abrasion
- Rated At 600 Volts, 105 Degree Celsius Dry And 75 Degree Celsius Wet
- Exceeds All UL 1426, US Coast Guard Charter Boat And ABYC Standards
Specifications
- Manufacturer: Ancor
- Manufacturer Part Number: 131310
- Construction: Stranded Conductor
- Gauge: 12/3 Gauge
- Length: 100 Feet
- Color: Black/ Green/ White
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Certification: UL/ ABYC/ US Coast Guard Certified
