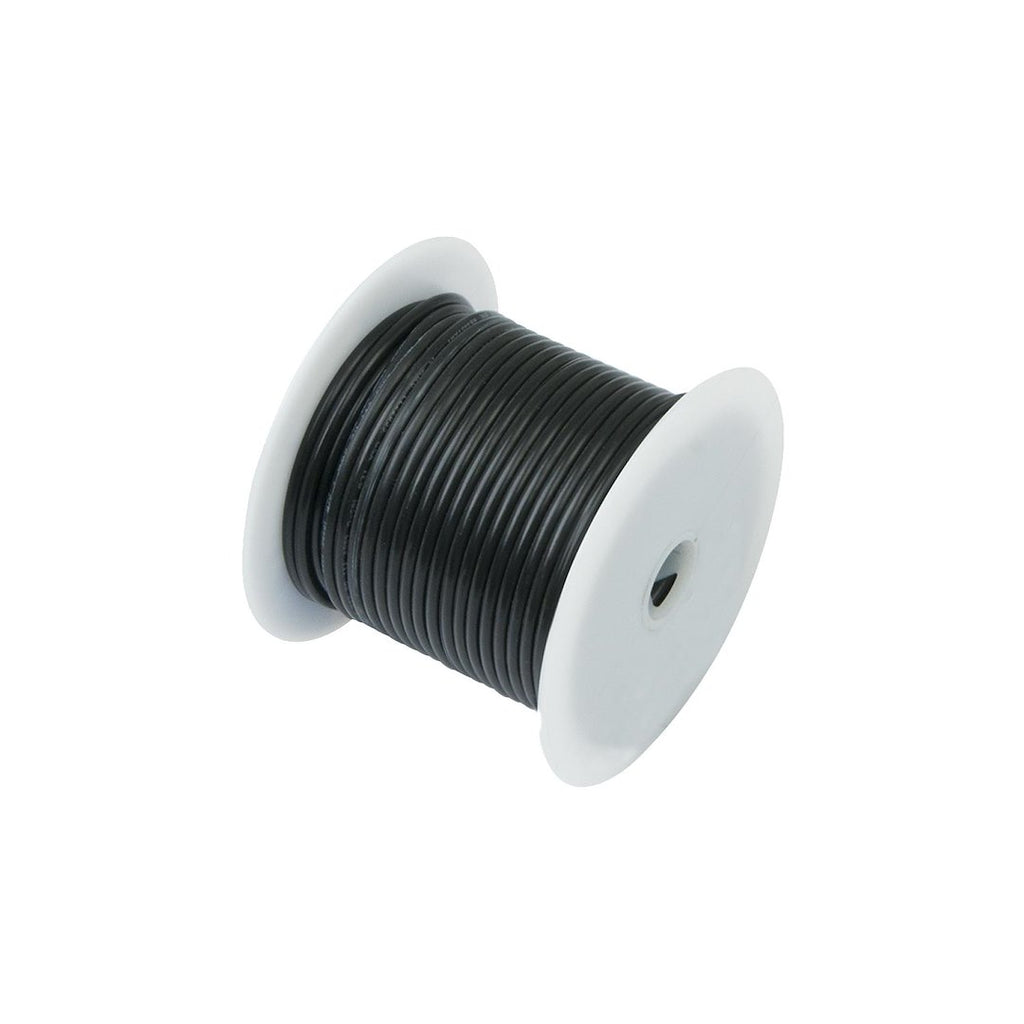

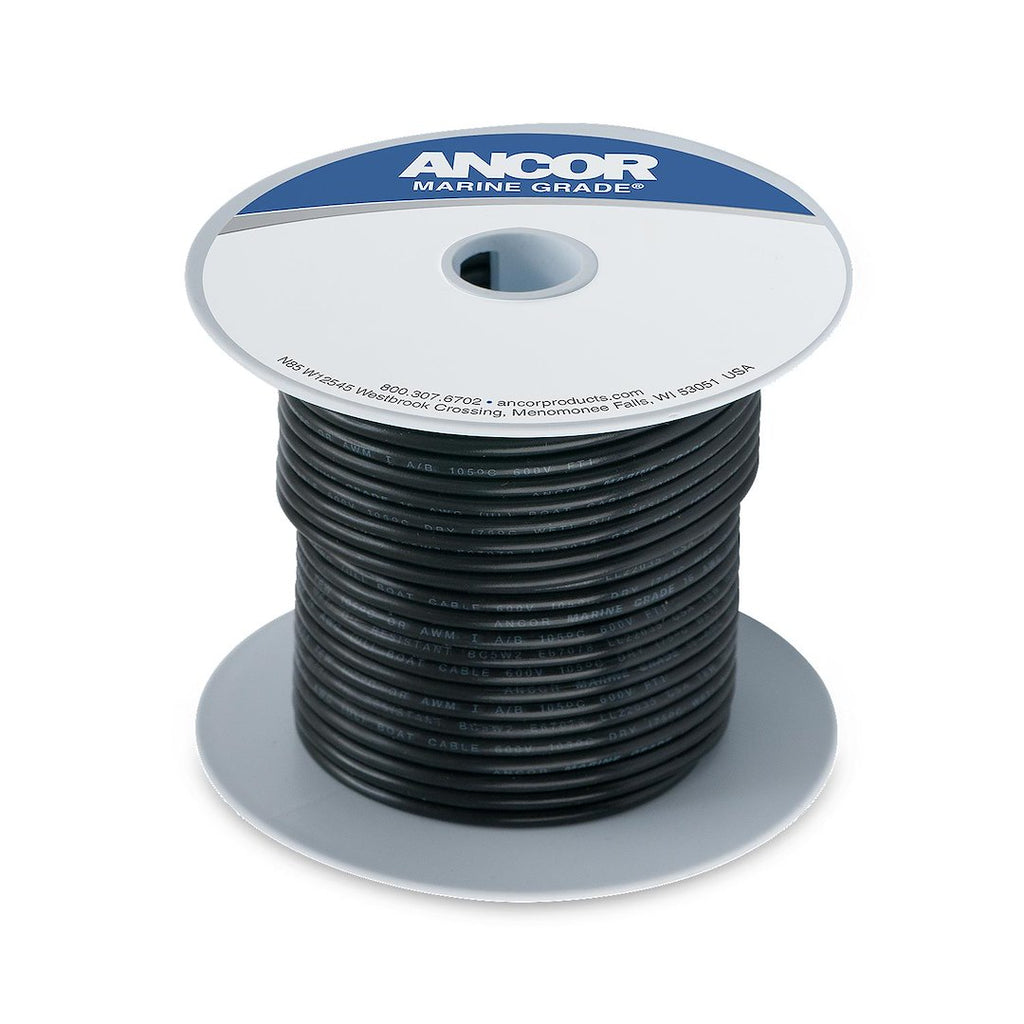

Ancor Marine Grade Primary Wire (MPN: 106002)

Durable and flexible wire for marine applications with superior insulation.

Ancor Marine Grade Primary Wire is designed for the most demanding marine environments, ensuring longevity and reliability. This 12 gauge stranded conductor wire is constructed with premium vinyl insulation rated for 600 volts, making it suitable for various applications on boats and marine vehicles. The wire remains flexible even in extreme cold, providing ease of installation and use in harsh conditions.

The tinned copper conductor offers maximum protection against corrosion and electrolysis, which is critical in marine settings where exposure to salt water and other harsh elements is common. This wire also resists fatigue due to vibration and flexing, ensuring consistent performance over time. With certifications from UL, CSA, ABYC, and the US Coast Guard, this wire meets stringent safety and quality standards, making it a reliable choice for marine wiring needs.

Features

• Constructed With Premium Vinyl Insulation That Is Rated At 600 Volt
• Stays Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion And Ultra-Violet Radiation
• Highest Quality Ultra Flexible Tinned Copper Stranding Provides Maximum Protection Against Corrosion
• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 106002
• Construction: Stranded Conductor
• Gauge: 12 Gauge
• Length: 25 Feet
• Color: Black
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified
