Ancor Marine Grade Primary Wire (MPN: 100210)

Durable and flexible wire for marine applications with superior insulation.

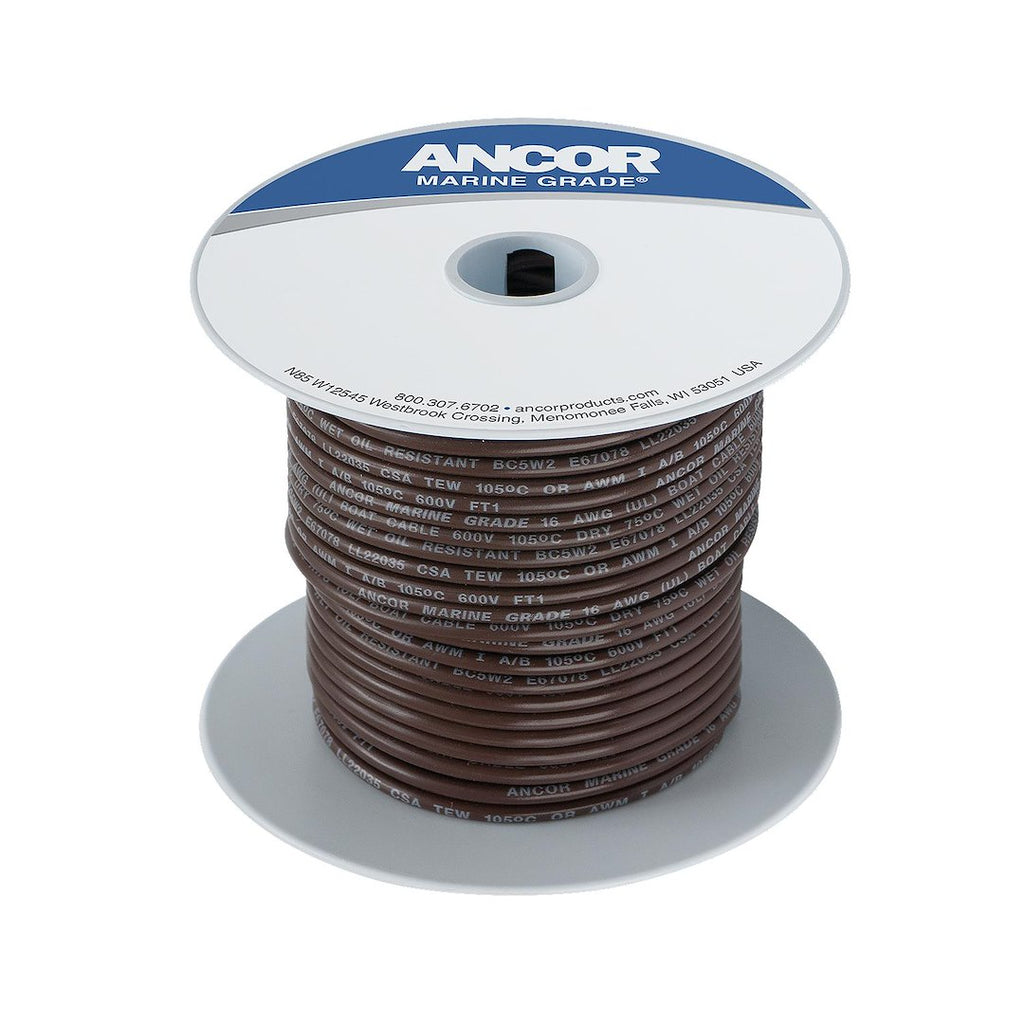

Ancor Marine Grade Primary Wire is designed for demanding marine environments, ensuring longevity and reliability. This 18 gauge stranded conductor wire comes in a 100 foot spool and features a brown color, making it suitable for various wiring needs on boats and other marine vessels. The wire is constructed with premium vinyl insulation rated for 600 volts, providing excellent protection against harsh conditions.

The insulation remains flexible even in extreme cold, down to -40 degrees Fahrenheit, and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation. This makes it an ideal choice for marine applications where exposure to the elements is a concern. The tinned copper stranding enhances corrosion resistance and minimizes the risk of electrolysis, ensuring a reliable connection over time.

Ancor's wire products exceed industry standards, including UL 1426, ABYC, and US Coast Guard Charter boat regulations, making them a trusted choice for marine wiring. The ultra flexible construction also helps to reduce fatigue from vibration and flexing, further extending the lifespan of the wire in challenging environments.

Features

• Constructed With Premium Vinyl Insulation
• Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion
• Highest Quality Ultra Flexible Tinned Copper Stranding Construction
• Provides Maximum Protection Against Corrosion And Electrolysis
• Electrolysis While Resisting Fatigue Due To Vibration And Flexing

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 100210
• Construction: Stranded Conductor
• Gauge: 18 Gauge
• Length: 100 Feet
• Color: Brown
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified
