Ancor Marine Grade Battery Cable (MPN: 114002)

Durable and flexible wire for marine applications with superior insulation.

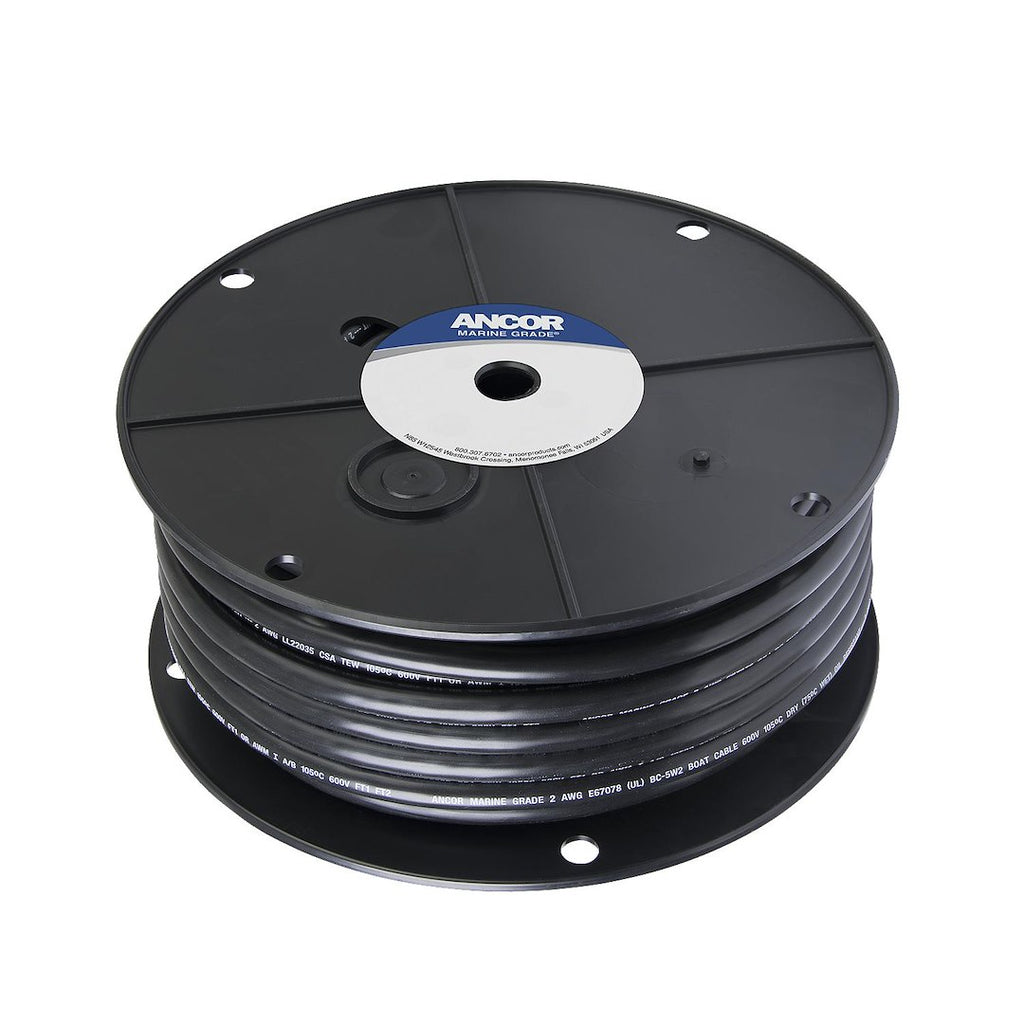

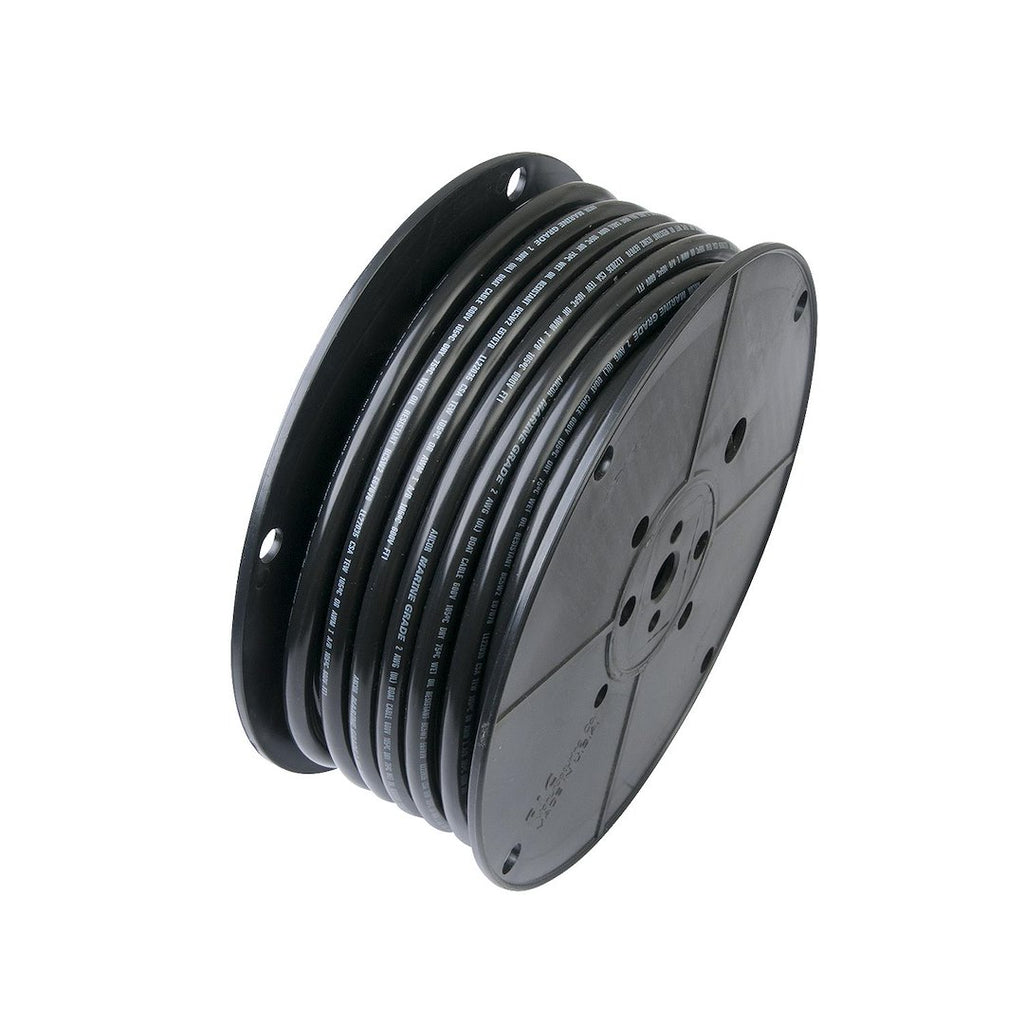

Ancor Marine Grade Battery Cable is designed for demanding marine environments, ensuring longevity and reliability. This 25-foot spool of 2 gauge auxiliary wire features a black negative color and is constructed with premium vinyl insulation rated for 600 volts. The insulation remains flexible even in extreme cold, providing resistance against salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation.

The cable utilizes high-quality ultra flexible tinned copper stranding, which offers maximum protection against corrosion and electrolysis. This design also minimizes fatigue caused by vibration and flexing, making it suitable for various marine applications. Certified by UL, CSA, ABYC, and the US Coast Guard, this battery cable meets rigorous safety and performance standards, ensuring it can withstand the harsh conditions often encountered in marine settings.

Features

• Constructed With Premium Vinyl Insulation That Is Rated At 600 Volt
• Stays Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion And Ultra-Violet Radiation
• Highest Quality Ultra Flexible Tinned Copper Stranding Provides Maximum Protection Against Corrosion
• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 114002
• Battery Cable End Style 1: Bare Wire
• Length: 25 Feet
• Cable Gauge: 2 Gauge
• Battery Cable End Style 2: Bare Wire
• Conductor Material: Tinned Copper
• Auxiliary Wire Gauge: No Auxiliary Wire
• Positive/ Negative Cable Color: Black Negative
• Jacket Material: Plastic (Polyvinyl Chloride PVC)
• Assembled: No
• Certifications: UL/ CSA/ ABYC/ US Coast Guard Certified
• Marine: Yes
