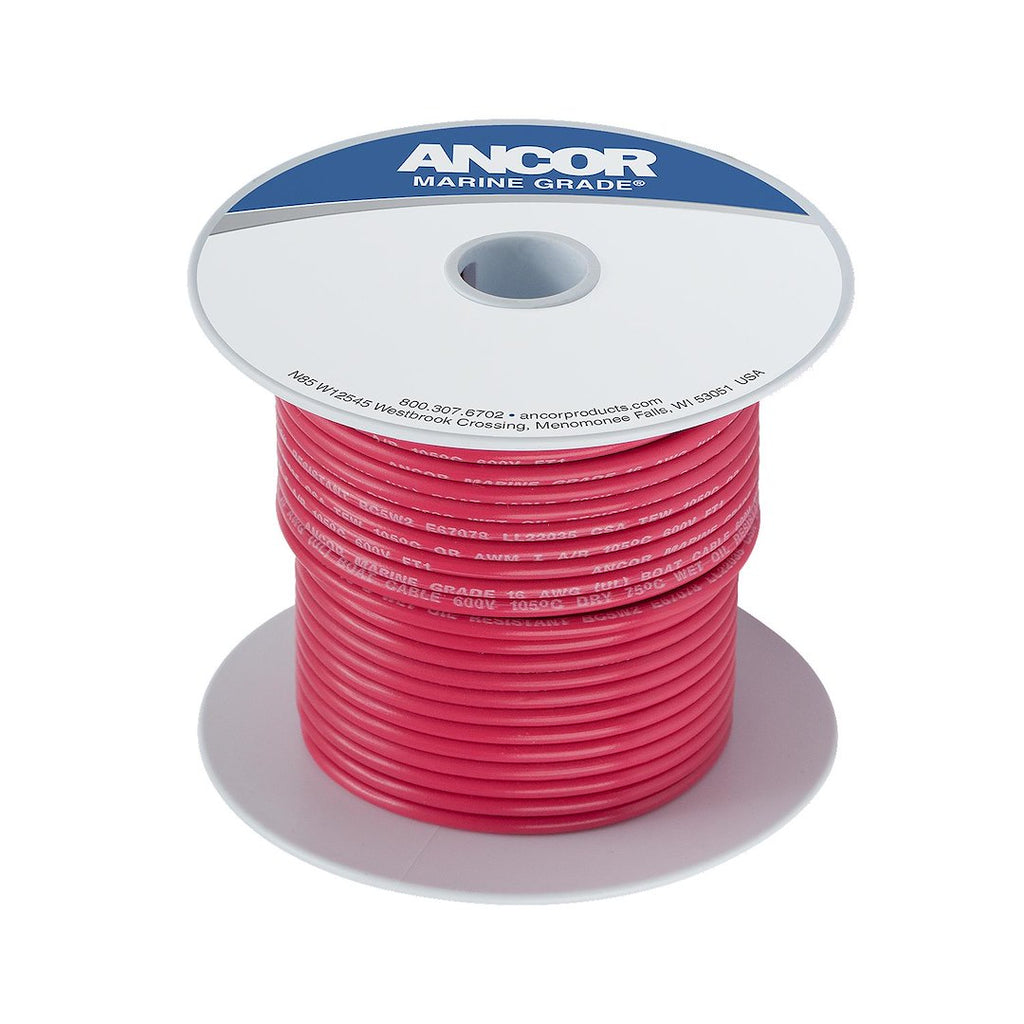

Ancor Marine Grade 6 Gauge Wire (MPN: 112510)

Durable and flexible wire designed for marine applications.

Ancor Marine Grade 6 Gauge Wire is engineered to withstand the demanding conditions of marine environments. Featuring a stranded tinned copper conductor, this wire offers superior resistance to corrosion and electrolysis, ensuring reliable conductivity over time. The premium PVC insulation is rated for 600 volts and remains flexible in extreme temperatures, making it suitable for various applications on boats and marine vessels.

This wire is designed to exceed industry standards, including UL 1426, ABYC, and US Coast Guard Charter boat regulations. Its construction allows for excellent performance in harsh conditions, resisting salt water, battery acid, oil, gasoline, and ultraviolet radiation. The ultra-flexible stranding minimizes fatigue due to vibration and flexing, enhancing the longevity of the wire in dynamic environments.

With a length of 100 feet and a striking red color, this wire is not only functional but also easy to identify in complex wiring systems. Ancor Marine Grade Wire is a reliable choice for those seeking high-quality electrical solutions in marine settings.

Features

• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
• Proprietary Premium Vinyl Insulation Stays Flexible Even In Extreme Cold Negative 40 Degree Celsius
• Resists Salt Water, Battery Acid, Oil, Gasoline, Ultra-Violet Radiation, Heat And Abrasion
• Rated At 600 Volts, 105 Degree Celsius Dry And 75 Degree Celsius Wet
• Exceeds All UL 1426, US Coast Guard Charter Boat And ABYC Standards

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 112510
• Construction: Stranded Conductor
• Gauge: 6 Gauge
• Length: 100 Feet
• Color: Red
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified

Technical Documents

• Technical_Bulletin_100010_2.pdf
• Technical_Bulletin_100010.pdf
• Technical_Bulletin_100010_1.pdf
