Ancor Duplex Wire Marine Grade Cable (MPN: 126750)

High-performance duplex cable designed for marine applications.

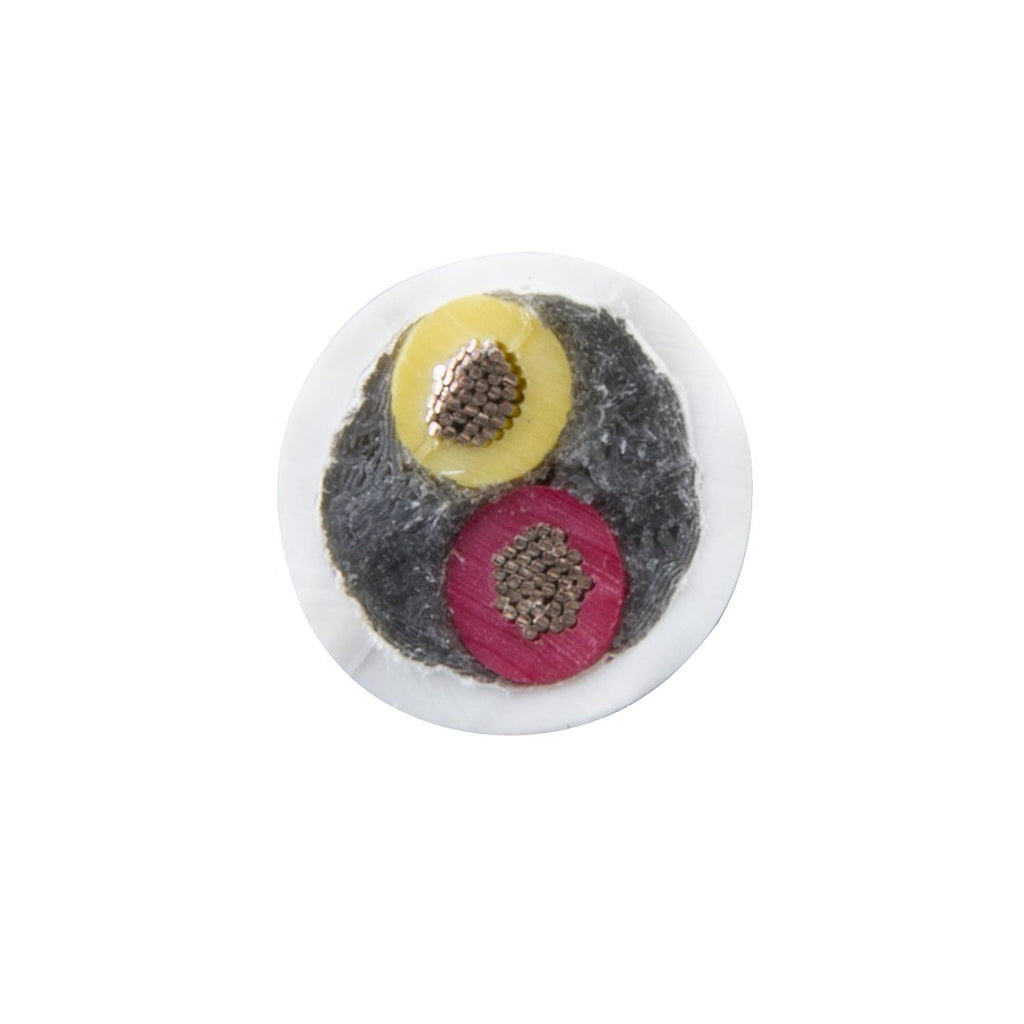

Ancor Duplex Wire is engineered for marine environments, featuring red and yellow primary conductors that adhere to ABYC standards. This cable is encased in a white common jacket that allows for easy removal while providing superior abrasion resistance. Constructed from ultra flexible Type 3/Class K tinned copper stranding, it offers maximum protection against corrosion and electrolysis, ensuring durability in challenging conditions.

The premium PVC insulation is rated for 600 Volts and withstands temperatures up to 105 degrees Celsius dry and 75 degrees Celsius wet. It remains flexible even in extreme cold conditions down to -40 degrees Fahrenheit, making it suitable for various marine applications. This cable also resists damage from salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation, ensuring long-lasting performance.

Ancor Duplex Wire exceeds UL 1426 standards and meets ABYC and US Coast Guard Charter Boat standards, making it a reliable choice for boat wiring. With a length of 500 feet and a gauge of 16/2, this cable is designed to meet the rigorous demands of marine use.

Features

• Manufactured From Tinned Copper Stranding For Maximum Protection Against Corrosion And Electrolysis
• Ultra Flexible Type 3 Stranding Resists Fatigue Due To Vibration And Flexing
• Stays Flexible Even In Extreme Cold -40 Degree Celsius And Resists Salt Water, Battery Acid, Oil, Gasoline And Ultra-Violet Radiation
• Exceeding UL 1426, ABYC And US Coast Guard Charter Boat Standards

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 126750
• Construction: Stranded Conductor
• Gauge: 16/2 Gauge
• Length: 500 Feet
• Color: Red/ Yellow
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ ABYC Certified
