Ancor Duplex Wire Marine Grade (MPN: 124510)

High-performance duplex cable for marine applications with superior durability.

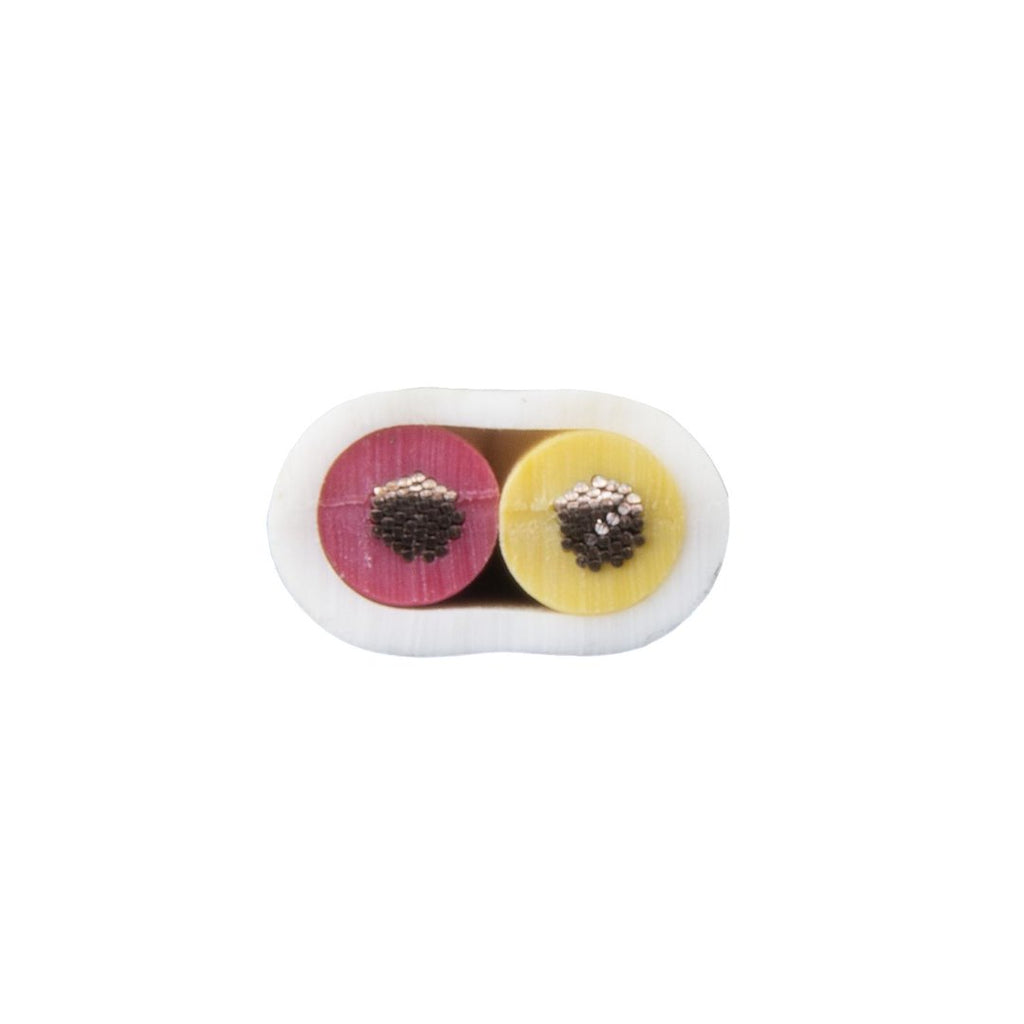

Ancor Duplex Wire is designed specifically for marine environments, featuring red and yellow primary conductors encased in a white common jacket. This construction allows for easy removal while ensuring maximum abrasion resistance. The cable exceeds UL 1426 standards, utilizing ultra flexible tinned copper stranding that offers exceptional protection against corrosion and electrolysis, making it suitable for various marine applications.

The premium vinyl insulation is rated for 600 volts and withstands temperatures up to 105 degrees Celsius dry and 75 degrees Celsius wet. It remains flexible even in extreme cold conditions and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation. This durability ensures long-lasting performance in challenging environments.

With a gauge of 14/2 and a length of 100 feet, this duplex wire is ideal for a range of electrical installations on boats and other marine vessels. The combination of high-quality materials and construction techniques makes Ancor Duplex Wire a reliable choice for those seeking safety and performance in their marine electrical systems.

Features

• Constructed With Premium Vinyl Insulation
• Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion
• Highest Quality Ultra Flexible Tinned Copper Stranding
• Provides Maximum Protection Against Corrosion And Electrolysis
• Electrolysis While Resisting Fatigue Due To Vibration And Flexing

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 124510
• Construction: Stranded Conductor
• Gauge: 14/2 Gauge
• Length: 100 Feet
• Color: Red/ Yellow
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ ABYC Certified
