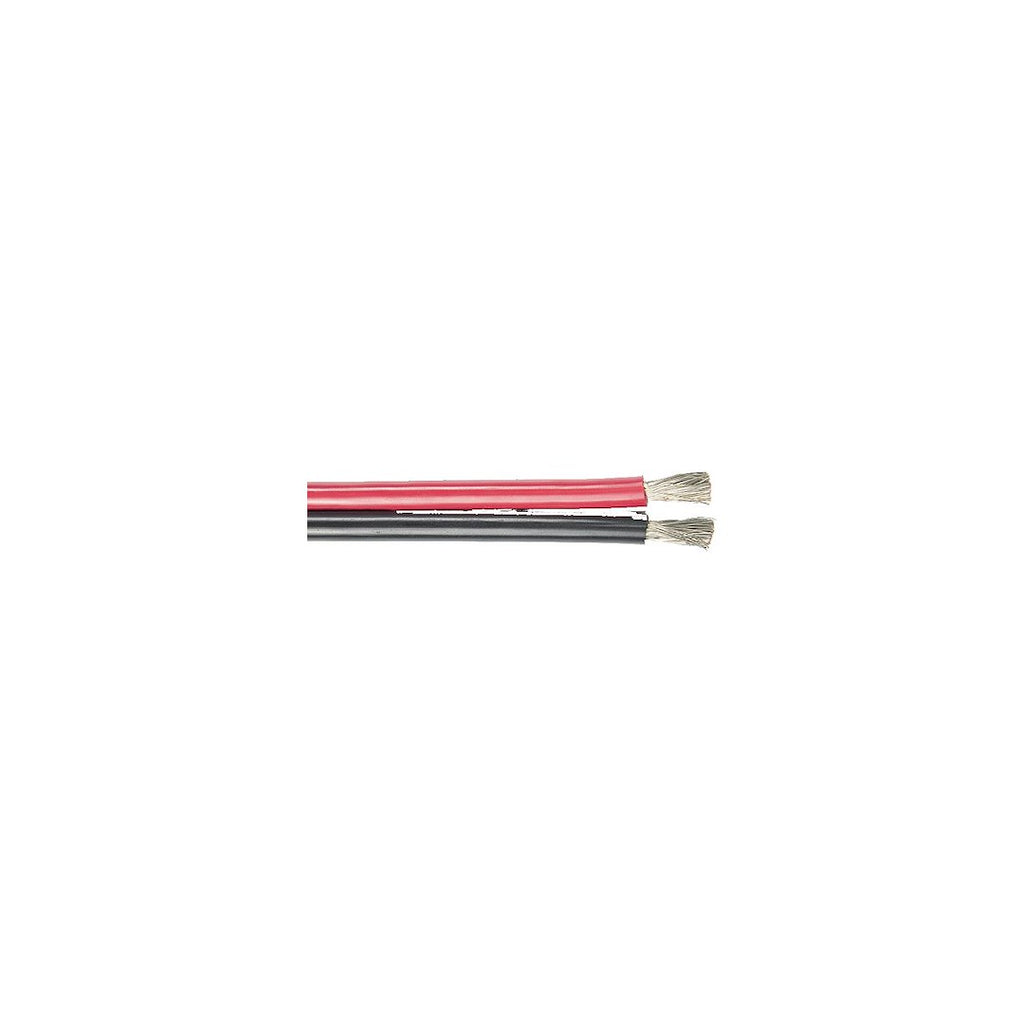

Ancor Duplex Wire Marine Grade (MPN: 121802)

High-performance stranded conductor for marine applications

Ancor Duplex Wire is designed specifically for marine environments, featuring a stranded conductor made from ultra flexible tinned copper. This construction provides maximum protection against corrosion and electrolysis, ensuring durability and longevity in harsh conditions. The wire exceeds UL 1426 standards, making it suitable for various marine applications where reliability is critical.

The premium vinyl insulation is rated for 600 volts and withstands temperatures up to 105 degrees Celsius dry and 75 degrees Celsius wet. It remains flexible even in extreme cold, down to negative 40 degrees Celsius, and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation. This combination of features ensures that the wire maintains its integrity and performance over time.

With a gauge of 8/2 and a length of 25 feet, this wire is available in a striking red and black color scheme, making it easy to identify in any installation. Ancor Duplex Wire is an essential component for any marine electrical system, providing the reliability and performance needed for safe operation.

Features

• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
• Proprietary Premium Vinyl Insulation Stays Flexible Even In Extreme Cold Negative 40 Degree Celsius
• Resists Salt Water, Battery Acid, Oil, Gasoline, Ultra-Violet Radiation, Heat And Abrasion
• Rated At 600 Volts, 105 Degree Celsius Dry And 75 Degree Celsius Wet
• Exceeds All UL 1426, US Coast Guard Charter Boat And ABYC Standards

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 121802
• Construction: Stranded Conductor
• Gauge: 8/2 Gauge
• Length: 25 Feet
• Color: Black/ Red
• Conductor Material: Tinned Copper
• Insulation Material: Vinyl

Technical Documents

• Technical_Bulletin_100010_1.pdf
