Ancor Duplex Wire (MPN: 124350)

High-performance marine grade duplex wire for reliable electrical connections.

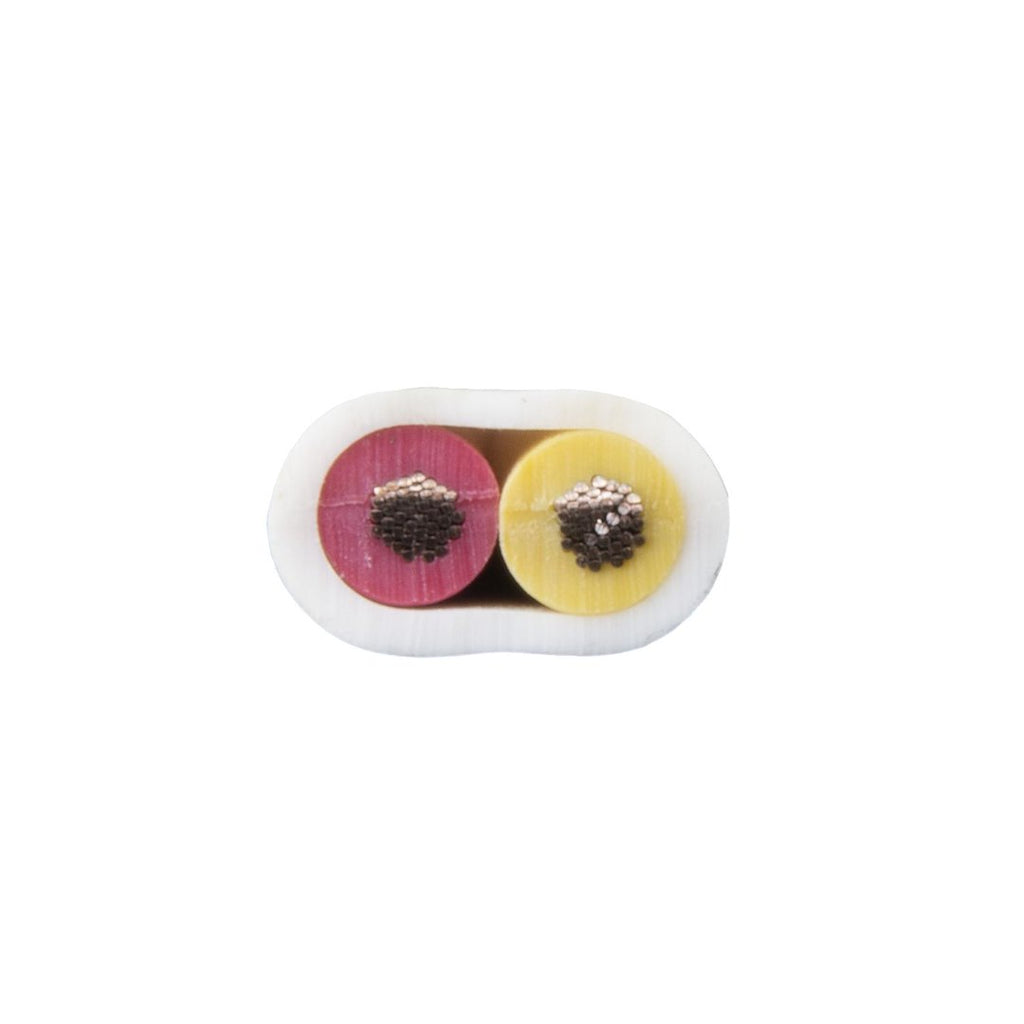

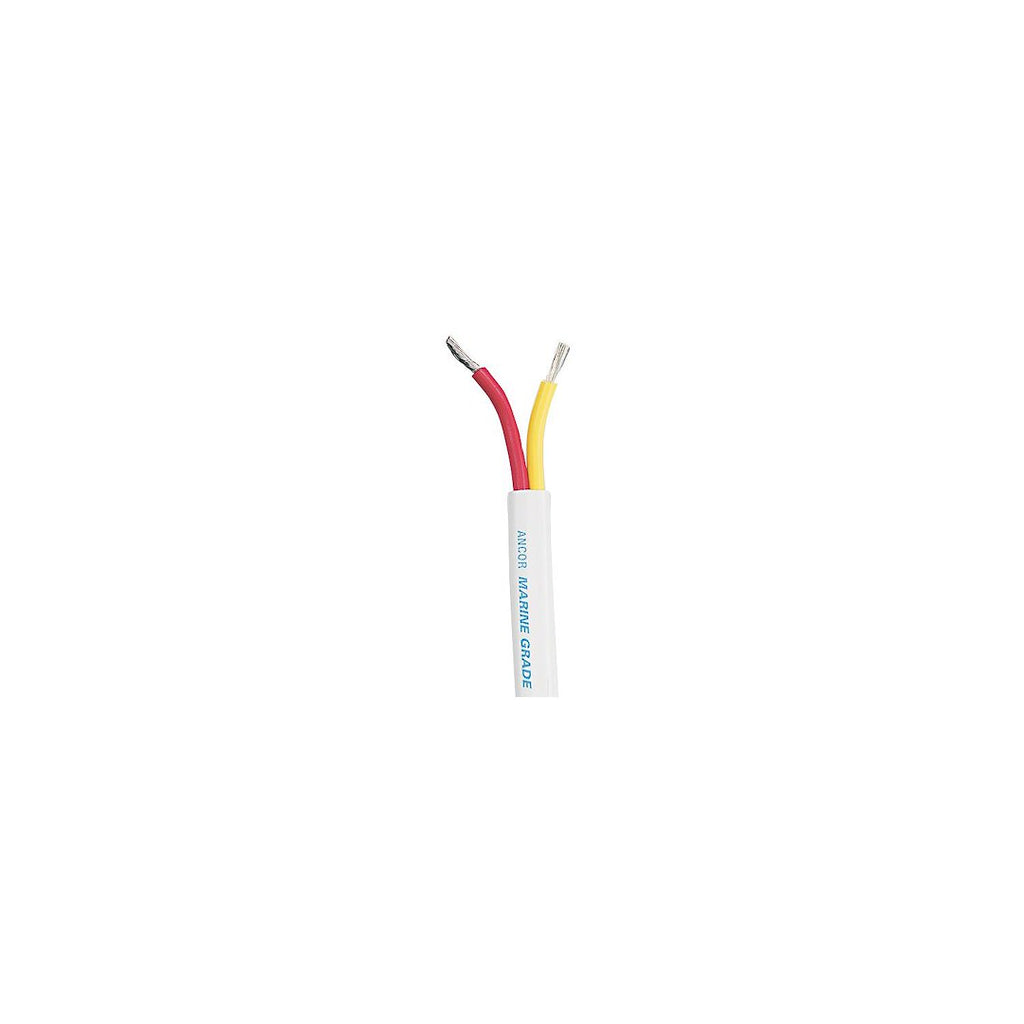

Ancor Duplex Wire is designed for marine applications, featuring red and yellow primary conductors encased in a durable white common jacket. This construction allows for easy removal while ensuring superior abrasion resistance. The wire exceeds UL 1426 standards and is made from ultra flexible tinned copper stranding, which provides excellent protection against corrosion and electrolysis, making it suitable for harsh marine environments.

The premium vinyl insulation is rated for 600 volts and withstands temperatures up to 105 degrees Celsius dry and 75 degrees Celsius wet. It remains flexible even in extreme cold and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation. This combination of features ensures long-lasting performance and reliability in various conditions.

With a gauge of 12/2 and a length of 500 feet, Ancor Duplex Wire is ideal for a range of electrical installations. Its construction not only enhances flexibility but also minimizes fatigue due to vibration and flexing, making it a dependable choice for marine wiring needs.

Features

• Constructed With Premium Vinyl Insulation
• Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion
• Highest Quality Ultra Flexible Tinned Copper Stranding
• Provides Maximum Protection Against Corrosion And Electrolysis
• Electrolysis While Resisting Fatigue Due To Vibration And Flexing

Specifications

• Manufacturer: Ancor
• Manufacturer Part Number: 124350
• Construction: Stranded Conductor
• Gauge: 12/2 Gauge
• Length: 500 Feet
• Color: Red/ Yellow
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ ABYC Certified

Technical Documents

• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf
• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf
• ANC_NPA_001.pdf
