Enhance vehicle stability and comfort with adjustable air springs.
The Air Lift LoadLifter 5000 Ultimate Air Spring Kit is designed to provide superior load leveling capabilities for heavy-duty vehicles. With a load capacity of up to 5000 pounds, this air spring kit enhances stability and comfort whether the vehicle is loaded or unloaded. The internal jounce bumper absorbs shocks and eliminates harsh jarring on rough roads, ensuring a smooth ride even under heavy loads. This kit is fully adjustable from 5 to 100 PSI, allowing for customized support based on the load being carried.
Constructed with high-strength nylon composite end caps and reinforced 2-ply fabric, the air springs are built for durability and longevity. The included upper and lower roll plates protect the springs from sharp edges, increasing load capacity by up to 10 percent. Installation is straightforward, with all necessary hardware included, and can be completed in two hours or less. The LoadLifter 5000 Ultimate is maintenance-free and can safely operate with zero air pressure due to its innovative design.
This air spring kit is an excellent solution for those who require reliable support for towing and hauling. It replaces factory jounce bumpers and is compatible with vehicles equipped with in-bed hitches. The comprehensive lifetime warranty covers all components, ensuring peace of mind with your purchase.
Features
- Up To 5000 Pounds Of Load Leveling Capacity
- Closed-Cell Urethane Foam Provides A Cushion Of Air That Absorbs Shocks And Protects Vehicles With Heavy Loads

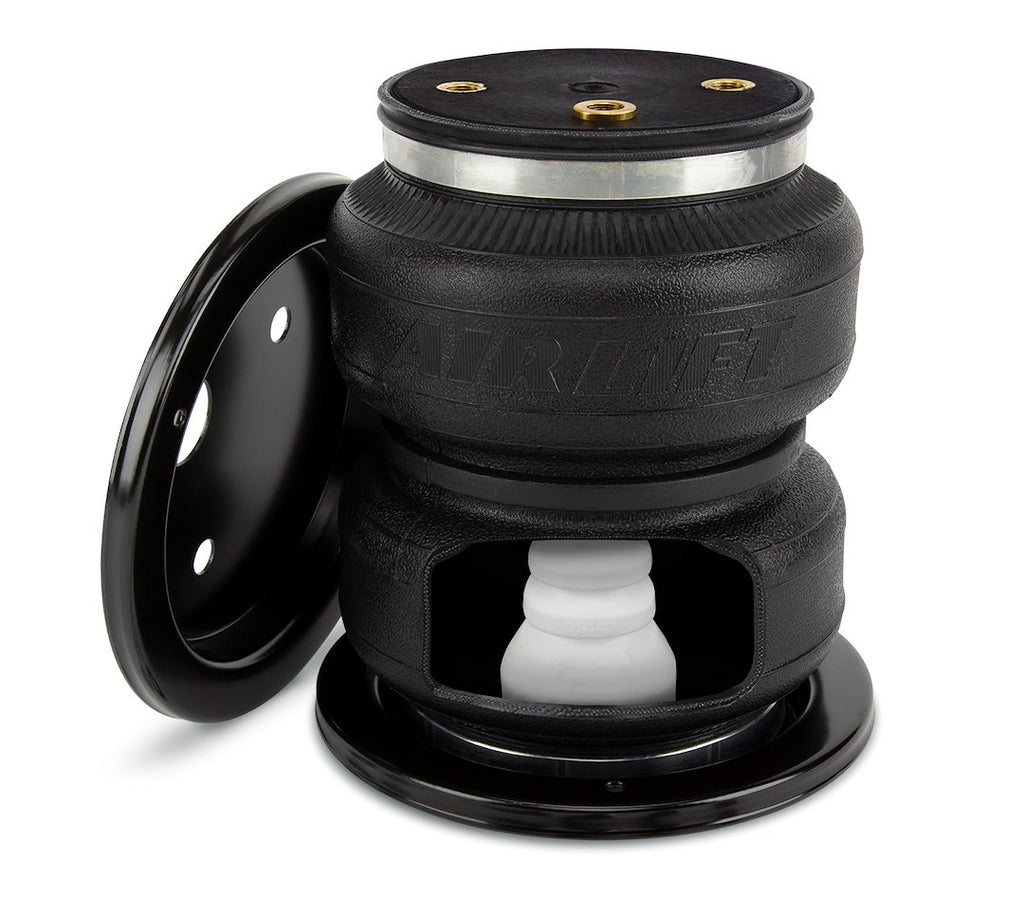

- Exclusive Jounce Bumper Inside - Eliminates Harsh Jarring On Rough Roads, Provides Three-Stage Ride Comfort, Safely Run With Zero Air Pressure
- End Caps Are Made Of An Ultra High-Strength Nylon Composite Which Is As Strong As Steel, But Weighs Less And Is Corrosion Proof
- Air Springs Are Built Like A Tire And Are Reinforced By Durable, 2-Ply Fabric For Maximum Strength
- Exclusive Upper And Lower Roll Plates Included. Protect The Springs From Sharp Edges, Such As Brackets Or The Frame. They Increase Load Capacity Up To 10 Percent

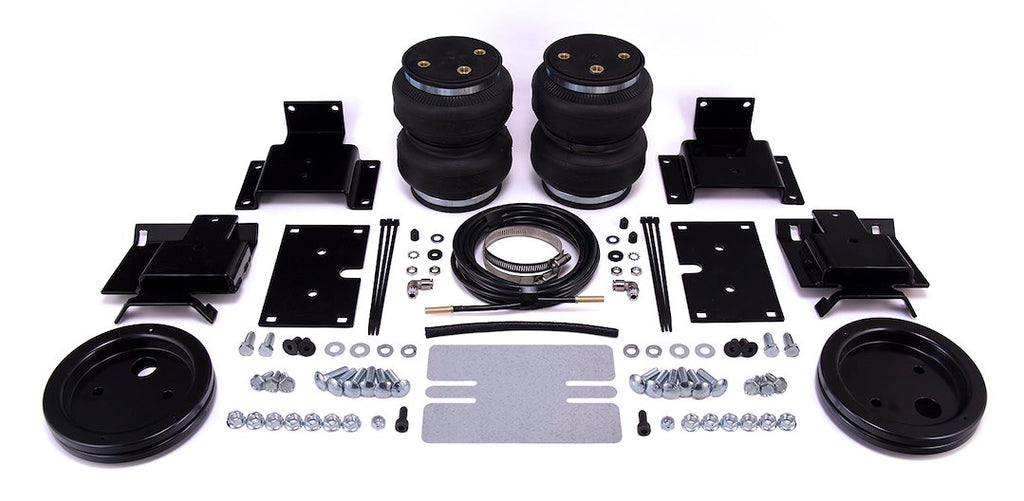

- Includes Hardware Needed For Installation. Easily Installed In 2 Hours Or Less
- Refer To The Document Tab For The New Authorized Installer Program
Specifications
- Manufacturer: Air Lift
- Manufacturer Part Number: 88365
- Type: Air Spring
- Load Capacity: 5000 Pound
- With Air Compressor: No
- Color: Black
- Quantity: Set Of 2
- Pressure Range: 5 To 100 Pounds Per Square Inch
- Material: Rubber
- Mounting Type: Frame Mount
- With Bellows: Yes
- With Air Line: Yes
- With Roll Plate: Yes
- With Valve: Yes
- Remote Type: Not Applicable
- With Mounting Hardware: Yes
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2009-2010 Dodge Ram 1500
- 2011-2018 Ram 1500
- 2024-2024 Ram 1500
- 2024-2024 Ram 1500 Classic
- 2019-2023 Ram 1500 Classic- Old Model
- 2019-2023 Ram 1500- New Model
