Enhance vehicle stability and comfort with adjustable air springs.
The Air Lift LoadLifter 5000 Ultimate Air Spring Kit is designed to provide superior load leveling capabilities for heavy-duty vehicles. With a load capacity of up to 5000 pounds, this air spring kit enhances stability and comfort whether the vehicle is loaded or unloaded. The internal jounce bumper absorbs shocks and eliminates harsh jarring on rough roads, ensuring a smooth ride even under heavy loads.
This kit features fully adjustable air pressure ranging from 5 to 100 PSI, allowing users to customize the ride according to their specific needs. The closed-cell urethane foam jounce bumper provides an additional layer of protection, making it possible to operate safely with zero air pressure. Constructed with ultra high-strength nylon composite end caps, the air springs are both lightweight and corrosion-proof, ensuring durability and longevity.
Installation is straightforward, with all necessary hardware included and an estimated installation time of just two hours. The LoadLifter 5000 Ultimate is maintenance-free and replaces the factory jounce bumper, making it a practical choice for those looking to enhance their vehicle's performance. This kit is backed by a comprehensive lifetime warranty, covering all components for peace of mind.
Features
- Up To 5000 Pounds Of Load Leveling Capacity
- Closed-Cell Urethane Foam Provides A Cushion Of Air That Absorbs Shocks And Protects Vehicles With Heavy Loads

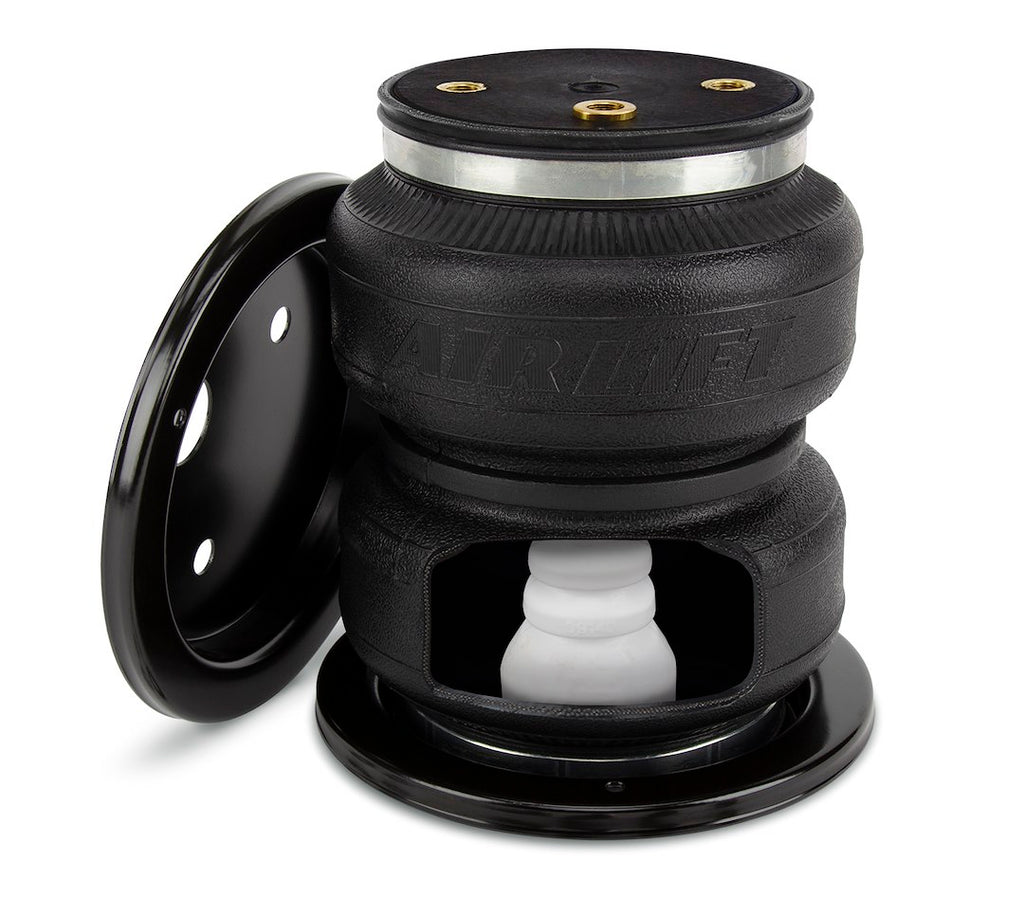

- Exclusive Jounce Bumper Inside - Eliminates Harsh Jarring On Rough Roads, Provides Three-Stage Ride Comfort, Safely Run With Zero Air Pressure
- End Caps Are Made Of An Ultra High-Strength Nylon Composite Which Is As Strong As Steel, But Weighs Less And Is Corrosion Proof
- Air Springs Are Built Like A Tire And Are Reinforced By Durable, 2-Ply Fabric For Maximum Strength
- Exclusive Upper And Lower Roll Plates Included. Protect The Springs From Sharp Edges, Such As Brackets Or The Frame. They Increase Load Capacity Up To 10 Percent

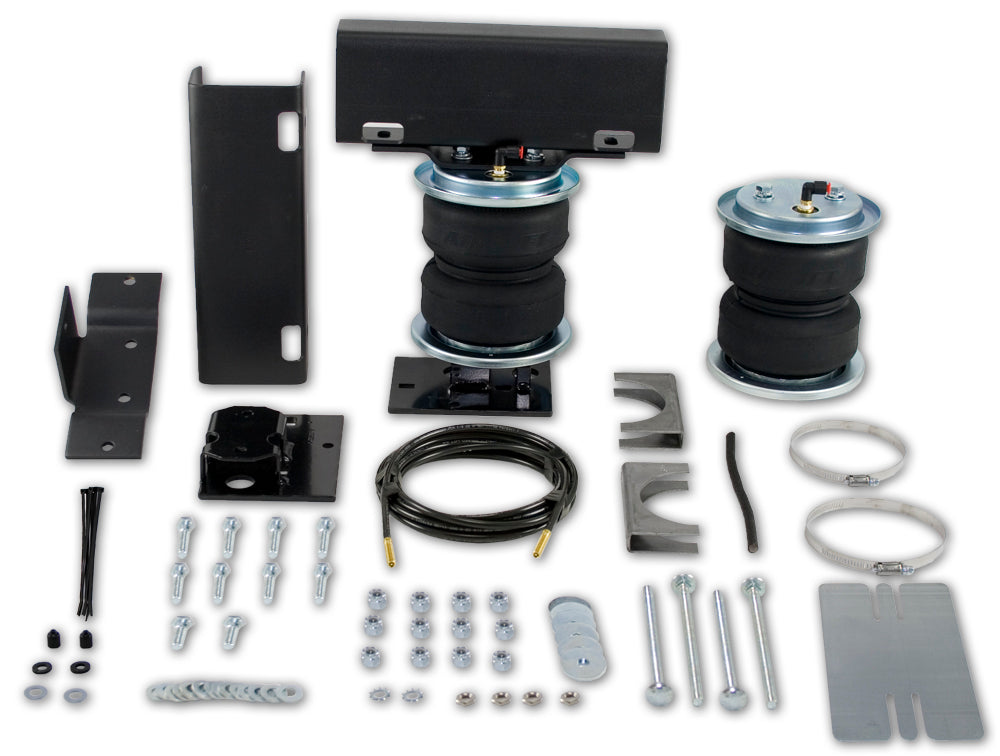

- Includes Hardware Needed For Installation. Easily Installed In 2 Hours Or Less
- Refer To The Document Tab For The New Authorized Installer Program
Specifications
- Manufacturer: Air Lift
- Manufacturer Part Number: 88216
- Type: Air Spring
- Load Capacity: 5000 Pound
- With Air Compressor: No
- Color: Black
- Quantity: Set Of 2
- Pressure Range: 5 To 100 Pounds Per Square Inch
- Material: Rubber
- Mounting Type: Frame Mount
- With Bellows: Yes
- With Air Line: Yes
- With Roll Plate: Yes
- With Valve: Yes
- Remote Type: Not Applicable
- With Mounting Hardware: Yes
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1988-1998 Chevrolet C1500
- 1988-2000 Chevrolet C2500
- 1988-2000 Chevrolet C3500
- 2001-2002 Chevrolet C3500HD
- 1988-1999 Chevrolet K1500
- 1988-2000 Chevrolet K2500
- 1988-2000 Chevrolet K3500
- 1989-1989 Chevrolet R2500
- 1989-1991 Chevrolet R3500
- 1988-1988 Chevrolet V30
- 1989-1991 Chevrolet V3500
- 1988-1998 GMC C1500
- 1988-2000 GMC C2500
- 1988-2000 GMC C3500
- 1988-1998 GMC K1500
- 1988-2000 GMC K2500
- 1988-2000 GMC K3500
- 1988-1991 GMC R3500
- 1988-1991 GMC V3500
