Enhance vehicle stability and comfort with adjustable air springs.

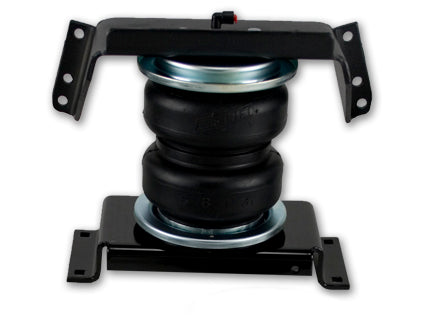

The Air Lift LoadLifter 5000 Ultimate Air Spring Kit is designed for use with 2002-2008 Workhorse W20/22/24 vehicles, providing a robust solution for load leveling. This air spring kit features an internal jounce bumper that absorbs shock, ensuring a smooth ride even on rough terrain. With a load capacity of up to 5000 pounds, it effectively eliminates squat and sway, maintaining vehicle stability whether loaded or unloaded.
Adjustable from 5 to 100 PSI, the LoadLifter 5000 Ultimate allows for precise tuning to match varying load conditions. The maintenance-free design enables safe operation with zero air pressure, thanks to the internal jounce bumper that replaces the factory jounce bumper. Installation is straightforward, requiring no drilling and can be completed with common hand tools.

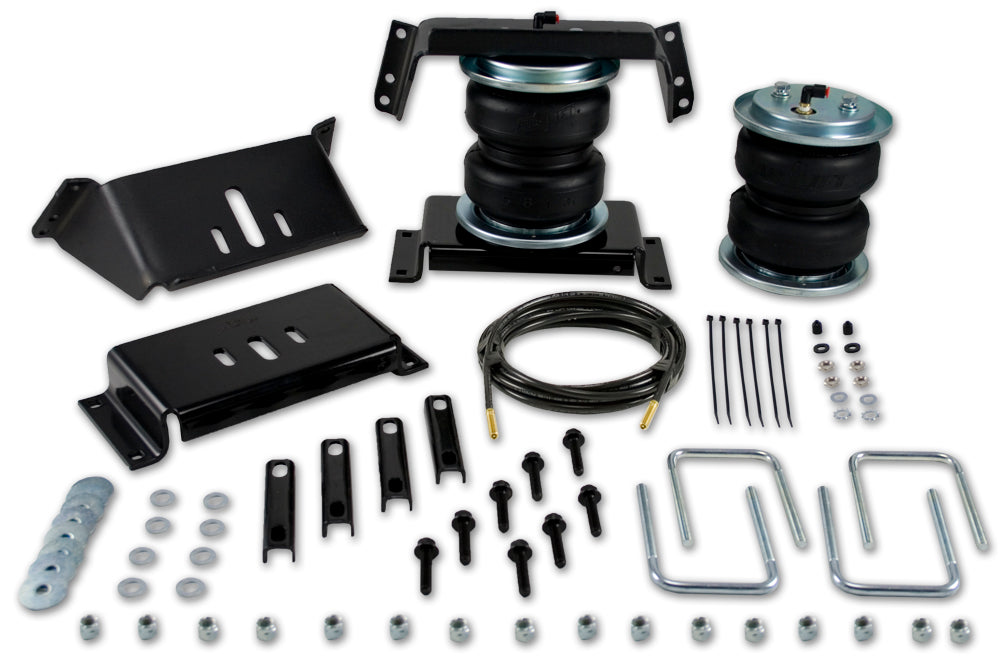

Included in the kit are two air springs, brackets, air lines, a Schrader valve, and all necessary hardware, along with a fully illustrated instruction manual. This comprehensive kit is backed by a lifetime warranty covering all components, ensuring long-term reliability and performance.
Features

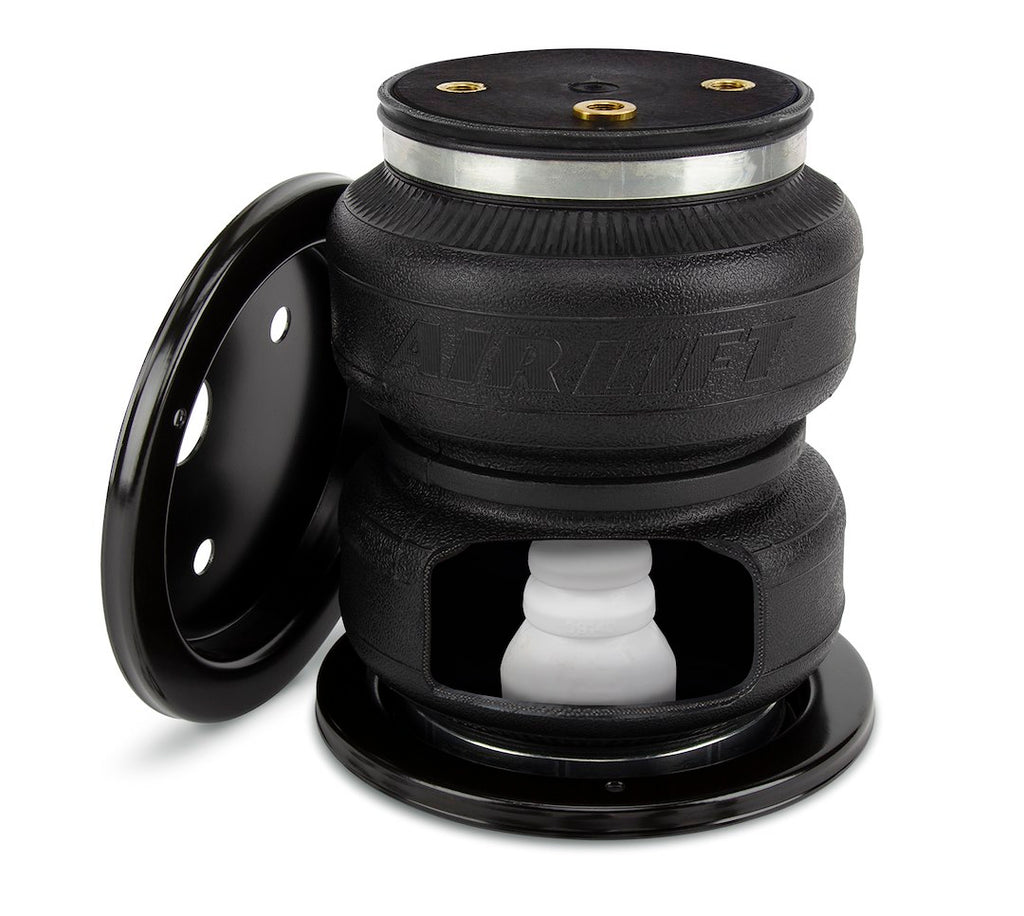

- Internal Jounce Bumper Inside The Air Spring Absorbs Shock
- Eliminates Squat, Sway And Bottoming Out, And Even The Harsh Jarring On Rough Roads
- Maintenance-Free! Safely Run With Zero Air Pressure
- Up To 5,000 Pounds Of Load-Leveling Capacity
- Adjustable For A Safe, Comfortable Ride, Loaded Or Unloaded
- No Drilling Required
- Easy To Install With Common Hand Tools
- Refer To The Document Tab For The New Authorized Installer Program
Specifications
- Manufacturer: Air Lift
- Manufacturer Part Number: 88202
- Type: Air Spring
- Load Capacity: 5000 Pound
- With Air Compressor: No
- Color: Black
- Quantity: Set Of 2
- Pressure Range: 5 To 100 Pounds Per Square Inch
- Material: Rubber
- Mounting Type: Frame Mount
- With Bellows: Yes
- With Air Line: Yes
- With Roll Plate: Yes
- With Valve: Yes
- Remote Type: Not Applicable
- With Mounting Hardware: Yes
- Estimated Install Time (Hours): 1
