Air Lift LoadLifter 5000 Ultimate Air Spring (MPN: 88229)

Advanced air spring system for enhanced load leveling and ride comfort.

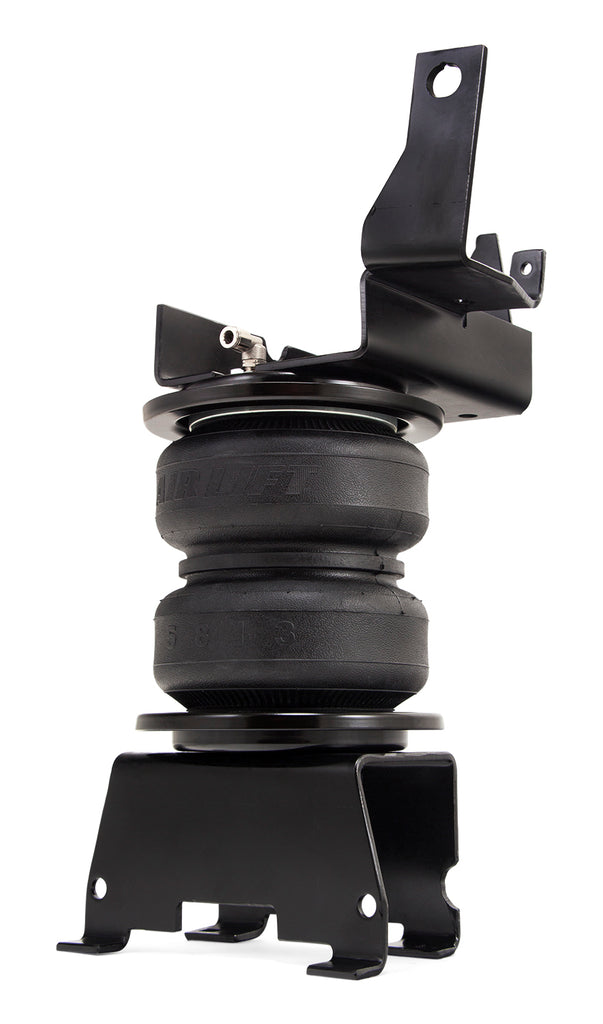

The Air Lift LoadLifter 5000 Ultimate air spring system is designed to provide superior load leveling capabilities, supporting up to 5000 pounds. This system features an internal jounce bumper that enhances ride comfort by absorbing shocks and reducing harsh impacts on rough terrain. Constructed with durable, reinforced 2-ply fabric, these air springs ensure maximum strength and longevity, making them suitable for heavy-duty applications.

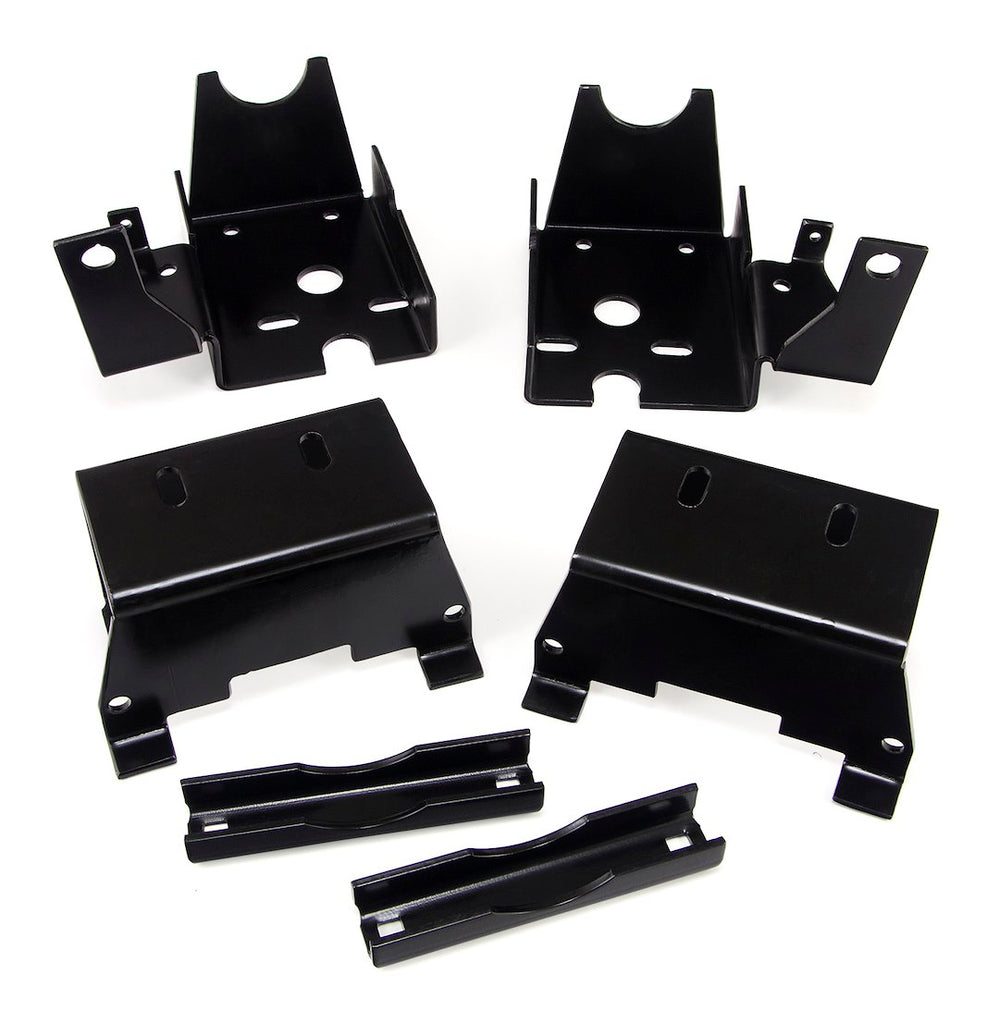

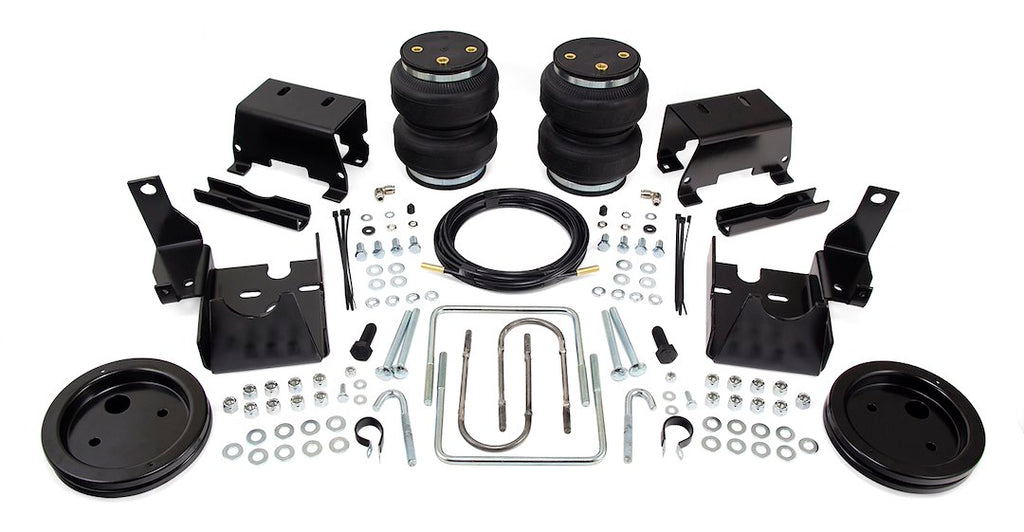

With an adjustable pressure range from 5 to 100 PSI, users can easily inflate or deflate the air springs to accommodate varying loads and road conditions. The maintenance-free design replaces the factory jounce bumper, ensuring a seamless integration with existing vehicle systems. This kit includes all necessary components such as air springs, brackets, roll plates, valves, fittings, installation hardware, and air lines, facilitating a straightforward installation process.

For optimal performance, consider pairing the LoadLifter 5000 Ultimate with an Air Lift On-Board Air Compressor System, which allows for convenient air spring adjustments at the touch of a button. This system is compatible with all brands of air springs and offers both wireless and cab-mounted options, providing flexibility for users. The LoadLifter 5000 Ultimate is an essential upgrade for those seeking enhanced vehicle stability and comfort under load.

Features

• Features All Of The Benefits Of Heaviest Rated Air Spring With The Addition Of An Internal Jounce Bumper Inside The Spring For The Ultimate In Ride Comfort

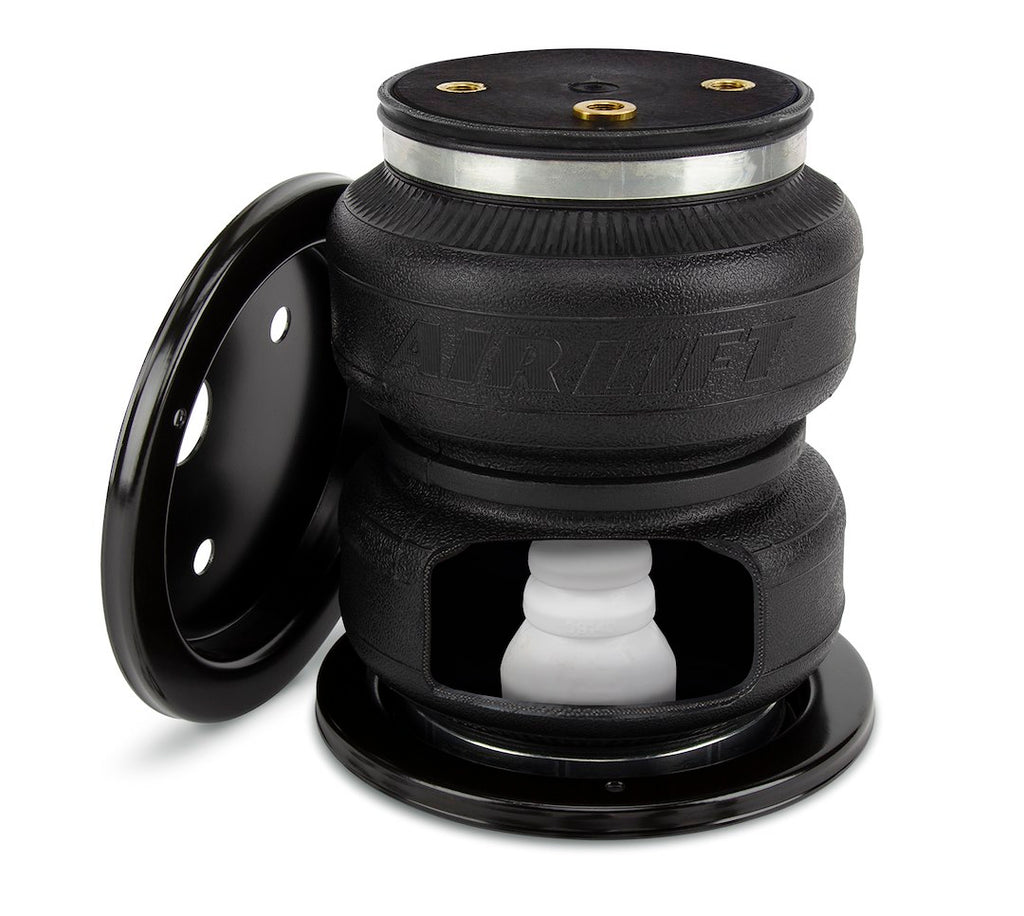

• The Closed-Cell Urethane Foam Jounce Bumper Inside The Air Spring Provides A Cushion Of Air That Absorbs Shock, Eliminates Harsh Jarring On Rough Roads And Protects Vehicles Carrying Heavy Loads
• Reinforced By Durable, 2-Ply Fabric For Maximum Strength
• Provides Up To 5,000 Pounds Of Load Levelling Capacity
• Replaces Factory Jounce Bumper That Is Sometimes Removed When Adding Air Springs. Maintenance Free
• Refer To The Document Tab For The New Authorized Installer Program

Specifications

• Manufacturer: Air Lift
• Manufacturer Part Number: 88229
• Type: Air Spring
• Load Capacity: 5000 Pound
• With Air Compressor: No
• Color: Black
• Quantity: Set Of 2
• Pressure Range: 5 To 100 Pounds Per Square Inch
• Material: Rubber
• Mounting Type: Frame Mount
• With Bellows: Yes
• With Air Line: Yes
• With Roll Plate: Yes
• With Valve: Yes
• Remote Type: Not Applicable
• With Mounting Hardware: Yes
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 2017-2019 Nissan Titan
• 2016-2024 Nissan Titan XD

Technical Documents

• MN-1016_88229.pdf
