Air Lift LoadLifter 5000 Ultimate (MPN: 84294)

Durable replacement air spring with high load capacity and robust construction.

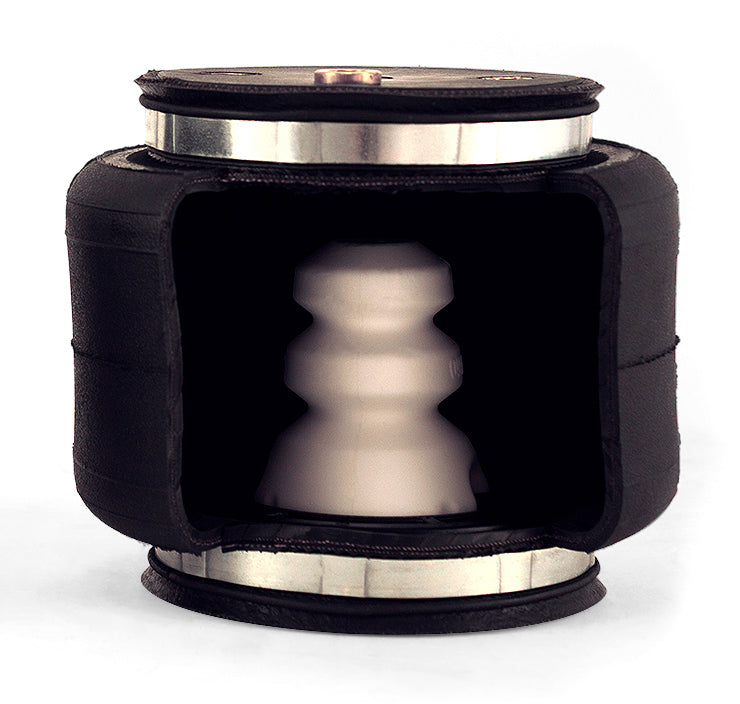

The Air Lift LoadLifter 5000 Ultimate is a single bellow air spring designed for heavy-duty applications. This replacement air spring is engineered to replace damaged air springs, ensuring reliable performance and longevity. Constructed from rubber with synthetic fabric reinforcement, it offers extreme durability and resistance to wear. The bellow features high strength rustproof composite end caps and a steel girdle ring, providing high burst pressure for enhanced safety and reliability.

With an extended height of 7.1 inches and a compressed height of 2.7 inches, this air spring is designed to accommodate various vehicle setups. It has a load capacity of 2500 pounds at 100 PSI, making it suitable for heavy loads. The 1/8 inch NPT inflation port allows for easy installation and maintenance. This product includes all necessary hardware for installation, ensuring a straightforward replacement process.

Features

• Designed To Replace Air Spring When It Is Heavily Damaged
• Made From Rubber With Synthetic Fabric Reinforcement Which Ensures Extreme Durability
• Bellow Features Genuine High Strength Rustproof Composite End Caps
• Consists Of Steel Girdle Ring And Has High Burst Pressure
• Refer To The Document Tab For The New Authorized Installer Program

Specifications

• Manufacturer: Air Lift
• Manufacturer Part Number: 84294

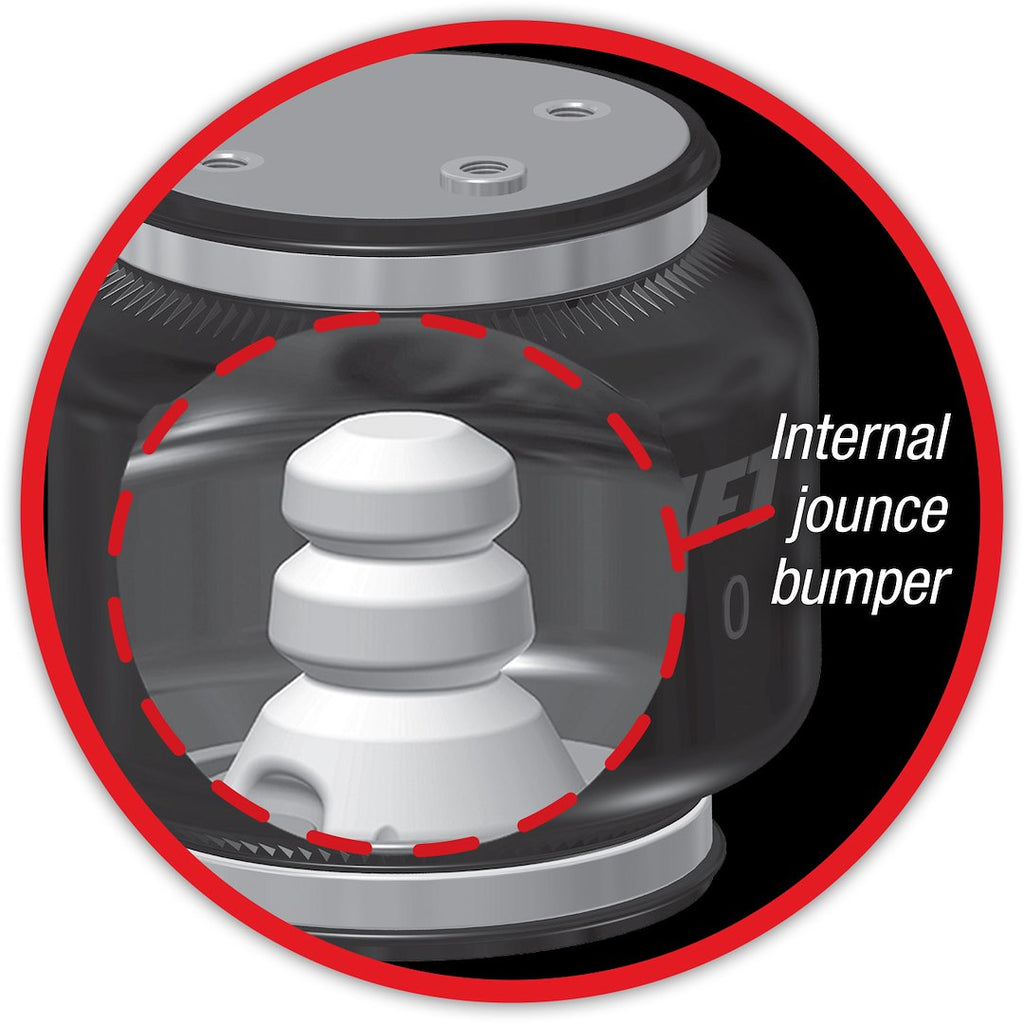

• Type: Single Bellow With Jounce Bumper
• Extended Height (IN): 7.1 Inch
• Compressed Height (IN): 2.7 Inch
• Diameter (IN): 7 Inch
• Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch
• Inflation Port Size: 1/8 Inch NPT
• Color: Black
• Material: Rubber

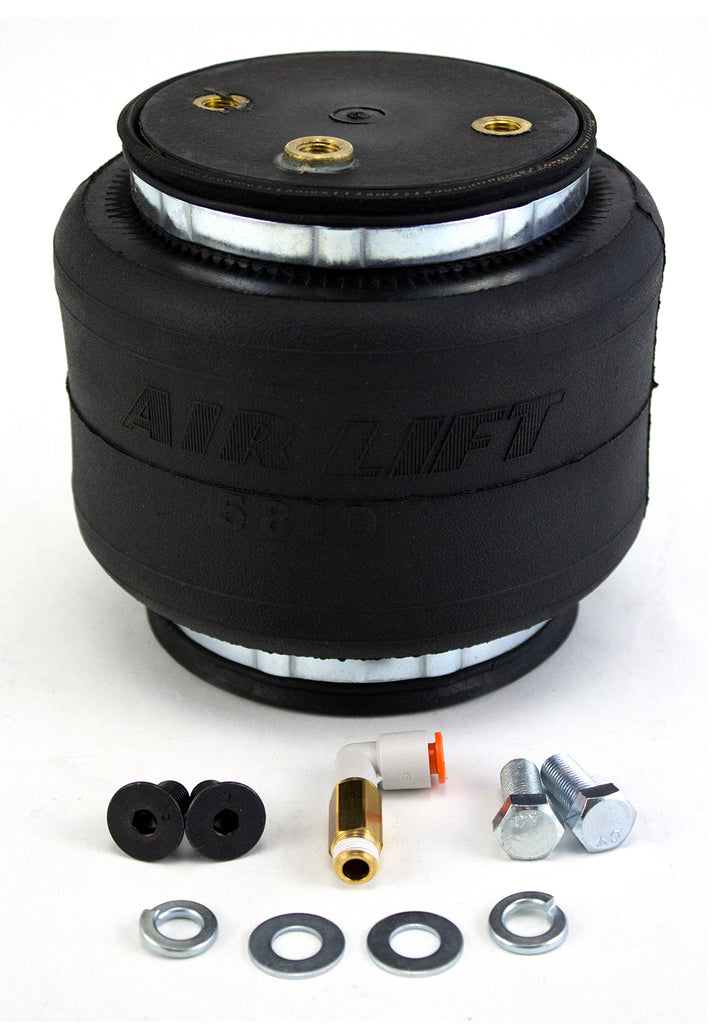

• Includes Hardware: Yes

Compatibility / Fit

• 2003-2010 Dodge Ram 2500
• 2003-2010 Dodge Ram 3500
• 2011-2013 Ram 2500
• 2011-2012 Ram 3500
• 2014-2024 Ram 3500

Technical Documents

• AD-938_LS_user_guide.pdf
• AD-938_LS_user_guide.pdf
