Enhance load support and ride quality with adjustable air springs.
The Air Lift Helper Spring Kit is designed to provide robust load support for vehicles, enhancing safety and ride quality under various conditions. With a leveling capacity of up to 5000 pounds, this air spring system is fully adjustable, allowing users to maintain a level ride whether towing heavy loads or driving with a light load. The air pressure can be adjusted from 5 to 100 PSI, ensuring optimal performance tailored to specific needs.

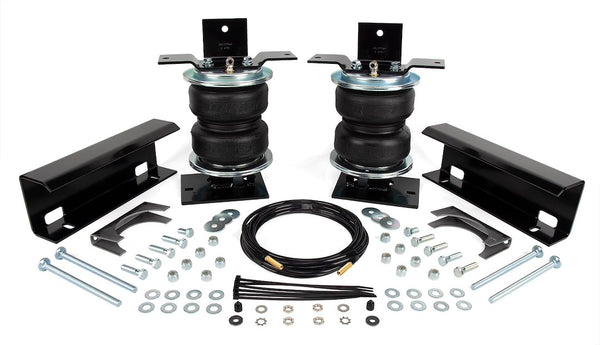

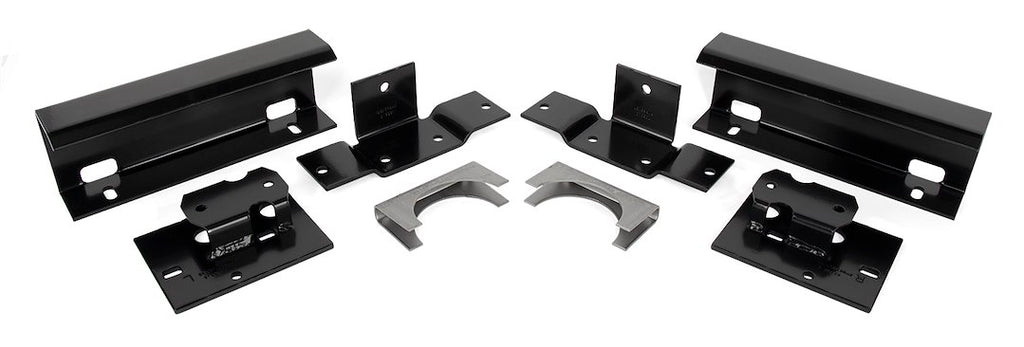

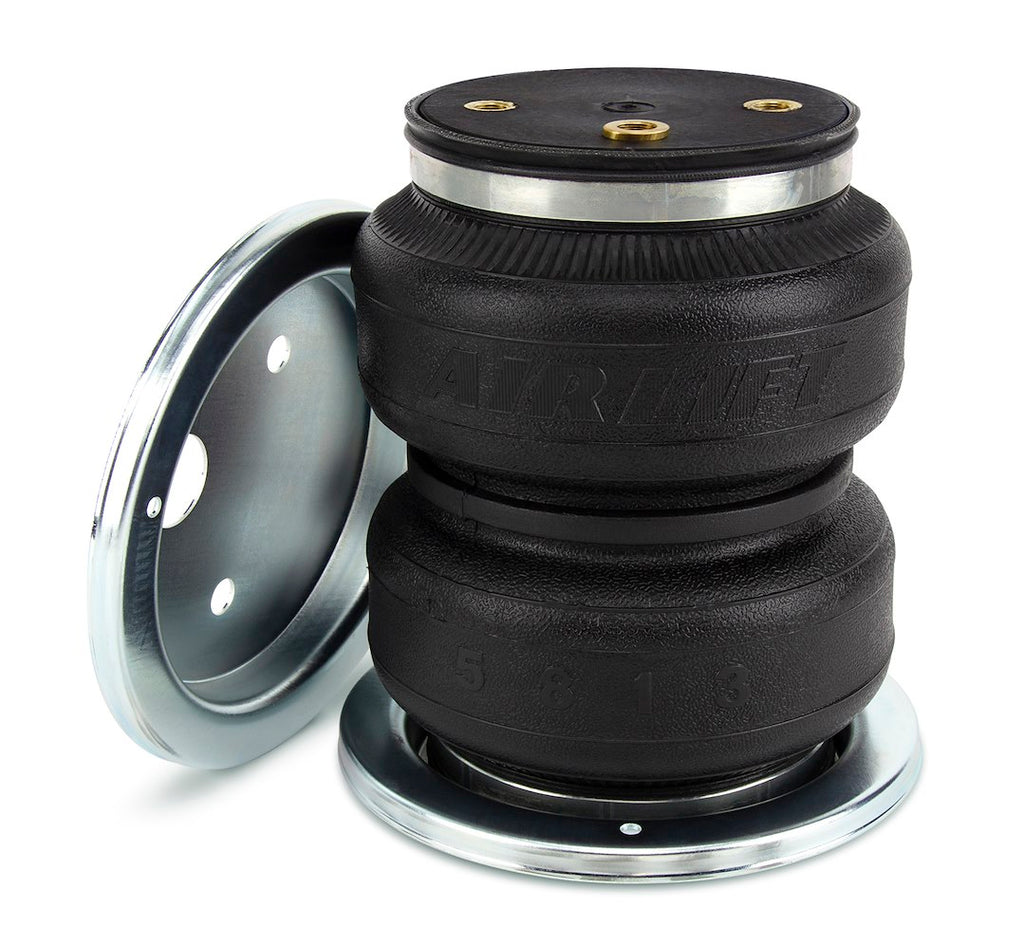

Constructed with superior 2-ply fabric reinforced rubber, the kit features end caps made of ultra high strength Zytel nylon, which is as strong as steel yet lightweight and corrosion-proof. This durable construction ensures longevity and reliability, making it suitable for a wide range of applications without mileage restrictions. The kit includes all necessary components such as air springs, brackets, roll plates, air lines, fittings, valves, and installation hardware, simplifying the installation process.
Installation is straightforward with the included illustrated instruction manual, allowing for a quick setup in approximately one hour. The Air Lift Helper Spring Kit is an effective solution for those seeking to improve their vehicle's load handling capabilities while maintaining comfort and stability on the road.
Features
- Up To 5000 Pounds Of Leveling Capacity
- Air Adjustable From 5 To 100 PSI
- Built With Superior 2-Ply Fabric Reinforced Rubber
- No Mileage Restriction
- End Caps Made Of Ultra High Strength Zytel Nylon Strong As Steel, But Weighs Less And Is Corrosion Proof
- Easy-To-Use Air Fittings
- Easy To Install With Illustrated Instruction Manual
- Refer To The Document Tab For The New Authorized Installer Program
Specifications
- Manufacturer: Air Lift
- Manufacturer Part Number: 57216
- Type: Air Spring
- Load Capacity: 5000 Pound
- With Air Compressor: No
- Color: Black
- Quantity: Set Of 2
- Pressure Range: 5 To 100 Pounds Per Square Inch
- Material: Rubber
- Mounting Type: Frame Mount
- With Bellows: Yes
- With Air Line: Yes
- With Roll Plate: Yes
- With Valve: Yes
- Remote Type: Not Applicable
- With Mounting Hardware: Yes
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1988-1998 Chevrolet C1500
- 1988-2000 Chevrolet C2500
- 1988-2000 Chevrolet C3500
- 2001-2002 Chevrolet C3500HD
- 1988-1999 Chevrolet K1500
- 1988-2000 Chevrolet K2500
- 1988-2000 Chevrolet K3500
- 1989-1989 Chevrolet R2500
- 1989-1991 Chevrolet R3500
- 1988-1988 Chevrolet V30
- 1989-1991 Chevrolet V3500
- 1988-1998 GMC C1500
- 1988-2000 GMC C2500
- 1988-2000 GMC C3500
- 1988-1998 GMC K1500
- 1988-2000 GMC K2500
- 1988-2000 GMC K3500
- 1988-1991 GMC R3500
- 1988-1991 GMC V3500
