Supports high pressure systems for optimal fuel flow and performance.

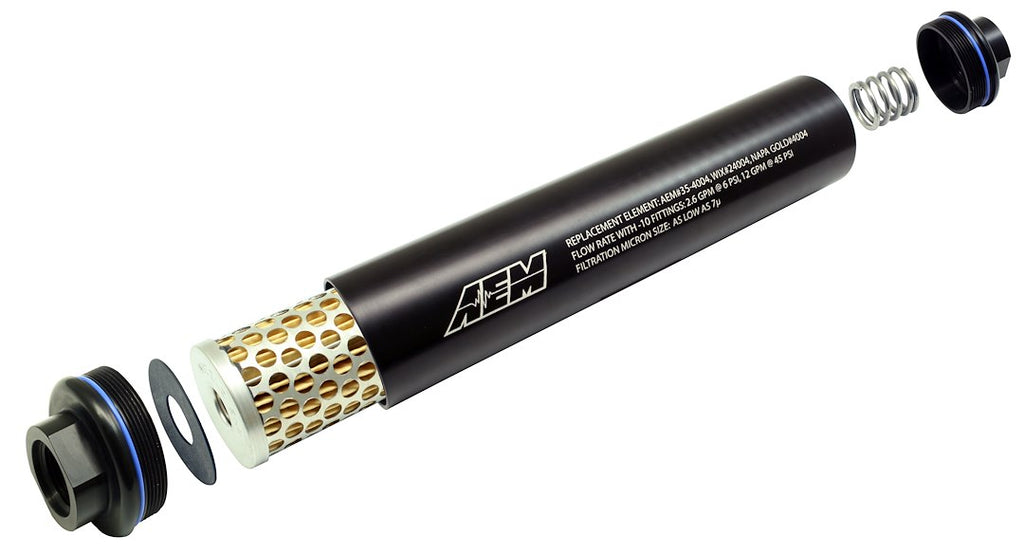

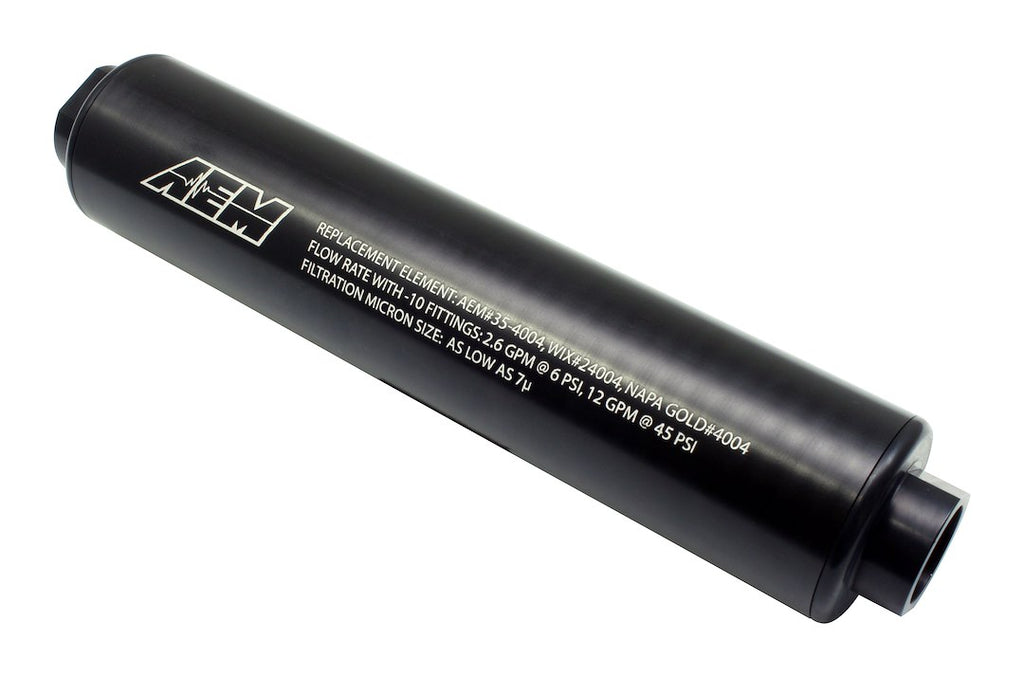

AEM's High Volume Fuel Filter is engineered to support fuel flow for vehicles producing up to 500 horsepower. This in-line filter is designed for use with gasoline and alcohol, featuring a durable 6061 aluminum body that ensures longevity and reliability under high pressure conditions. The filter includes a 7 micron high flow element that is easily replaceable, allowing for quick maintenance during racing or regular use.
The filter is compatible with stock Honda and Acura locations, or can be utilized as a floating application on various vehicles. Its design incorporates large hexes machined into the top and bottom for straightforward disassembly, facilitating easy access for maintenance. The filter's inlet and outlet connections are 5/8 inch (-10 AN) female threads, making it suitable for universal applications without the need for additional parts during installation.
Features
- Fits In Stock Honda/Acura Location Or As A Floating Application On Any Vehicle

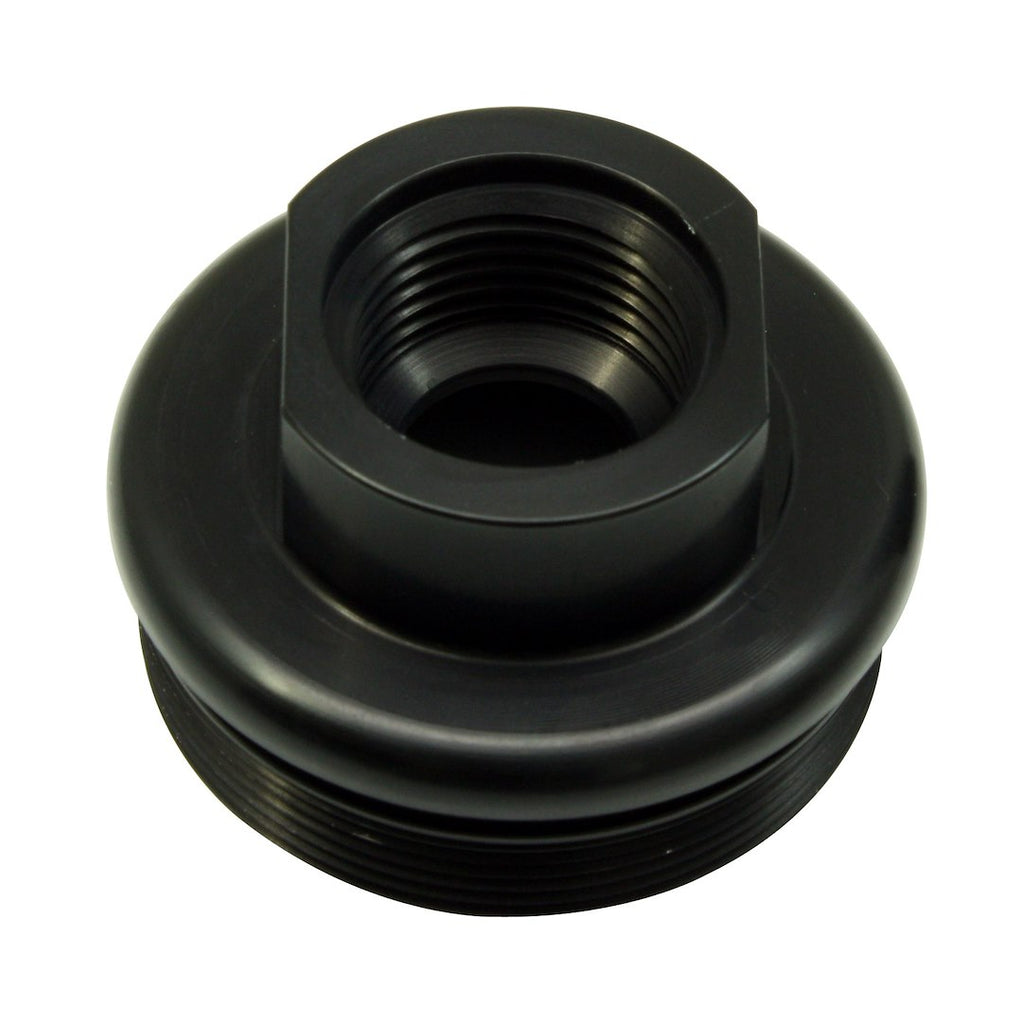

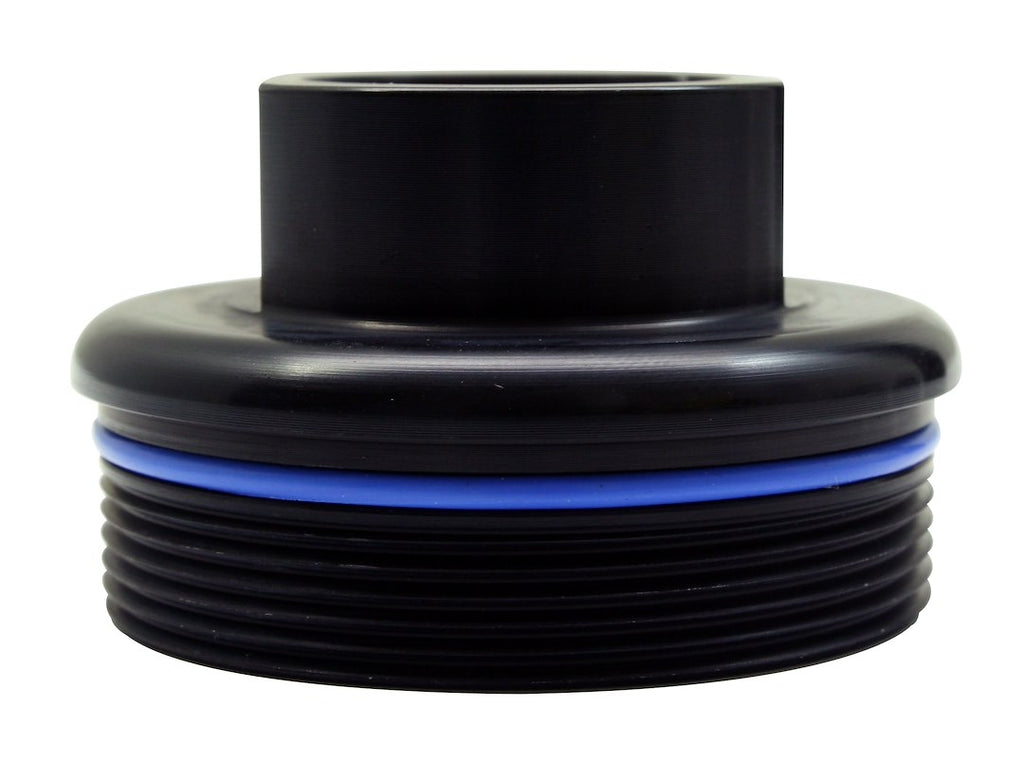

- Large Hexes Machined Into Top And Bottom For Easy Disassembly

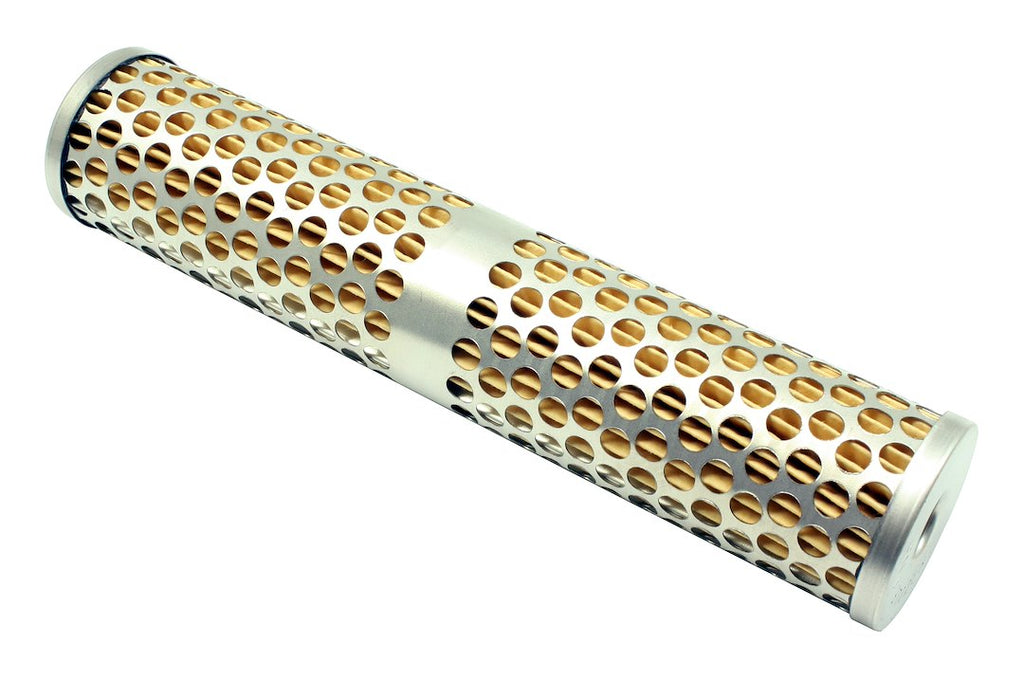

- Uses Standard High Flow Replacement Filter
- Thread Sizes For Filter Are 12x1.25 Top And 14x1.50 Bottom For Fittings (Universal Applications)
- No Additional Parts Required For Installation
Specifications
- Manufacturer: AEM Electronics
- Manufacturer Part Number: 25-201BK
- Type: Complete Assembly
- Location: In-Line
- Fuel Type: Gasoline/ Alcohol
- Inlet Connection Size: 5/8 Inch (-10 AN)
- Inlet Connection Type: Female Threads
- Outlet Connection Size: 5/8 Inch (-10 AN)
- Outlet Connection Type: Female Threads
- Diameter (IN): 2 Inch
- Length (IN): Not Applicable
- Width (IN): Not Applicable
- Height (IN): 10 Inch
- Micron Rating: 7 Micron
- Element Material: Paper
- Finish: Anodized
- Color: Black
- Material: Aluminum
- With Gasket: No
- With Hose: No
- With Mounting Hardware: No
- Estimated Install Time (Hours): 0.5
