Efficiently manage power for EV systems with advanced control features.

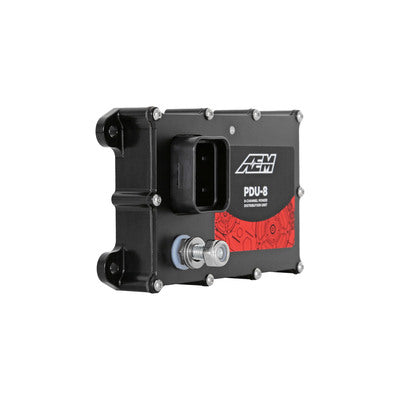

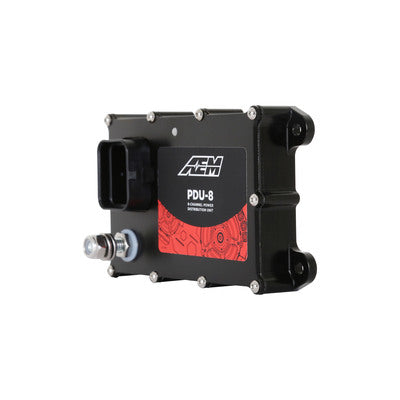

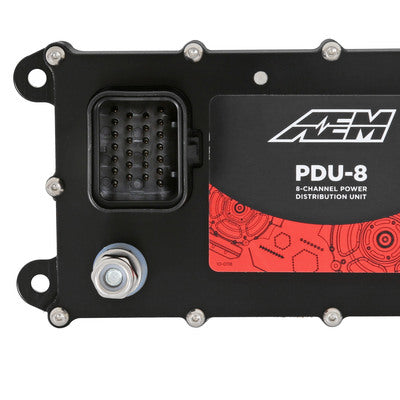

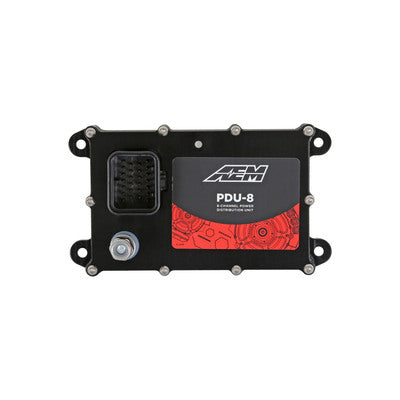

The AEM Electronics Power Distribution Box is designed for electric vehicle applications, specifically compatible with the VCU200 and VCU300. This unit features four 20 Amp and four 10 Amp high-side outputs, providing reliable power management for various switched devices such as cooling fans, headlights, and more. By allowing the connection of up to eight units on a CAN bus, users can achieve a total of 64 channels, enhancing the modularity and efficiency of wiring in EV conversions and motorsports vehicles.
Constructed from lightweight, fully-sealed billet aluminum, the PDU-8 ensures durability and protection against environmental factors. Its compact design allows for closer placement to the systems being controlled, simplifying installation and reducing overall vehicle weight. The unit operates without the need for complex logic programming, making it straightforward to configure and troubleshoot.
Additionally, the PDU reports individual channel current draw and fault states back to the Vehicle Control Unit, ensuring optimal performance and reliability. This power distribution solution is engineered to meet the demands of modern electric vehicles, providing a robust and efficient means of managing electrical systems.
Features
- Four 20 Ampere And Four 10 Ampere High-Side 12 Voltage Outputs For Activating/Deactivating Various Switched Devices
- Connect Up To Eight Units For A Total Of 64 Channels
- Smaller Modules Allow For Multiple Units To Be Deployed Nearer The Systems They Control, Simplifying Wiring And Reducing Weight
- CAN-Commanded PDU, No Logic Programming Required For PDU Operation
- PDU ID Is Defined By Wiring At The Connector, Allowing Units To Be Fully Interchangeable
- Small Size And Lightweight
- Individual Channel Current Draw And Fault States Are Reported Back To The VCU
- Fully-Sealed, Waterproof Billet-Aluminum Enclosure
Specifications
- Manufacturer: AEM Electronics
- Manufacturer Part Number: 30-8300
- Recommended Use: AEM Electronics VCU200 and VCU300
- Voltage Rating: 12 Volt
- Power Rating: 20 Amp And 10 Amp
- Receptacle Type: No Receptacle
- Number Of Connections: 8
- Length (IN): 4.05 Inch
- Width (IN): 2.7 Inch
- Height (IN): 1-1/2 Inch
- Color: Black
- Material: Aluminum
- UL Listed: No
- With Flip Cover: No
