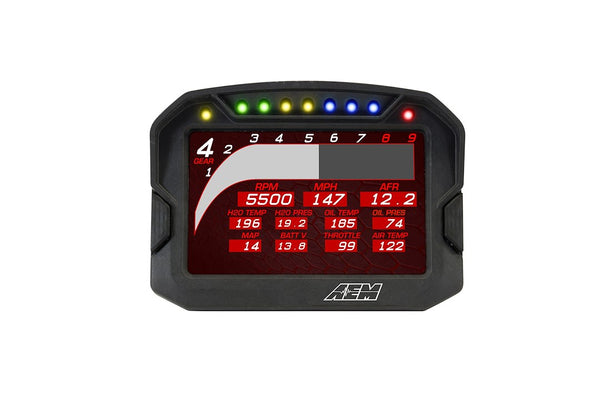

AEM Electronics CD-5 Performance Gauge (MPN: 30-5601)

Advanced digital display for comprehensive engine monitoring and diagnostics.

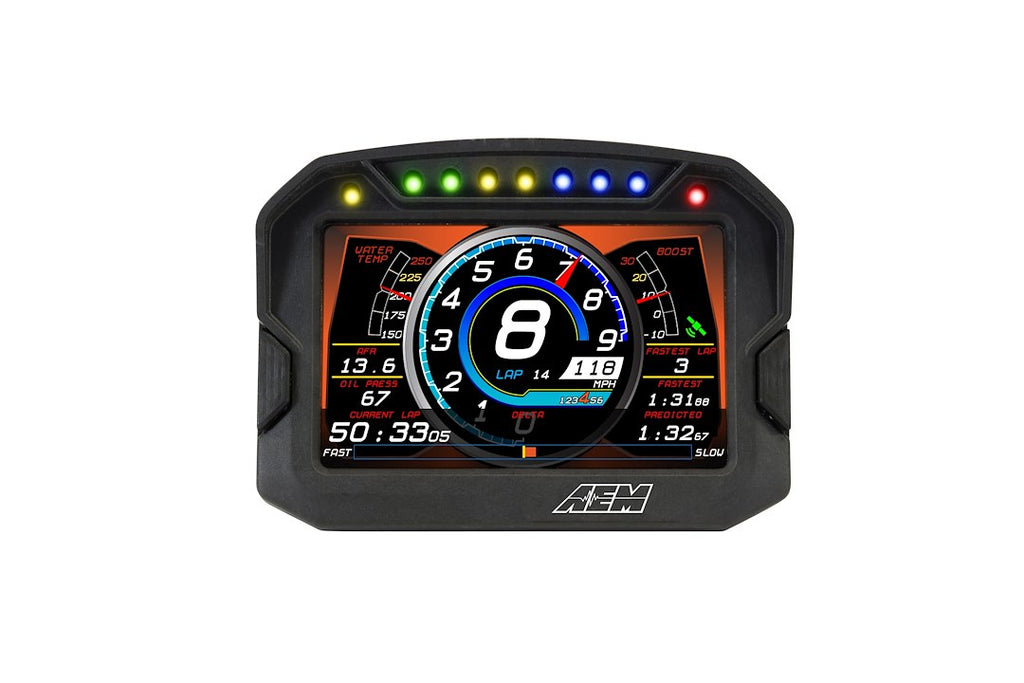

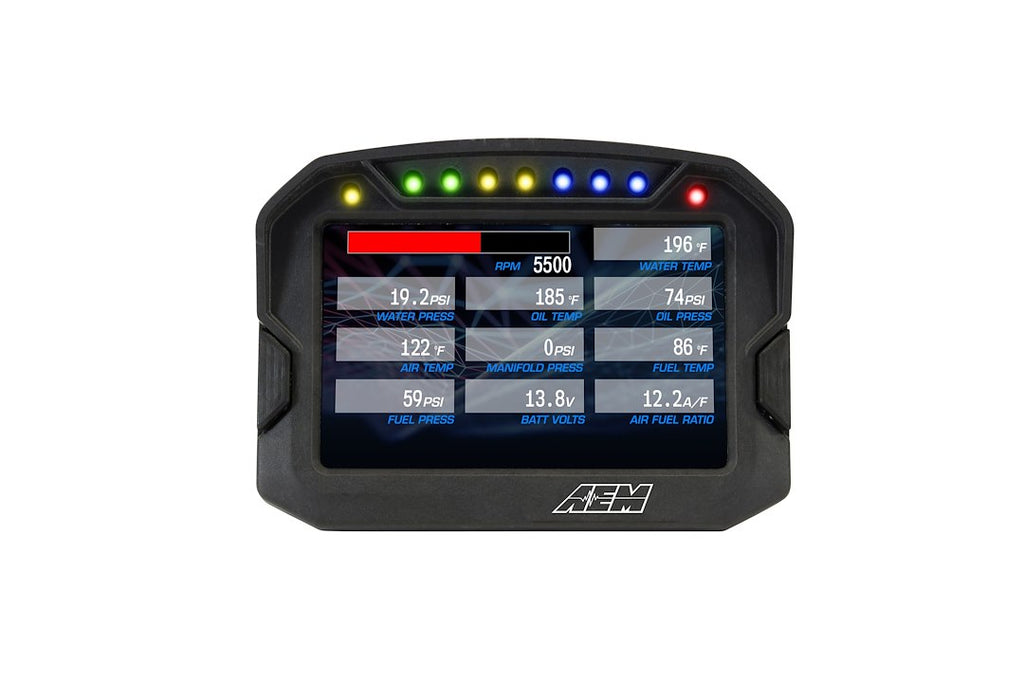

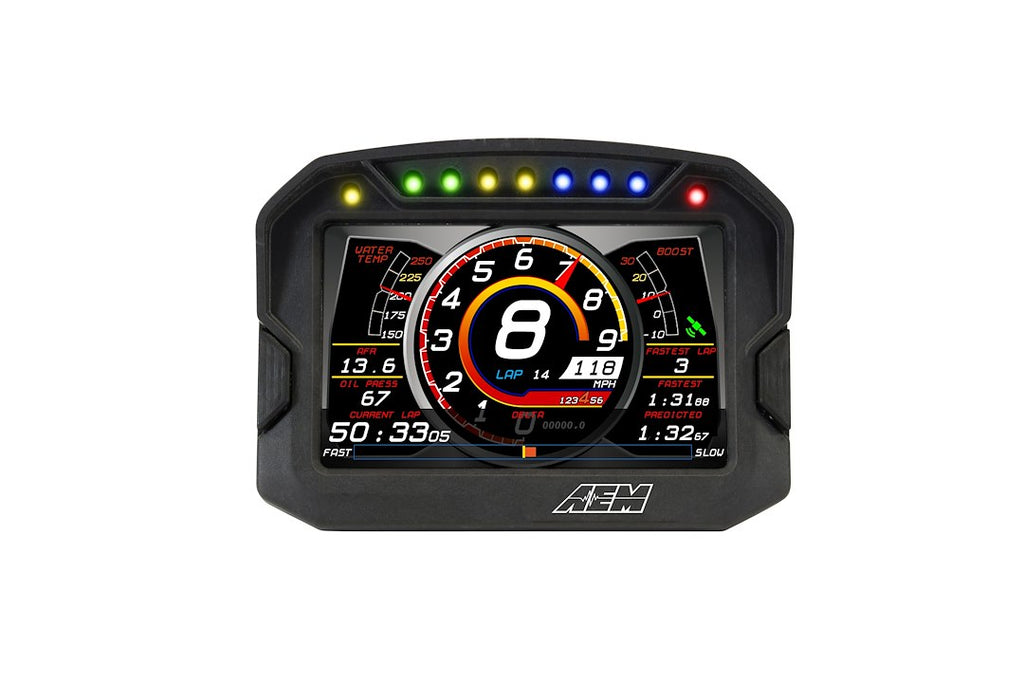

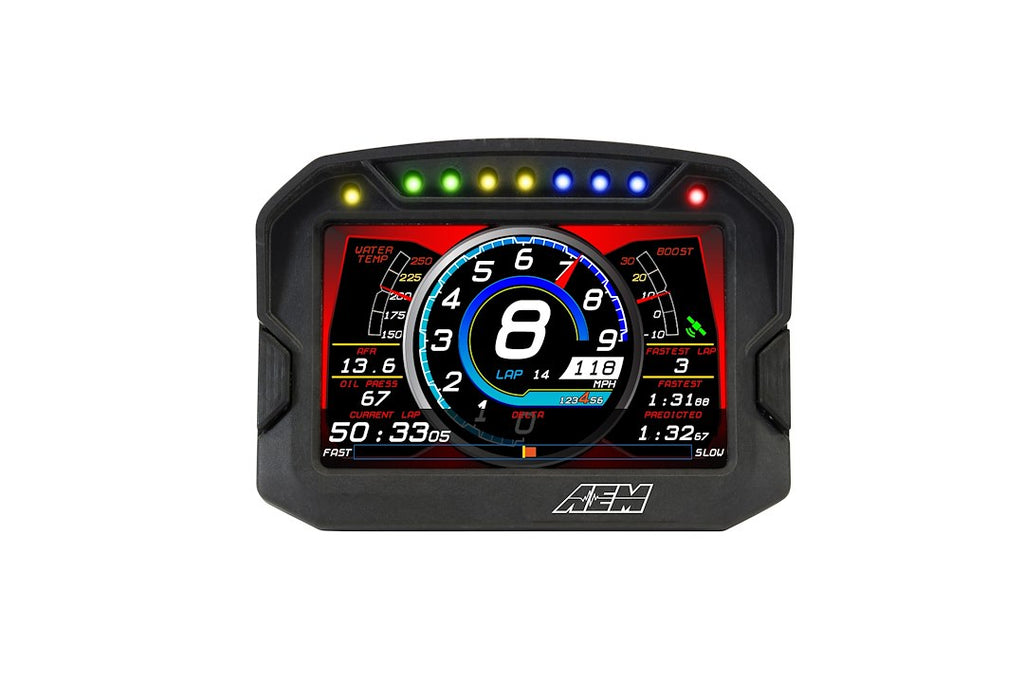

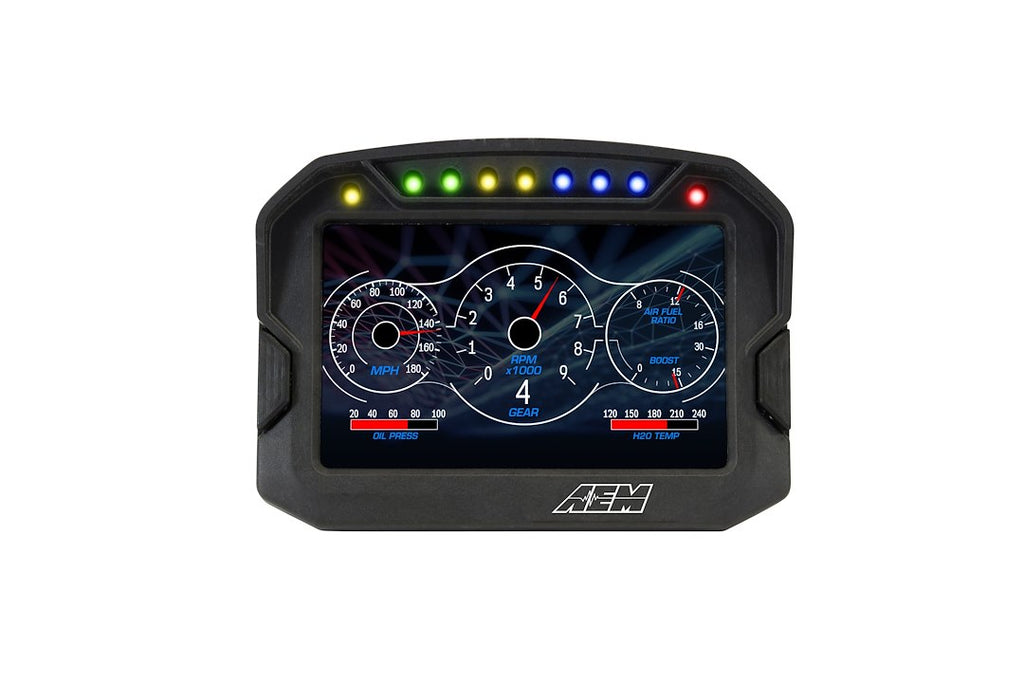

The AEM Electronics CD-5 Performance Gauge is designed to provide a detailed overview of engine performance through its full-color, daylight-readable 5-inch screen. With a resolution of 800 x 480 and a brightness of 1000 candela per square meter, this display ensures visibility in various lighting conditions, making it suitable for both automotive and marine applications. The rugged, lightweight flow-molded carbon fiber composite housing enhances durability while maintaining a total weight of just 11.7 ounces.

This performance monitor features advanced capabilities, including the ability to read and clear diagnostic trouble codes, making it an essential tool for troubleshooting engine issues. The CD-5 accepts channels from two separate user-programmable CAN Bus connections, allowing compatibility with AEMnet enabled devices and various third-party devices. Additionally, the dedicated alarm page and programmable LEDs provide real-time alerts for critical engine parameters, enhancing user awareness and safety.

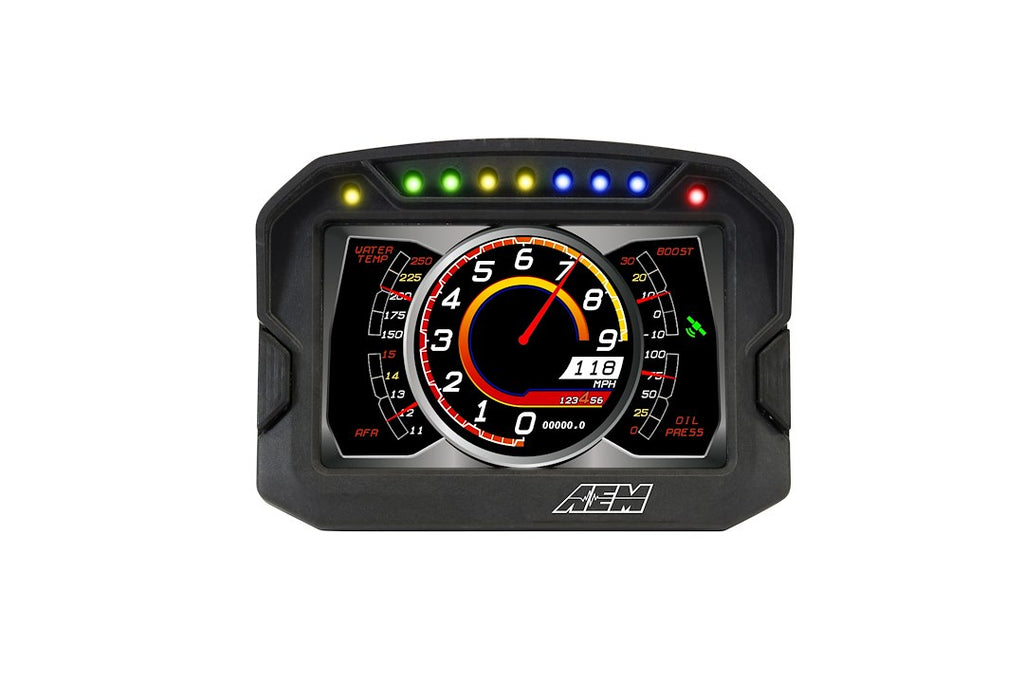

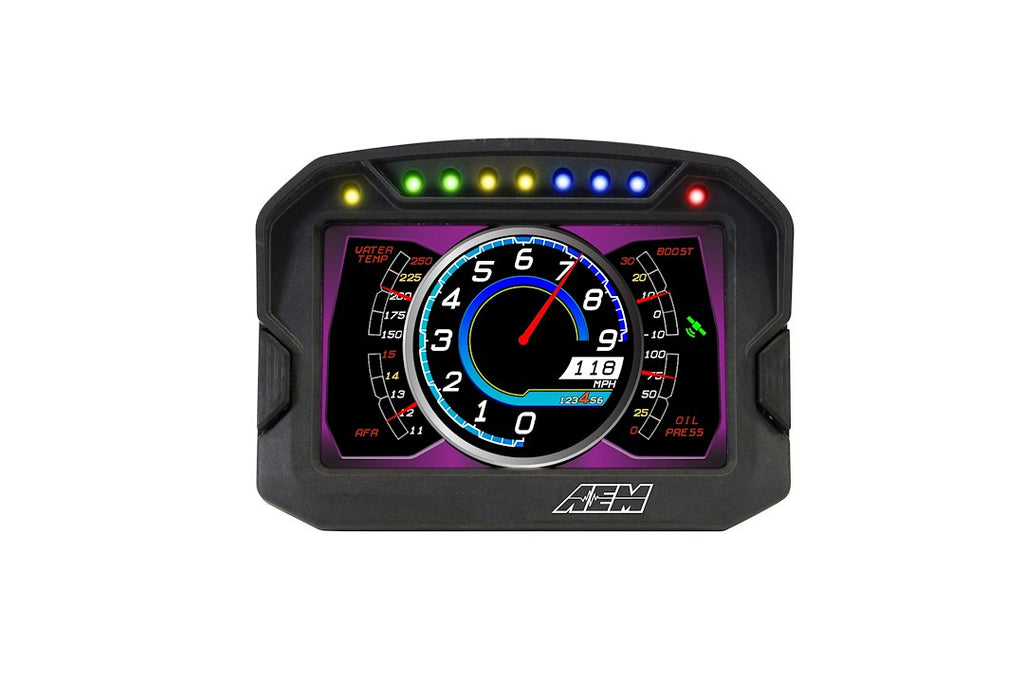

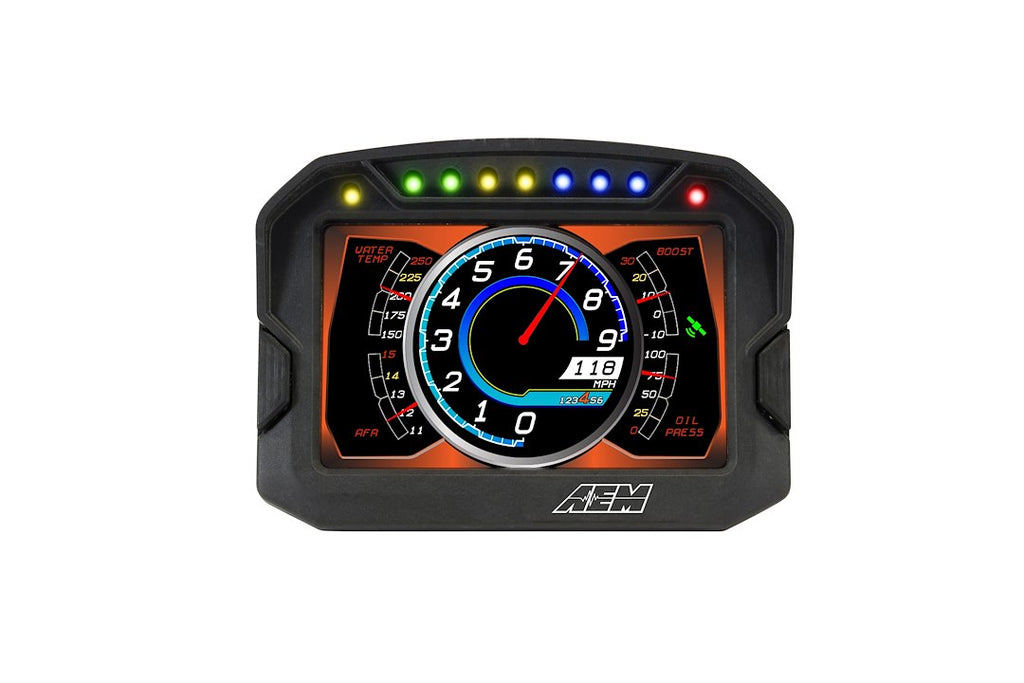

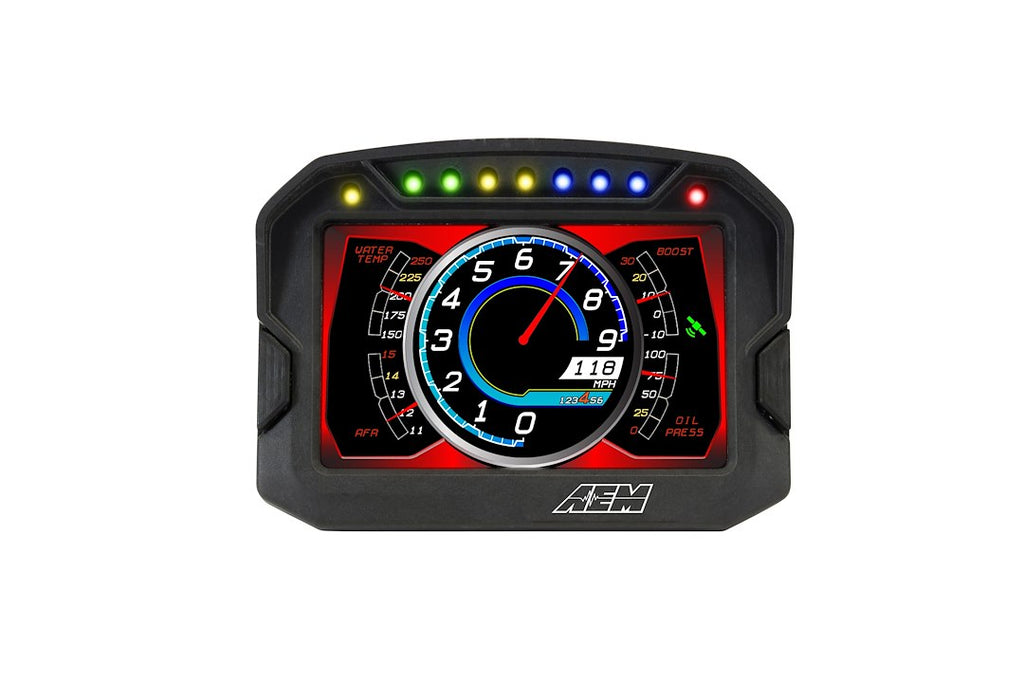

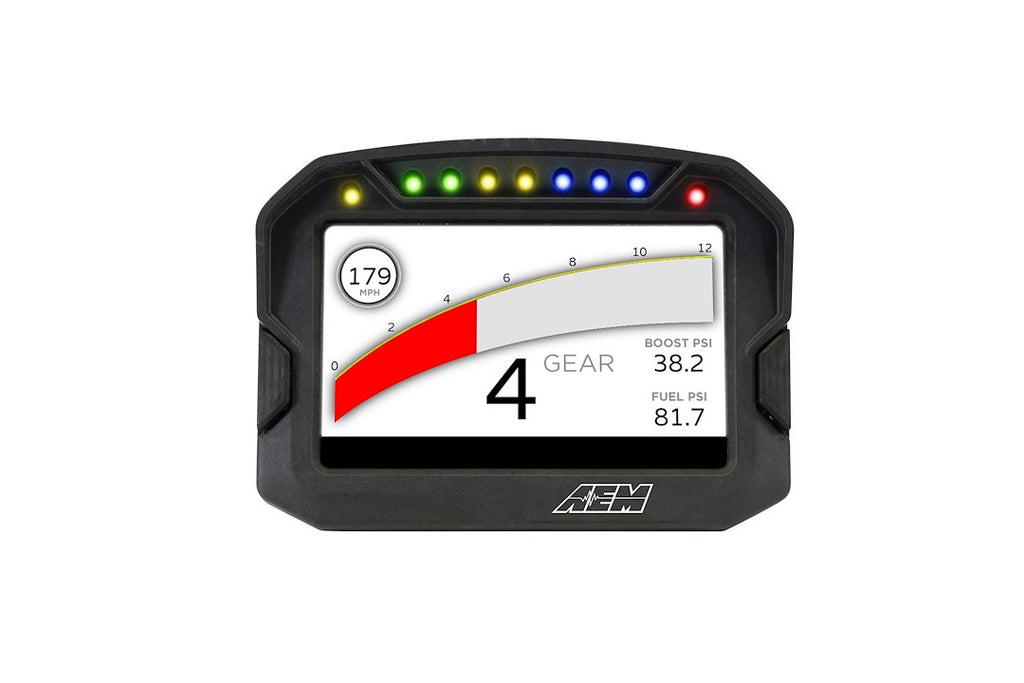

The CD-5 also includes customizable graphics options through the free DashDesign software, enabling users to tailor the display to their specific needs. With over 200 fully programmable SAE and custom warning icons, users can easily convert CAN Bus channel values into user-defined text in multiple languages. This versatility, combined with features like the unique on-change page for monitoring boost and traction, makes the AEM Electronics CD-5 a powerful tool for any performance enthusiast.

Features

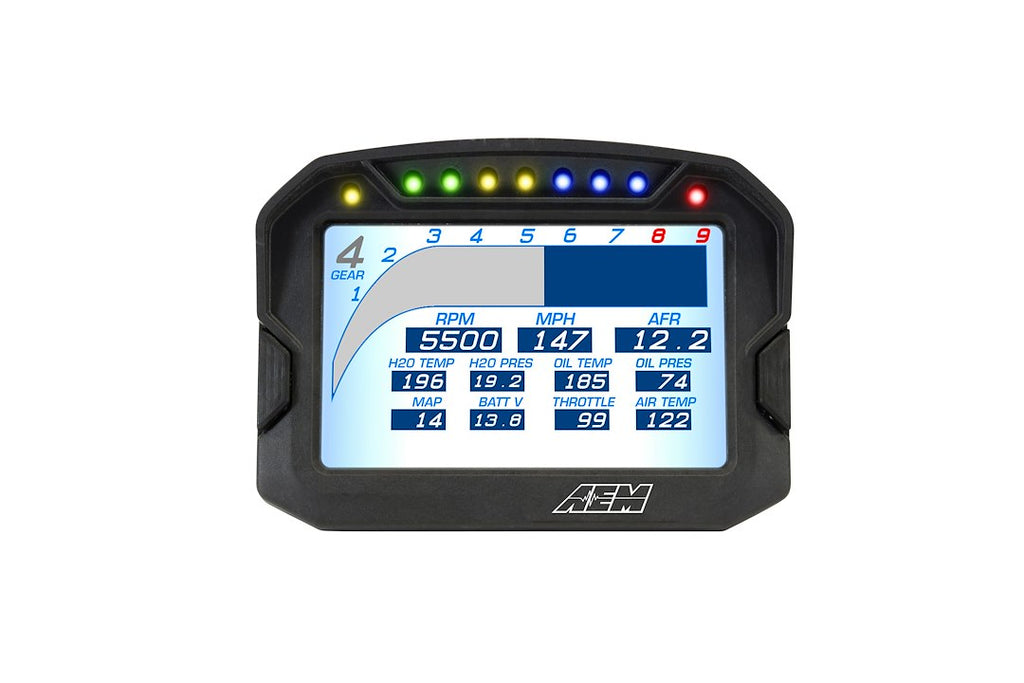

• Full Color 5 Inch Screen With 800 X 480 Resolution; Direct Sunlight Readable (1000 Candela Per Square Meter Brightness And Anti-Glare Filter)

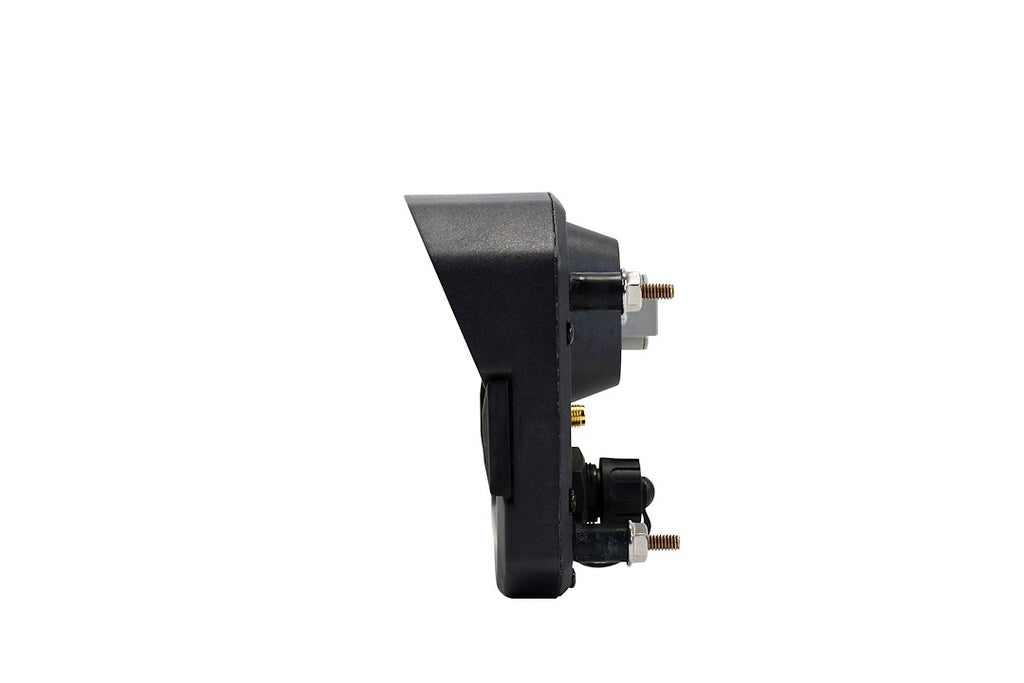

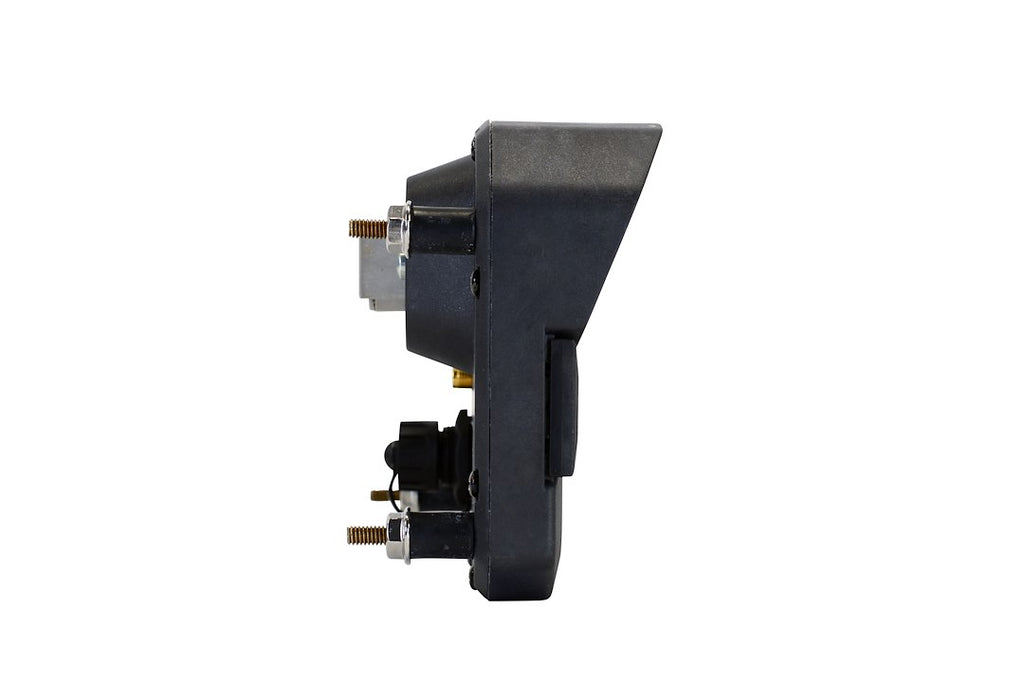

• Rugged, Lightweight Flow-Molded Carbon Fiber Composite Enclosure; Total Display Weight Of 11.7 Ounce Or 331 Grams

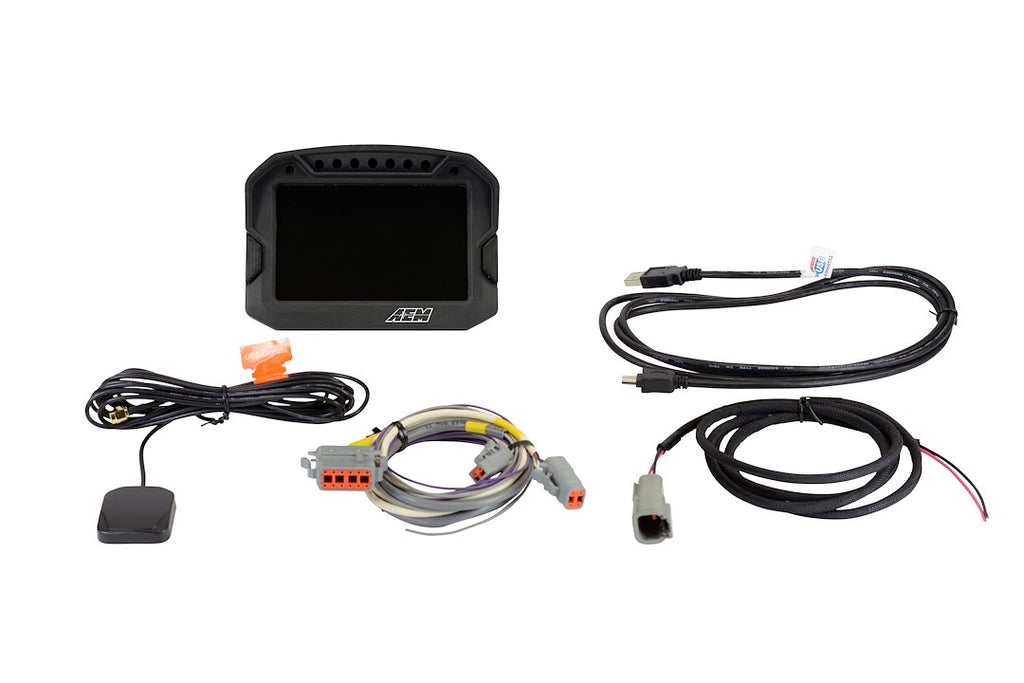

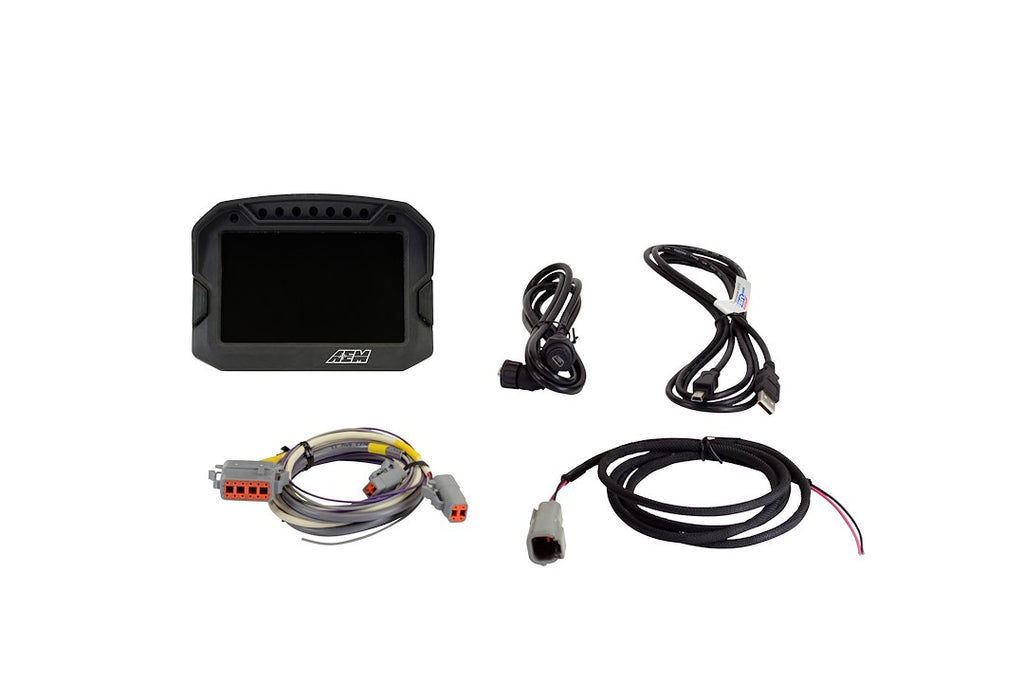

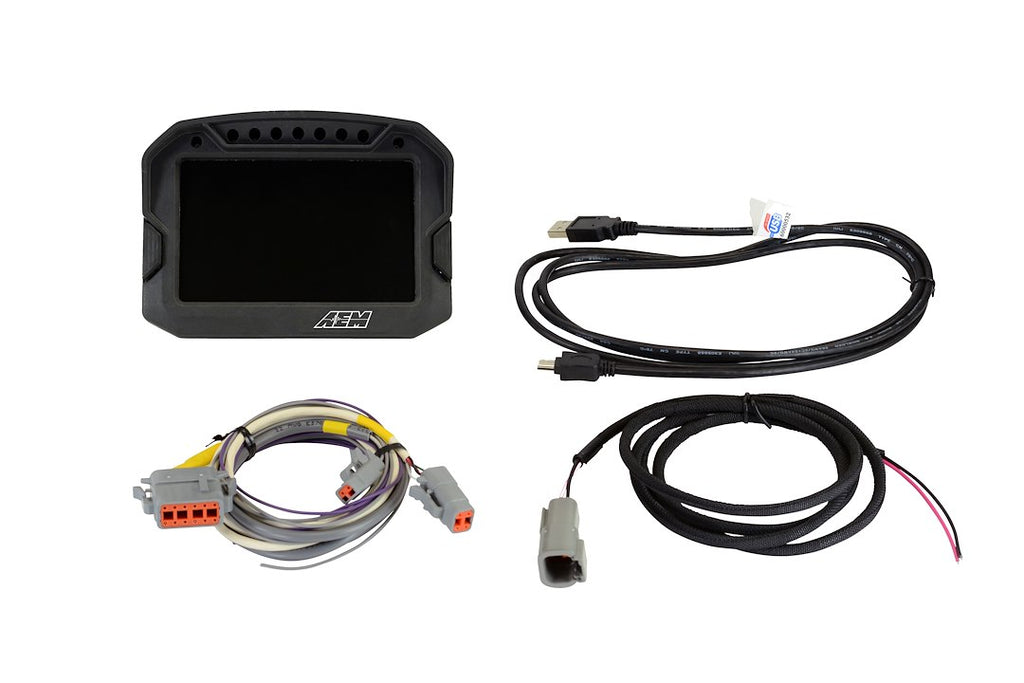

• IP66 Water Resistance Allows For Operation In Boats And Motorcycles Without Worry; Plug And Play Adapter Cables Available For Holley, Link, MSD Atomic And Vi-Pec ECUs
• Accepts Channels From Two Separate User Programmable CAN Bus Connections – Works With AEMnet Enabled Devices And Non-AEM 3rd Party Devices Side By Side

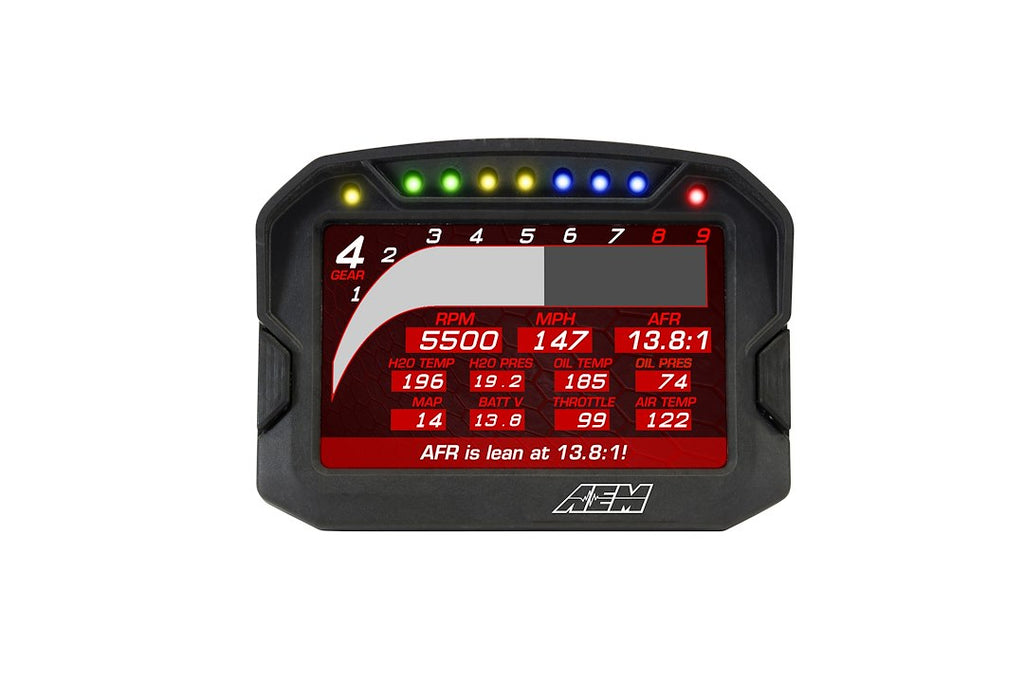

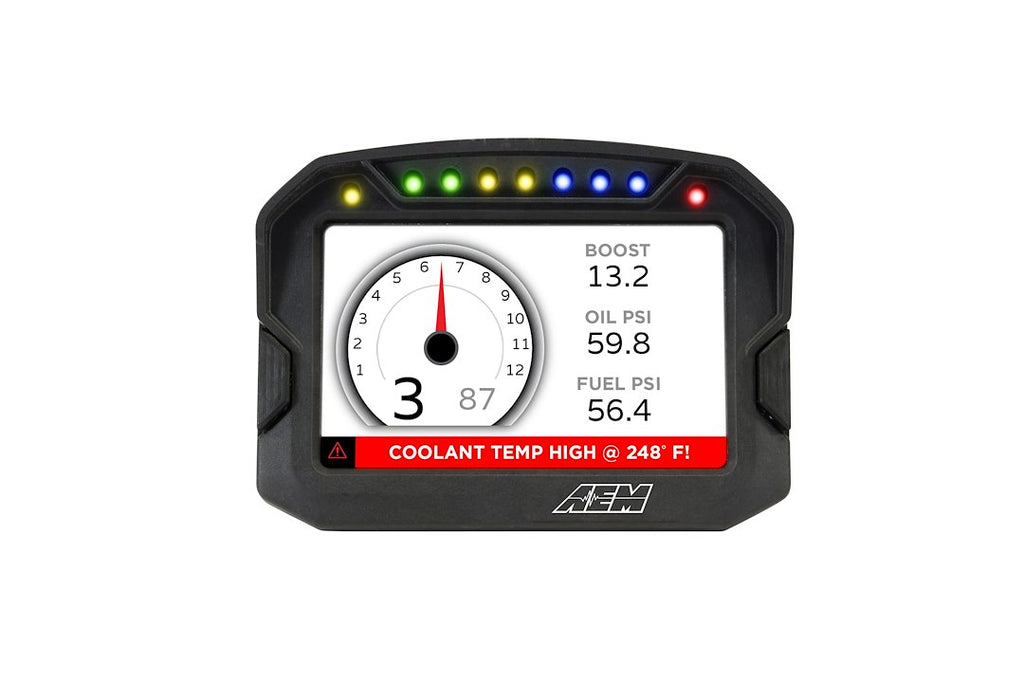

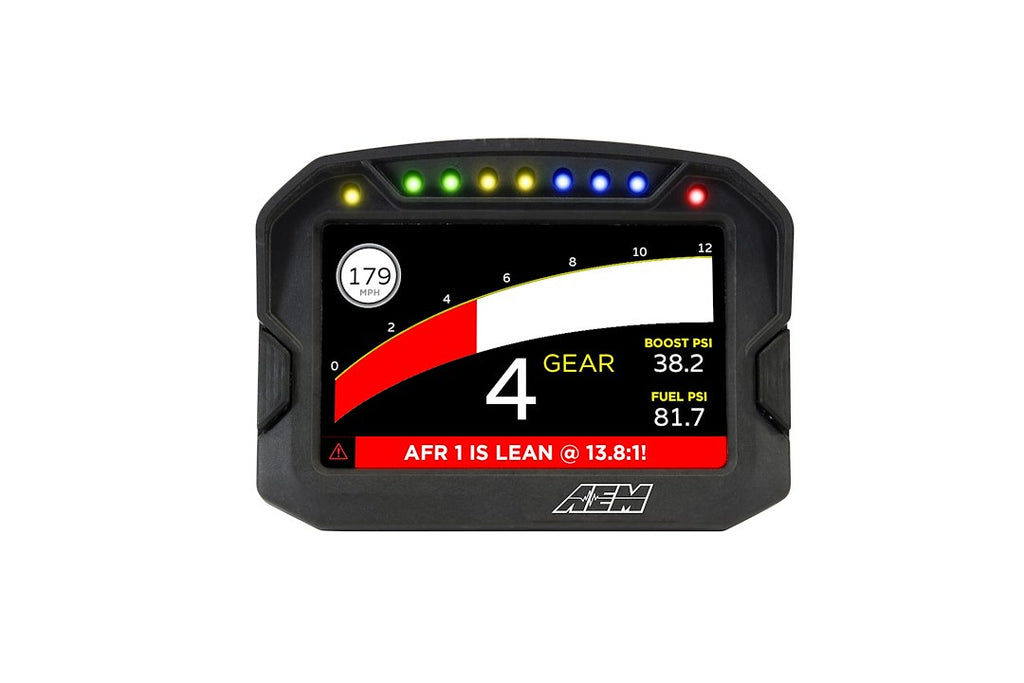

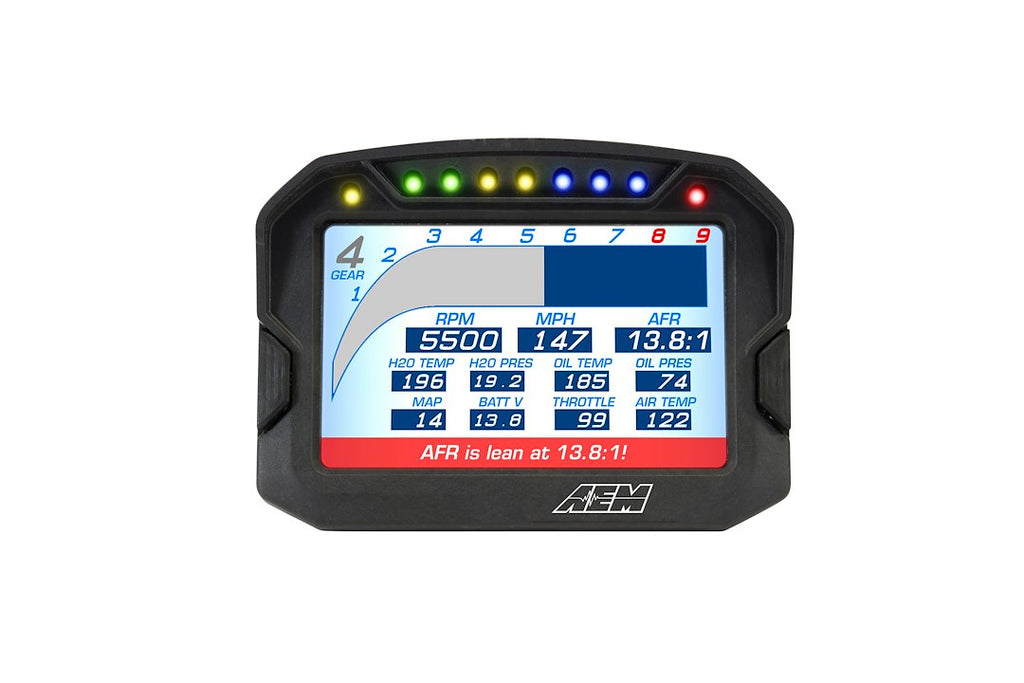

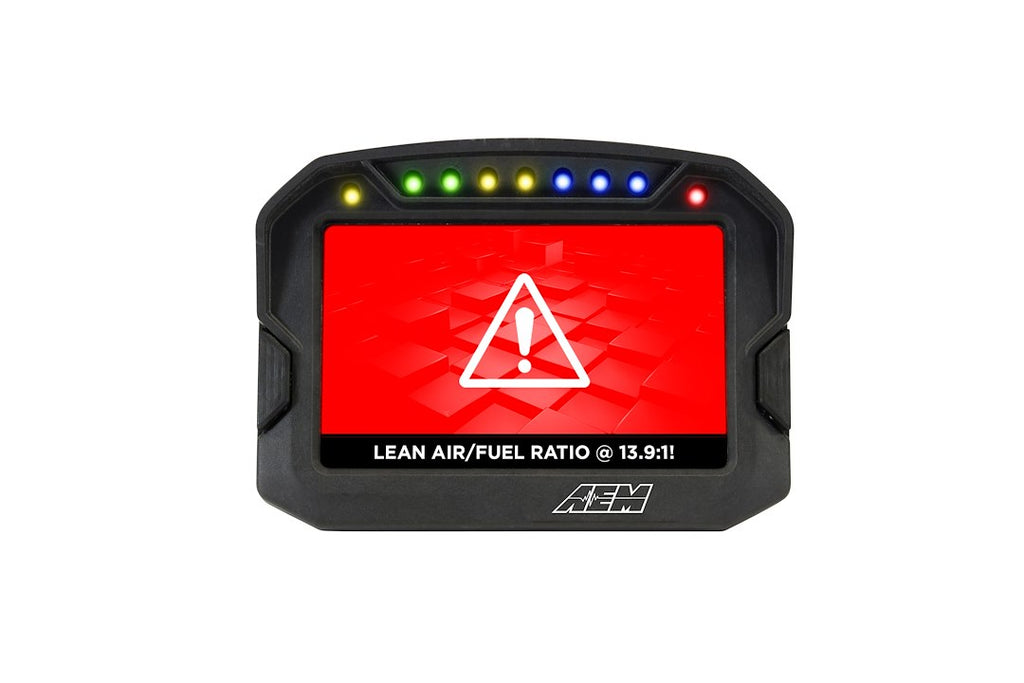

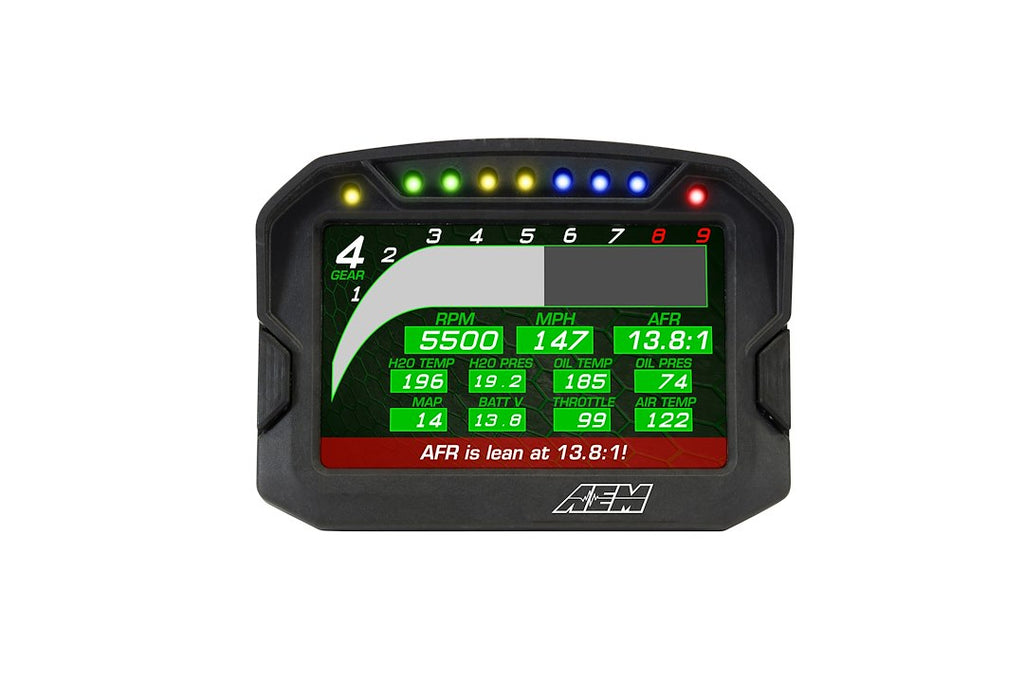

• Dedicated Alarm Page Quickly Identifies Problems, Programmable In Almost Any Language! (User Defined)

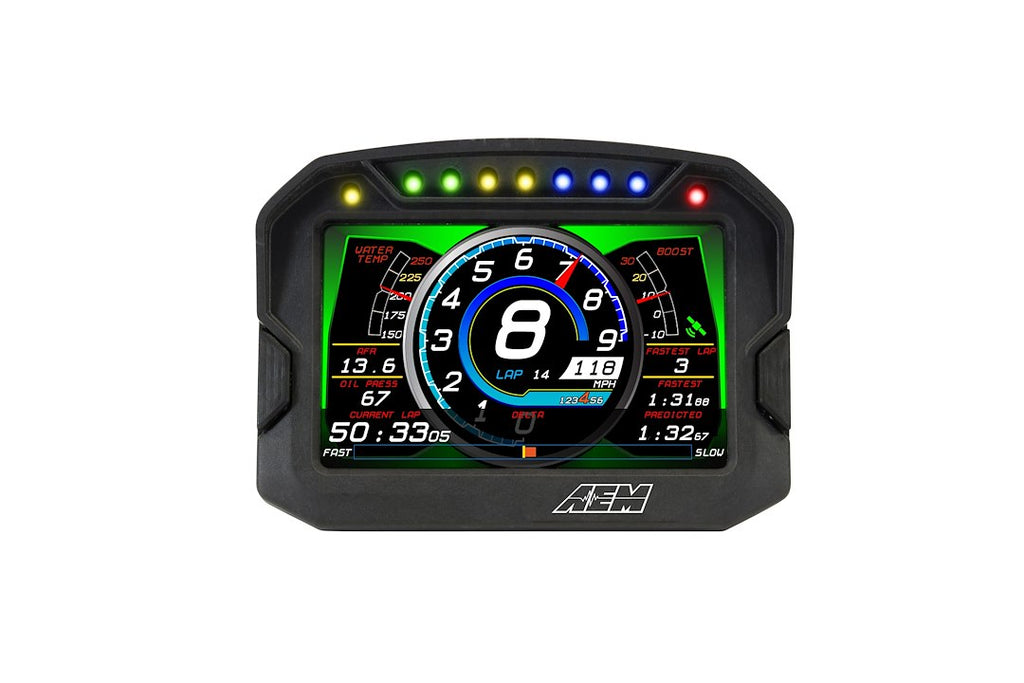

• Unique On-Change Page Can Be Used To Identify Map Switching For Boost, Traction, Lap Times, And More; ‘Headlight-In’ Connection Dims The Dash And LEDs During Night Operation

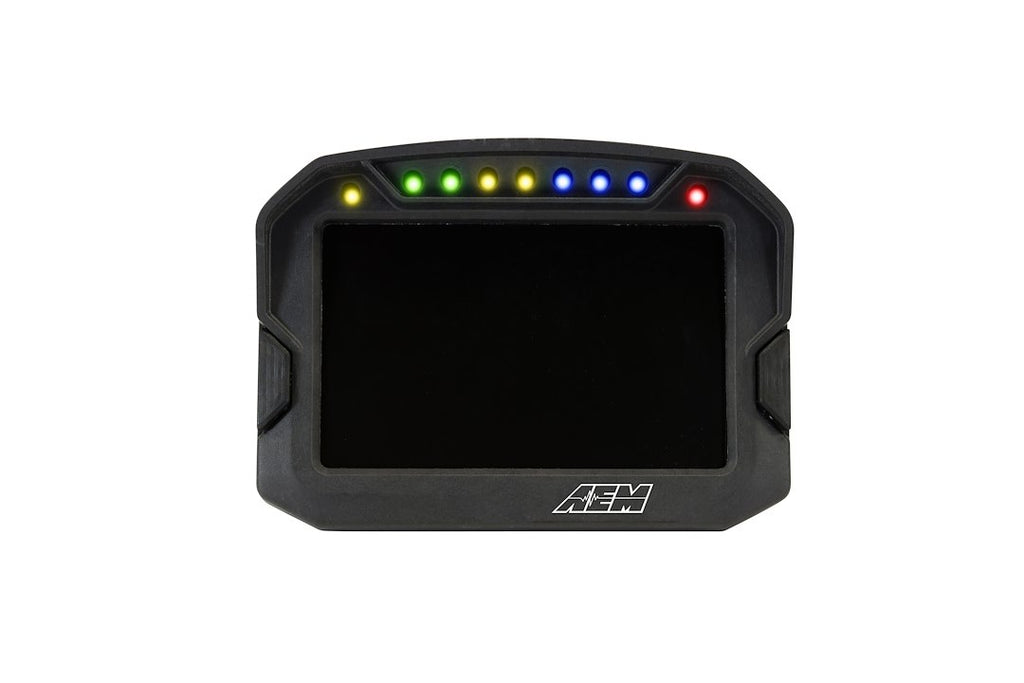

• Free DashDesign Graphics Editor Software; Seven LED RPM Per Shift Light Indicators On Top Of The Housing (Programmable And Dimmable)
• Two Programmable LEDs; Odometer Function; User Supplied Graphics Can Be Changed Based On Channel Values (Up To The Full Screen Size)
• Over 200 Supplied Fully Programmable SAE And Custom Warning Icons, And You Can Add Your Own; Convert CAN Bus Channel Values To User-Defined Text In Multiple Languages

Specifications

• Manufacturer: AEM Electronics
• Manufacturer Part Number: 30-5601
• Engine Parameter Display: Dozen Of Engine Parameter
• Reads Diagnostic Trouble Codes: Yes
• Clears Diagnostic Trouble Codes: Yes
• Display Type: Logging Carbon Display
• Color: Black

Technical Documents

• techlibrary_aem-cd-dash-full-manual.pdf
• techlibrary_aem_cd_dash_quick_start_guide.pdf
