Enhance your data acquisition with versatile input conversion capabilities.

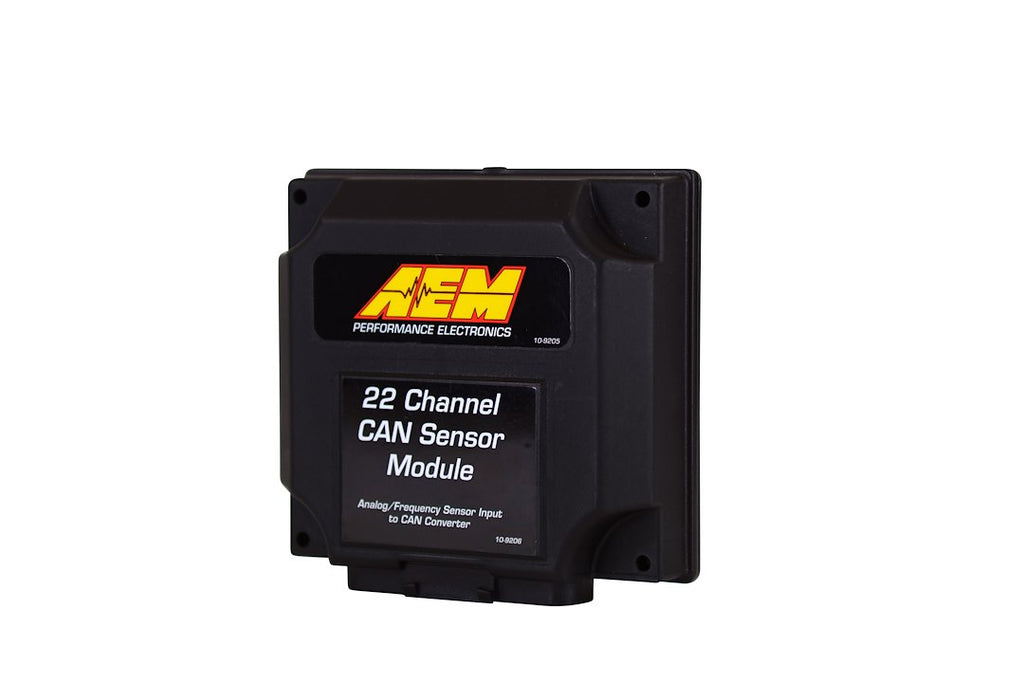

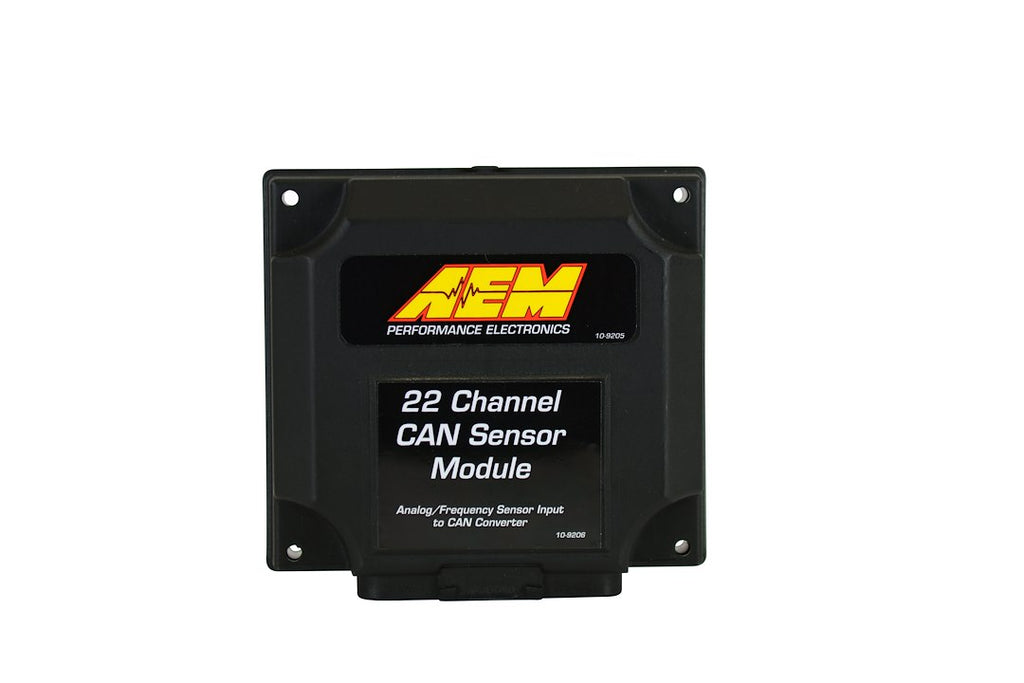

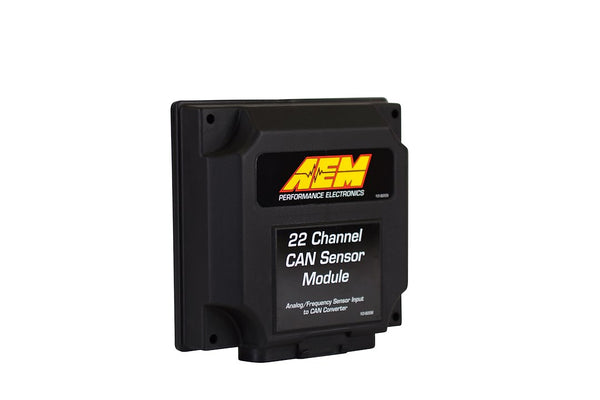

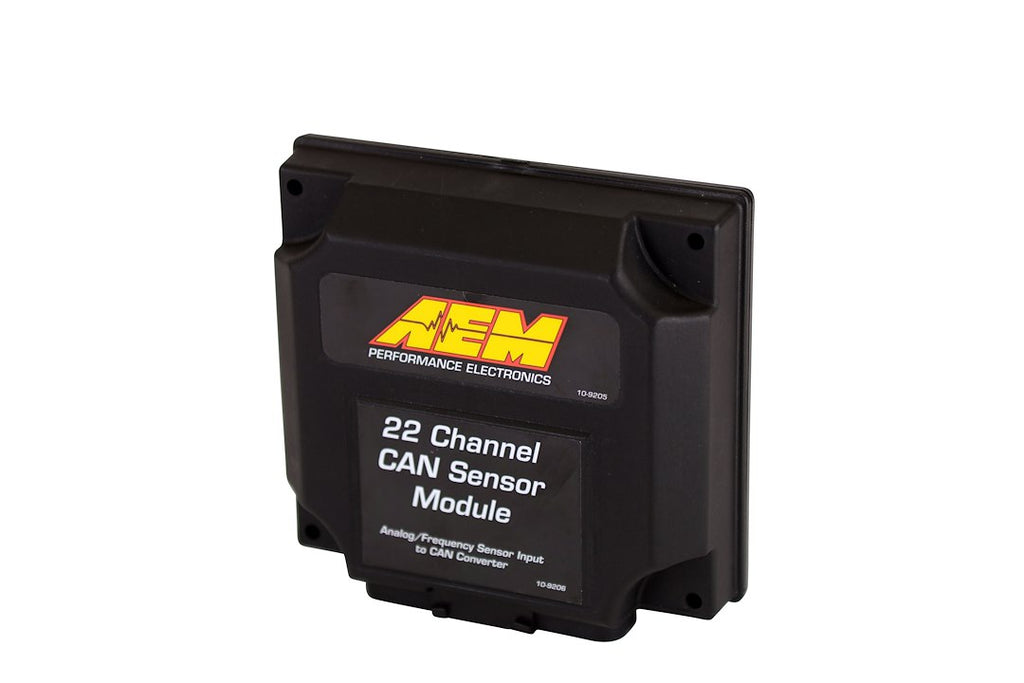

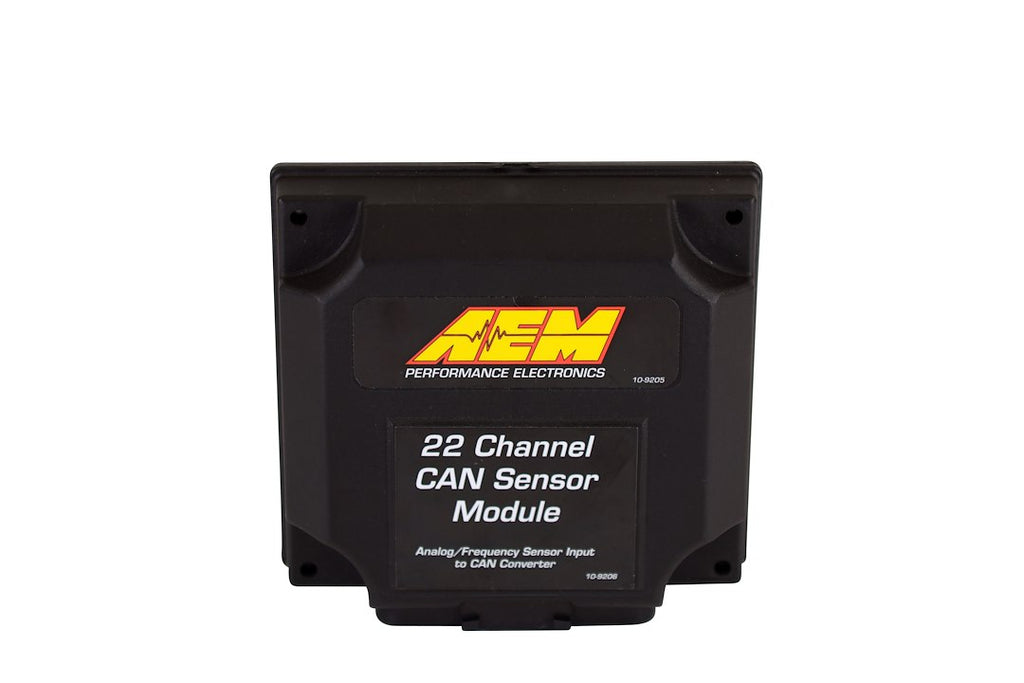

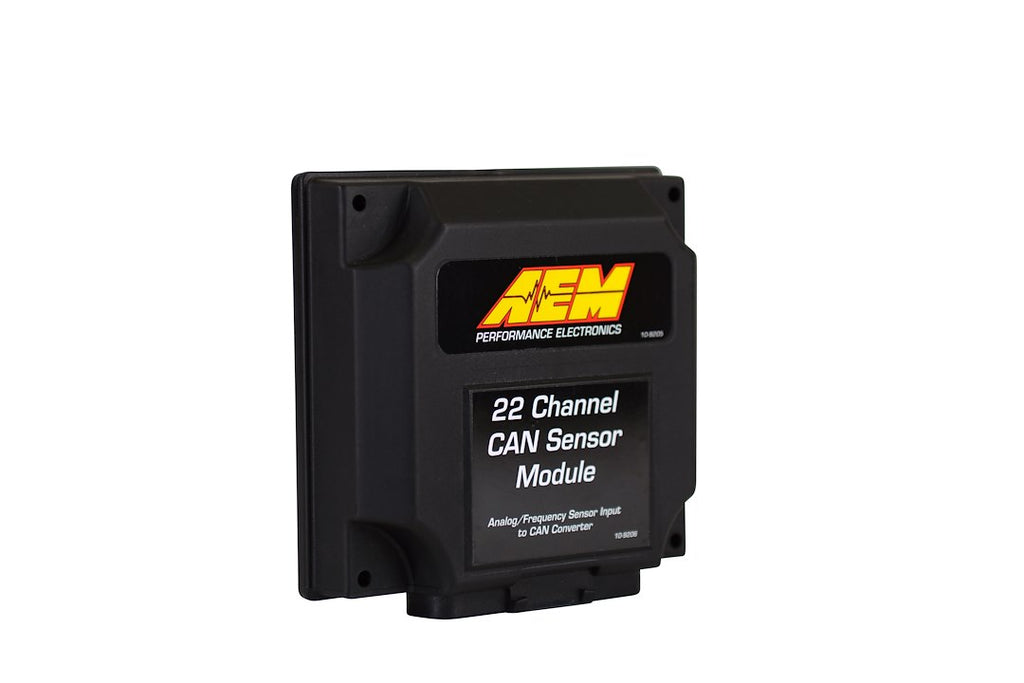

The AEM Electronics 22 Channel CAN Sensor Module is designed to convert analog, digital, and frequency inputs into an AEMnet CAN bus signal, facilitating seamless integration with CD-5 Carbon and CD-7 Digital Dashes. This module is particularly beneficial for users with carbureted vehicles looking to incorporate a digital dash display, as well as EFI users who require additional channels without the need for multiple CAN-based devices.
This expansion module supports daisy chaining of two units for increased channel capacity and includes a wiring harness with 36-inch flying leads and a pre-wired CAN cable for straightforward installation. It features four dedicated temperature inputs, four 0 to 5 voltage analog inputs, and six configurable digital or frequency inputs, ensuring comprehensive data acquisition capabilities.
The AEMnet CAN Sensor Module operates in parallel with third-party CAN devices on the CD dashes, although it is not compatible with AEM's AQ-1 Data Logger, Series 2 or Infinity ECUs, or other third-party ECUs or loggers. This module is an essential tool for enhancing the functionality of your data display system.
Features
- Convert Analog, Digital And Frequency-Based Inputs To AEMnet CAN Bus For Display On CD-5 Carbon And CD-7 Dashes
- Perfect For Users With Carbureted Vehicles Who Want To Add A CD Dash Display
- Ideal For EFI Users Who Want To Add More Channels To A CD Dash Without Purchasing Multiple CAN-Based Devices
- Daisy Chain Two Modules Together For Additional Channels

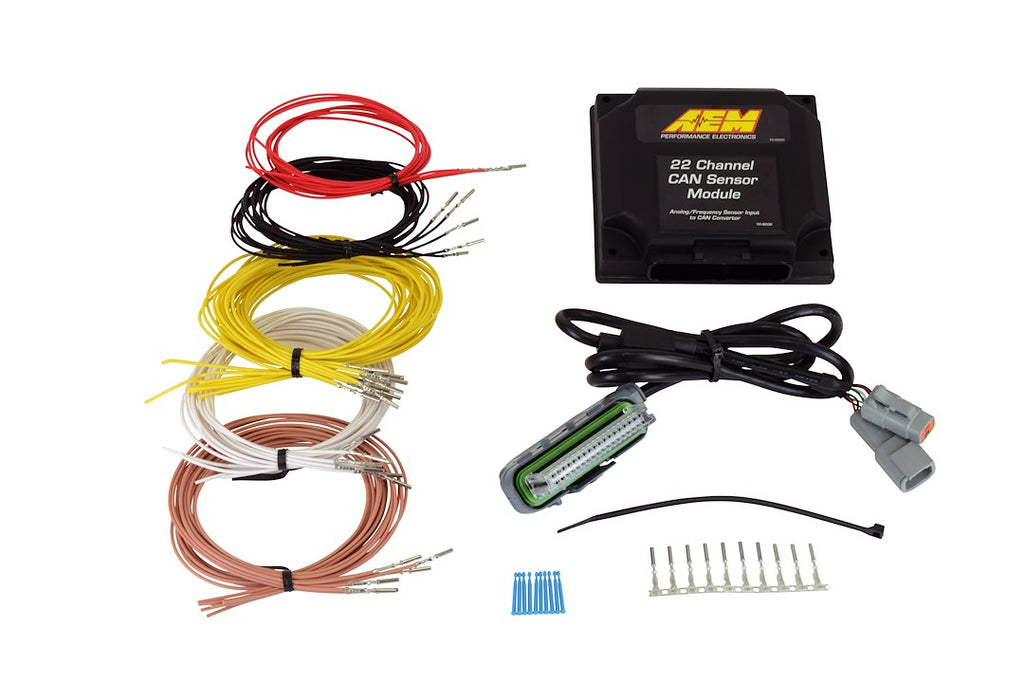

- Wiring Harness Comes With 36 Inch Flying Leads And Pre-Wired CAN Cable
- Four Temperature (Thermistor) Inputs
- Four Dedicated 0 To 5 Voltage Analog Inputs
- Four User-Configurable Analog Inputs, (Jumper Selectable; 0 To 5 Voltage, Thermistor, Or RTD)
- Six Configurable Digital Or Frequency Inputs, Active Low, Protected To ~18 Voltage, Frequency, Duty Cycle Or Simple Switch
Specifications
- Manufacturer: AEM Electronics
- Manufacturer Part Number: 30-2212
- Number Of Channel: 22
- Used To: Converts Analog, Digital And Frequency Inputs Into An Aemnet Can Bus Signal
