Advanced FLOW Engineering Transmission Pan (MPN: 46-70122-1)

Enhance your transmission's performance with increased capacity and cooling efficiency.

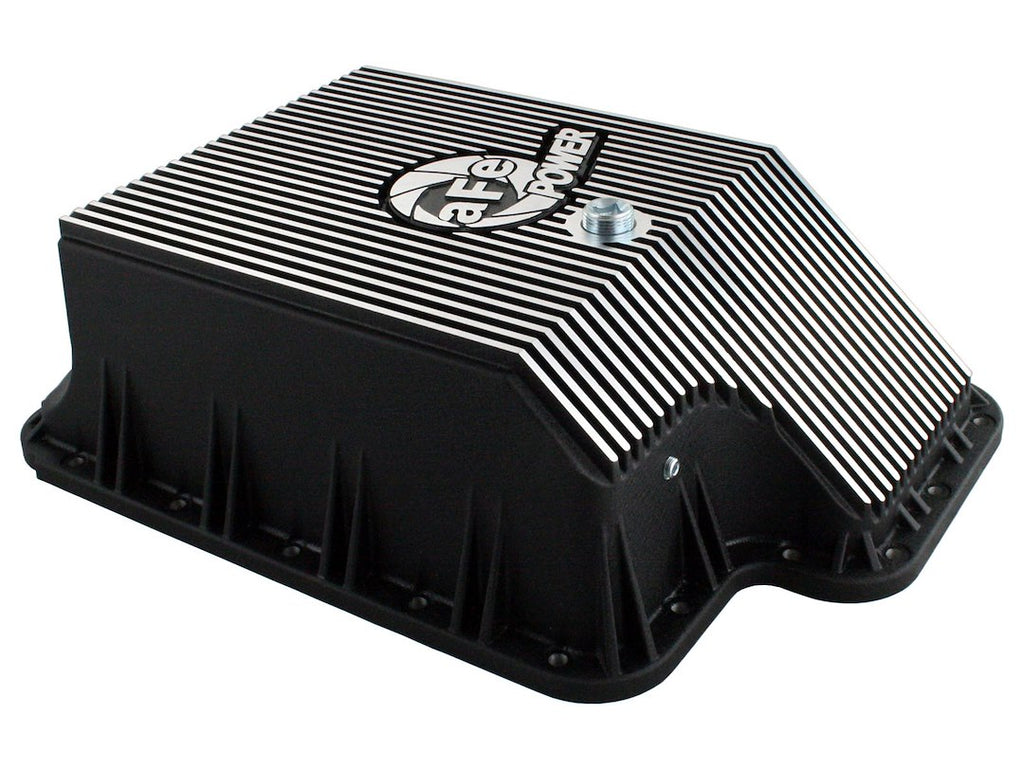

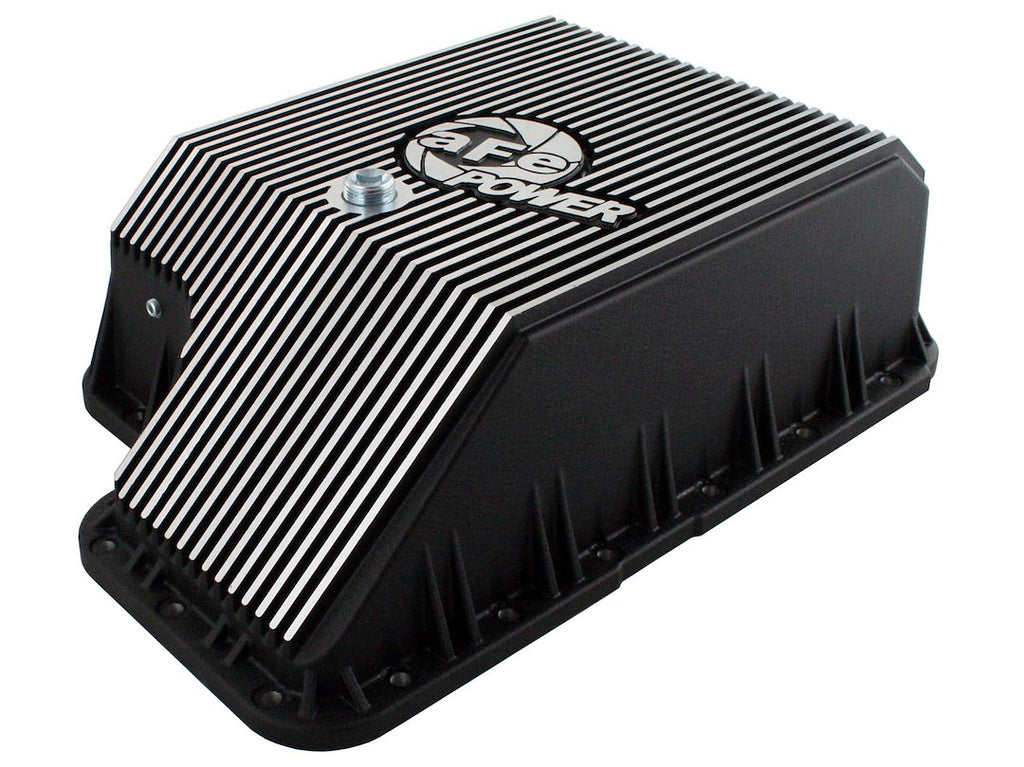

The Advanced FLOW Engineering Transmission Pan is designed to significantly improve the performance of F5R110W, F5R110, E4OD, and 4R100 transmissions. This pan adds an additional 7.5 quarts of capacity over the stock option, allowing for better fluid management and extended service intervals. Constructed from durable die-cast A380 aluminum, it features reinforced ribs for added strength and durability, ensuring long-lasting use under demanding conditions.

The pan is finished in a wrinkle-black powder-coating, providing a distinctive appearance while also enhancing corrosion resistance. Internal and external fins are strategically designed to transfer heat from the transmission fluid to the ambient air, maximizing cooling efficiency and maintaining optimal operating temperatures. The inclusion of a magnetic drain plug captures loose particles, providing additional protection for the transmission.

Installation is straightforward and requires no modifications to the factory dipstick, making it a hassle-free upgrade for vehicle owners. This transmission pan is an essential component for those looking to enhance their vehicle's transmission performance and longevity.

Features

• Constructed Out Of Durable A380 Die-Cast Aluminum

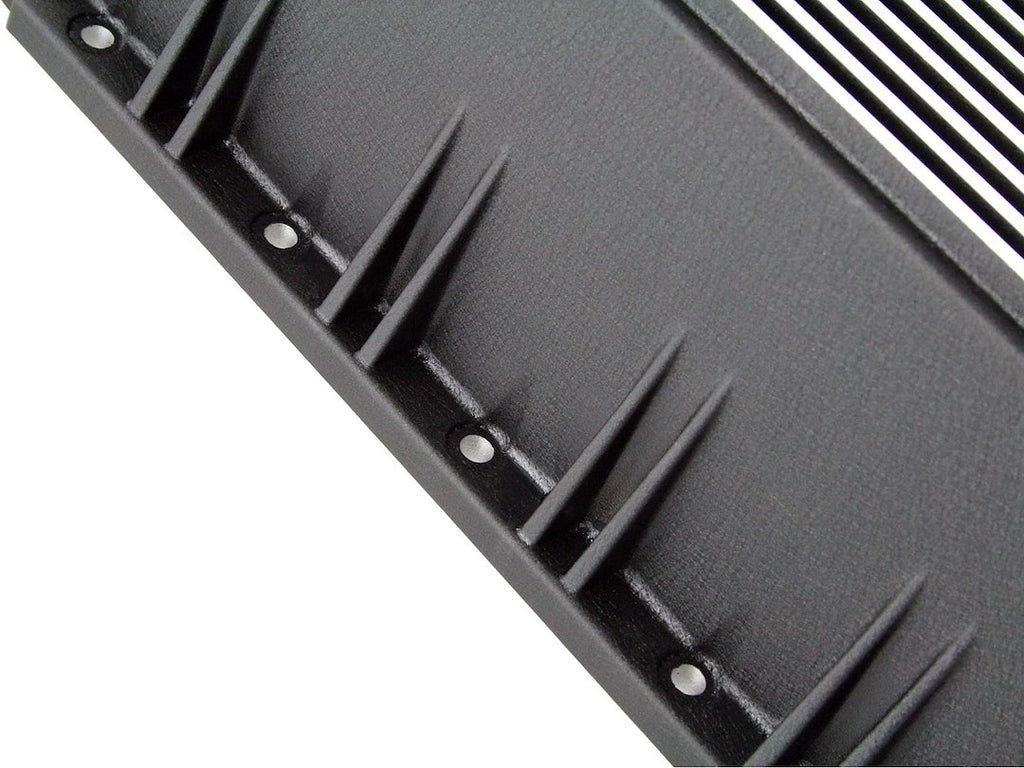

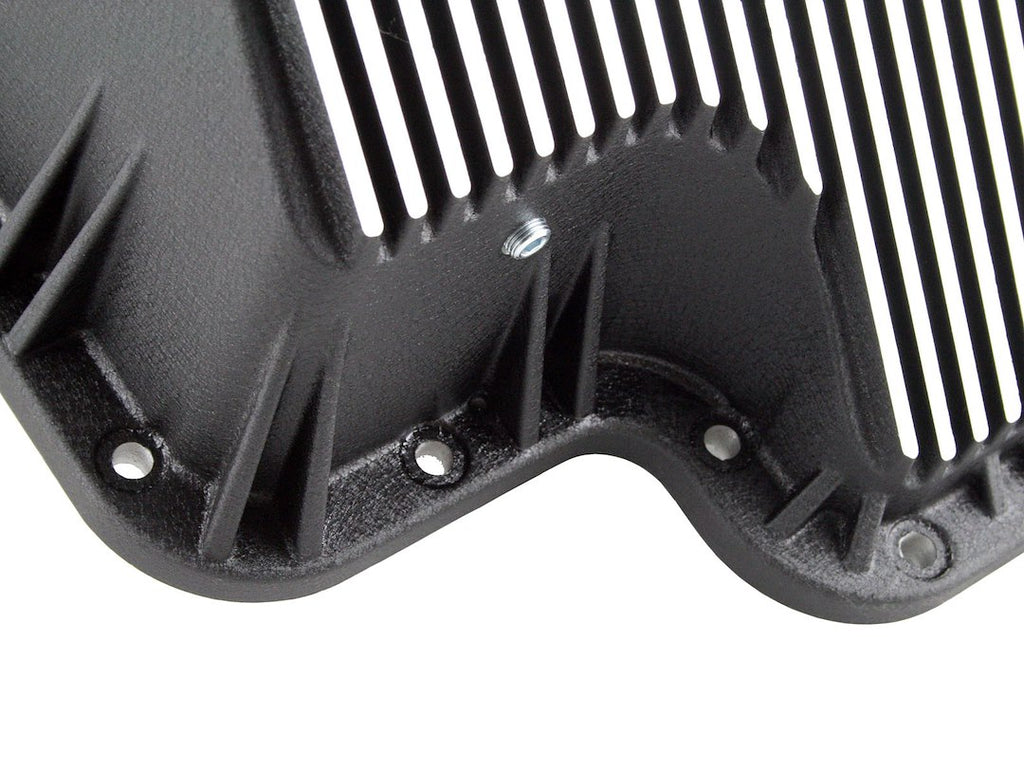

• Reinforcing Ribs And Wrinkle Black Powder-Coating With Machined Fins
• Adds An Additional 7.5 Quarts Over Stock
• Requires No Modification To The Factory Dipstick

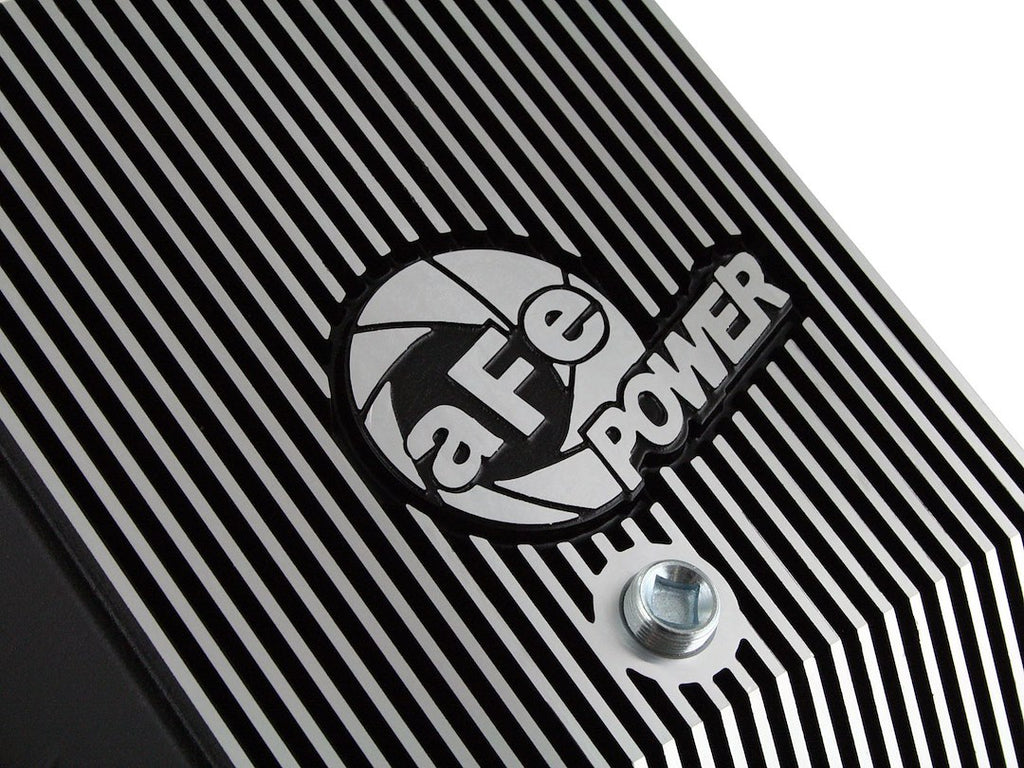

• Magnetic Drain Plug Incorporates A Large Neodymium Magnetic Drain Plug That Captures Loose Particles For Maximum Transmission Protection And Can Be Tightened Using A 1/2 Inch Square Socket Drive

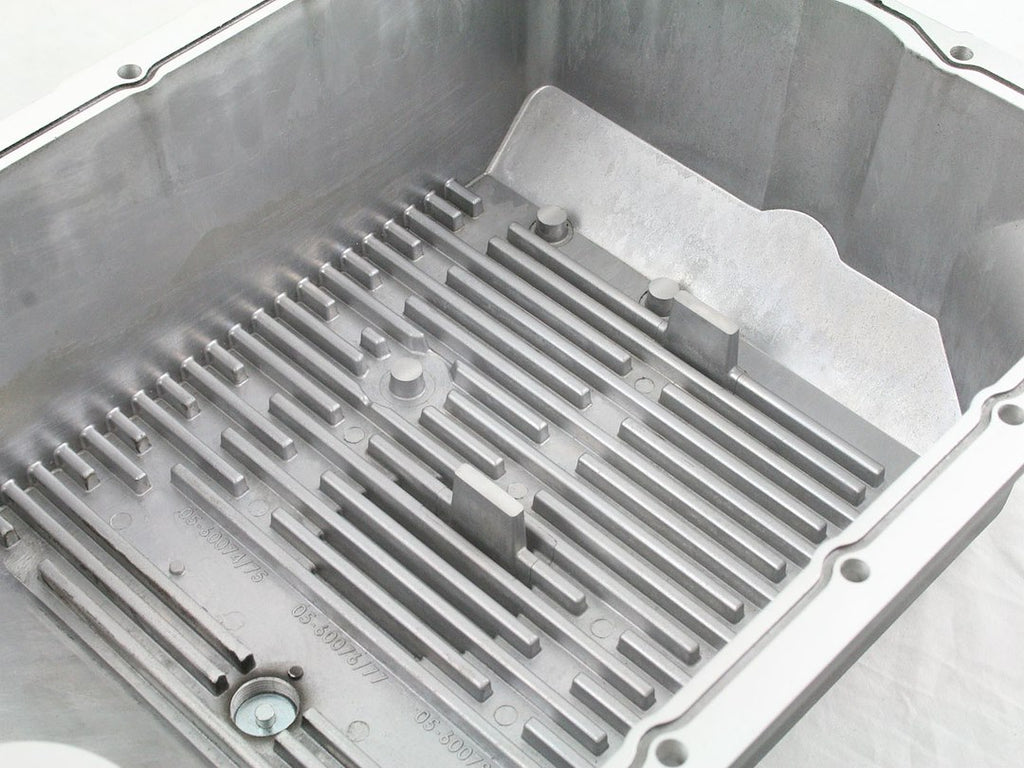

• Internal And External Fins Transfer Heat From The Fluid To The Ambient Air For Maximum Cooling
• Hassle-Free Installation

Specifications

• Manufacturer: Advanced FLOW Engineering
• Manufacturer Part Number: 46-70122-1
• Transmission Model: F5R110W/ F5R110/ E4OD/ 4R100
• Capacity Increase Over OEM (QT): 7.5 Quart
• Finish: Powder Coated
• Color: Wrinkle Black
• Material: Aluminum
• Includes Drain Plug: Yes

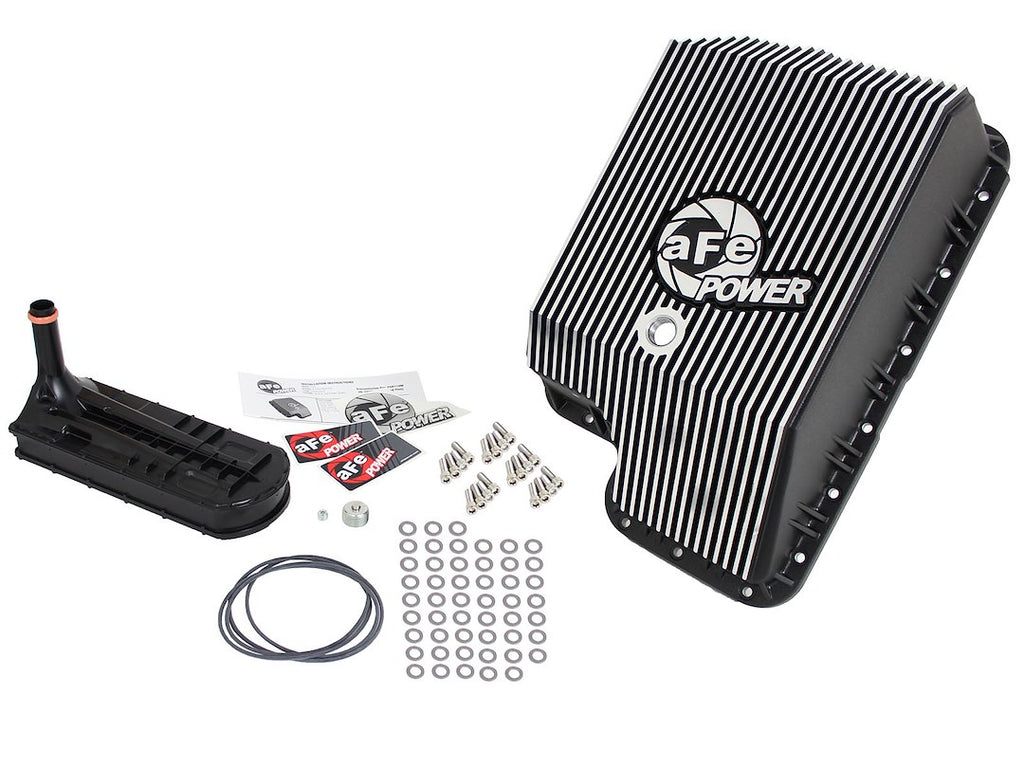

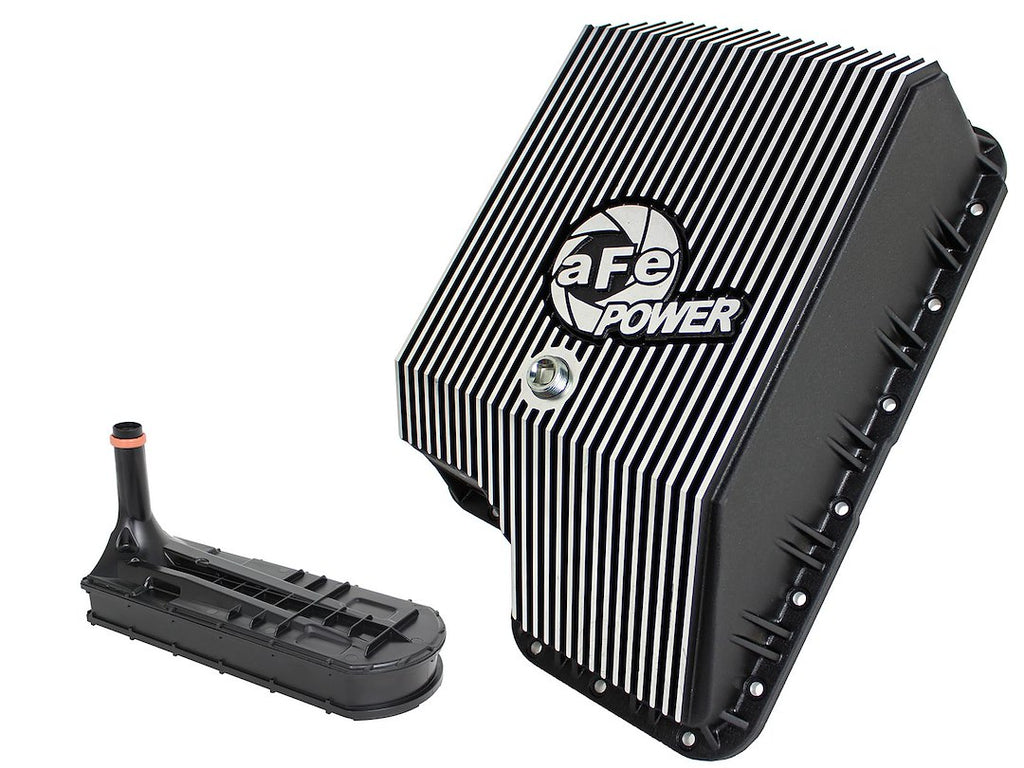

• Includes Filter: Yes
• Includes Filter Extension: No
• Includes Gaskets: No
• Includes Bolts: Yes

Compatibility / Fit

• 1994-2003 Ford F-150
• 2004-2004 Ford F-150 Heritage
• 1994-1999 Ford F-250
• 1999-2004 Ford F-250 Super Duty
• 2006-2010 Ford F-250 Super Duty
• 1994-1997 Ford F-350
• 1999-2004 Ford F-350 Super Duty
• 2006-2010 Ford F-350 Super Duty
• 1999-2004 Ford F-450 Super Duty
• 2006-2010 Ford F-450 Super Duty
• 2000-2004 Ford F-550 Super Duty
• 2006-2010 Ford F-550 Super Duty
• 1994-1997 Ford F-Super Duty

Technical Documents

• 46-70122-1.pdf
