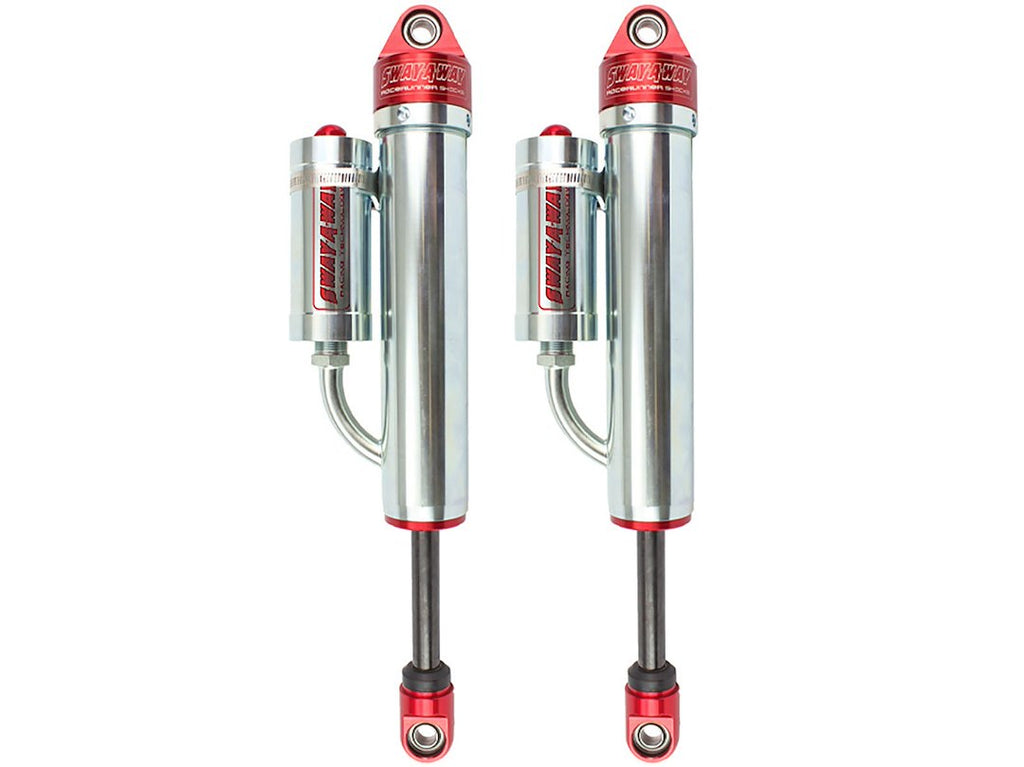

Advanced FLOW Engineering Hydraulic Shock Absorber (MPN: 302-0056-09)

Experience superior off-road performance with adjustable damping technology.

The Advanced FLOW Engineering Hydraulic Shock Absorber is engineered for high-performance applications, featuring a 2.5 inch diameter triple bypass design that enhances both off-road and on-road driving experiences. With over 20 years of race-winning engineering, this shock absorber kit is designed for direct fit installation, ensuring no modifications are necessary for your vehicle. The externally adjustable bypass tubes allow for precise tuning of damping characteristics, providing optimal handling and comfort across various terrains.

Constructed with bright zinc plated steel cylinder bodies and CNC machined aluminum components, these shocks are built to withstand rigorous conditions while maintaining durability. The 7/8 inch polished nitro steel shafts contribute to the overall strength, ensuring longevity and reliability. The multi-seal carrier design prevents leakage, while the fully synthetic shock oil enhances performance and responsiveness.

This set of two shock absorbers is completely adjustable and rebuildable with simple tools, making maintenance straightforward. The piggyback reservoirs facilitate easy installation, further enhancing the user experience. Whether for daily driving or off-road adventures, the Advanced FLOW Engineering Hydraulic Shock Absorber delivers exceptional performance and reliability.

Features

• CNC Machined Components Are Made To The Strictest Tolerances
• 7/8 Inch Polished Nitro Steel Shafts For Strength And Durability
• 2.5 Inch Diameter Triple Bypass For Position Sensitive Damping
• Multi-Seal Carrier To Ensure Zero Leakage
• Externally Adjustable Bypass Technology
• Specifically Formulated 7WT, Fully Synthetic Shock Oil
• Completely Adjustable And Rebuildable Using Simple Tools
• Direct Fit Installation, Requires No Modifications
• Piggyback Reservoirs For Easy Installation

Specifications

• Manufacturer: Advanced FLOW Engineering
• Manufacturer Part Number: 302-0056-09
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 27-1/4 Inch
• Compressed Length (IN): 18.11 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 2015-2026 Ford F-150

Technical Documents

• 302-0056-09_ins_1.pdf
