High-performance diesel lift pump with boost activation and durable construction.

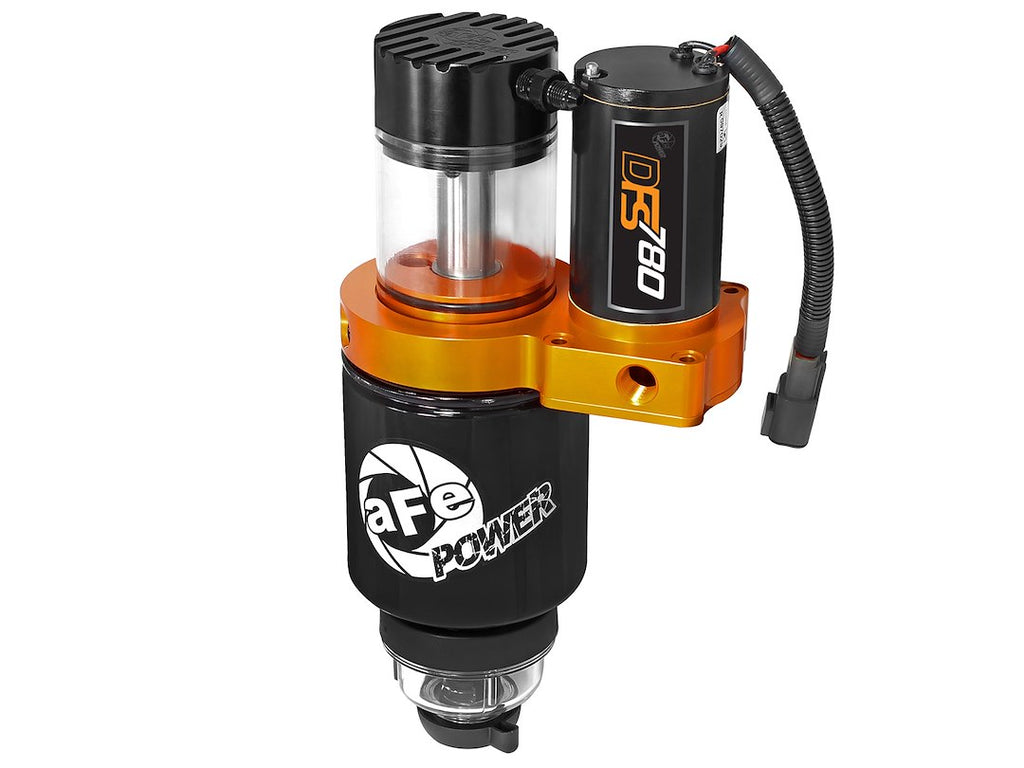

The Advanced FLOW Engineering Fuel Lift Pump is designed for diesel applications, providing a reliable flow rate of 3 gallons per minute and operating at a pressure range of 8 to 10 PSI. This pump features a boost-activated engagement system that activates the pump only under load, which minimizes wear and extends the lifespan of the unit. Constructed with a billet 6061-T6 aluminum manifold, it eliminates porosity concerns associated with cast aluminum, ensuring durability and performance in demanding environments.
The pump is equipped with a clear high-impact polycarbonate sight glass, allowing for easy visual inspection of fuel levels. Its helical bronze spur gears are more forgiving of contaminants compared to steel gears, and the design operates more quietly than traditional straight cut gears. Additionally, the PEEK bearing wear surfaces reduce noise and wear, enhancing the overall efficiency of the pump.
Installation is straightforward with a plug and play harness that connects directly to the battery, utilizing Deutsch weather-proof connectors, which eliminates the need for cutting or modifying stock fuel lines. The inclusion of a fuel pressure gauge port allows for easy monitoring of fuel pressure, making this pump a practical choice for those seeking reliability and performance in their diesel fuel system.
Features

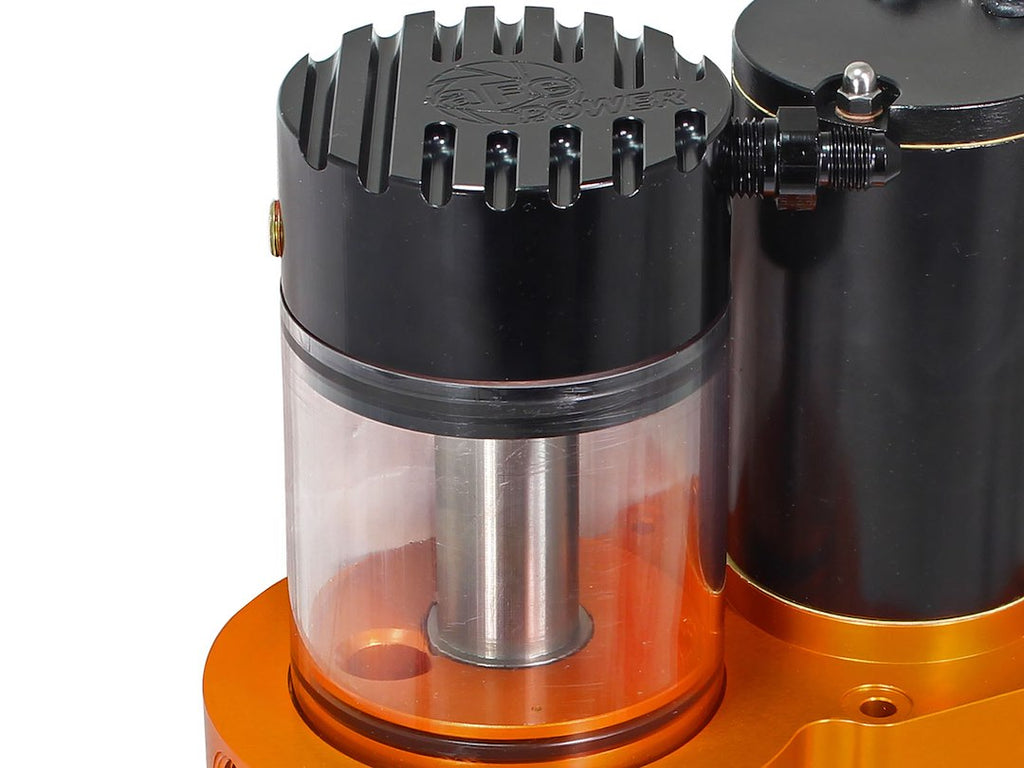

- Clear High-Impact Polycarbonate Sight Glass: Allows Visual Inspection Of Fuel

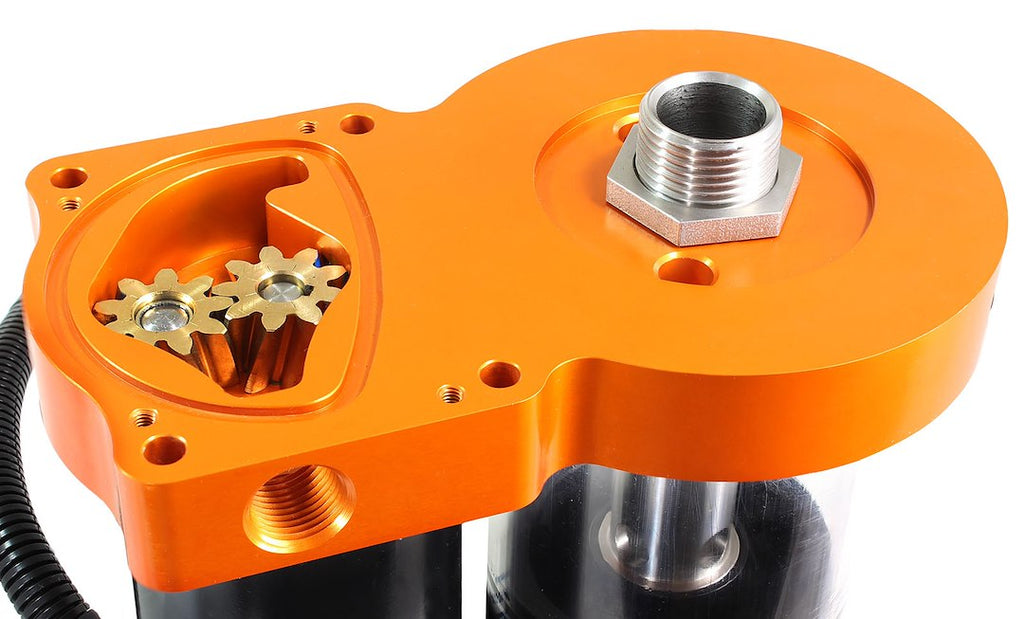

- Helical Bronze Spur Gears: Bronze Gears More Forgiving Of Contaminants Than Steel Gears; The Helical Spur Gear Design Runs Quieter Than Straight Cut Gears
- Billet 6061-T6 Aluminum Manifold: Eliminates Porosity Concerns With Cast Aluminum
- "Marine Grade" Motor: Protected Against Dust Intrusion And Powerful Water Jets
- Boost Activated Pump Engagement: Supplied Preset Boost Switch Activates Pump Only Under Load, Reducing Wear And Tear On The DFS780 Pump
- PEEK Bearing Wear Surfaces: The DFS780 Spur Gears Ride On PEEK (Polyether Ether Ketone) Bearing Surfaces To Reduce Both Noise And Wear
- Contoured CNC Machining Of Manifold Passages: Enhances Flow Through The Manifold To Reduce Pressure Drop Due To Flow Restrictions; O.E Quality Viton Seals: Compatible With Diesel And Biodiesel Fuels
- Fuel Pressure Gauge Port: 1/8 Inch NPT Port Allows Customer To Attach An External Pressure Gauge To Monitor Fuel Pressure

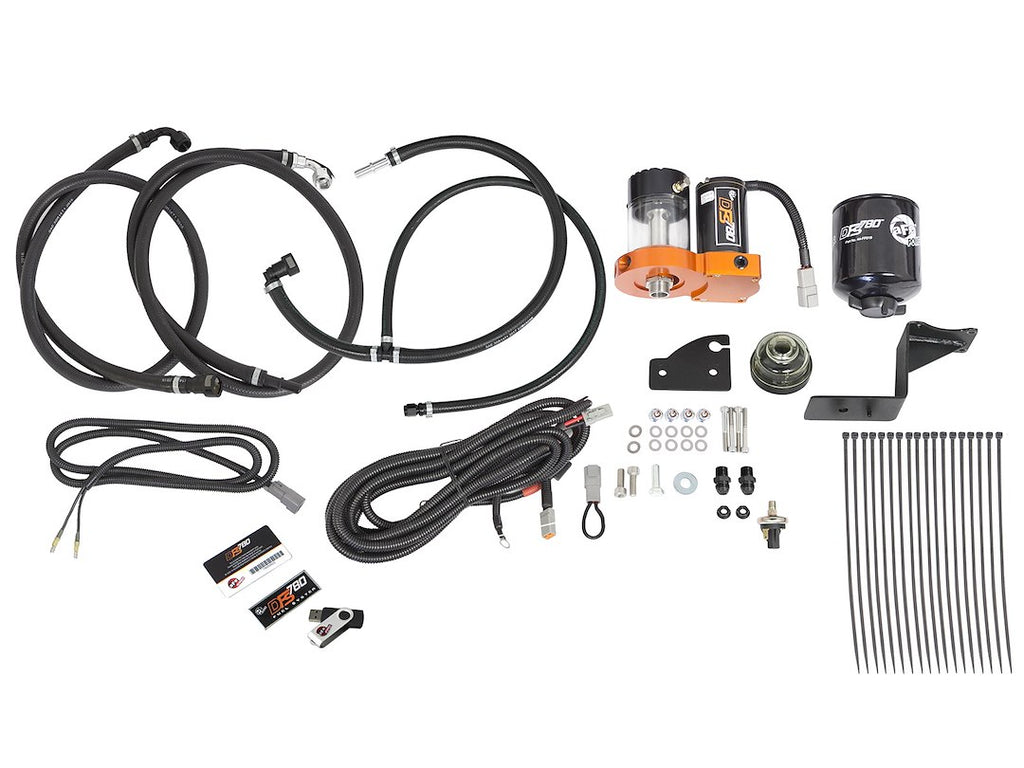

- Plug And Play Installation: Supplied Harness Attaches Directly To Battery And Utilizes Deutsch Weather-Proof Connectors, No Cutting Or Modifications Of The Stock Fuel Lines Required
Specifications
- Manufacturer: Advanced FLOW Engineering
- Manufacturer Part Number: 42-13052
- Flow Rate: 187 Gallons Per Hour
- Pressure Rating: 8 To 10 Pressure Per Square Inch
- Includes Mounting Kit: Yes
Compatibility / Fit
- 2017-2019 Ford F-250 Super Duty
- 2017-2019 Ford F-350 Super Duty
