Advanced FLOW Engineering Exhaust System Kit (MPN: 49-44147-B)

High-performance DPF back system for enhanced diesel efficiency and sound.

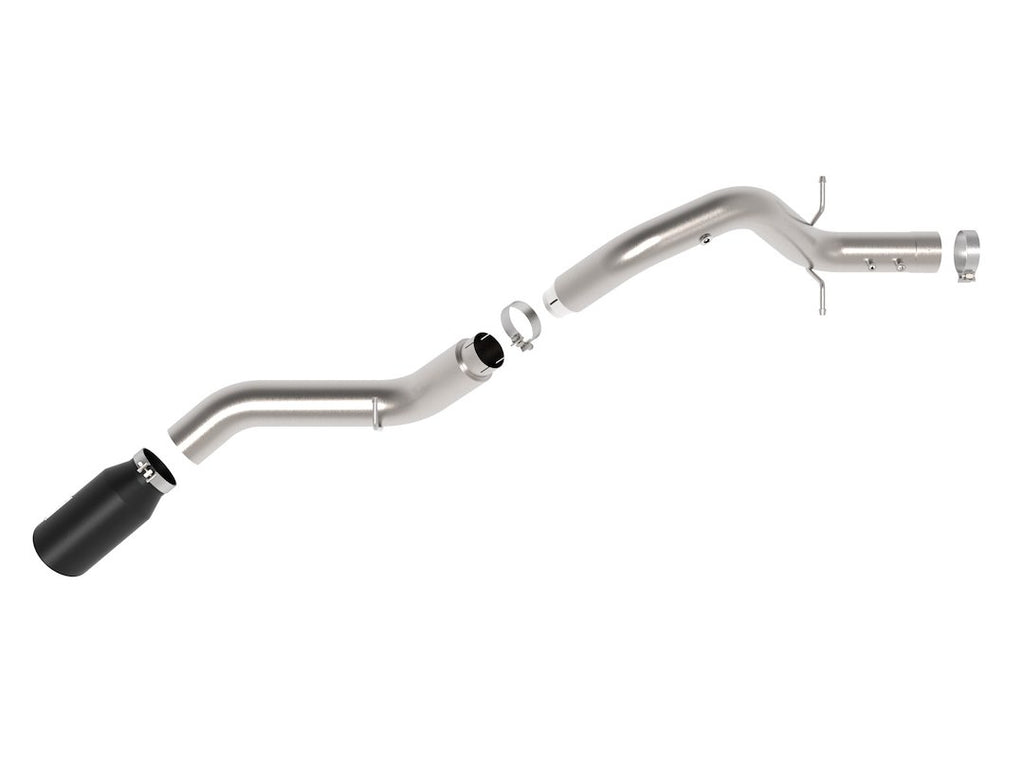

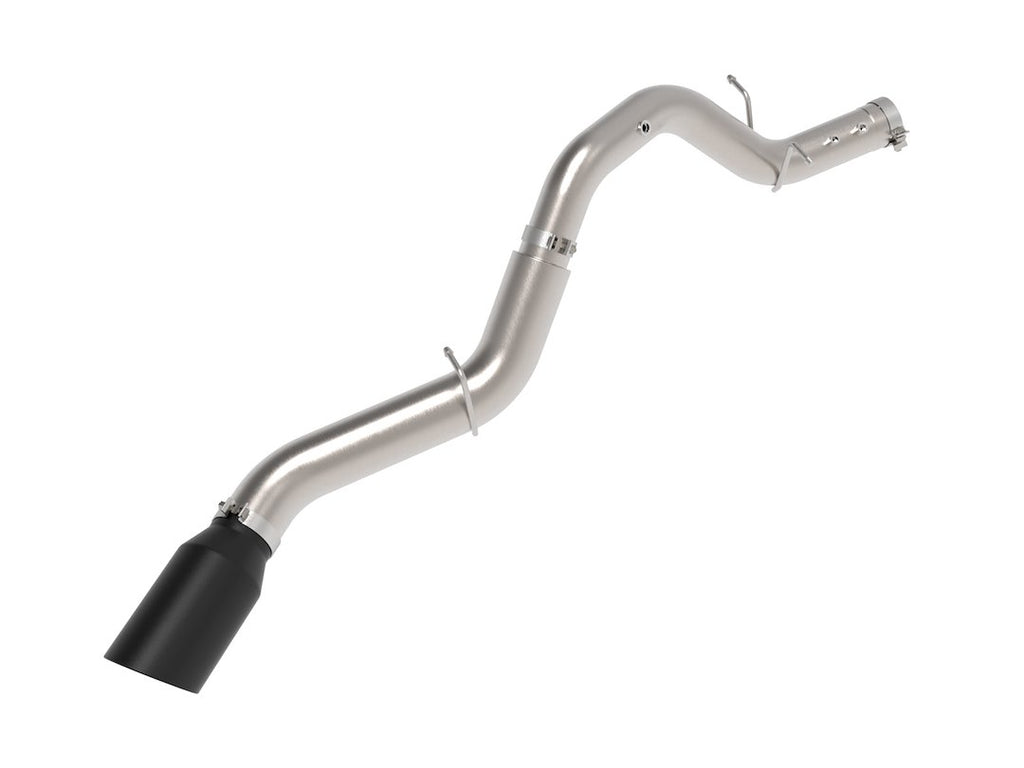

The Advanced FLOW Engineering Exhaust System Kit is designed to optimize the performance of diesel vehicles. This system features a large bore 5 inch diameter construction made from 409 stainless steel, ensuring maximum strength and durability. The exhaust system is engineered using state-of-the-art computer-aided design technology, allowing for a custom fit that meets high tolerance factory specifications.

This DPF-back exhaust system is equipped with a 7 inch diameter black stainless steel clamp-on exhaust tip, providing a sleek and aggressive look. The system is 100 percent MIG-welded, which enhances its strength and longevity. Installation is straightforward, utilizing factory-style hangers to mount directly to existing factory locations, although some cutting may be required as per the instruction sheet.

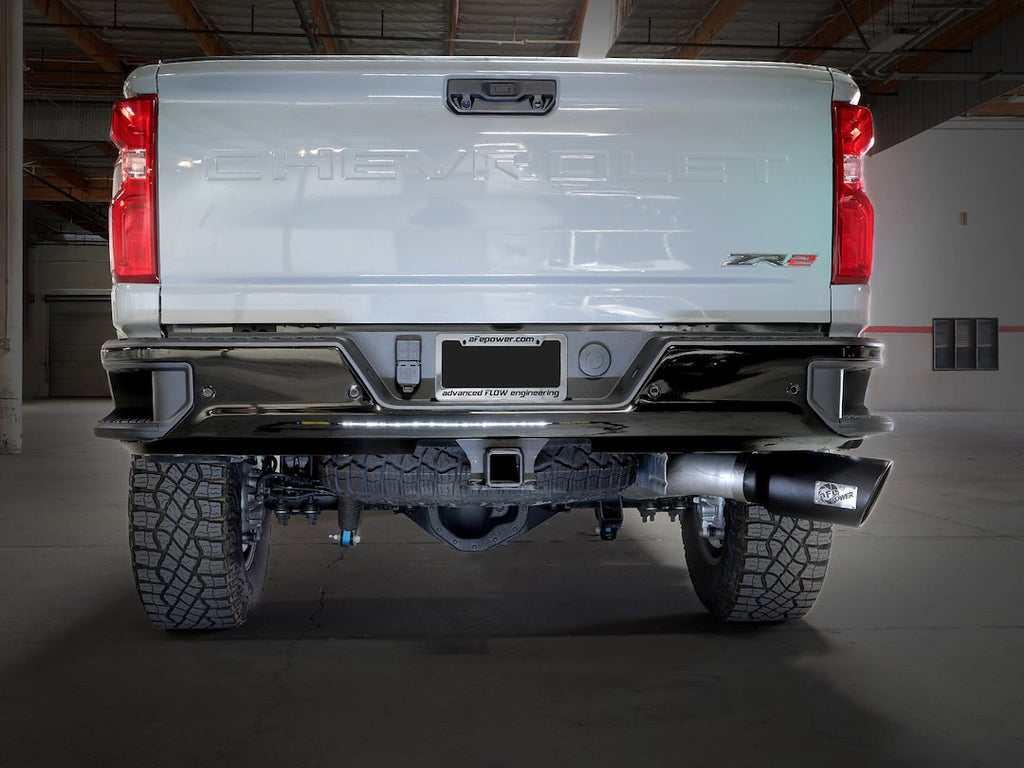

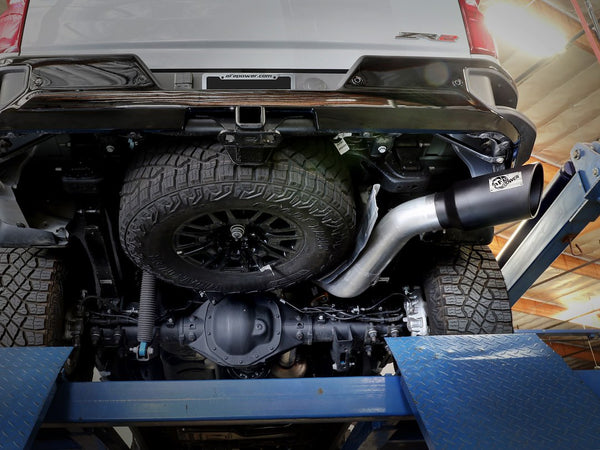

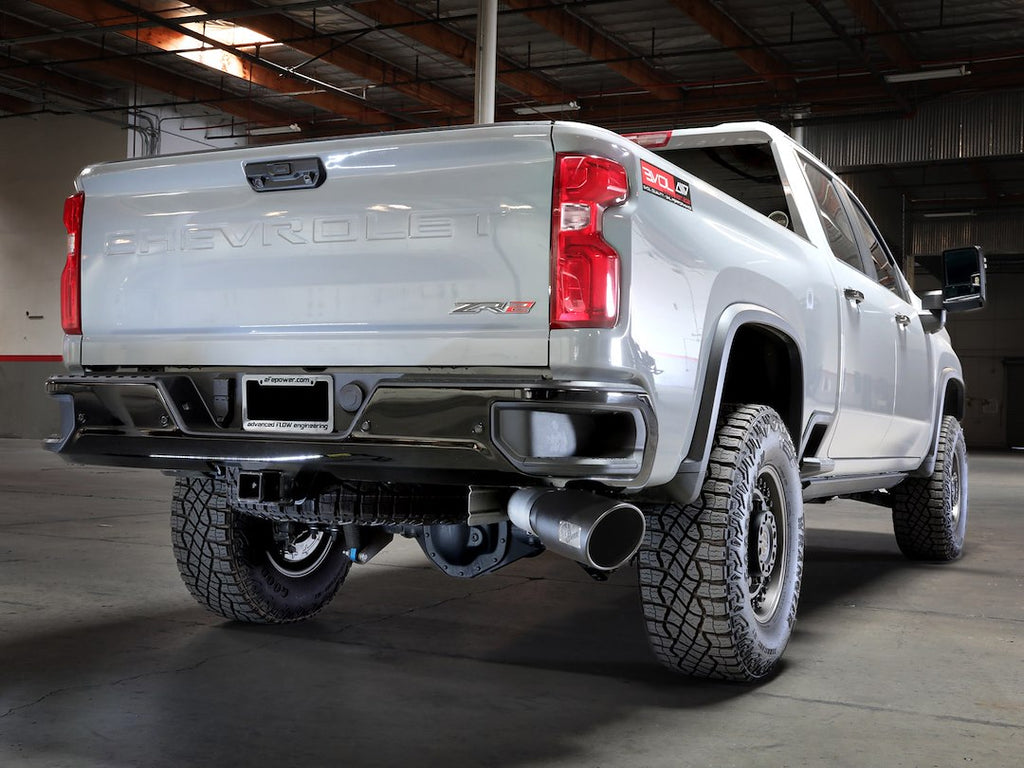

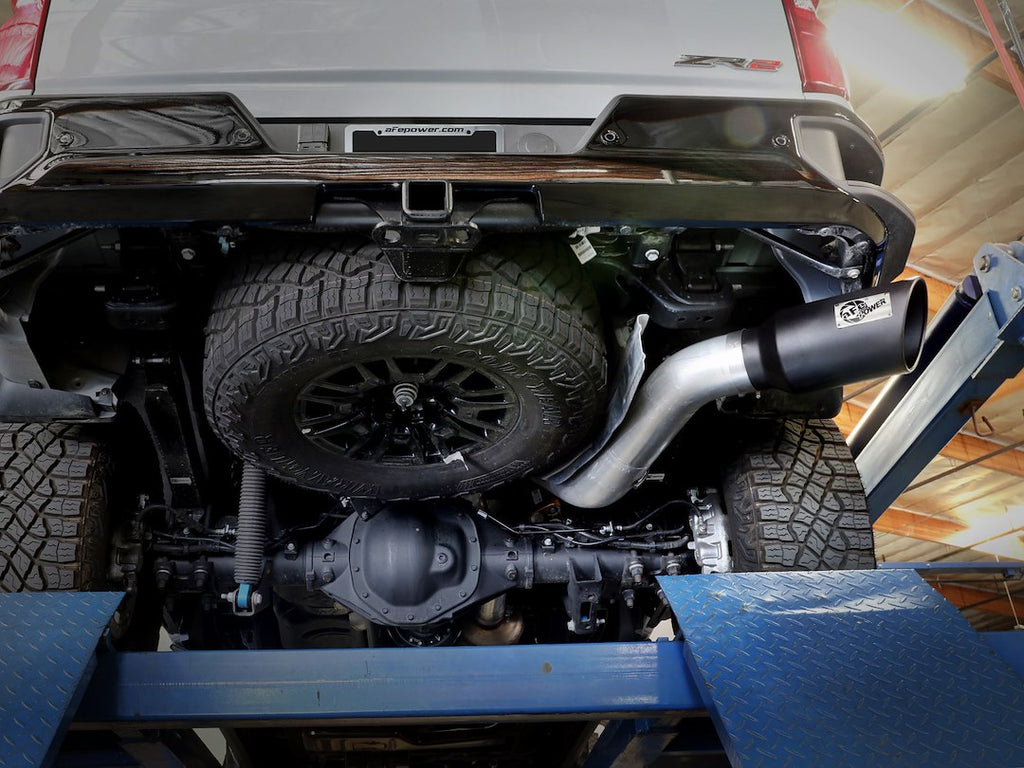

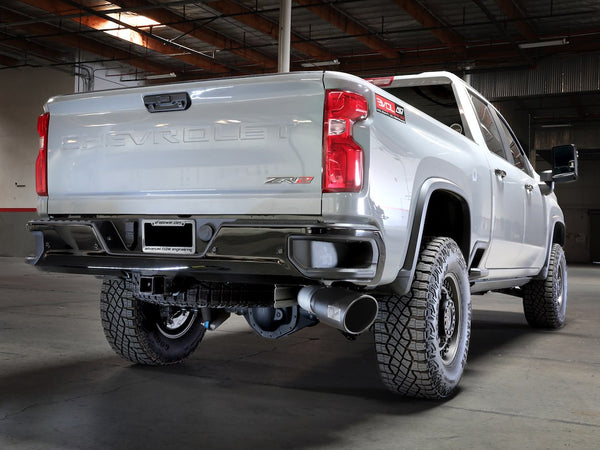

With a single exhaust outlet positioned behind the passenger side tire, this system delivers a performance sound level without the inclusion of a muffler. The design focuses on enhancing exhaust flow, which can lead to improved engine efficiency and performance. This exhaust system is an excellent choice for those looking to enhance their diesel vehicle's capabilities.

Features

• 5 Inch 409 Stainless Steel Construction: This DPF-Back Exhaust System Is Constructed Of 5 Inch Mandrel-Bent 409 Stainless Steel Tubing For Maximum Strength And Durability
• 7 Inch Diameter Black Exhaust Tip: Finishing Off This Exhaust System Is A 7 Inch Diameter Black 304 Stainless Steel Clamp-On Exhaust Tip
• Computer-Aided Design: Utilizing State-Of-The-Art Computer-Aided Design Technology, This Exhaust System Is Designed For Custom, High Tolerance Factory Fitment
• MIG-Welded: 100 Percent MIG-Welded For Race-Proven Strength And Durability
• Installation: Some Cutting May Be Required, See Instruction Sheet For Further Information, Utilizing Factory Style Hangers This System Mounts Directly To Factory Mounting Locations

Specifications

• Manufacturer: Advanced FLOW Engineering
• Manufacturer Part Number: 49-44147-B
• Type: Diesel Particulate Filter Back
• Exhaust Type: Single
• Outlet Type: Single
• Exit Position: Passenger Side Behind Tire
• Material: Stainless Steel
• Includes Muffler: No
• Sound Level: Performance
• Diameter (IN): 5 Inch
• Includes Exhaust Tip: Yes
• Exhaust Tip Style: 7 Inch Round Angle-Cut
• Exhaust Tip Material: Stainless Steel
• Muffler Quantity: Without Muffler
• Includes Exhaust Pipe Muffler Delete: No
• Muffler Configuration: Without Muffler
• Muffler Brand: Without Muffler
• Includes Hardware: Yes
• Required Welding: No
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2024-2026 Chevrolet Silverado 2500 HD
• 2024-2026 Chevrolet Silverado 3500 HD
• 2024-2026 GMC Sierra 2500 HD
• 2024-2026 GMC Sierra 3500 HD

Technical Documents

• 49-44147-B_Ins.pdf
