High-quality 3 Gallon Air Tank for Air Suspension Systems

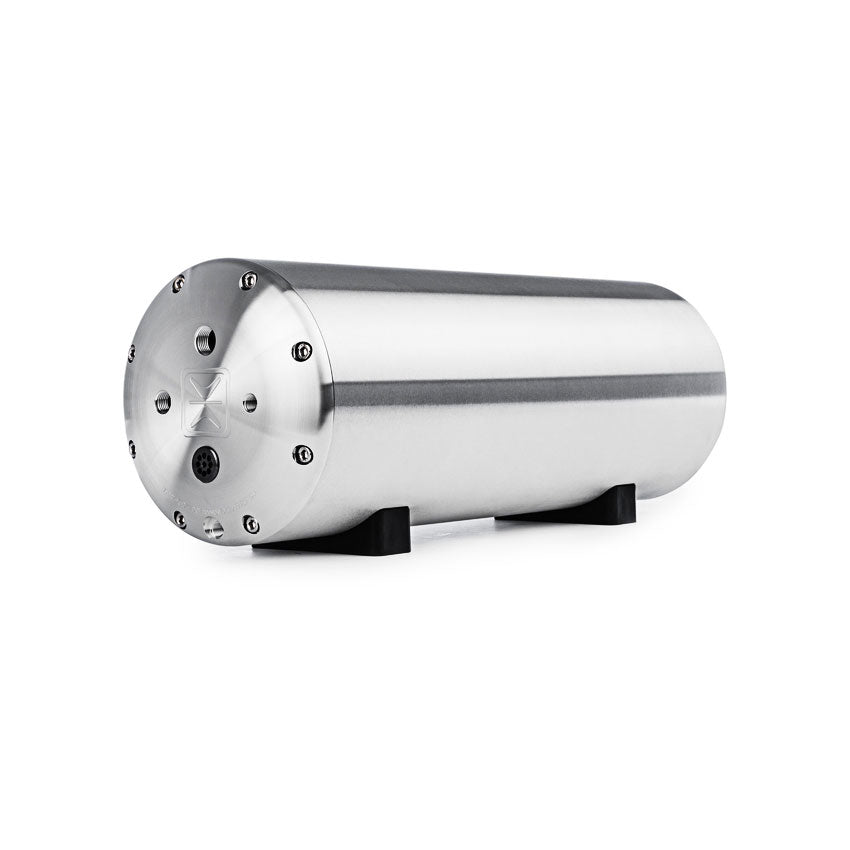

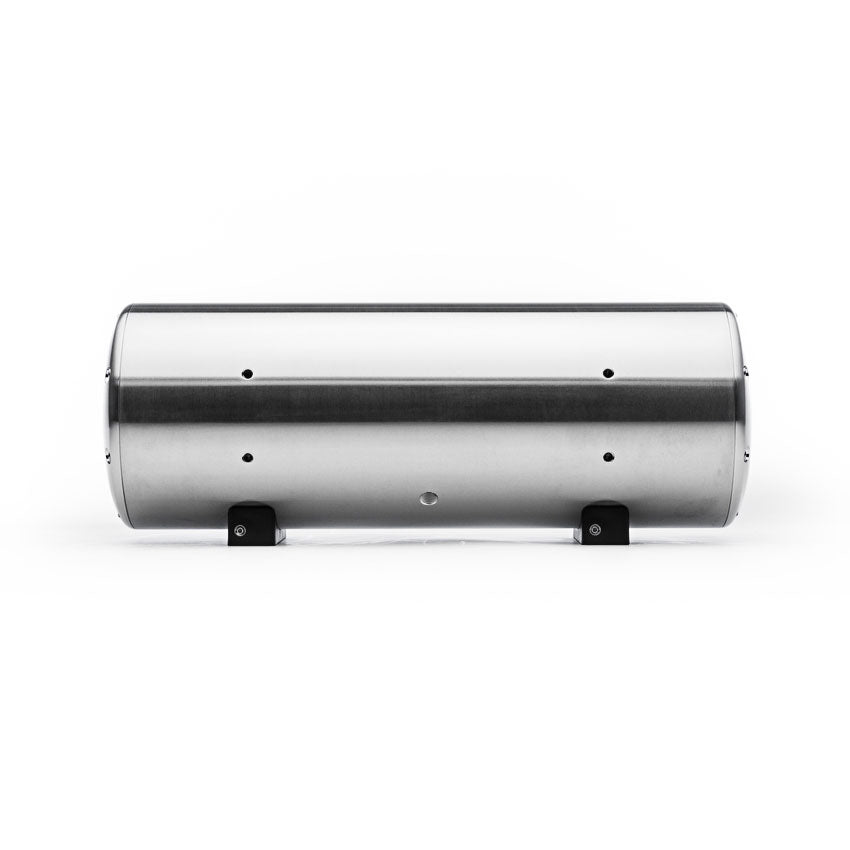

The AccuAir Air Tank is designed to efficiently store air produced by air pumps in air suspension systems. With a capacity of 3 gallons, this tank features a raw aluminum finish and a compact size of 6.62 inches in diameter and 18.3 inches in length. It is DOT rated and can withstand a maximum pressure of 200 PSI, ensuring reliability and safety in various applications.

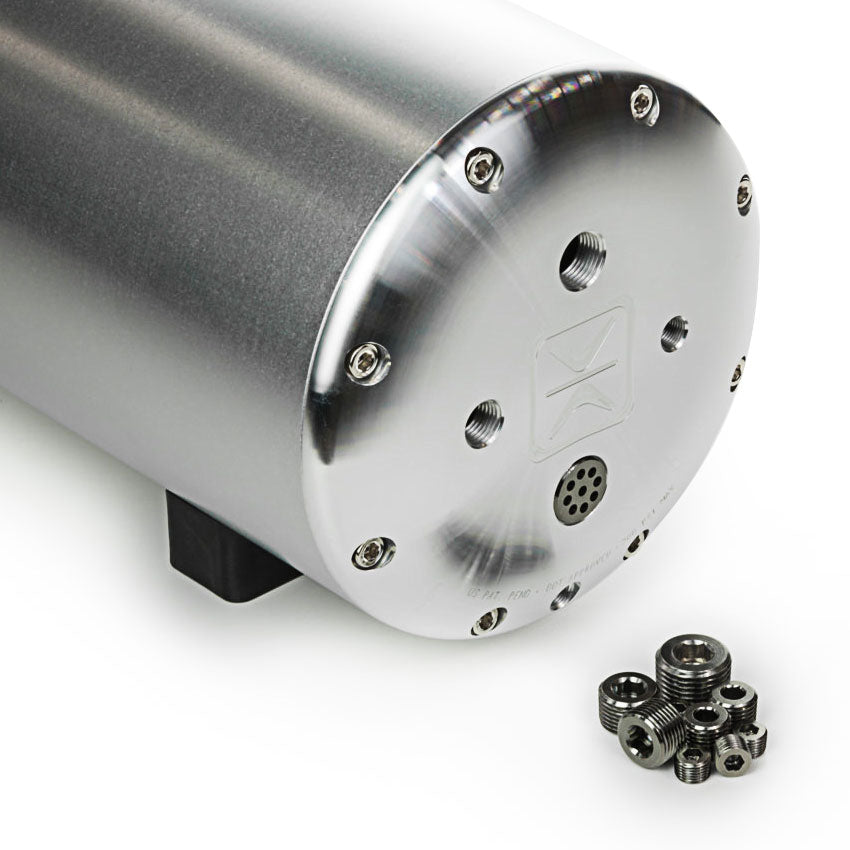

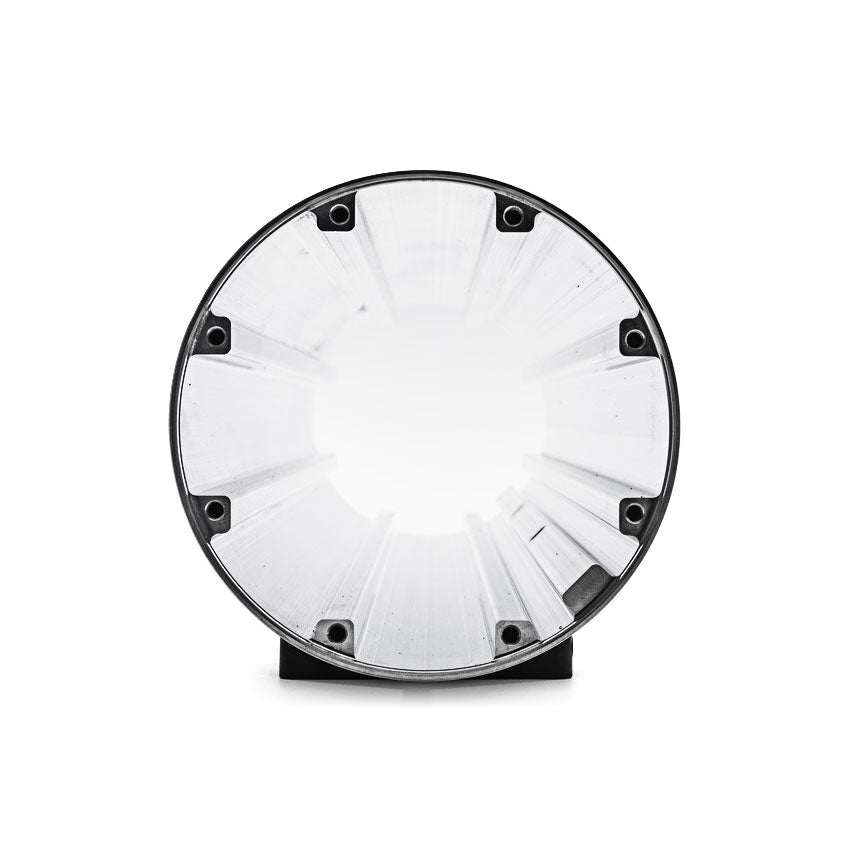

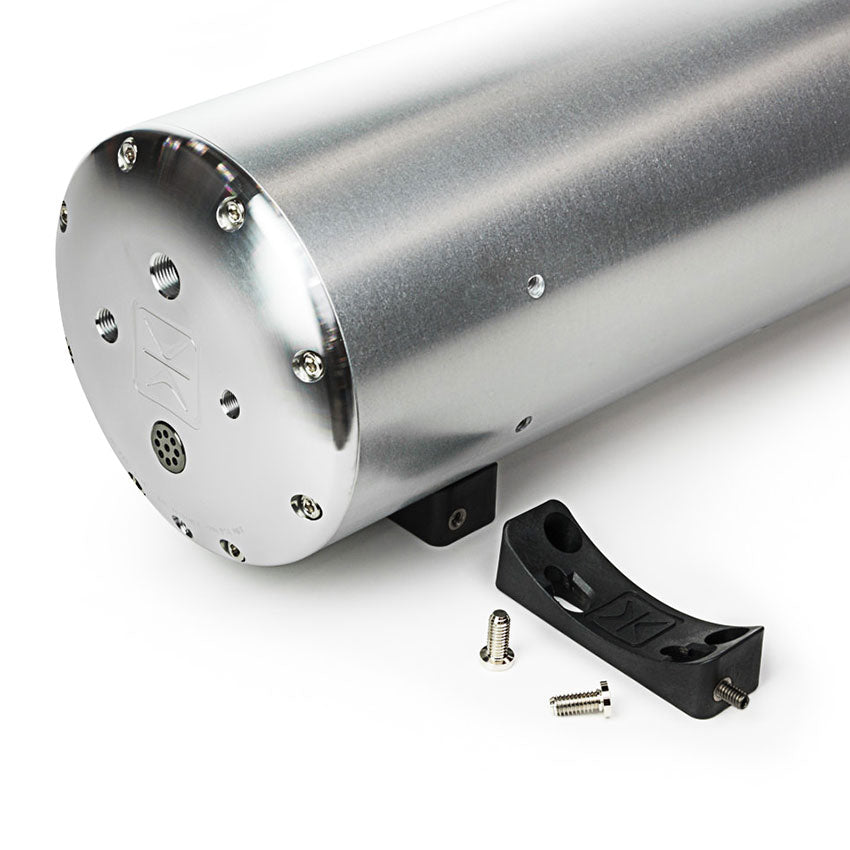

Constructed from aerospace-grade aluminum, the ENDO-T tank boasts a weldless design that promotes a precision machined fit, resulting in a leak-free operation. The modular and bolted construction allows for easy disassembly, facilitating maintenance and future upgrades. This tank is an economical choice for users who prefer external valve mounting, with the option to upgrade to integrated valves later.
AccuAir's ENDO-Tank product line represents significant advancements in air tank technology, combining years of engineering expertise with innovative design. The system is built to allow for modular assembly with precision machined components, ensuring durability and performance in demanding environments.
Features
- Modular And Bolted Construction Makes Disassembly Possible For Maintenance And Upgrades
- Built-In VFCTM Adjusters Allow For End User Adjustment Of The Speed Of Each Corner And Each Direction Individually
- AccuAir's ENDO-Tank Product Line Is The Result Of Years Of Engineering Accomplishments And Represents The Largest Leap Forward In Air Tank Technology
- System Allows Tanks To Be Built Modularly With All Precision Machined Aluminum Components And With A Bolted Construction
- Tanks Are Weld-Free And Leak-Free
Specifications
- Manufacturer: ACCUAIR
- Manufacturer Part Number: AA-3709
- Capacity: 3 Gallon
- Portable: No
- Number Of Ports: 5

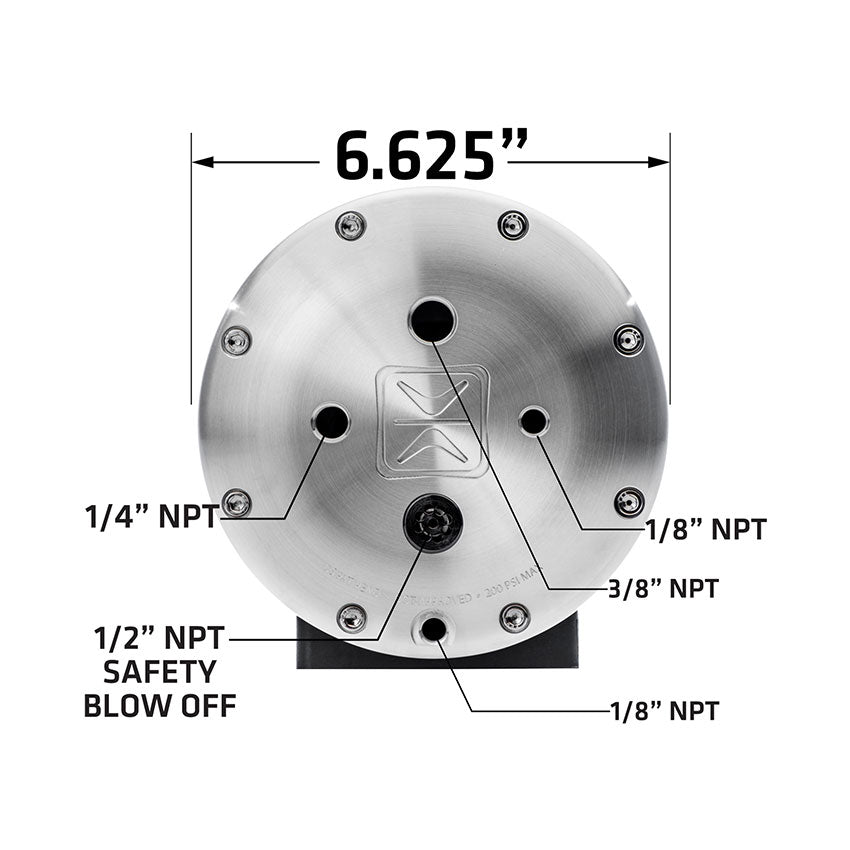

- Port Size: (1) 1/4 Inch/ (1) 1/2 Inch/ (2) 1/8 Inch/ (1) 3/8 Inch
- Finish: Raw
- Color: Natural
- Material: Aluminum
Technical Documents
- WITH_BEND_LINE_ENDO_3_GALLON_mounting_instructions_010_OUTLINE_TEXT.pdf
- ENDO_Instruction_manual_V1_2_white_cover.pdf
- PLUG_DIAGRAM_04.pdf
