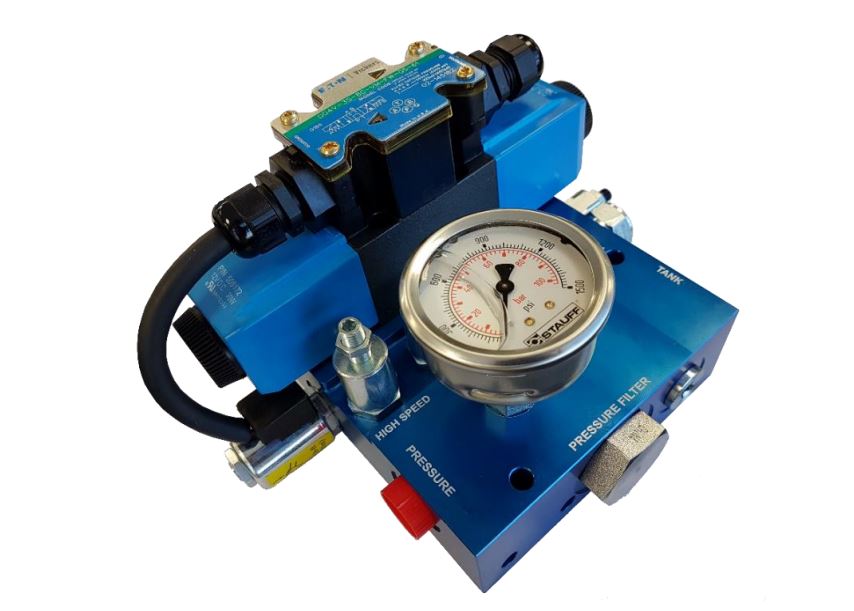

Accu-Steer HM450 Steering System Manifold (MPN: 600-0013)

Efficiently integrates hydraulic steering with electronic control systems.

The Accu-Steer HM450 steering manifold is engineered to seamlessly interface hydraulic steering systems with electronic and autopilot controls. This dual speed unit features lock valves on the output to the port and starboard lines, ensuring precise control over the rudder's movement. With a maximum input flow rate of 12 gallons per minute, the HM450 is compatible with systems up to 250 cubic inches, providing flexibility for various marine applications.

Designed for durability, the HM450 operates efficiently within a temperature range of -14 to +122 degrees Fahrenheit. It includes a built-in pressure relief valve, factory set at 750 PSI, to protect the system from overpressure conditions. The manifold is powered by a 12 Volt DC supply and has a maximum current draw of 2.5 amps, making it suitable for a wide range of vessels.

The robust construction of the HM450 ensures low noise operation, enhancing the overall user experience. This product is ISO 9001:2015 certified, reflecting its adherence to high-quality manufacturing standards. The manifold's -06 SAE ORB port size allows for easy integration with existing hydraulic systems, making it a reliable choice for boat steering applications.

Features

• Robust Construction
• Features Low Noise
• Features With 12 Volt DC
• ISO 9001: 2015 Certified

Specifications

• Manufacturer: Accu-Steer
• Manufacturer Part Number: 600-0013
• Used To: Interface Hydraulic Steering To Electric/Autopilot Control
• Speed: Dual Speed Unit
• Voltage: 12 Volt
• Ampere Rating: 2.5 Amp
• Maximum Pressure: 1000 PSI
• Flow Rate: 12 Gallon Per Minute Input/ 4 Gallon Per Minute Low Speed/ 6 Gallon Per Minute High Speed
• Port Size: -06 SAE ORB
• Temperature Range: -14 Degree Fahrenheit To 122 Degree Fahrenheit

Technical Documents

• hm450-manual.pdf
