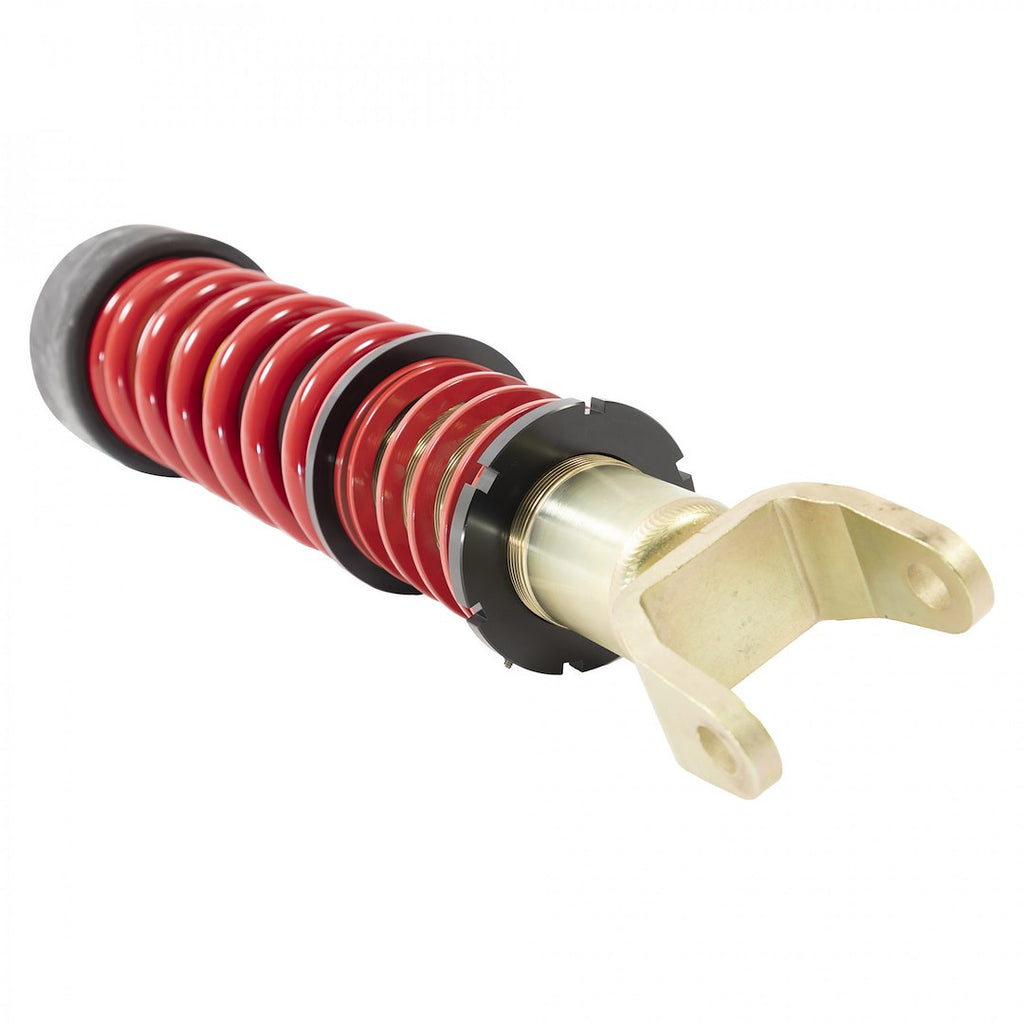

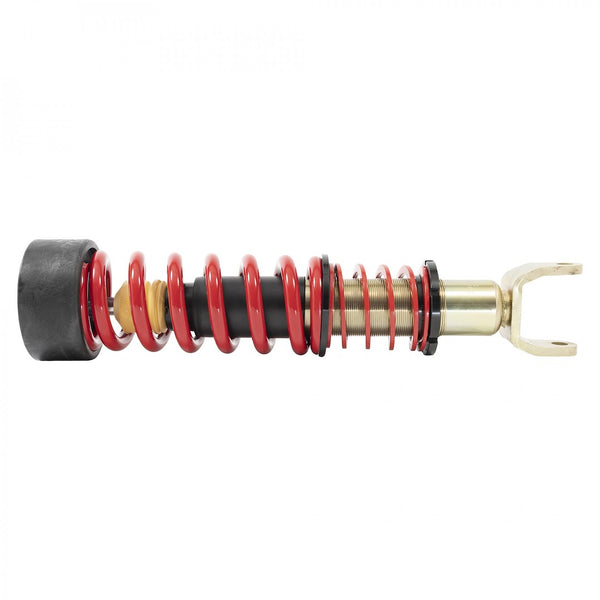

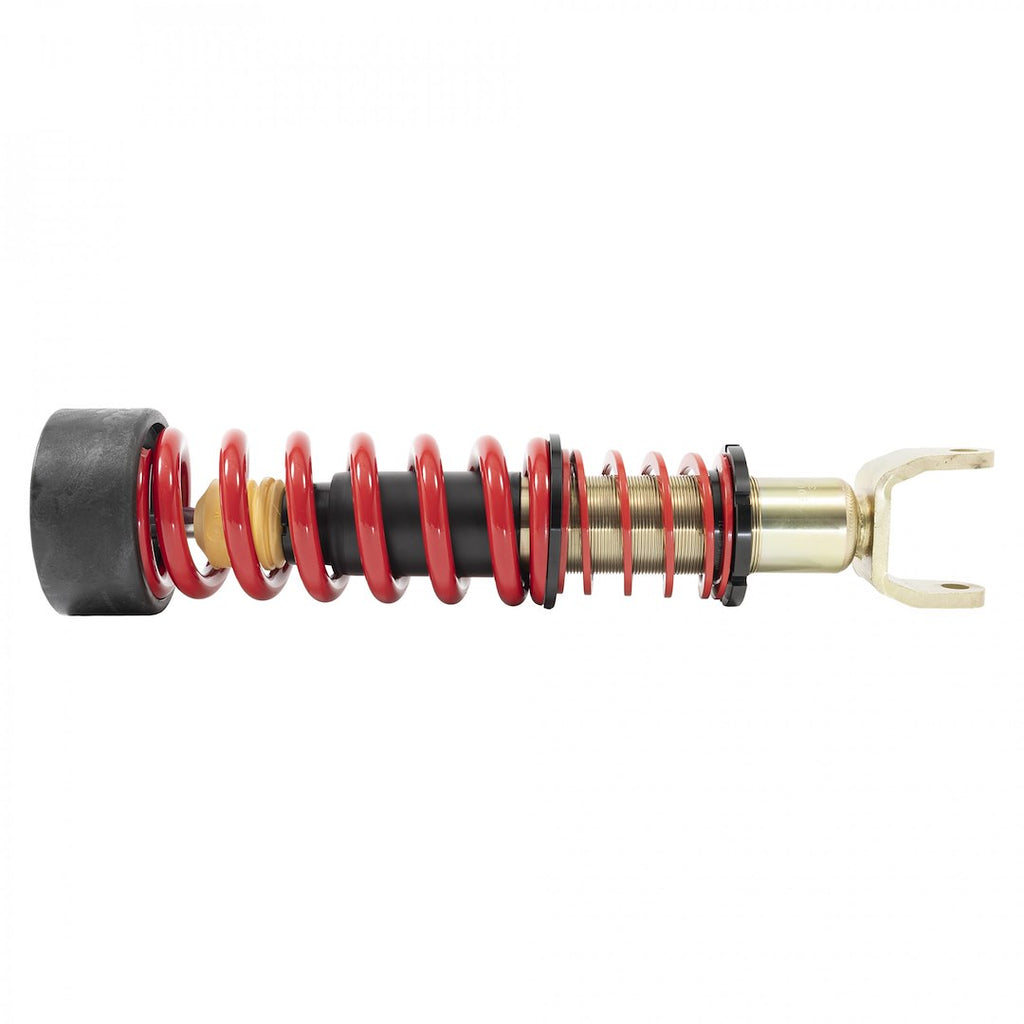

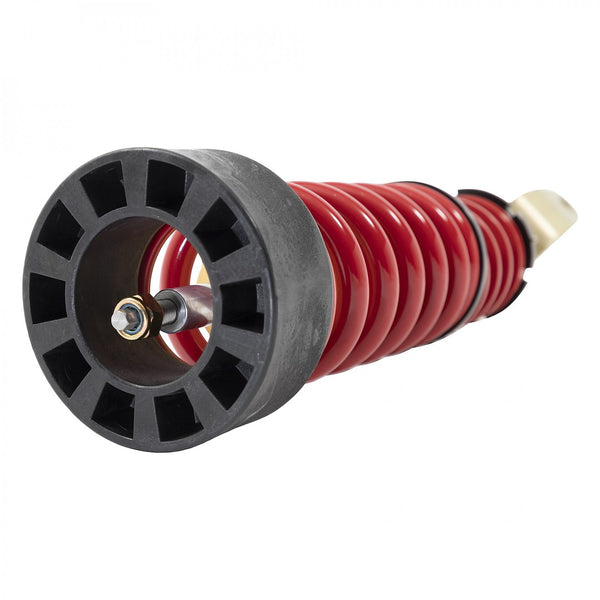

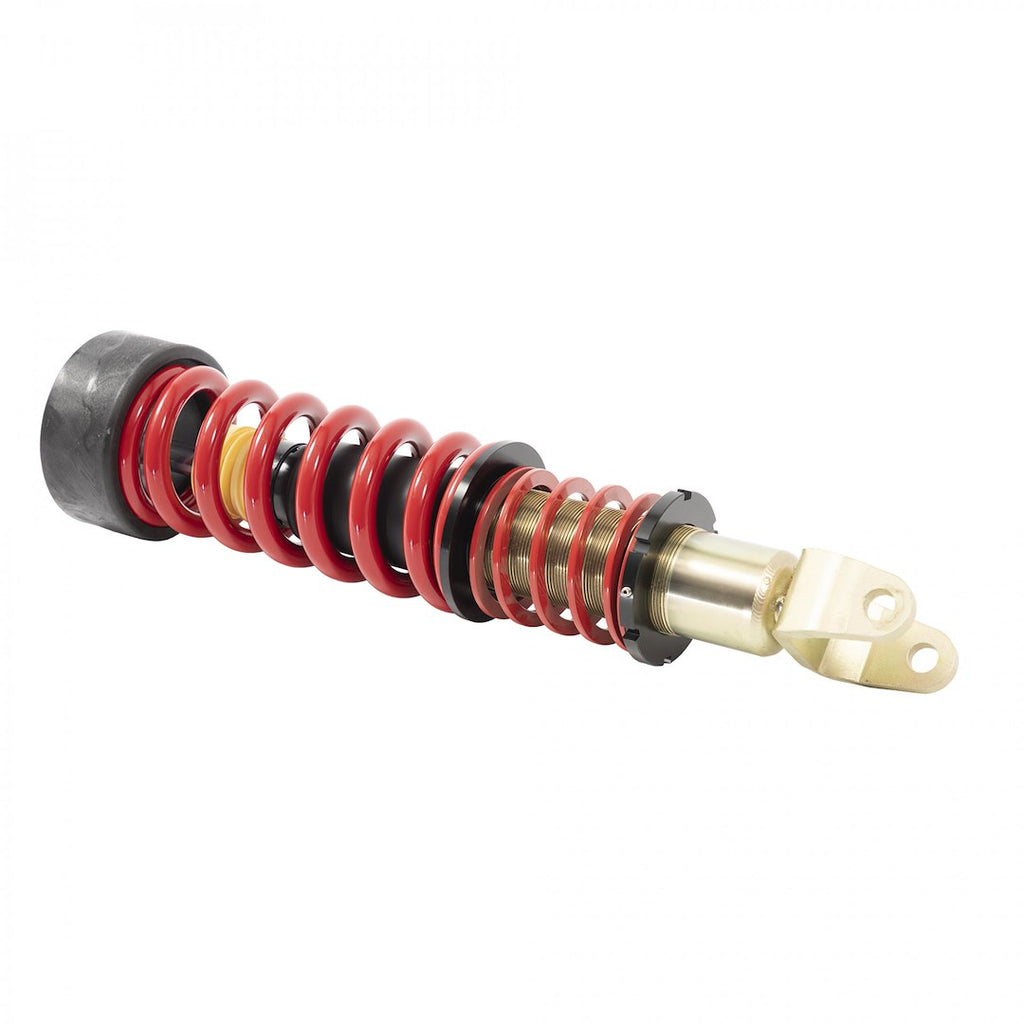

Bell Tech Coil Over Shock Absorber (MPN: 15005)

Adjustable Suspension System for Enhanced Performance

The Bell Tech Coil Over Shock Absorber is designed to provide a complete height-adjustable solution for strut-equipped trucks and SUVs. This system includes both shocks and springs, allowing for a customizable lift of 0 to 3 inches. With its advanced engineering, this coilover system enhances grip, reduces body roll, and maintains the comfort needed for daily driving.

Features

• 2.4 Inch street performance damper for improved handling
• 20 millimeter hardened chrome piston rod for durability
• Enhances ride quality for a smoother driving experience
• Lowers center of gravity and reduces body roll
• Perfected pre-set damping for consistent performance
• Progressive rate polymer, open-cell bump stop for better impact absorption
• Packers to ensure optimal bump stop engagement
• High tensile steel springs, powder coated for longevity
• Low-friction design for improved responsiveness

Specifications

• Manufacturer: Bell Tech
• Manufacturer Part Number: 15005
• Adjustable: Yes
• Upper Mounting Type: Stud
• Lower Mounting Type: Clevis
• Front/Rear Drop (IN): Lowers 0 to 3 Inch
• Extended Height (IN): OEM
• Compressed Height (IN): OEM

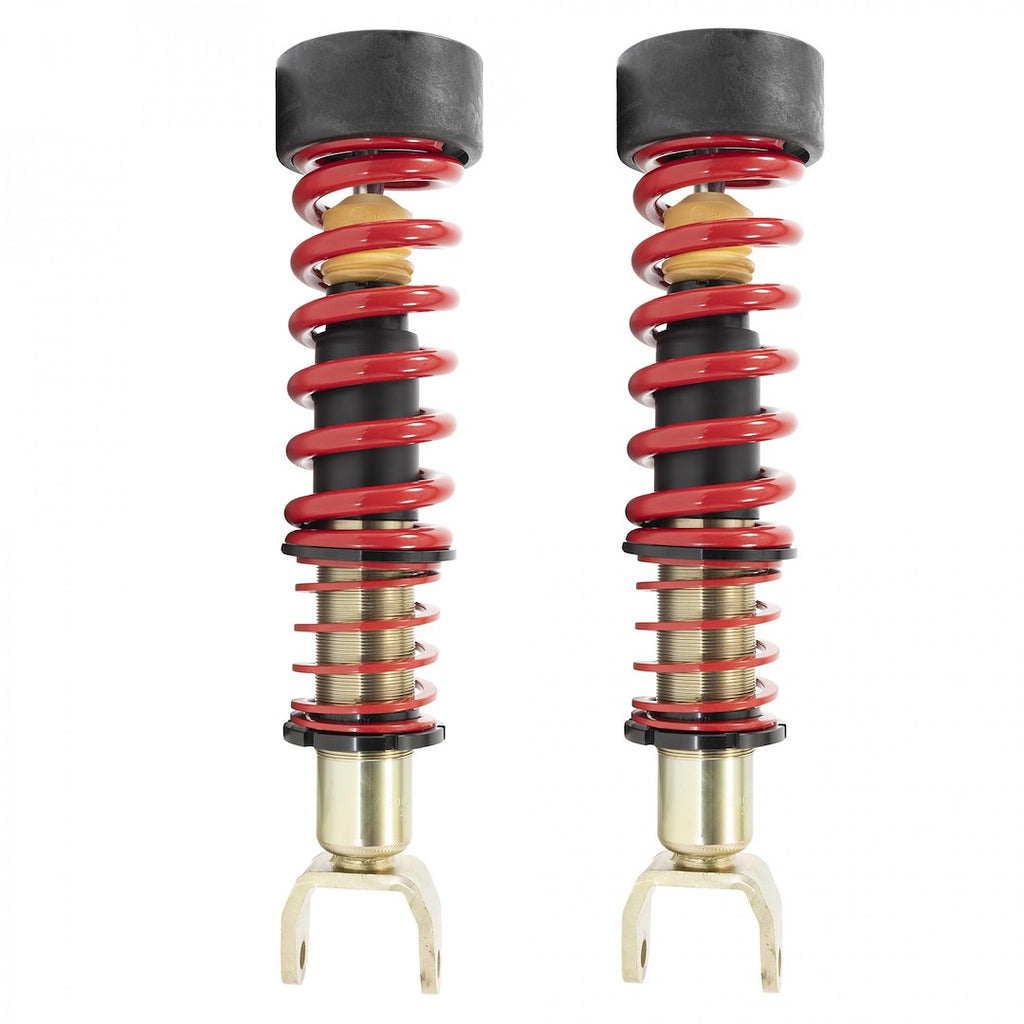

• Quantity: Set of 2
• Valving Type: Independent compression and adjustable rebound valving
• Shock Type: Monotube
• Shock Body Color: Black/Gold
• Shock Body Material: Stainless Steel
• Spring Style: Progressive flat end
• Spring Finish: Powder Coated
• Spring Color: Red
• Spring Material: Steel
• Includes Mounting Hardware: No
