Advanced LED Lighting Solution for Enhanced Visibility

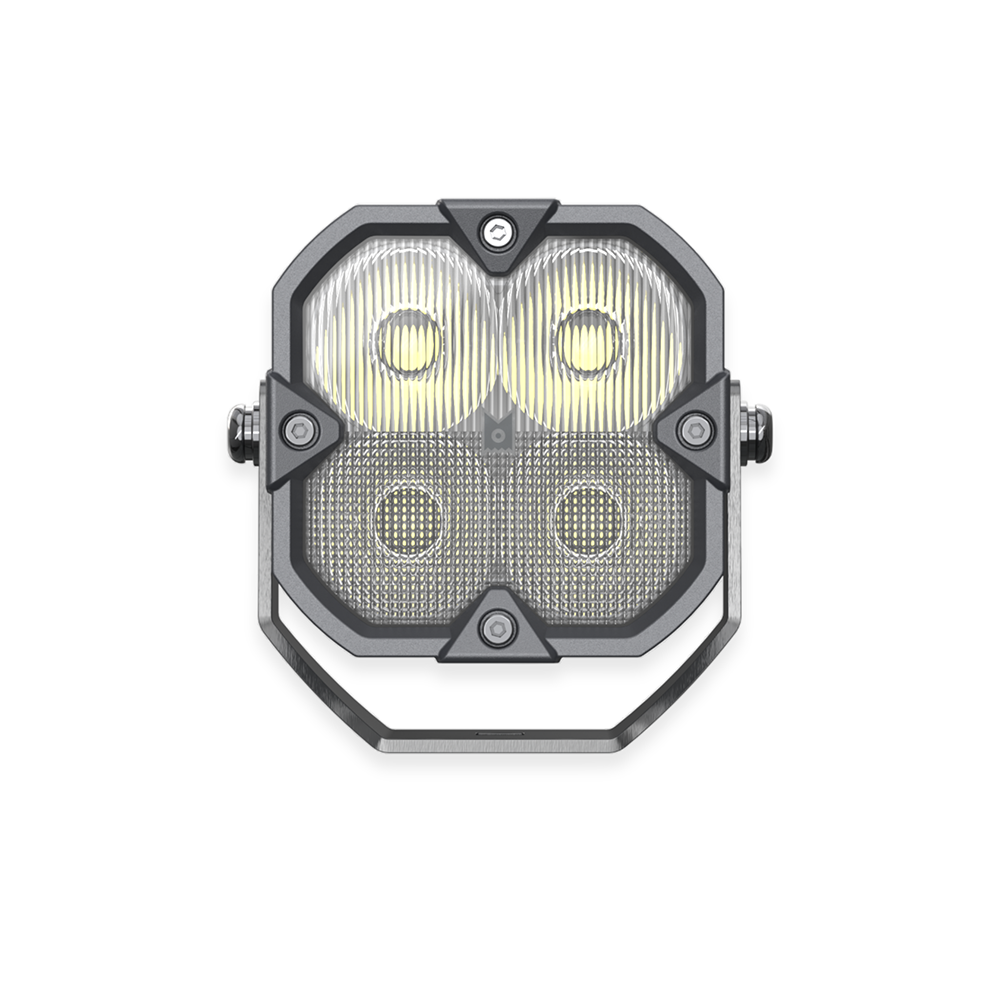

The ARC Lighting 4211F is a cutting-edge driving and fog light system designed to provide superior illumination for both on-road and off-road applications. Featuring a compact 3-inch cube design, this LED light utilizes four high-performance Cree XLamp XP-P LEDs to deliver an impressive 2800 lumens of brightness. With its versatile lens options and robust construction, this lighting solution is engineered to meet the demands of various driving conditions.
Features

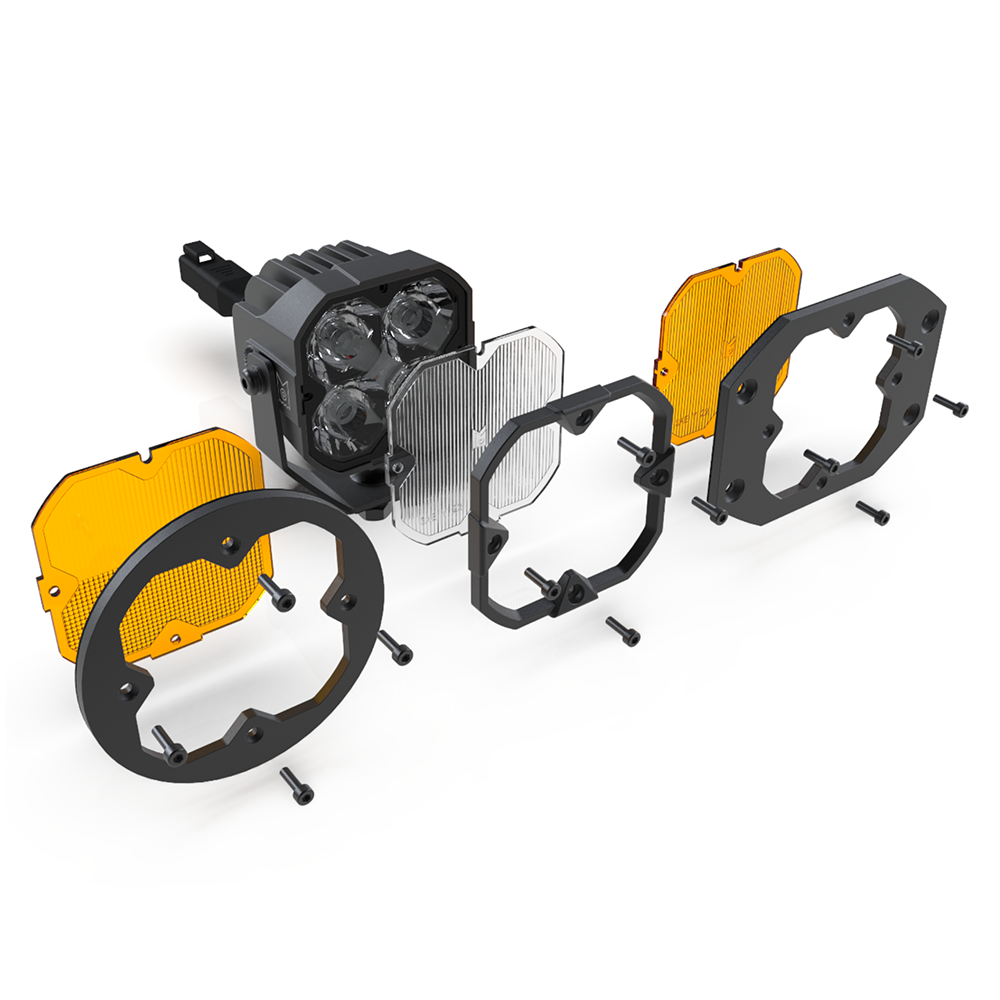

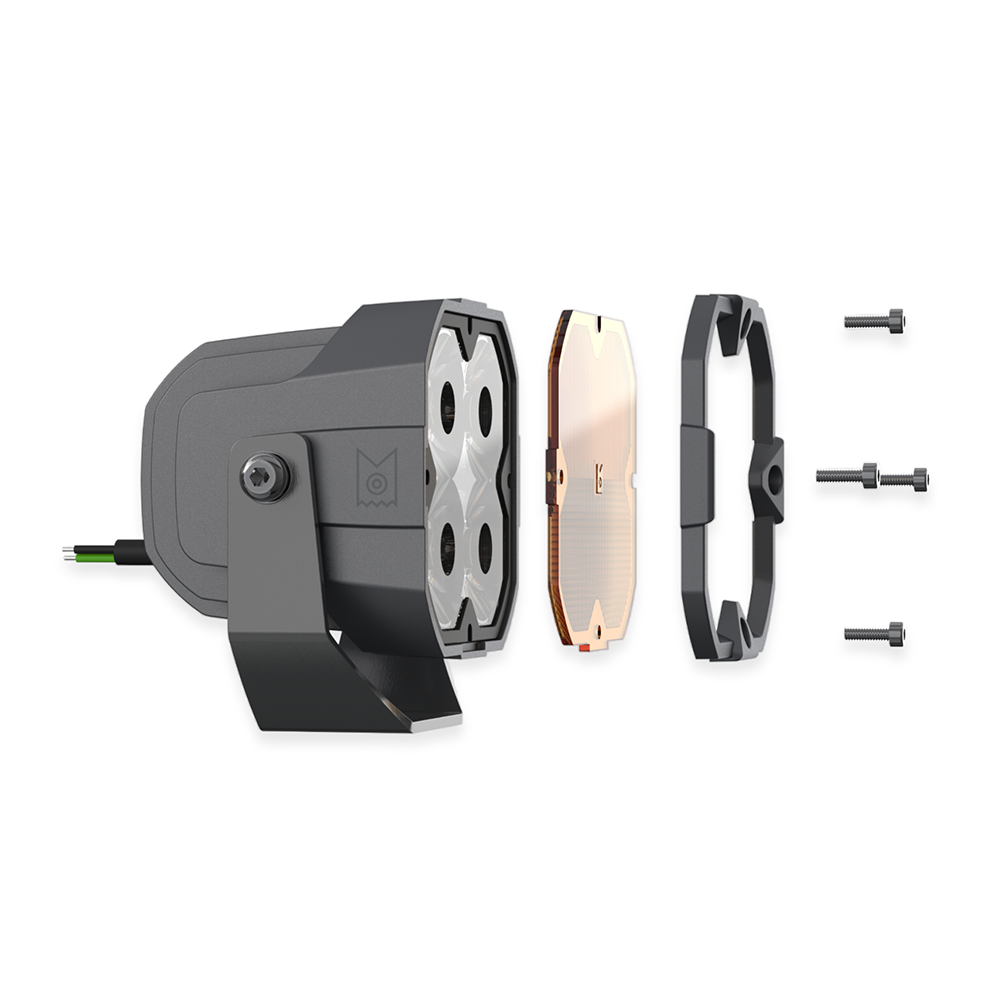

- Patent Pending SafeSwap technology allows for easy lens and mounting option changes without compromising the factory seal
- Modern dual projector optics ensure precise street legal and off-road beam patterns in one unit
- High-intensity illumination provided by advanced Cree XLamp XP-P automotive grade LED chips

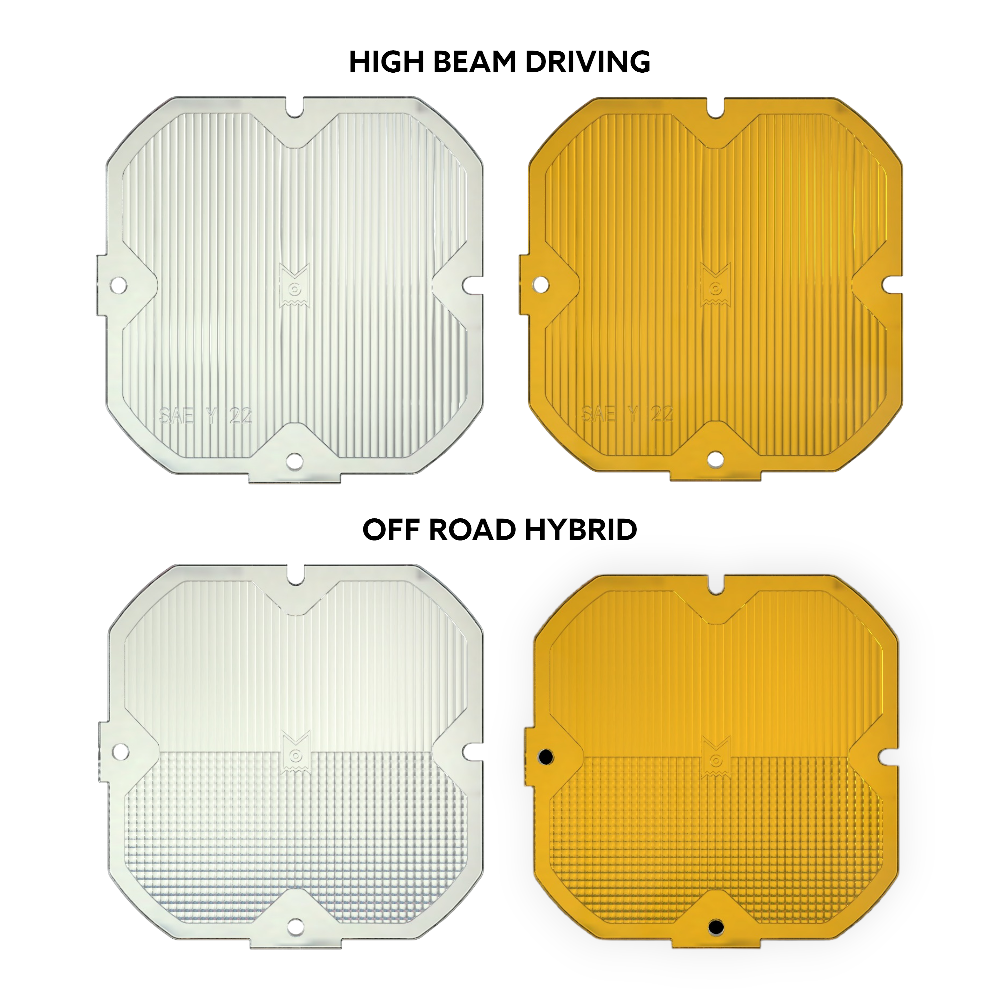

- Multiple beam patterns available, including SAE driving, SAE fog, and hybrid off-road in both white and amber colors
- Durable UV stabilized polycarbonate lens for enhanced longevity
- Rugged black powder-coated aluminum housing with stainless steel brackets and hardware
- Compatible with 12, 24, and 48 VDC systems
- Meets EMC CISPR 25 requirements for electromagnetic compatibility
- Weatherproof with an IP69K rating for reliable performance in harsh conditions
Specifications
- Manufacturer: ARC Lighting
- Manufacturer Part Number: 4211F
- Shape: Square
- Beam Type: Driving/ Offroad Hybrid Combo Beam

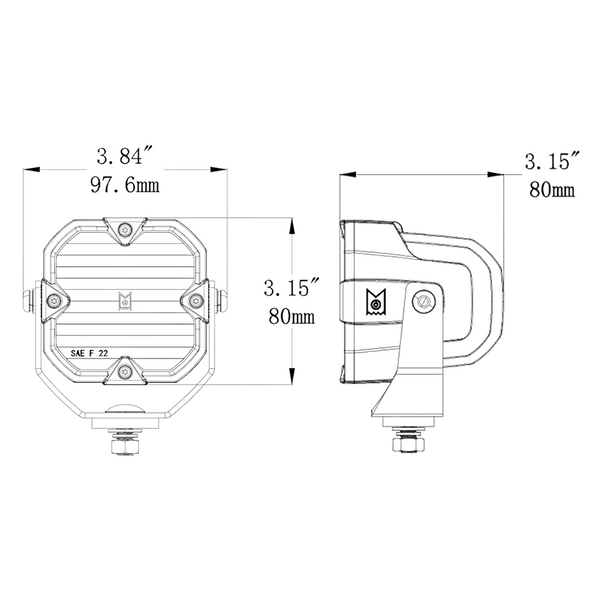

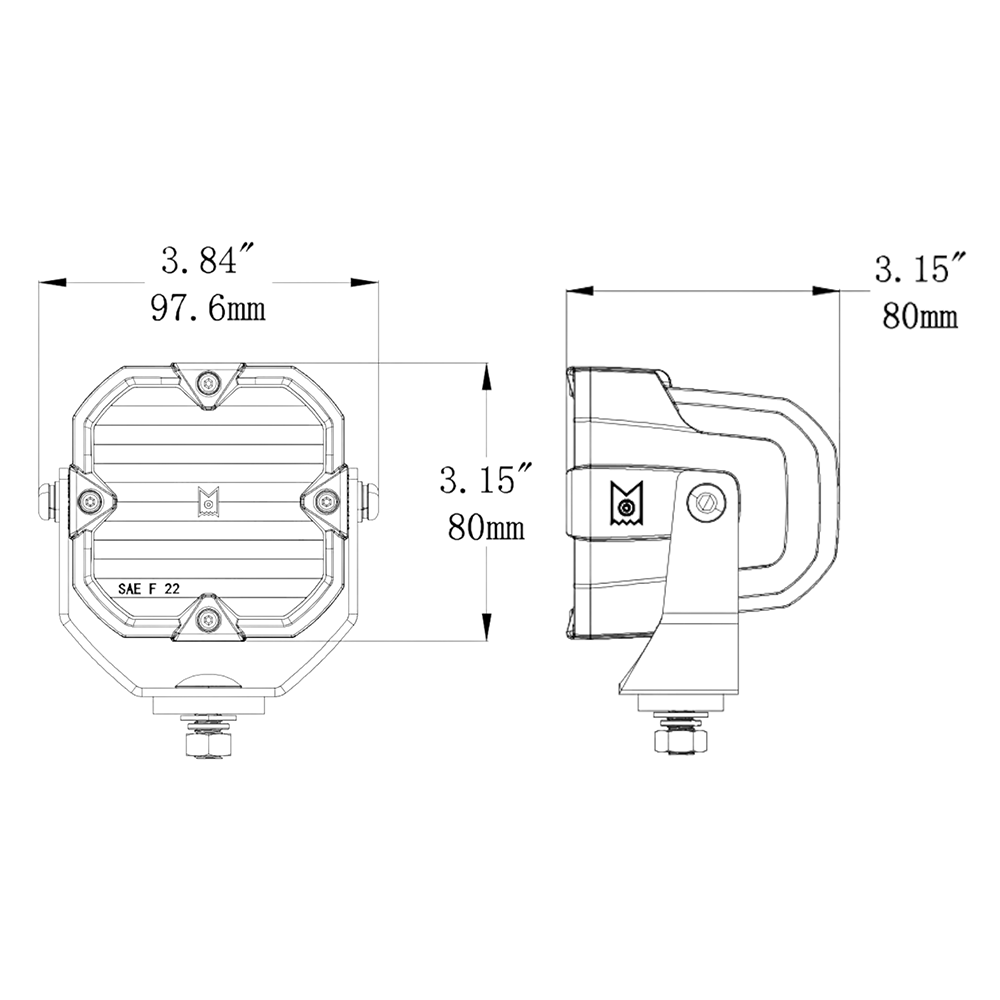

- Height/ Width: 3-1/8 Inch Height X 3-1/8 Inch Width
- Bulb Type: LED
- Light Color: Clear

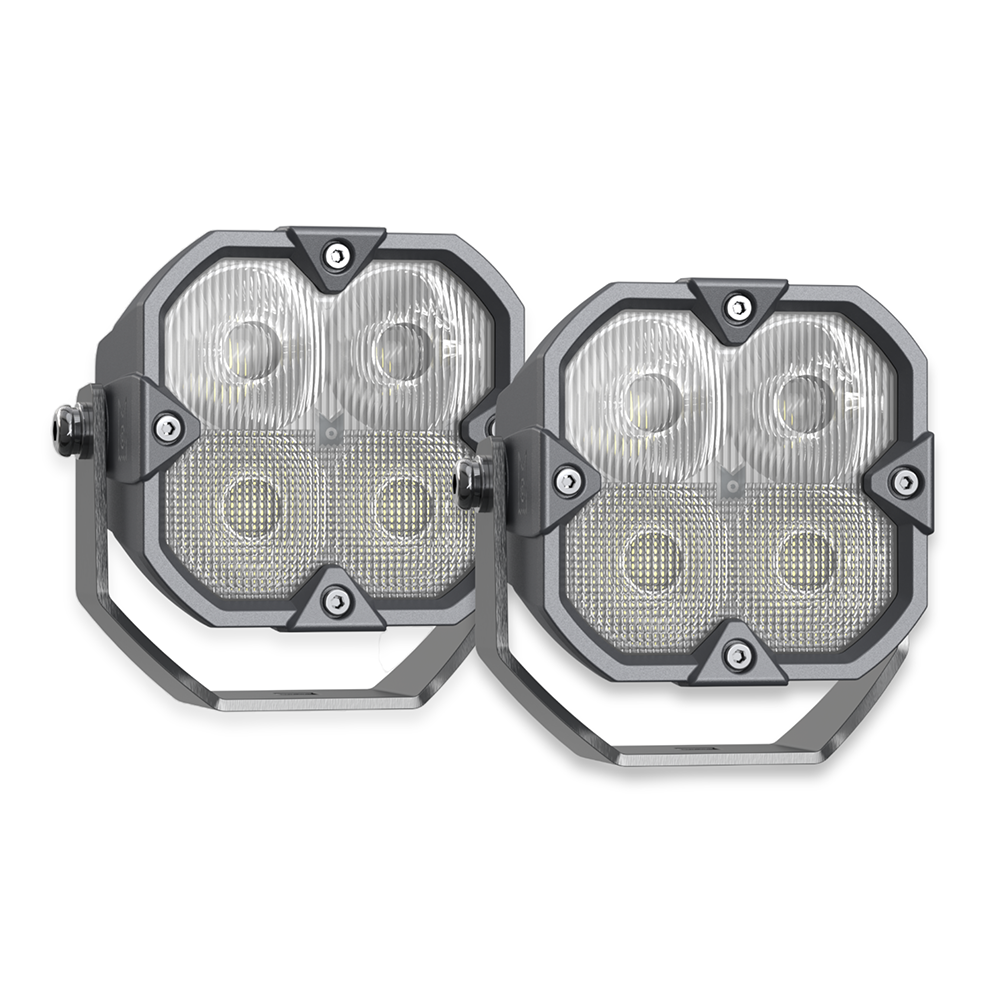

- Quantity: Set of 2
- Universality: Fully Universal
- Depth: 3-1/8 Inch
- Wattage: 32 Watt
- Voltage Rating: 10 to 48 Volt

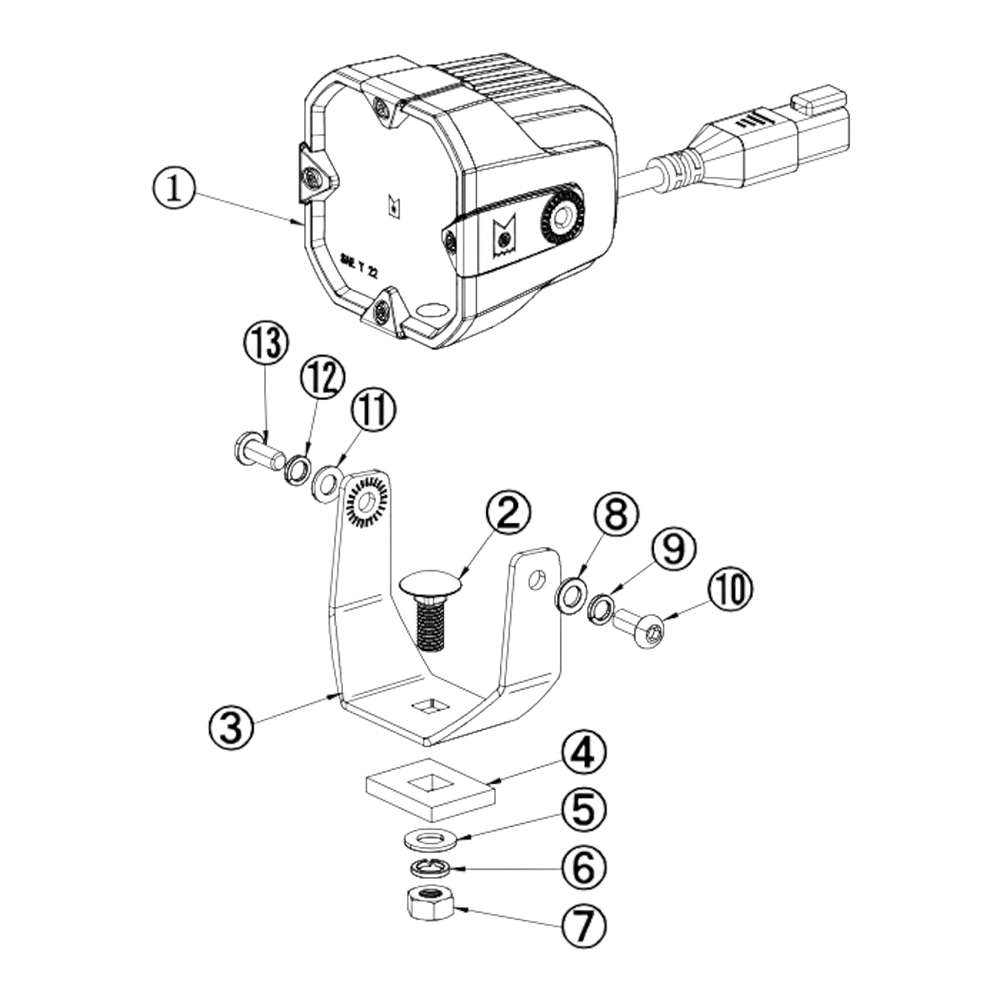

- Mounting Style: Pedestal/ Flush Mount
- Ampere Rating at 12 Volts: 3 Amp
- Lumens: 2800 Lumens
- Bulb Specifications: 4 Cree XLamp XP-P LED
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: 2 Amber Driving Lenses, 2 Clear Hybrid Lenses, 2 Amber Hybrid Lenses, 2 DT Wire Pigtails
- Estimated Install Time: 1.5 hours
Technical Documents
4211D4211F-Installation-Instructions-II-4211D4211F-DIGITAL.pdf
Product Video
Shipping & Returns
- This product ships to the US and Canada. Canadian orders may incur customs, import duties, and brokerage fees. Please review our shipping policy. To estimate these potential additional costs, we recommend using this calculator.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
