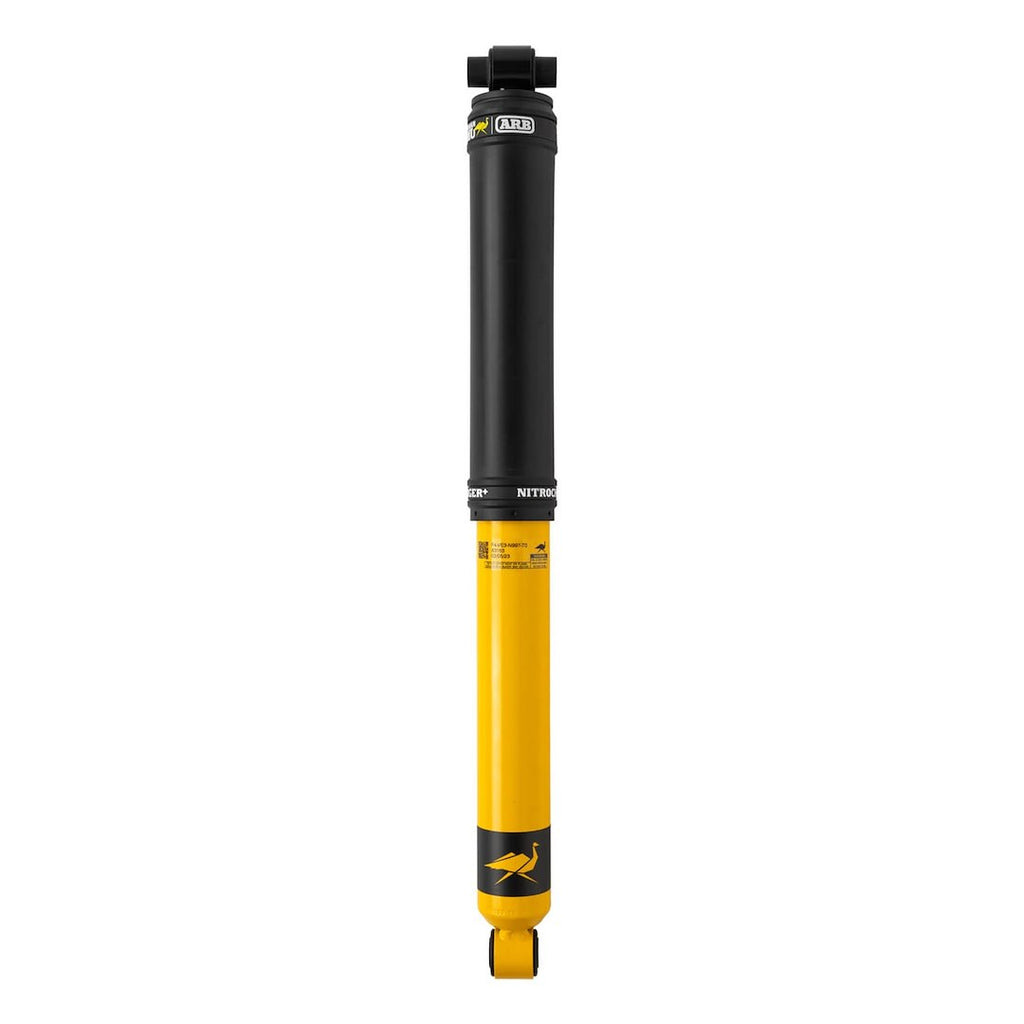

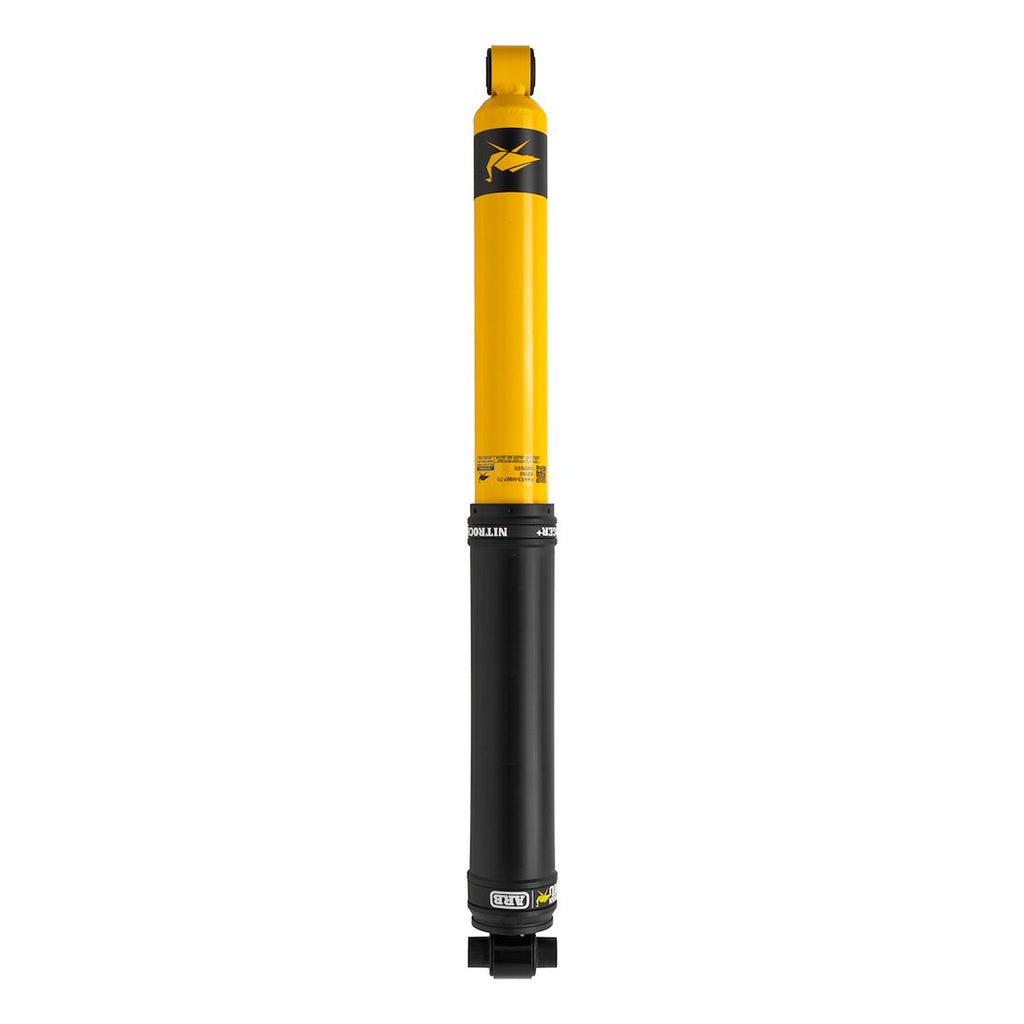

ARB Nitrocharger Plus Shock Absorber (MPN: 63163)

Enhanced Performance for Off-Road and On-Road Driving

The ARB Nitrocharger Plus Shock Absorber is engineered to provide exceptional performance in both off-road and on-road conditions. This nitrogen gas charged shock absorber is designed to deliver a smooth ride while ensuring durability and reliability across various driving environments. With vehicle-specific tuning, it minimizes body roll and enhances steering response, making it suitable for a range of applications including heavy loads and towing.

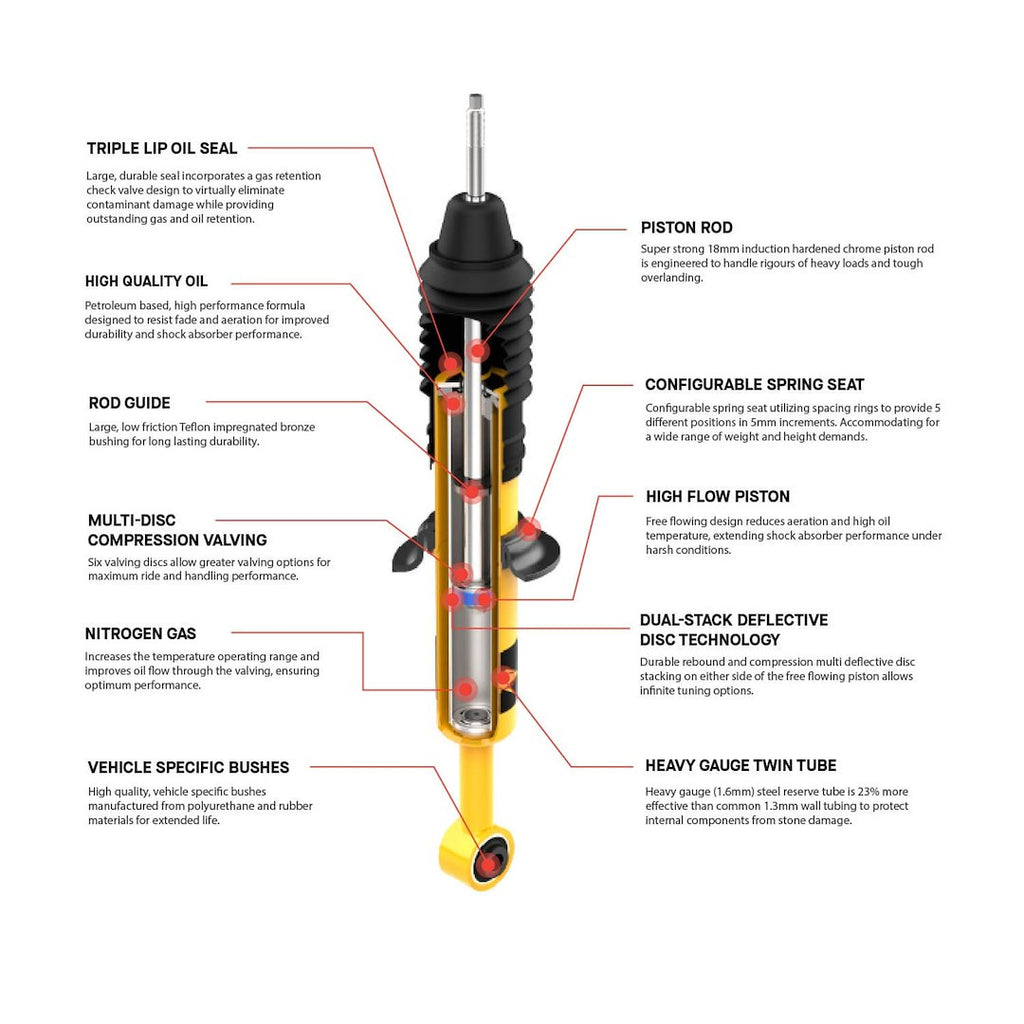

Features

• Heavy-gauge steel tube construction for increased strength
• Twin tube body design for added protection in rough terrain
• Vehicle-specific bushes made from polyurethane and rubber for extended life
• Integrated high flow piston to reduce aeration and high oil temperature, enhancing shock life and performance
• Direct replacement for OE and aftermarket shocks
• Impact-resistant polyamide dirt shield for protection against stone chips and off-road debris
• Improved temperature operating range and oil flow through the valving for optimum performance
• Large, low-friction Teflon-impregnated bronze bushing for long-lasting durability

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: 63163
• Type: Nitrogen gas charged
• With coil spring: No
• Extended length: 27.3 inches
• Compressed length: 17.5 inches
• Upper mounting style: Eyelet
• Lower mounting style: Cross pin
• Adjustable valving: No
• Quantity: Single
• Universality: Vehicle specific
• Internal design: Twin tube
• Body color: Yellow
• Valving type: Multi deflective disc valving
• Ride height adjustable: No
• Body material: Steel
• With reservoir: Yes
• Includes hardware: Yes
• Includes boot: Yes
• Estimated install time: 0.5 hours
