Enhanced Ride Performance and Load Capacity

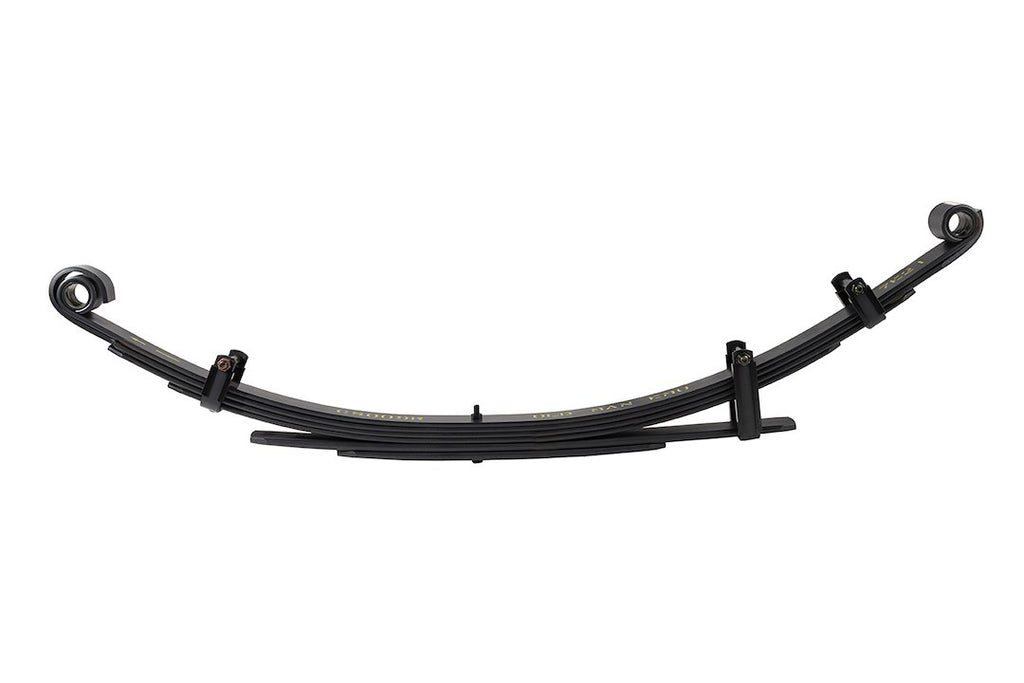

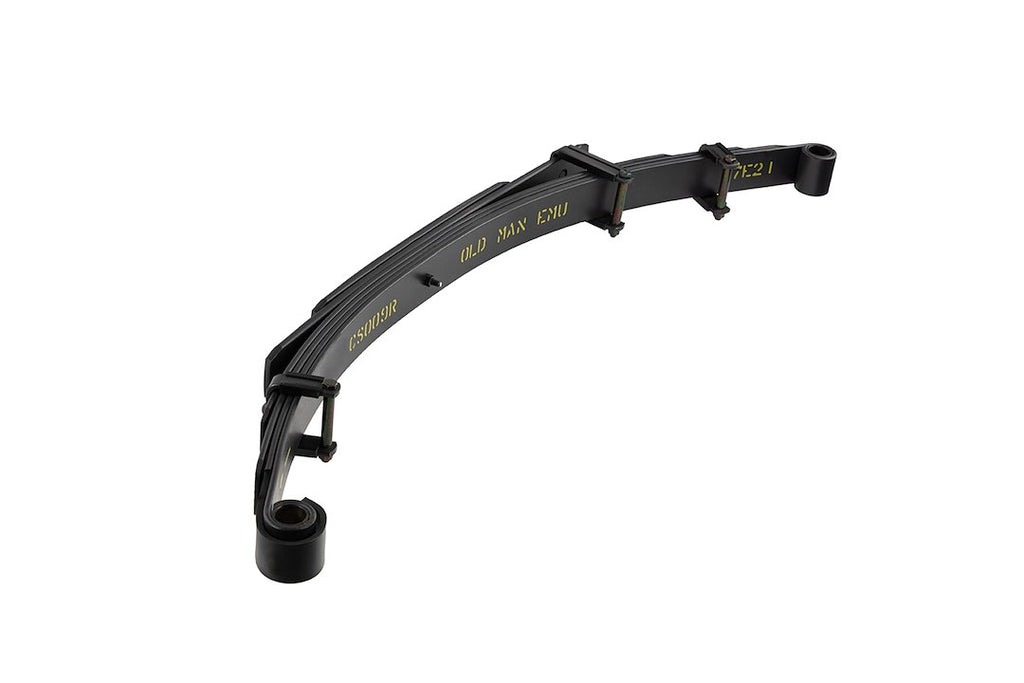

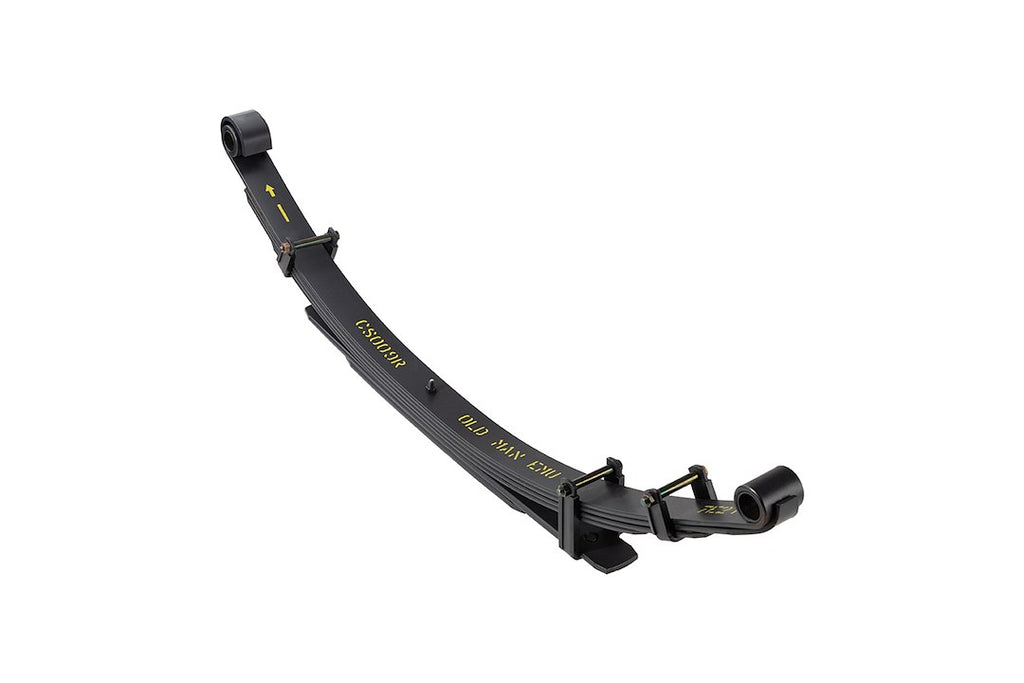

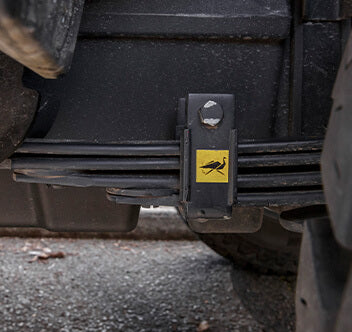

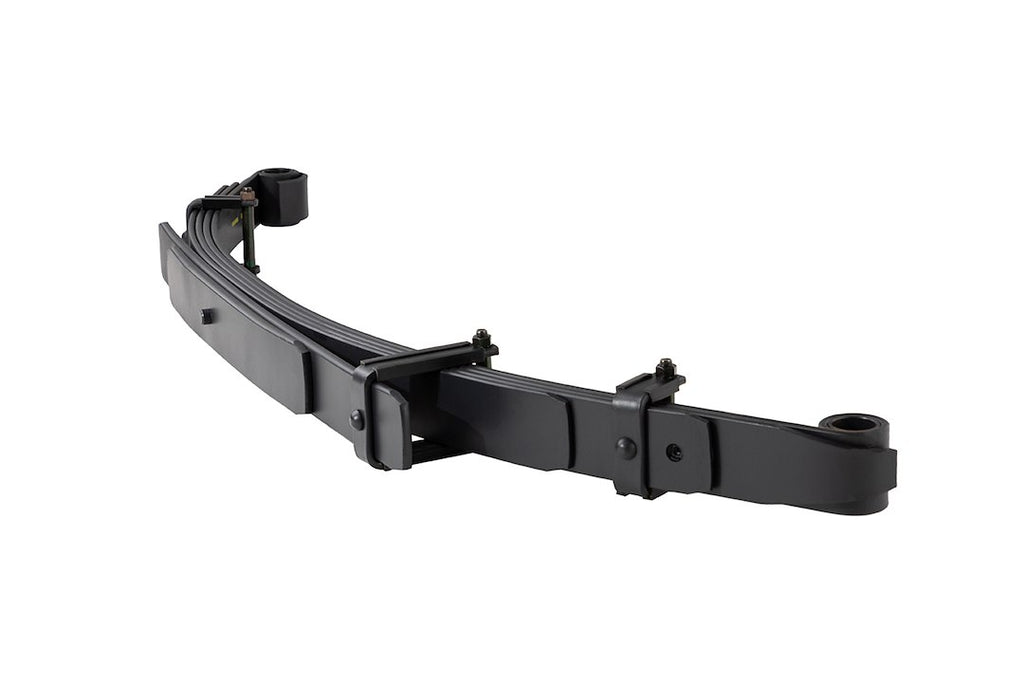

The ARB CS009R Leaf Spring is a crucial component of ARB's integrated 4x4 suspension systems, designed to deliver superior ride performance under various operating conditions. This leaf spring is engineered to accommodate both recreational and commercial applications, providing versatility for different vehicle setups. When paired with Old Man Emu 4x4 shock absorbers, the Emu Dakar leaf springs significantly enhance ride quality, handling, and load-carrying capabilities.
Features
- Draw tapered and diamond cut leaves for optimal load distribution, minimizing stress at the leaf ends.
- Fully scragged and load tested to ensure a permanent 'set', reducing the risk of sagging over time.
- Graphite coating to decrease friction between spring leaves and friction pads.
- Military wrap design for enhanced safety and durability.
- Anti-friction pads with regreasable nylon interleaf liners to minimize friction at high-load areas.
- Flat axle seat area for secure axle mounting, reducing spring stress and extending lifespan.
- Shot peening on the tension side of all leaves to alleviate spring stress, potentially doubling spring life.
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS009R
- Number of Leafs: 4 + 2
- Spring Rate: 217/388 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw tapered and diamond cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Technical Documents
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
Compatibility/Fit
- 1984-1996 Toyota 4Runner
