Enhanced Ride Performance for 4x4 Vehicles

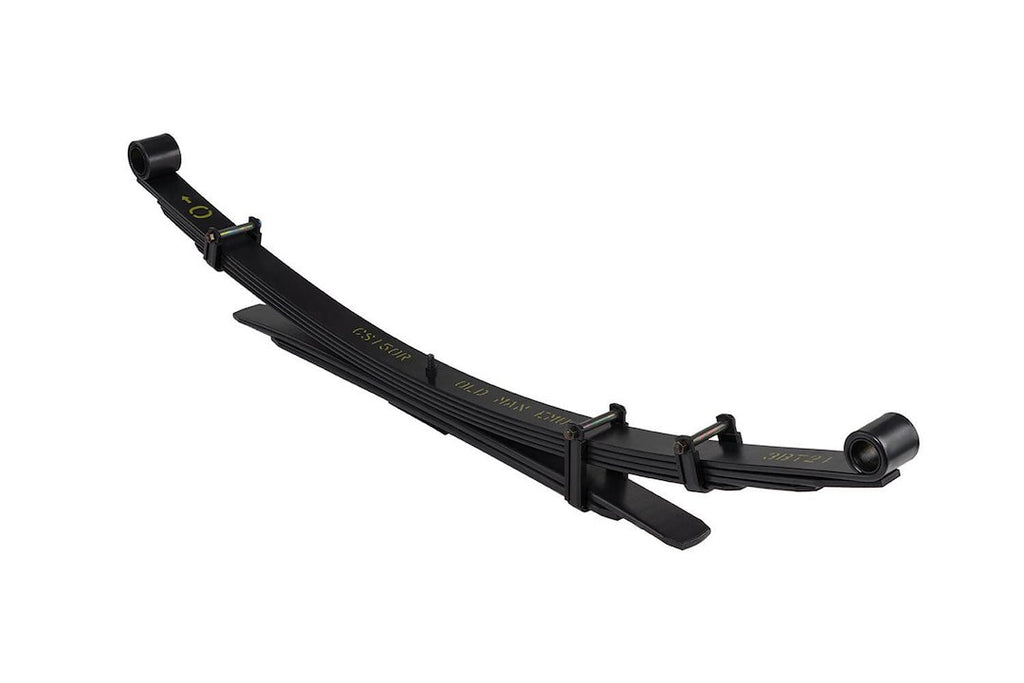

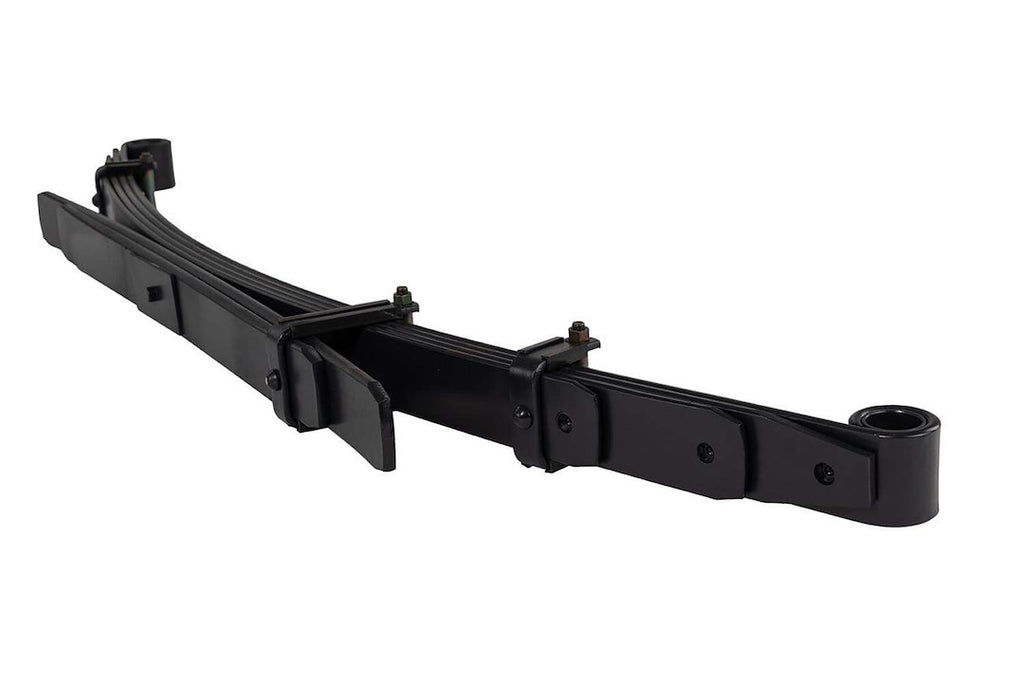

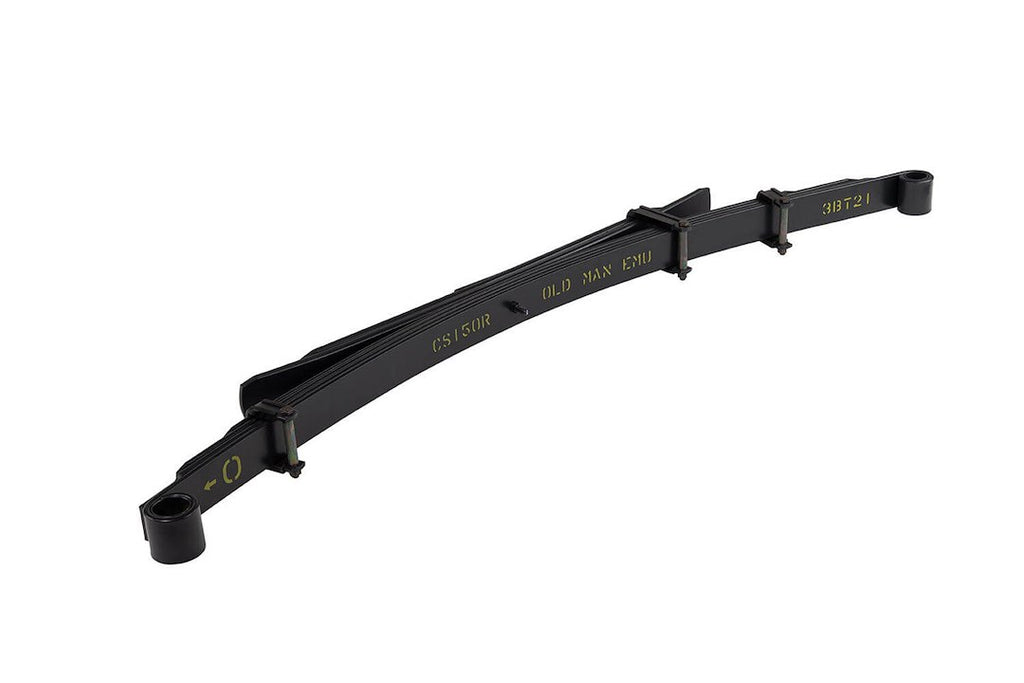

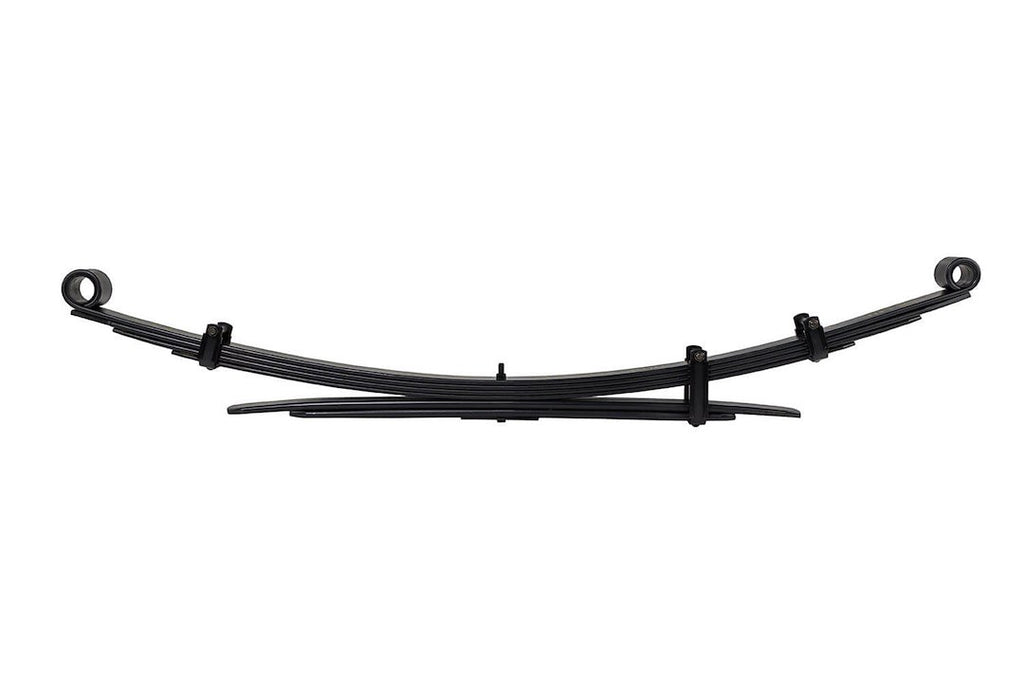

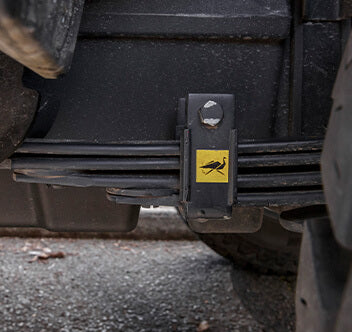

The ARB CS150R Leaf Spring is a crucial component of ARB's integrated 4x4 suspension systems, designed to optimize ride performance under various operating conditions. This leaf spring offers a 1-1/2 inch lift and features a robust 4 + 2 leaf configuration, making it suitable for both recreational and commercial applications. When paired with Old Man Emu 4x4 shock absorbers, the CS150R significantly enhances ride quality, handling, and load-carrying capacity.
Features
- Draw tapered and diamond cut leaves for even load distribution, minimizing stress at the leaf ends
- Fully scragged and load tested to ensure a permanent 'set', reducing the risk of sagging
- Graphite coating to decrease friction between spring leaves and friction pads
- Military wrap design for added safety and durability
- Anti-friction pads with regreasable nylon interleaf liners to minimize friction at high-load areas
- Flat axle seat area for secure axle mounting, reducing spring stress and extending lifespan
- Shot peening on the tension side of all leaves to lower spring stress, potentially doubling spring life
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS150R
- Number of Leafs: 4 + 2
- Spring Rate: 192/481 pounds per inch
- Quantity: Single
- Spring Type: Draw tapered and diamond cut
- Includes Bushings: No
- Bushing Material: No bushing
- Estimated Install Time (Hours): 2
Technical Documents
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
Compatibility/Fit
- 2005-2017 Nissan Frontier
- 2009-2012 Suzuki Equator
