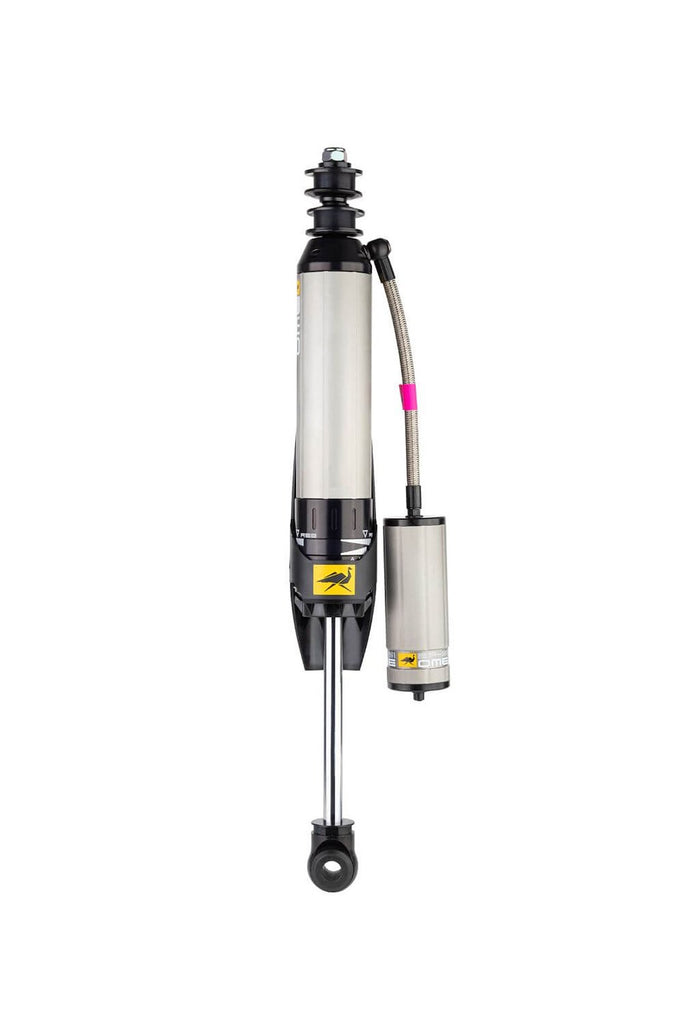

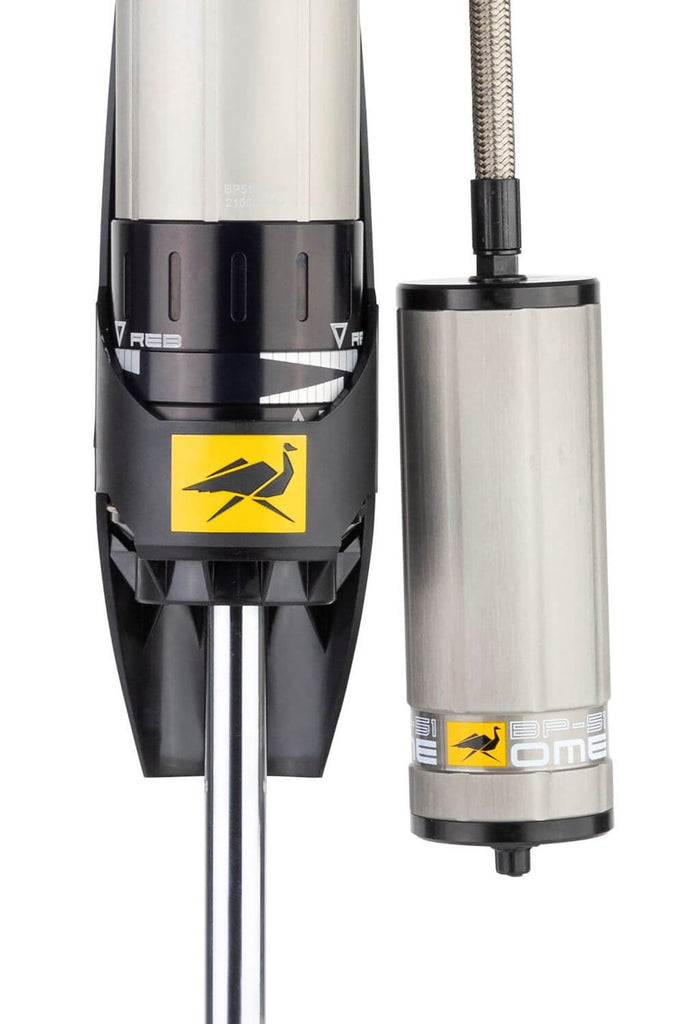

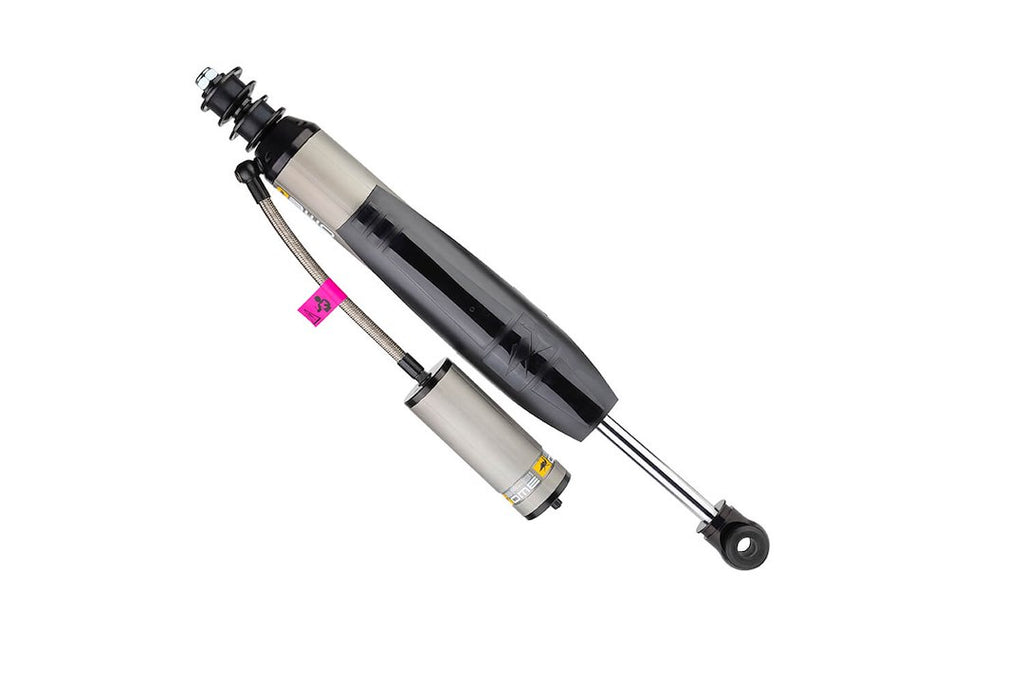

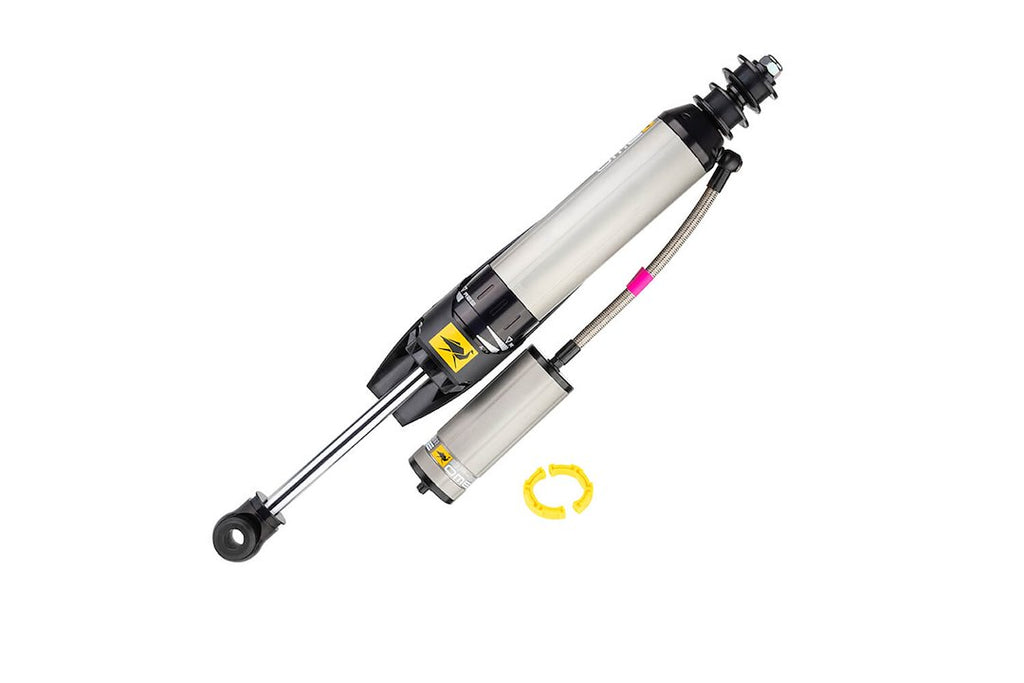

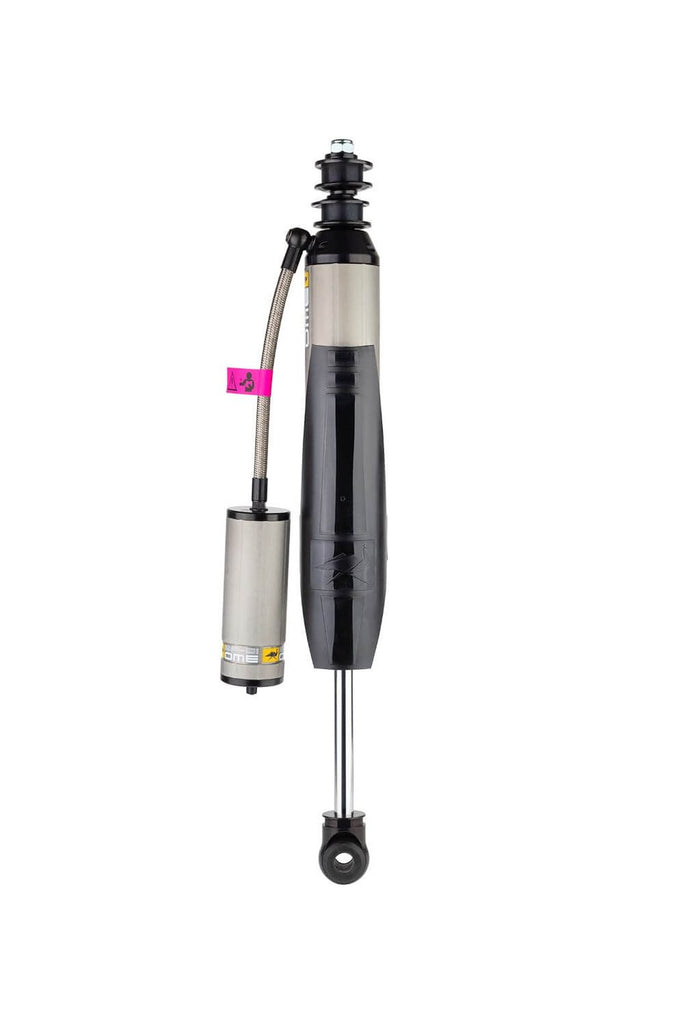

ARB BP-51 Hydraulic Shock Absorber (MPN: BP5160026)

Enhanced Comfort and Control for Your Vehicle

The ARB BP-51 Hydraulic Shock Absorber is engineered to provide superior comfort and control for a variety of driving conditions. This high-performance bypass shock absorber is designed specifically for your vehicle, ensuring a seamless fit and easy installation without the need for modifications. With independent adjustment for both compression and rebound, the BP-51 allows for personalized ride customization to meet your specific driving needs.

Features

• High-performance bypass design for optimal comfort and control
• Engineered and tested in-house by ARB's Old Man Emu ride engineers
• Comfortable ride during everyday driving and enhanced control on challenging terrain
• Constructed from aircraft-grade anodized aluminum for efficient heat dissipation and corrosion resistance
• Thorough lab and real-world testing to ensure reliability and performance
• Simple installation using existing mounting locations

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5160026
• Type: Hydraulic
• With Coil Spring: No
• Extended Length: 23.85 inches
• Compressed Length: 15.27 inches
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Valving Type: Independent Compression and Adjustable Rebound Valving
• Body Material: Aluminum
• With Reservoir: Yes
• Includes Boot: No
• Estimated Install Time: 0.5 hours

Technical Documents

VM90010025_BP-51_LC200_Rear_KDSS_RevB.pdf

VM90010024_BP-51_LC200_Rear_RevB.pdf

ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf

ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf

ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf

Product Videos
