Enhanced Comfort and Control for Off-Road Adventures

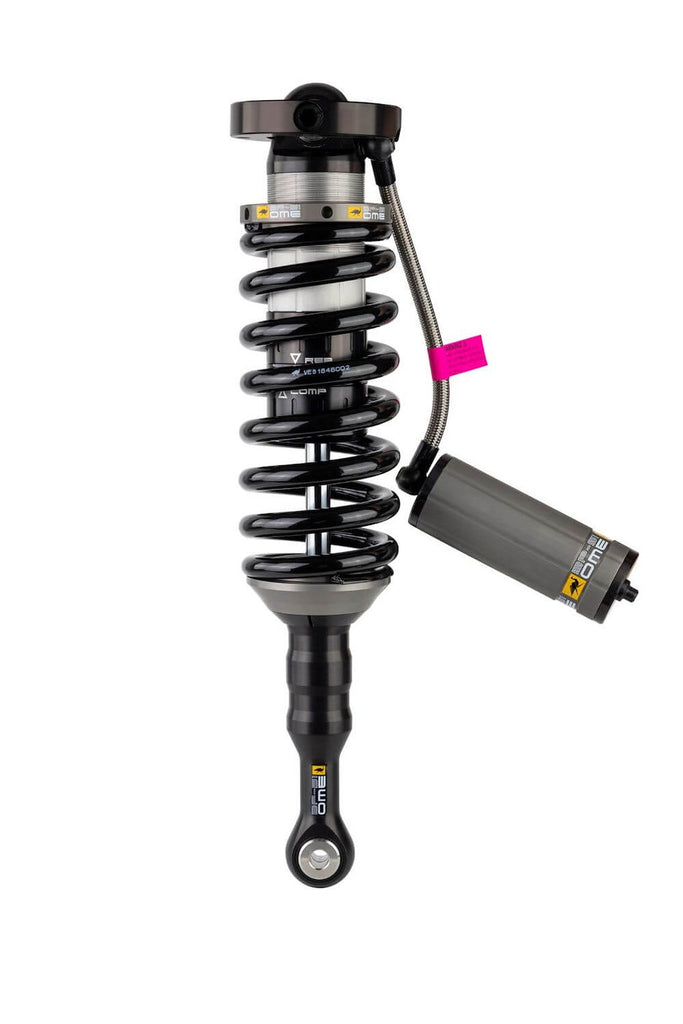

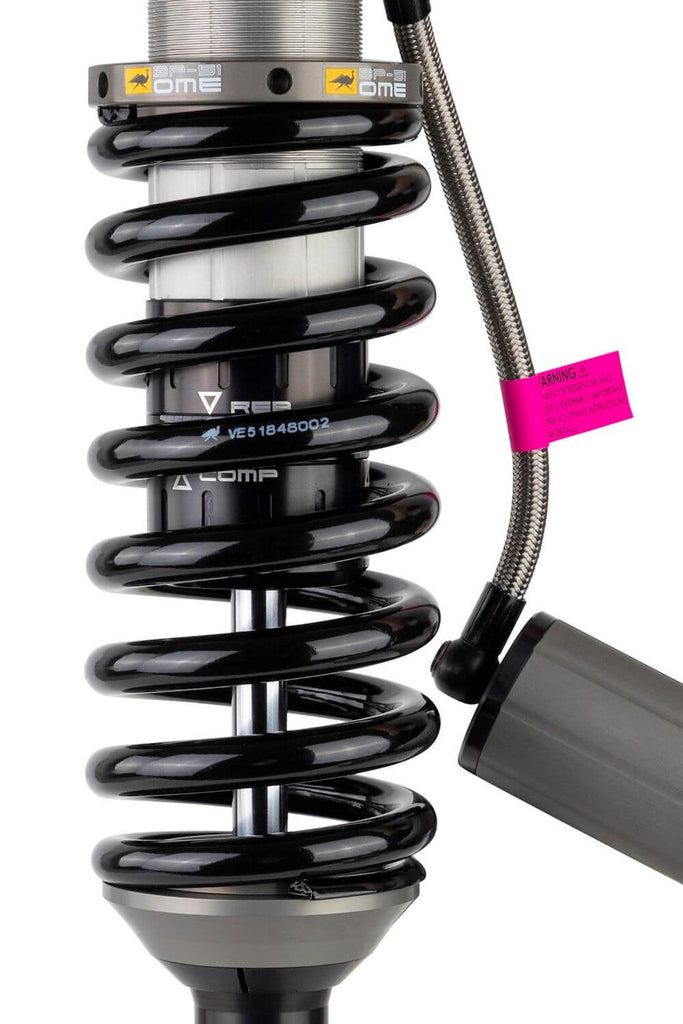

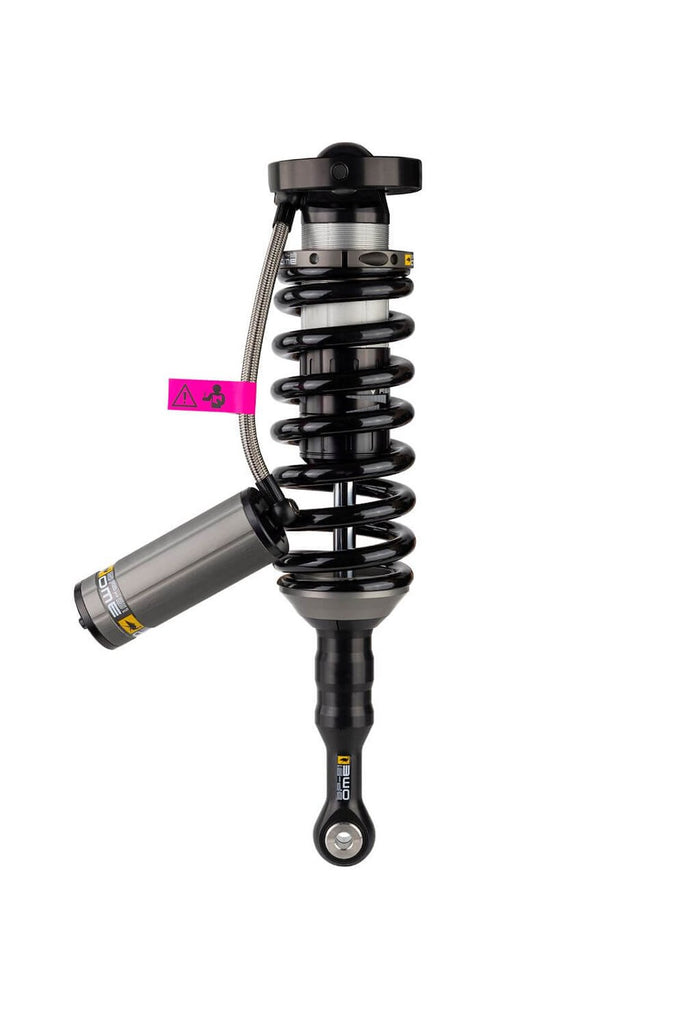

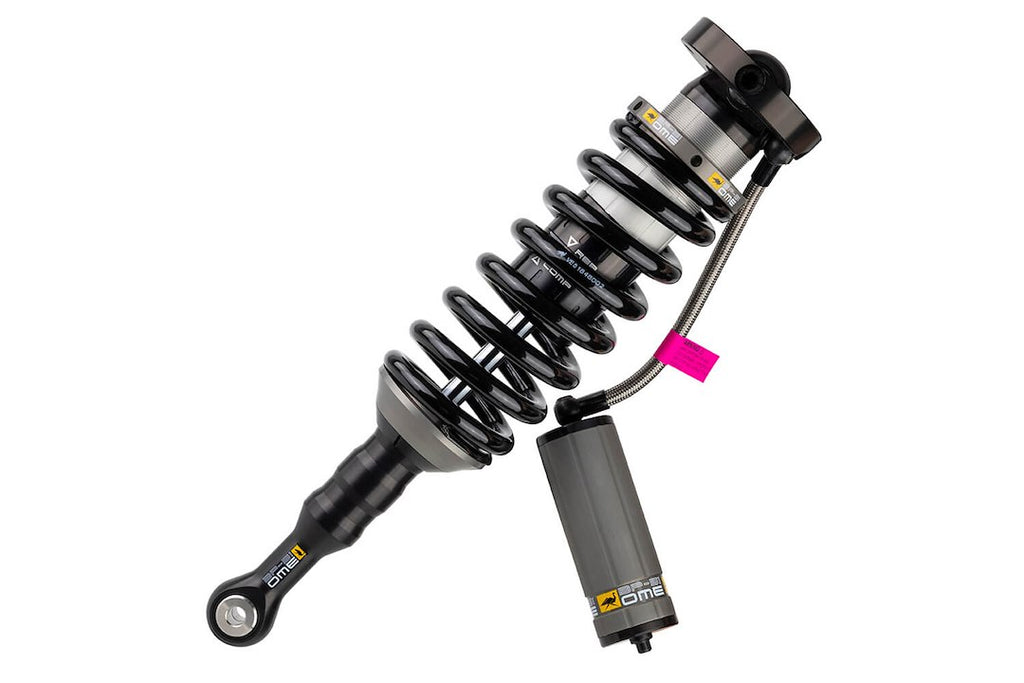

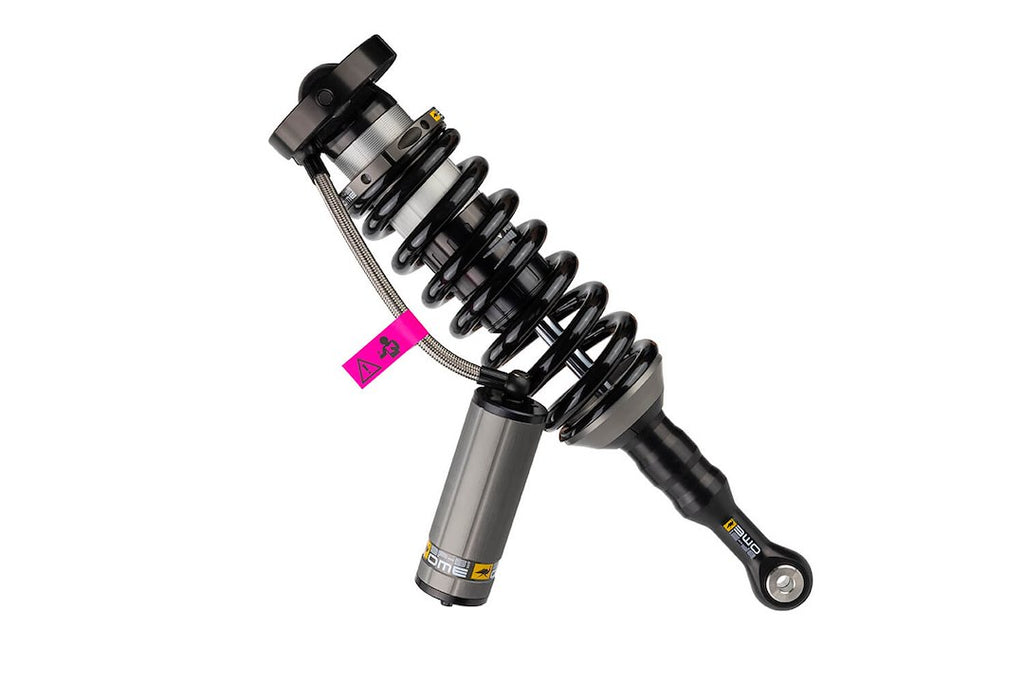

The ARB BP-51 Coil Over Shock Absorber is engineered to provide superior comfort and control for off-road vehicles. This high-performance shock absorber features independent compression and rebound valve adjustments, allowing for precise tuning to meet specific driving conditions and preferences. Designed and tested by ARB's Old Man Emu ride engineers, this product ensures easy installation using existing mounting locations, eliminating the need for additional modifications.
Features
- Kidney bypass ports for maximum bore size and greater oil volume, enhancing tunability and force generation
- External compression and rebound adjustment, allowing for independent tuning while installed on the vehicle
- Constructed from 661 T6 aluminum for excellent heat dissipation and corrosion resistance
- Internal bypass, shim-controlled, position-sensitive damping for improved comfort and control
- Dash 6 high-temperature Teflon hose with high flow fittings to prevent oil flow restrictions
- High-quality X5K grade steel coil for durability
- Impact-resistant, replaceable shaft guard to protect against stone damage
- 1 percent rebuildable and re-valveable for extended longevity and tuneability
- High-performance, high viscosity index oil for consistent performance
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5190002R
- Adjustable: Yes
- Upper Mounting Type: Eyelet
- Lower Mounting Type: Eyelet
- Front/Rear Drop: 3 Inch Lift
- Extended Height: 21.45 Inch
- Compressed Height: 17.28 Inch
- Quantity: Single
- Valving Type: Compression and adjustable rebound valving
- Shock Type: Coil Spring
- Shock Body Color: Black/Gray
- Shock Body Material: Aluminum
- Spring Style: Single Flat End
- Spring Color: Black
- Spring Material: Aluminum
Technical Documents
BP5190004L_BP5190002R_FittingInstructions.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
Product Videos
Compatibility/Fit
- 2010-2014 Toyota FJ Cruiser
