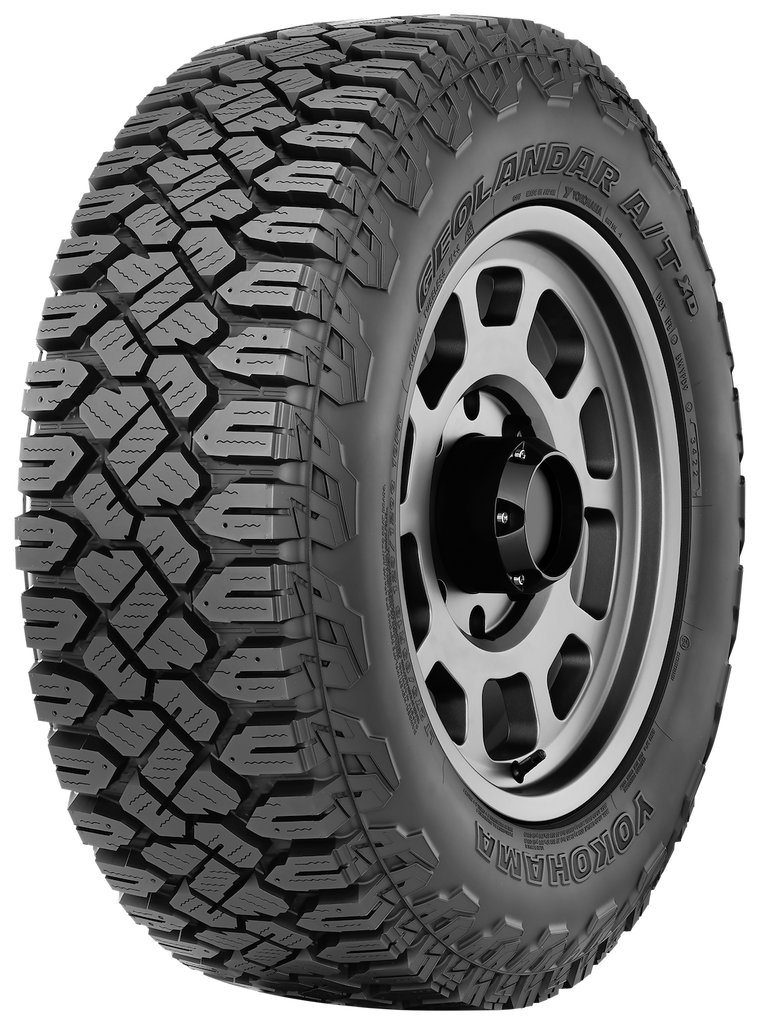

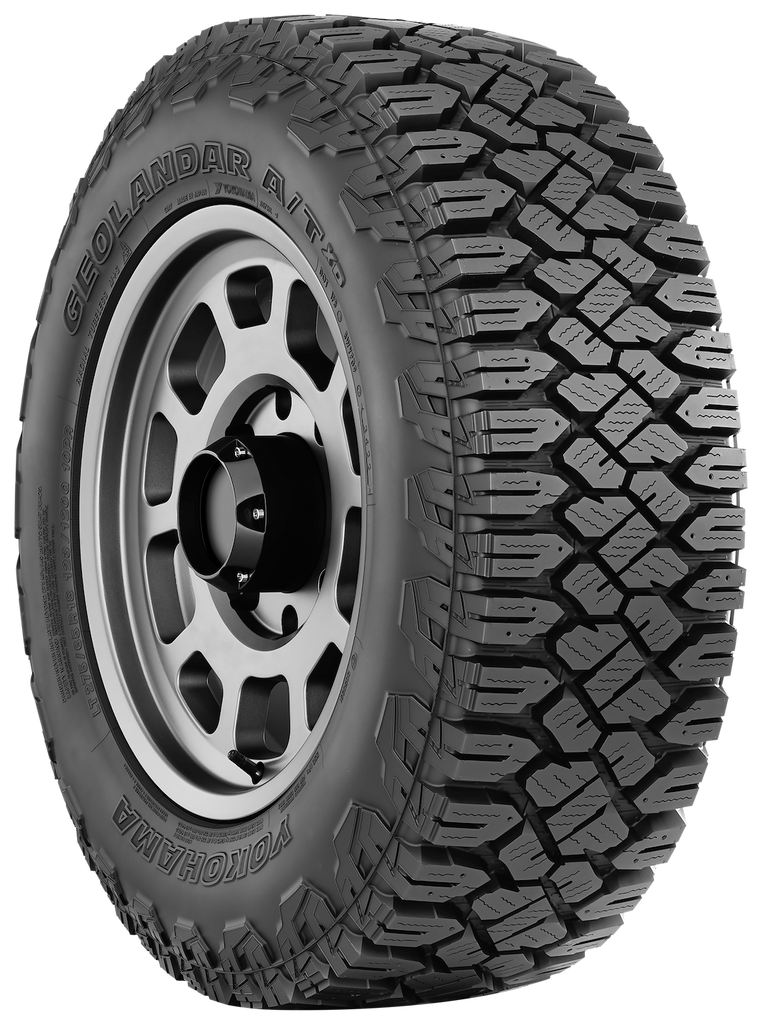

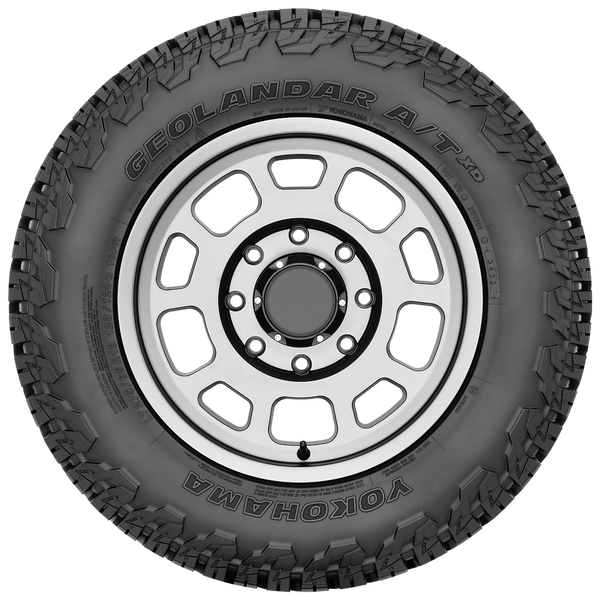

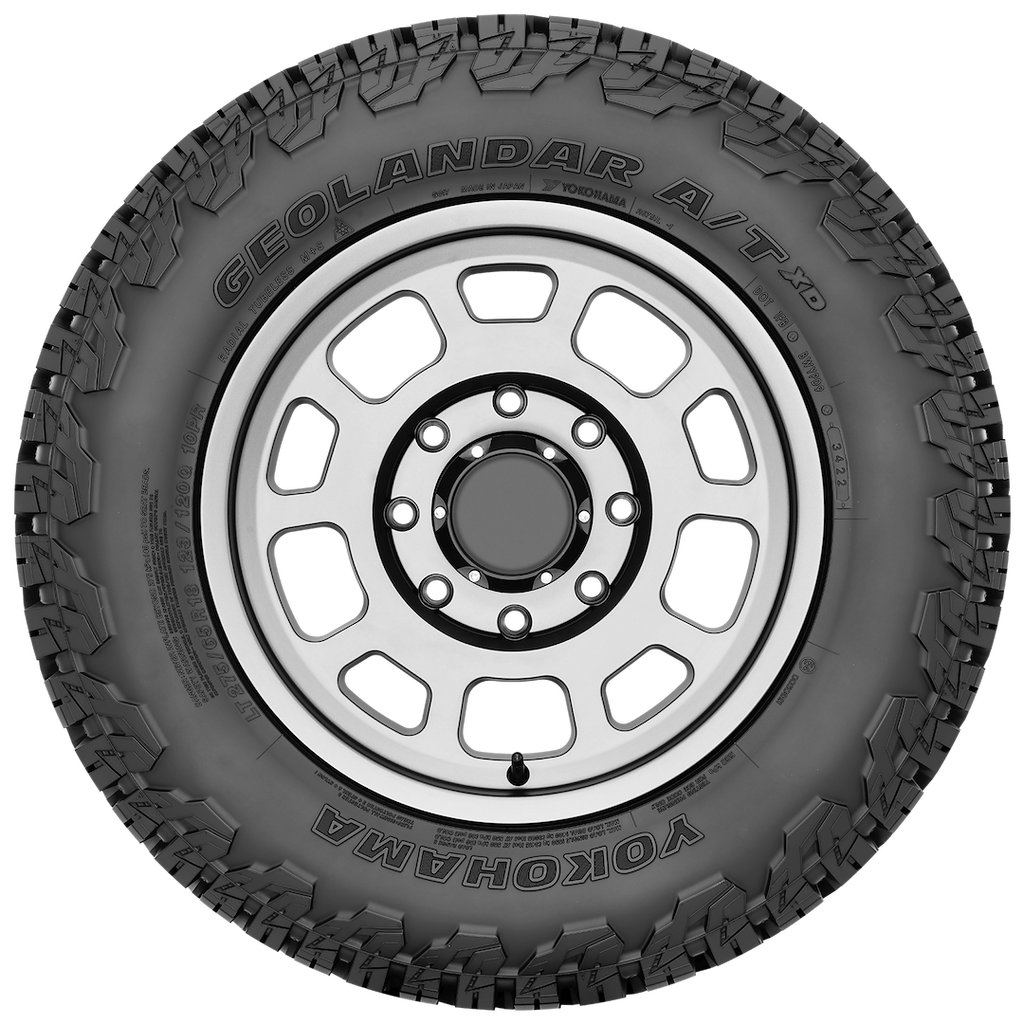

Yokohama GEOLANDAR A/T XD Tire (MPN: 110117126)

Durable all-terrain tire for year-round performance and reliability.

The Yokohama GEOLANDAR A/T XD is a robust all-terrain tire designed for full-size pickup trucks and commercial vans, ensuring exceptional durability on both on-road and off-road surfaces. This tire features GEO-SHIELD technology and sidewall armor, which provide enhanced protection against impacts and punctures, making it suitable for demanding job site conditions. With a non-directional tread design and aggressive pattern, it delivers powerful traction in various weather conditions, including winter, while maintaining all-season performance.

Constructed with a 3-ply sidewall and a full nylon cap, the GEOLANDAR A/T XD offers reliable protection and merciless traction. The optimized void-to-lug ratio, combined with hundreds of wavy sipes, ensures effective all-weather grip. Additionally, the tire is designed to accommodate optional studs for improved winter traction. Its high level of natural rubber in the compound enhances cut and chip resistance, contributing to a long tread life without compromising performance.

This tire is DOT approved and features a maximum load rating of 3638 pounds for single tire use, with a speed rating of 99 MPH. It fits wheels ranging from 8.5 to 10.0 inches wide and has a tread depth of 19/32 inches. The Yokohama GEOLANDAR A/T XD is engineered to meet the needs of drivers seeking a reliable tire that performs well in diverse conditions.

Features

• Creates A Bold New Look And Provides Protection From Lateral Impacts
• 3-Ply Sidewall, Full Nylon Cap, And High Turn-Up Carcass Assure Merciless Traction And Reliable Protection
• Carries The Three Peak Mountain Snowflake Symbol

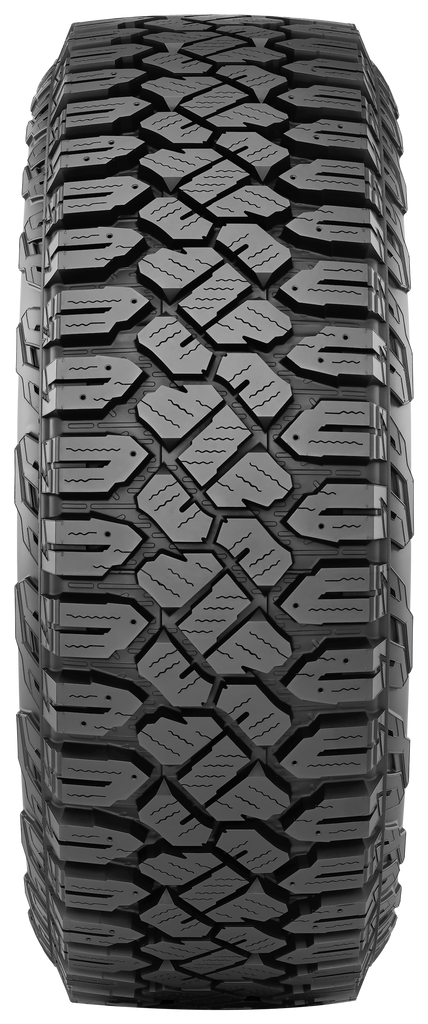

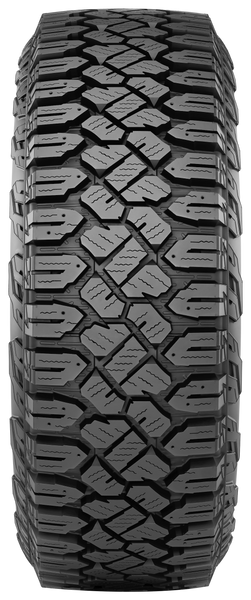

• Aggressive Tread Design: Hundreds Of Wavy Sips Combined With An Optimized Void To Lug Ratio Provide Powerful All-Weather Traction
• Add Optional Studs For Confident Winter Traction
• Built To Provide Long Tread Life Without Compromising All-Weather Performance
• Optimized Compound Has A High Level Of Natural Rubber To Provide Long Tread Life And Enhance Cut And Chip Resistance
• Lateral Protrusions In The Void Area Protect Against Stone Drilling, Keep The Grooves Clear And Prevent Block Tearing

Specifications

• Manufacturer: Yokohama
• Manufacturer Part Number: 110117126
• Size Metric: LT-285-60-20
• Tire Type: LT
• Section Width Metric Tire: 285
• Aspect Ratio Metric Tire: 60
• Size Non Metric: LT-33.50-11-20
• Tire Diameter Non Metric Tire: 33.50
• Section Width Non Metric Tire: 11
• Wheel Diameter: 20
• Construction: Radial
• Tire Type Description: Passenger Car
• Tire Segment: Touring All Season
• Load Range: E = 10 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3638
• Speed Rating: Q
• Size Metric Display Size: LT 285 60 20
• Size Non Metric Display Size: LT 33.50 11 20
• Construction Material: Nylon Belted
• Compound: Not Applicable
• Studs: Not Applicable
• Sidewall Design: Black Sidewall
• Minimum Rim Width: 8.5
• Maximum Rim Width: 10
• Service Rating: 125/ 122Q
• Max Load Rating (Dual Rear Wheel Use): 3307
• Speed Rating MPH: 99-MPH
• Sidewall Construction: 3 Ply
• Directional Tread Design: Non Directional
• DOT Compliant: DOT Approved
• Overall Section Width: 11.60
• Tread Depth: 19/32
• Max Inflation Pressure: 80 PSI
• Overall Diameter: 33.5
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: First 2/32 Inch Of Tread Wear
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1988-1995 GMC C2500
• 1988-2000 GMC C3500
• 1992-2000 GMC K3500
• 1987-1988 GMC R3500
• 1990-1991 GMC R3500
• 2016-2021 Ram 2500
• 2023-2026 Ram 2500
