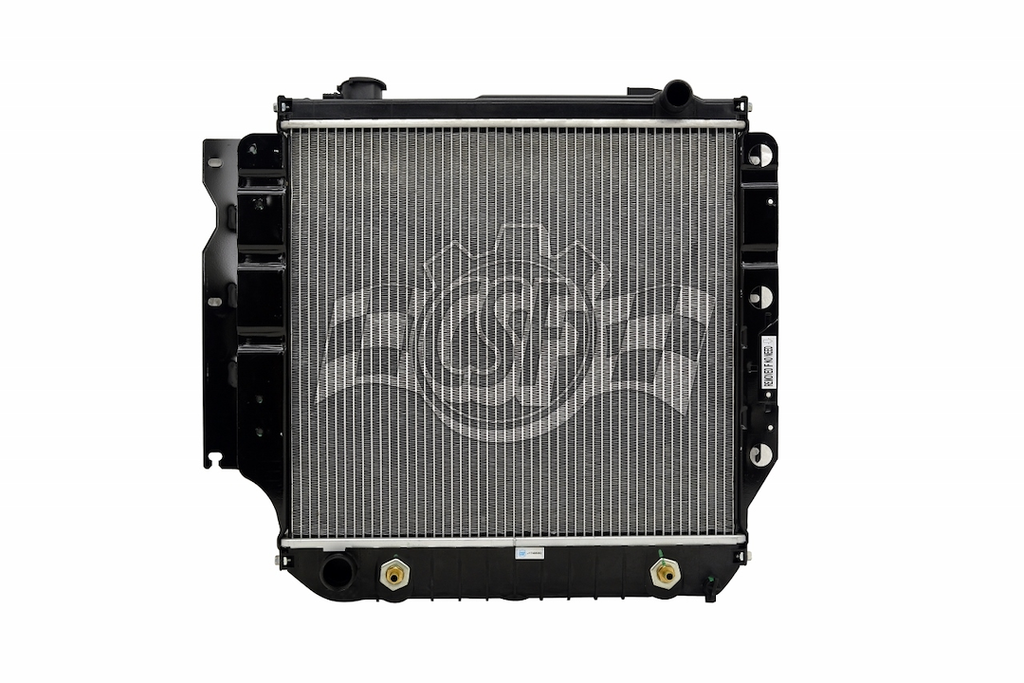

CSF Radiator (MPN: 3244)

High Performance Cooling Solution

The CSF Radiator 3244 is engineered for optimal cooling performance, featuring a robust aluminum core and a single row design. This radiator is designed to meet OEM specifications, ensuring a reliable fit and function for your vehicle. With over 50 years of experience and more than 30 million units sold globally, CSF is a trusted name in automotive cooling systems.

Features

• OEM specified plastic tank and aluminum core construction
• Tanks made from virgin grade engineered plastic resins for enhanced strength and durability
• Gaskets constructed from special grade EPDM rubber to withstand extreme temperatures up to -120 degrees Fahrenheit
• Welded type or latest generation B-tube design for efficient fluid flow
• High performance multi-louvered fins designed to OEM specifications
• 100 percent leak tested at 150 percent of operating pressure before leaving the factory
• Drop-in fit for easy installation
• High performance transmission cooler with built-in turbulator, when applicable
• All components are installed, torqued, and tested during assembly

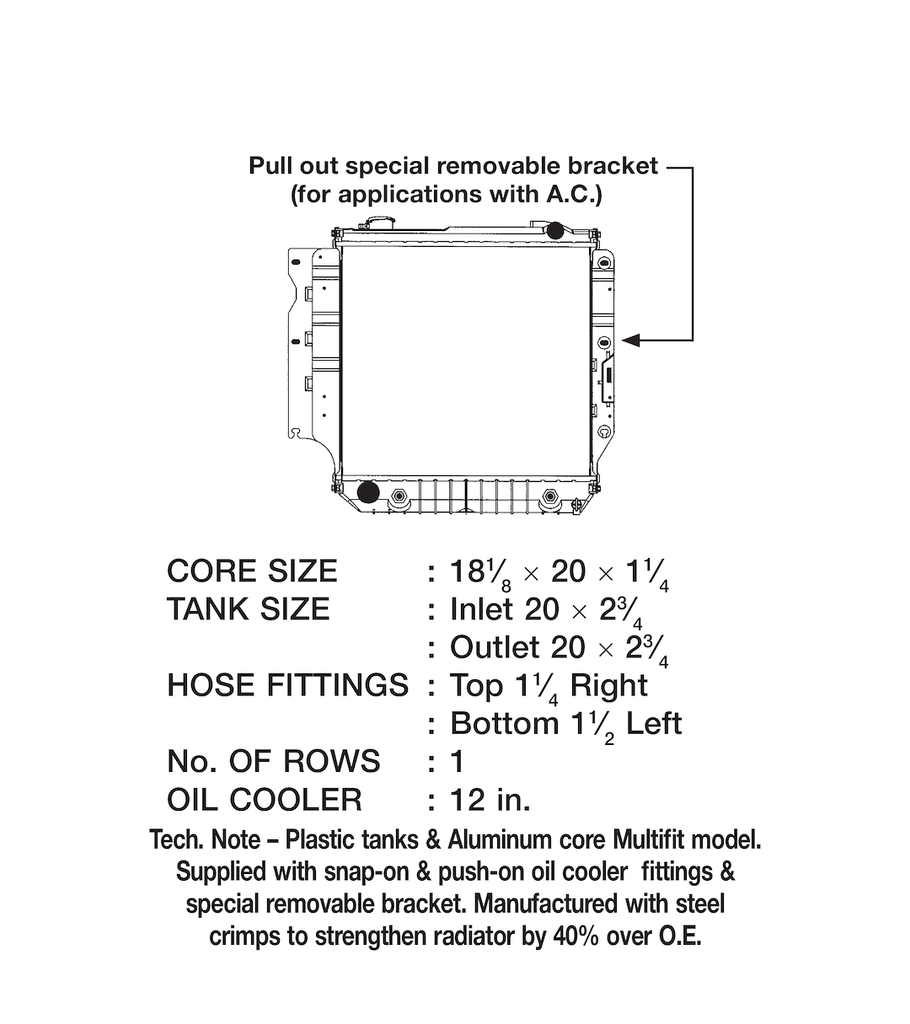

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3244
• Flow Direction: Down Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-15/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-15/16 Inch
• Finish: OEM
• Color: Silver
• Core Length (IN): 18-1/8 Inch
• Core Height (IN): 19-5/8 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No
