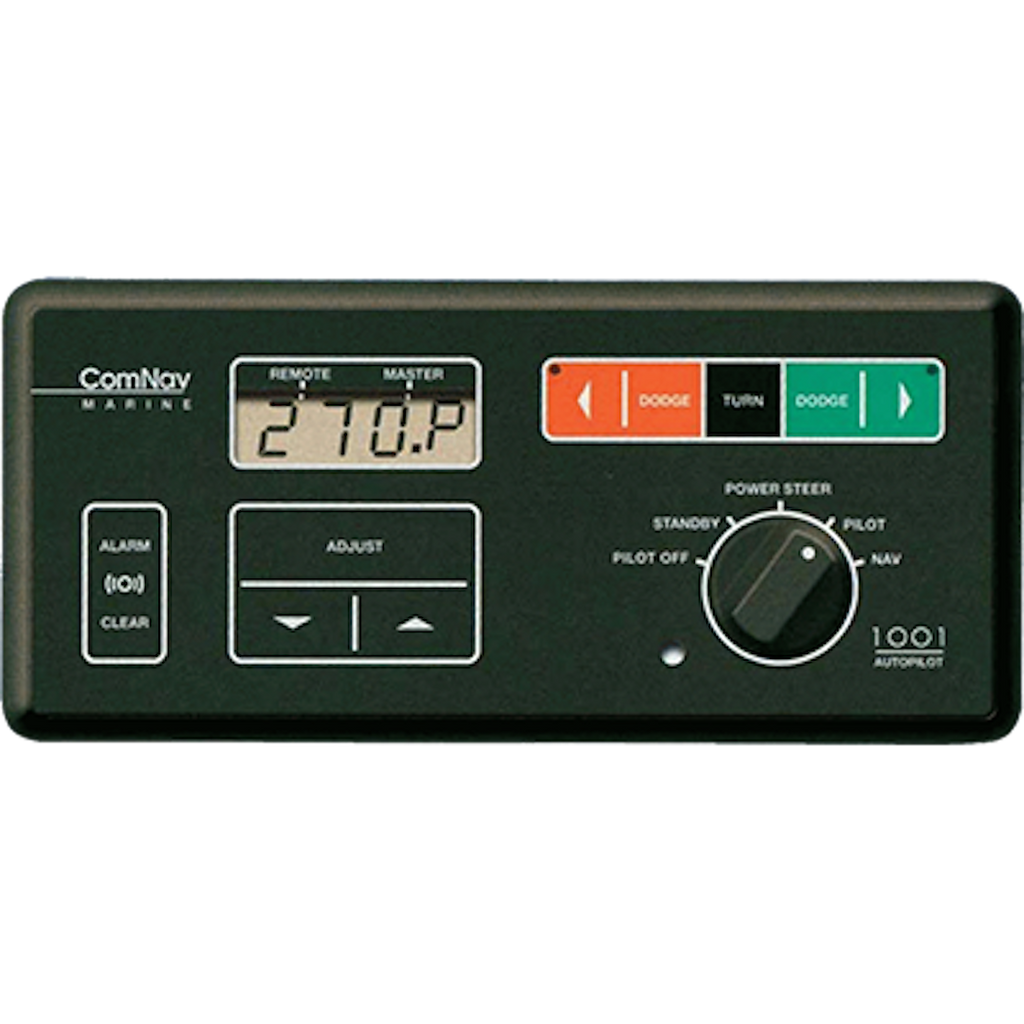

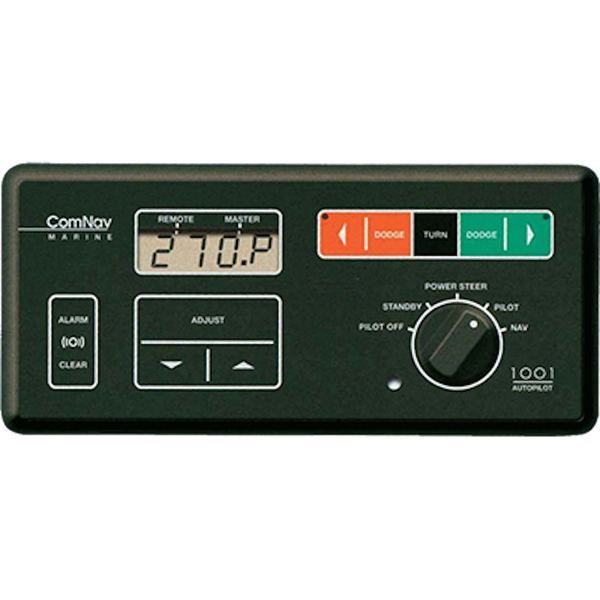

Comnav 1001F Autopilot Electronics Package (MPN: 10040002)

Advanced Autopilot System for Enhanced Navigation

The Comnav 1001F Autopilot Electronics Package is engineered for a diverse range of vessels, from small recreational boats to larger workboats. This system features a fluxgate compass interface that allows compatibility with existing third-party compasses, providing a cost-effective solution for upgrading your navigation system. The 1001F is designed to integrate seamlessly with various steering systems, making it an excellent choice for retrofitting older setups.

Features

• Three operational modes: Continuous, Emergency, and "U" Turns
• Water-resistant control head for durability
• Capability to add a full-function second station or remote control
• Automatic trim with adjustable yaw, turn rate, and rudder settings
• Simple course adjustments, from minor to significant changes
• Fast and Slow Modes can be automatically activated by navigation devices
• Ten selectable steering parameters for both Fast and Slow Modes
• Digital display of rudder angle; accepts NMEA 0183 information
• Output for optional analog rudder angle indicator, supporting up to four stations
• Backlit LCD display with adjustable brightness and contrast for optimal visibility

Specifications

• Manufacturer: Comnav
• Manufacturer Part Number: 10040002
• Compass: Interface for use with third-party, pre-existing fluxgate compass
• Control Type: Pushbuttons
• Dimensions: Control head measures 8.0"W x 3.26"H x 3.6"D
• Display: 2" LCD
• Drive Unit: Not included
• Interface: 1 NMEA 0183 in/out
• Processor: Integrated within the control head; optional motor drive controller required
• Remote Options: Optional second station, rudder angle indicator, jog lever
• Rudder Feedback: Rotary (PN: 20330008)
• Steering Type: Compatible with hydraulic or constant-running (solenoid) systems
• Vessel Size: Suitable for mid-sized powerboats up to 60'
