Efficient Circuit Protection with Easy Installation

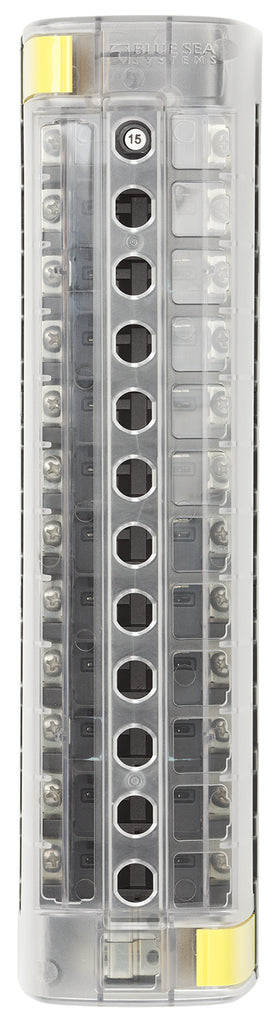

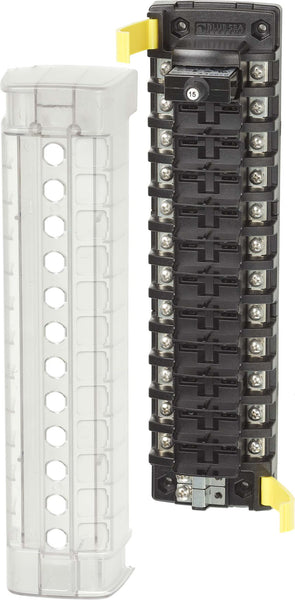

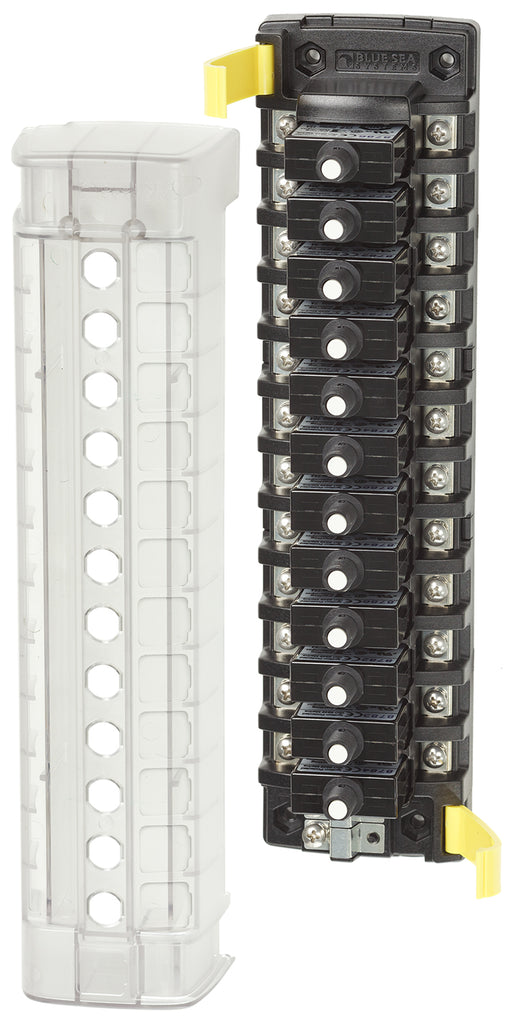

The Blue Sea Circuit Breaker Block offers a reliable solution for circuit protection with its 12-position independent source design. This block is engineered for maximum operating current of 32 amps per circuit and 40 amps for jumped circuits, making it suitable for various applications. Its snap-in mounting feature simplifies installation, allowing for a user-friendly experience comparable to that of a fuse.
Features
- Quick connect clips enable circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals for enhanced conductivity
- Clear insulating cover with square format label recesses meets ABYC/USCG insulation requirements
- Easy-to-open clip on cover for convenient access
- Breakouts allow wire access in two directions for flexible installation
- Accepts ring terminals for secure connections
- Optional push button waterproof boots or dress nuts can be installed over the cover
- Designed for straightforward installation
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 5051-BSS
- Number of Circuits: 12 Position Independent Source Without Ground Base
- Ampere Rating: 32 Amp Per Circuit / 40 Amp Per Jumped Circuit
- Voltage Rating: 32 Volt DC
- Operating Temperature: -10 Degree Celsius to 60 Degree Celsius
- Mounting Type: Snap-In
- With Insulating Cover: Yes
