Enhanced Suspension Performance for Optimal Control

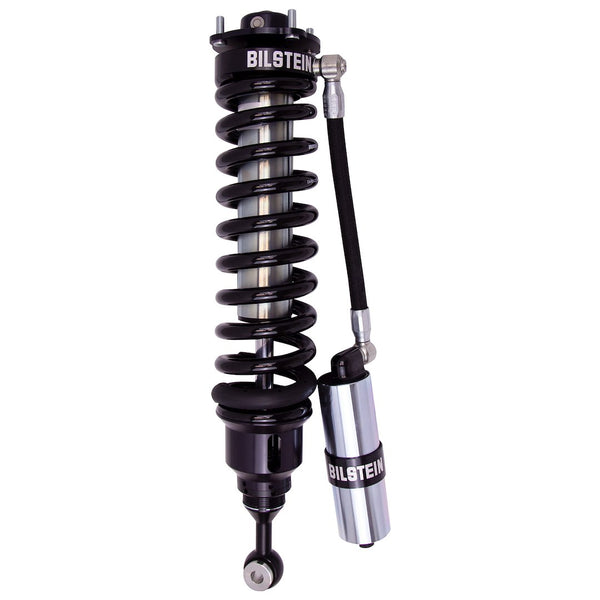

The Bilstein B8 8112 Coil Over Shock Absorber is engineered to provide superior suspension performance, combining advanced technology with a direct fit design. This shock absorber features adjustable ride height and position-sensitive damping, ensuring a comfortable driving experience while maintaining maximum control during demanding conditions.
Features
- ZoneControl CR technology offers position-sensitive damping with three compression zones and two rebound zones, managed by three independent pistons.
- Superior bottom-out control is achieved through a two-stage telescoping internal compression stop, eliminating the need for an external hydraulic bump stop.
- A secondary rebound stop dissipates spring energy and stabilizes the suspension after significant compression events, while the internal rebound stop prevents harsh top-out occurrences.
- The triple piston design enhances comfort during everyday driving and provides maximum control under large suspension inputs.
- Adjustable threaded spring seat allows for precise ride height tuning.

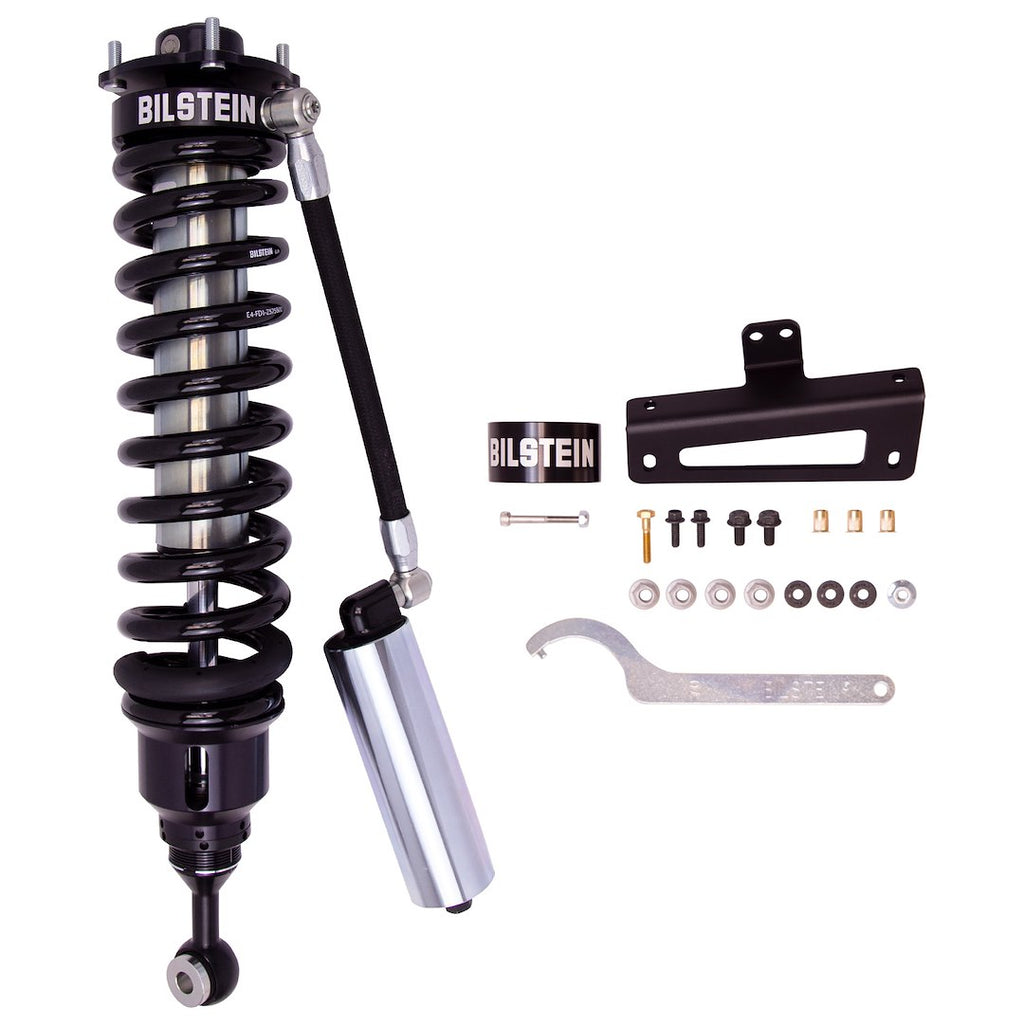

- A 60-millimeter remote reservoir increases oil capacity and cooling efficiency, with the coilover supplied as a complete module for straightforward installation. The spring is pre-loaded to the factory recommended ride height.
- Vehicle-specific design and tuning optimize wheel travel and clearance for the ultimate driving experience.
- Aerospace-quality components ensure durability and performance in harsh off-road conditions.

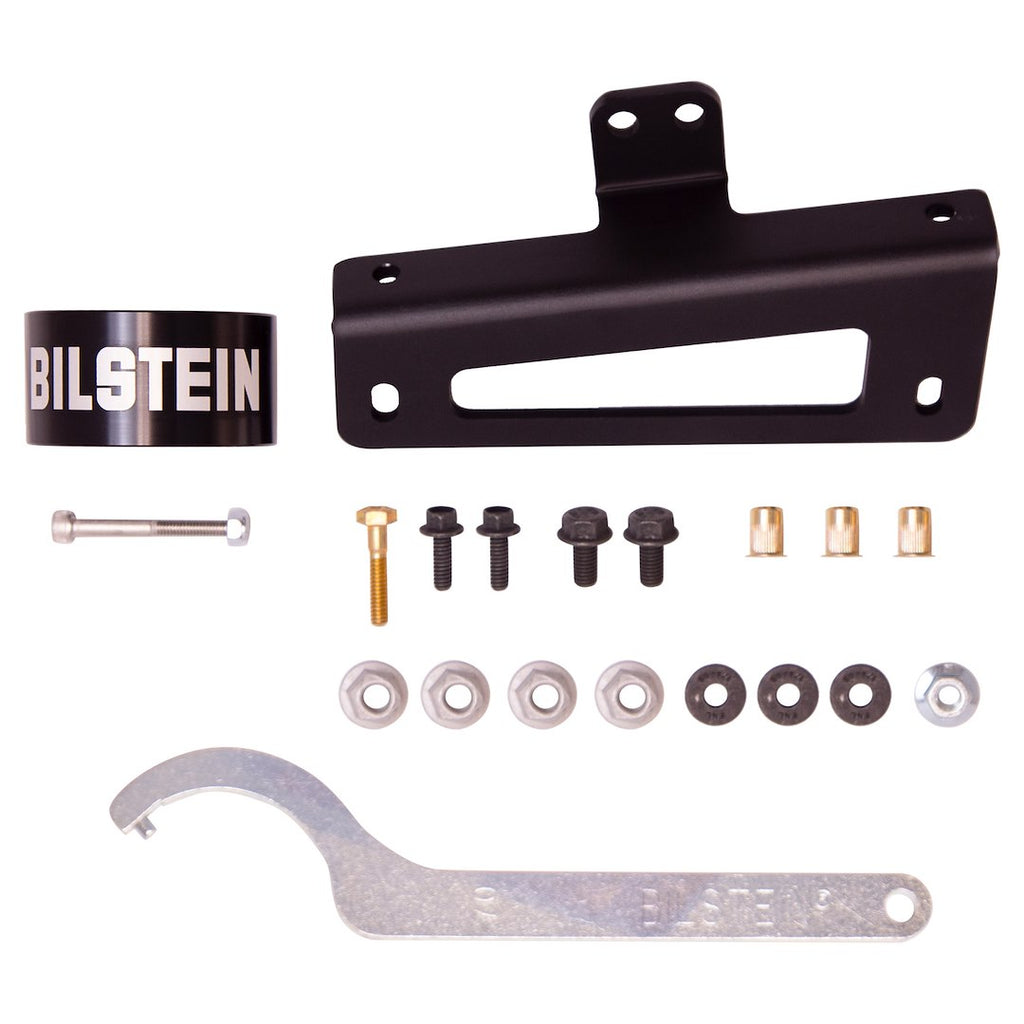

- High-quality chrome 5/8 inch heim joint mounting with rubber-sealed misalignment spacers provides a robust load-bearing mount solution.
- Aluminum components and zinc-plated shock bodies resist the elements encountered in off-road environments.
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 41-284544
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting Type: Eyelet
- Front/Rear Drop: 2-1/4 to 3-1/4 Inch
- Extended Height: 25.79 Inch
- Compressed Height: 19.43 Inch
- Quantity: Single
- Valving Type: 3 Stage Compression Valving
- Shock Type: Gas Charged
- Shock Body Color: Silver
- Shock Body Material: Steel
- Spring Color: Black
- Includes Mounting Hardware: No
Technical Documents
USA_SDS_Shock_Air_Spring_V2_EN.pdf
USA_SDS_Shock_Air_Spring_V2_EN.pdf
Product Videos
Compatibility/Fit
- 2007-2021 Toyota Tundra
